Use of Dot Blots Analysis in the Separation of Anti-HIV Antibodies in Animals

Angel Alberto Justiz Vaillant1*, Norma McFarlane-Anderson2, Patrick Eberechi Akpaka1, Monica P Smikle3, Niurka Ramirez4 and Armando Cadiz5
1Department of Para-Clinical Sciences, Faculty of Medical Sciences, The University of the West Indies, St. Augustine, Trinidad and Tobago, E-mail:
2Department of Basic Medical Sciences, The University of the West Indies, Mona campus, Jamaica, E-mail:
3Department of Microbiology, The University Hospital of West Indies, Mona campus, Jamaica, E-mail:
4Department of Internal Medicine, Freyre de Andrade Hospital, Havana city, Cuba, E-mail:
5Carlos J. Finlay Vaccine and Serum Institute, Havana, Cuba, E-mail:
*Corresponding Author: Angel Alberto Justiz Vaillant, Department of Para-Clinical Sciences, Faculty of Medical Sciences, The University of the West Indies, St. Augustine, Trinidad and Tobago Email:


In this study antibodies against the fragment 254-274 from gp120 of human immunodeficiency virus (HIV) were produced in cats, rats and chicken that can be used as reagents in the preparation of diagnostic kits. Enzyme linked immunosorbent assay showed the presence of anti-HIVgp120 antibodies. Dot blot analysis was used as a separation technique and confirmed the results, proving its efficiency in the detection of proteins. This study also demonstrated that orally given antibodies to an animal as oral vaccine, initiated immune responses of the antibodies in the animals which may be useful for protection, antibody purification and development of reagents for immunodiagnostic procedures.

Keywords: Dot blots analysis; HIV Anti-Gp120 Antibody; ELISA; Separation; Proteins; Immunization


A dot blot is a technique in molecular biology used to detect biomolecules, and for detecting, analyzing, and identifying proteins. It represents a simplification of the Northern blot, Southern blot, or Western blot methods. The technique offers significant savings in time, as chromatography or gel electrophoresis, and the complex blotting procedures for the gel are not required. However, it offers no information on the size of the target biomolecule [1].

Production of anti-HIV antibodies in animals is a safe alternative in the development of reagents to be used in enzyme-linked immunosorbent assays (ELISA), western blotting and dot blots used to diagnose HIV infections in human [2]. The antibodies can be used unlabeled or labeled to enzymes and other molecules. It is an alternative to the use of human antibodies purified from the serum of HIV positive patients for the development of diagnostic kits. In the present work we produced antibodies in 3 animal species: cats, rats and chickens and we separated the antibodies by dot blot analysis using peroxidase-labeled HIV proteins conjugate as a probe. The purified antibody could be used in the diagnosis or as a new avenue of therapy for HIV+ patients.

Materials and Methods

Development of anti-HIV antibodies in chickens

Preparation of HIV immunogens: This study which was carried out at the Biochemistry laboratory of the University of the West Indies, Mona, Jamaica used a peptide fragment of gp120 from HIV-HIV gp120 (254-274): Cys-Thr-His-Gly-lle-Arg-Pro-Val-Val-Ser-Thr-Gln-Leu- Leu-Leu-Asn-Gly-Ser-Leu-Ala-Glu [3]; that was conjugated to keyhole limpet hemocynin (KLH) by the glutaraldehyde method as previously described in literature [4].

Chicken immunization with KLH-gp120 HIV fragment (254- 274): Two healthy layer chickens (brown Leghorn), aged approximately 6 months, were injected intramuscularly at multiple sites on the breast with the peptide-KLH conjugate and they were immunized on day 0, 15, 60 and so on as described previously [5]. The eggs were collected post-immunization to test for anti-HIV antibodies. The separation of chicken immunoglobulin-Y (IgY) from the egg yolk was performed by the method of Polson [6]. Briefly, the eggs were washed with warm water and the egg yolk was separated from the egg white. The membrane was broken and the egg yolk collected and diluted 1:3 in phosphate buffered saline (PBS), pH 7.4. To 1/3 of the egg yolk mixture an equal volume of chloroform was added, the mixture was then shaken and centrifuged for 30 min (1000×g) at room temperature (RT). The supernatant was decanted and mixed with PEG 6000 (12%, w/v), stirred and incubated for 30 min at RT. The mixture was then centrifuged as previously described. The precipitate containing IgY was dissolved in PBS (pH 7.4) at a volume equivalent to 1/6 of the original volume of the egg yolk and dialyzed against 1L of PBS (pH: 7.4 for 24 h at 4°C). The IgY was removed from the dialysis tubing. IgY concentration was determined by the Bradford method. IgY samples were stored at –20°C.

Development of anti-HIV antibodies in cats and rats

Anti-gp120 positive eggs were fed to adult cats, 2-3 years old (1 male and 4 female). Each cat received on average, of 2 eggs diluted in 5 volumes of soya milk weekly for 10 weeks. Whole egg was fed to rats (2-3 ml) by gastric intubation; weekly for 9 weeks and during the last week, they were fed daily. Serum from cats and rats were obtained after the feeding programme for determination of anti-HIV antibodies using method that had been previously described in literature [7].

Enzyme-linked immunosorbent assay for detection of anti- HIV antibodies (ELISA)

The 96 well polystyrene microplates (U-shaped bottom) were coated with 50 ng of the synthetic gp-120 peptide in coating buffer overnight at 4°C. The microplates was washed 4X (PBS-Tween-20) and blocked (3% non-fat milk in PBS, 25 μl/well, 1h, RT). The microplates was washed 4X (PBS-Tween-20) and triplicates of 25 μl of IgY (1 mg/ml), 25 μl of sera from cats or rats diluted 1:16 in PBS-non fat milk were added. After incubation for 2 h at RT the microplates was washed 4X and 25 μl of a universal conjugate SpLAG-anti-IgY-HRP (comprised of peroxidase labelled-IgY chemically coupled to protein A, protein G and protein L) [7] diluted 1:1000 was added and incubated for a further 1 h at RT. Then, the microplats were washed 4X. After that 3,3’,5,5’-tetramethylbenzidine (Sigma Chemical Co., St Louis, MO, USA) solution (50 μl) was used. After a further incubation of 15 min in the dark, the reaction was stopped when positive controls were coloured and inspected for colour development in positive samples and no colour in negative samples. Positive controls were from a positive human serum for anti-HIV antibodies, negative controls were from a turtle serum (Sigma Chemical Co., St Louis, MO, USA) and blanks 0.9% normal saline solution.

Dot-blot analysis for anti-HIV antibodies

Briefly, 2 μl of 1:2 dilutions of chicken IgY or 2 μl of serum from rats and cats were dotted onto nitrocellulose paper placed in a Bio- Dot SF apparatus (Bio-Rad Laboratories, Richmond, CA, USA). The membrane was blocked with 5 μL/well of fetal bovine serum with 1% Tris buffer saline. Then 5 μL of a commercial conjugate (peroxidaselabeled HIV proteins; Murex Diagnostics, Norcross, USA) was added and allowed to drain by gravity. Finally, 5 μL of the substrate 3,3’,5,5’-tetramethylbenzidine (Sigma Chemical Co., St Louis, MO, USA) was added and the mixture was incubated for 20 min. The reaction was stopped by washing the wells with distilled water under a vacuum. The membrane was left to dry for the final color visualization reading using previously described method [8].

Ethical approval

The study was approved by the Ethics committee of the Faculty of Medical Sciences, The University of the West Indies, Mona, Jamaica.


The results of the study is depicted in table 1 that shows the ELISA giving a positive reaction for anti-HIV antibodies in samples from chickens, cats and rats as they all developed color reactions. And as illustrated in the Figure below, the results revealed that dot blot analyses were efficient and useful in detecting the proteins as they were separated during the process or reactions (Figure 1).

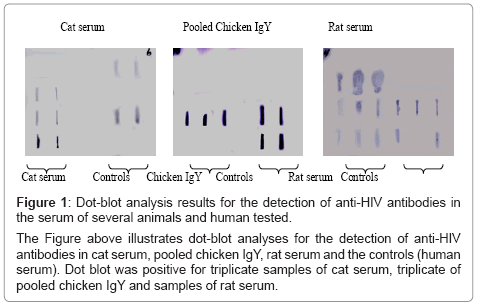

Figure 1: Dot-blot analysis results for the detection of anti-HIV antibodies in the serum of several animals and human tested.

Sample tested Color development (+/-) Results
Chicken IgY + Positive
Cat serum + Positive
Rat serum + Positive
Human serum (positive control) + Positive
Turtle serum (negative control) - Negative

Table 1: Enzyme-linked immunosorbent assay for detection of anti-HIVgp120
antibodies in specimens of chickens, cats and rats.


The ELISA was successfully in the detection of anti-HIV antibodies and the Dot blot analysis confirmed the results and therefore proved efficient in the separation of anti-HIV antibodies against the fragment 254-274 from gp120 of human immunodeficiency virus. The dot blot can be used for the separation of a specific protein in serum, saliva, hybridoma culture supernatants and other fluids. It is not seen among the most usable separation techniques, but it is very sensitive and specific, and can be used for many immunological research projects where such is needed the separation of an analyte, as well as western blotting, northern blotting and southern blotting.

Dot blot analysis has been used in the selection and characterization of DNA aptamers (or DNA piece for hybridization) for use in detection of avian influenza virus H5N19 [9] and as diagnostic technique was used in a screening test for the detection of anti-HIV-1 IgA in young infants [9]. Frequently this technique is underutilized or is not frequently used because it cannot assess the molecular weight of macromolecules, but it is simple to perform and is useful when a particular biomolecule needs to be identified. In this study, dot blot analysis was used for detection of anti-HIV antibody, and it is available for determination or separation of any protein. It can be very useful in the immunodiagnosis of infectious diseases caused by viruses [10] and bacteria [1,11,12], in addition of determining specific DNA sequences by using probes [10].


Dot blot analysis proves effective in separating HIV anti-gp120 antibodies in several animal species including chickens, cats and rats. These antibodies can be used as reagents in the development of immunodiagnostic tests or as oral vaccines.


  1. Cardona-Castro N, Agudelo-Florez P (1998) Immunoenzymatic dot-blot test for the diagnosis of enteric fever caused by Salmonella typhi in an endemic area. Clin Microbiol Infect 4: 64-69.
  2. Jerne NK (1974) Towards a network theory of the immune system. Ann Immunol (Paris) 125C: 373-389
  3. Vaillant AAJ, Akpaka PE, McFarlane-Anderson N, Smikle MP, Brian W (2012) The Chicken and Egg System for the Development of Anti-Idiotypic Vaccines. J Vaccines Vaccin 3:2
  4. Reichlin M (1980) Use of glutaraldehyde as a coupling agent for proteins and peptides. Methods Enzymol 70: 159-165.
  5. Ho DD, Kaplan JC, Rackauskas IE, Gurney ME (1988) Second conserved domain of gp120 is important for HIV infectivity and antibody neutralization. Science 239: 1021-1023.
  6. Polson A (1990) Isolation of IgY from the yolks of eggs by a chloroform polyethylene glycol procedure. Immunol Invest 19: 253-258.
  7. Collins AM, Roberton DM, Hosking CS, Flannery GR (1991) Oral immunization with xenogeneic antibodies stimulates the production of systemic and mucosal anti-idiotypic antibodies. Immunology 73: 388-393.
  8. Justiz-Vaillant AA, Akpaka PE, McFarlane-Anderson N, Smikle MP (2013) Comparison of techniques of detecting immunoglobulin-binding protein reactivity to immunoglobulin produced by different avian and mammalian species. West Indian Medical Journal 62.
  9. Martin NL, Rautonen J, Crombleholme W, Rautonen N, Wara DW (1992) A screening test for the detection of anti-HIV-1 IgA in young infants. Immunol Invest 21: 65-70.
  10. Wang R, Zhao J, Jiang T, Kwon YM, Lu H, et al. (2013) Selection and characterization of DNA aptamers for use in detection of avian influenza virus H5N1. J Virol Methods 189: 362-369.
  11. Cardona-Castro N, Gotuzzo E, Rodriguez M, Guerra H (2000) Clinical application of a dot blot test for diagnosis of enteric fever due to Salmonella enterica serovar typhi in patients with typhoid fever from Colombia and Peru. Clin Diagn Lab Immunol 7: 312-313.
  12. Vera-Cabrera L, Rendon A, Diaz-Rodriguez M, Handzel V, Laszlo A (1999) Dot blot assay for detection of antidiacyltrehalose antibodies in tuberculous patients. Clin Diagn Lab Immunol 6: 686-689.
