The Gate Theory Explains Regional Neural Regulation of Activated
Journal of Clinical and Cellular Immunology

Journal of Clinical and Cellular Immunology
Open Access

ISSN: 2155-9899

+44 1223 790975

Review Article - (2013) Volume 4, Issue 4

The Gate Theory Explains Regional Neural Regulation of Activated T cells Entering the Central Nervous System

Daisuke Kamimura, Moe Yamada, Lavannya Sabharwal, Hideki Ogura, Yuko Okuyama, Akihiro Nakamura, Toru Atsumi, Yasunobu Arima and Masaaki Murakami*
JST-CREST, Graduate School of Frontier Biosciences, Graduate School of Medicine and WPI Immunology Frontier Research Center, Osaka University, Osaka, Japan
*Corresponding Author: Masaaki Murakami, Science Innovation Center, Bld A 4th floor, Office for University-Industry Collaboration, Osaka University, 2-1, Yamadaoka Suita, Osaka 565-0871, Japan, Tel: +81-6-6879-4856, Fax: +81-6-6879-4706 Email:


Type 17 helper T (Th17) cells are a subset of activated CD4+ T cells that produce interleukin (IL)-17 and contribute to the pathogenesis of autoimmune diseases via inflammation induction. Th17 differentiation is induced by T cell receptor engagement in the presence of several cytokines including IL-1β, IL-23, TGF-β and IL-6. IL-6 is often elevated during inflammation and chronic inflammatory diseases such as autoimmune disorders. We have shown that a combination of IL-17 and IL-6 synergistically induces the production of target molecules including various chemokines and IL-6 itself in non-immune cells such as fibroblasts and endothelial cells. We named this phenomenon the “inflammation amplifier” and determined it essential for the induction of chronic inflammatory diseases. Moreover, our results showed that the inflammation amplifier describes simultaneous activation of NF-κB and STAT3, with the major signal being NF-κB, and STAT3 acting as a costimulatory signal that enhances the expression of NF-κB targets. Thus, the inflammation amplifier can be viewed as a NF-κB loop in non-immune cells that establishes the inflammation status via local chemokine expression. It was recently shown that activation of the inflammation amplifier in blood vessel endothelium is enhanced by regional neural stimuli and results in local upregulation of chemokines and subsequent immune cell infiltration and pathogenic CD4+ T cells. Thus, a gate for immune cells from the blood to the site of inflammation, including regions like the central nervous system (CNS), can be opened or closed by regional neuronal stimulations across our entire body. We name this phenomenon the gate theory. In this review article, we summarize our recent data, discuss the physiology of the inflammation amplifier, and gate theory in various inflammatory diseases.

Synergistic Effects of IL-17 and IL-6 on Inflammatory Chemokines: The Inflammation Amplifier

IL-6 is a classical proinflammatory cytokine first cloned in 1986 and IL-6 blockade has shown tremendous effects in the treatment of rheumatoid arthritis [1,2]. In fact, many inflammatory diseases beyond rheumatoid arthritis, including multiple sclerosis and type-1 diabetes have been genetically associated with IL-6 [3,4]. Its effects were traced to the activation of Th17 cells, a subset of activated CD4+ T cells [5,6]. We then have investigated the relationship between IL-6 and Th17 cells in autoimmune diseases using mouse models. IL-6 deficient mice are resistant to many inflammatory diseases, in particular to Th17-mediated ones such as collagen-induced arthritis and experimental autoimmune encephalomyelitis [7-10]. Additionally, in vivo experiments found that serum levels of IL-6 significantly increase after forced expression of IL-17 [9,11,12], suggesting positive feedback of IL-6 in the presence of IL-17 signaling. Further in vitro studies revealed that a combination of IL-17 and IL-6 stimulation induces much larger amounts of IL-6 and inflammatory chemokine production in type I collagen+ non-immune cells such as fibroblasts and endothelial cells, than stimulation by either cytokine alone. This combination effect is not additive but synergistic [9] (Figure 1A). We have also shown that the synergistic effect of IL-17 and IL-6 is dependent on two transcriptional factors: NF-κB and STAT3. Thus, it is possible that IL-17 from Th17 cells induces excess chemokines via an IL-6 positive-feedback loop in non-immune cells (Figure 1B). We named this phenomenon the “inflammation amplifier” and showed it to be important for the pathogenesis of the rheumatoid arthritis model, F759-arthritis, the multiple sclerosis mouse model, experimental autoimmune encephalomyelitis (EAE), and in a mouse model of chronic rejection of lung transplantation [9,13]. We further hypothesized that IL-6 acts as a fuel for the inflammation amplifier and that chemokines are functional molecules for the development of inflammation. In addition, an immunohistological study using human clinical samples revealed evidence that activation of the inflammation amplifier occurs in the affected area of bronchiolitis obliterans, a common complication via chronic inflammation after lung transplantation [14]. Additionally, genes that regulate the inflammation amplifier or are targeted by it have been functionally screened and identified. These genes were reported to have significantly high levels of genetic associations with a broad range of human diseases and disorders including autoimmune diseases, metabolic syndromes, and other inflammatory diseases [15]. Thus, the inflammation amplifier is involved not only in autoimmunity, but also other inflammatory diseases, with IL-17 being an important factor in driving the inflammation amplifier by activating NF-κB in nonimmune cells [16,17].


Figure 1: The inflammation amplifier
A, A combination of IL-17 and IL-6 in causes a synergistic effect on the induction of inflammation-amplifier target chemokines such as Ccl20 in nonimmune cells including fibroblasts, endothelial cells and certain synovial cells. B, The synergistic effect seen in A requires the concomitant activation of two transcription factors, NFkappa-B and STAT3. In the case of autoimmune diseases, Th17-derived IL-17 induces an initial, low amount of IL-6 from nonimmune cells via NFkappa-B activation. Secreted IL-6 together with IL-17 form an amplification loop, producing an excessive amount of target genes including many inflammatory chemokines such as CCL20 and CCL2 etc. Consequently, various immune cells are recruited at the region around the target cells via chemokine expression and inflammation takes place. Persistent activation of the inflammation amplifier, as is the case in F759 mice, drives a chronic inflammation. IL-7, a target of the amplifier, derived from non-immune cells aids in the proliferation and survival of Th17 cells.

A Th17-dependent Model of Multiple Sclerosis

Inflammatory cytokines such as IL-1, IL-6, IL-17 and TNFα are known to play key roles in the pathogenesis of multiple sclerosis and its animal model, EAE [18]. We have reported the inflammatory amplifier is also an intrinsic part of the molecular mechanism responsible [9,19]. Using EAE as our model, we extended this work to examine how autoreactive CD4+ T cells enter the central nervous system (CNS), considering that the blood-brain barrier (BBB) tightly regulates such transport. We established a Th17-cell dependent adaptive transfer model of EAE, because we thought that more common models by using autopeptide-immunizations in the presence of complete Freund’s adjuvant risk modulating the CNS basal state. Th17 cells obtained from myelin oligodendrocyte glycoprotein (MOG)-immunized mice were re-stimulated in vitro with IL-23 and infused intravenously in naïve C57BL/6 recipients so that quiescence of the CNS was preserved. Mice showed initial signs of EAE 6 to 7 days after the pathogenic CD4+ T cell transfer. During this period, transferred Th17 cells proliferated, and the chemokine receptor CCR6 increased its expression in secondary lymphoid organs [19]. A recent report by Flügel et al. also suggested that pathogenic Th17 cells might temporally reside in the lung until they have full pathogenicity to attack the CNS [20]. On day 5 after the MOG-specific Th17 transfer, when the day 5 is still in a preclinical stage, we prepared whole-mount sections of adult mice using the CM3600XP (Leica, Germany), a macrotome device, and examined the accumulation of transferred T cells throughout the body by the automatic microscope BZ-9000 (KEYENCE, Japan) after staining with hematoxylin/eosin. Interestingly, we found that transferred Th17 cells preferentially accumulated in the fifth lumbar (L5) cord rather than the brain or other regions of the spinal cords [19]. This observation fits well with a clinical manifestation of typical EAE in which the tail tip is first affected, because L5 dorsal root ganglions (DRG) are connected to sensory neurons in various lower body muscles. On the other hand, we did not observe any significant accumulation of Th17 cells in the lung (data not shown), which disagrees with the findings by Flügel et al. This contradiction may be due to differences in animal species, donor T cell preparation, and/or time points of sampling. The L5 entry of pathogenic Th17 cells was shown to depend on IL-17 production, as IL-17-deficient Th17 cells obtained from MOC-immunized IL-17- deficient mice did not invade the L5, while IFNγ-deficient Th17 cells did. The antigen specificity of Th17 cells is another critical determinant for CNS invasion, as CNS-irrelevant, ovalbumin-specific Th17 cells did not efficiently traverse the BBB (our unpublished data and [21]). Although how and where this antigen presentation takes place is currently unknown, we propose that cognate TCR stimulation around the L5 region promotes IL-17 secretion from the transferred pathogenic Th17 cells. The IL-17 loosens the BBB by downregulating tight junction molecules [22], allowing the Th17 invasion in the L5 cord. Even if so, this explanation does not explain why MOG-specific Th17 cells are preferentially recruited to L5.

The cervical, thoracic and lumbar cords of mouse can be divided into 7, 13 and 6 segments, respectively [23,24]. Sensory and motor neurons extend from each spinal segment to respective body regions and transmit sensations to the brain or control movements of the respective body parts. MOG-specific Th17 cells are selectively recruited to dorsal blood vessels in the L5 spinal cord at the early stages of EAE [19]. It has been reported that Ccl20 is a chemokine for Th17 cell migration and is upregulated via NF-κB activation [25-27]. Additionally, we found that NF-κB activity is increased in L5 dorsal vessels compared to vessels in the other spinal segments. Mice lacking IL-6 signal transducer (gp130) or STAT3 in blood vessel endothelial cells do not show this accumulation of MOG-specific Th17 cells at the L5 cord, suggesting the inflammation amplifier in L5 dorsal vessels produces Ccl20. Intriguingly, along with the diseased state, a low-grade activation of the inflammation amplifier, namely elevated levels of Ccl20 and many other chemokines, is evident at L5 vessels even in the healthy state, regardless of pathogenic Th17 cell transfer [19]. This finding led us to hypothesize that some L5 neurons may be constantly activated. It is known that sensory neurons located in DRG at the L5 region are connected to the soleus muscles, which are the muscles primarily responsible for coping with gravity [28]. We speculated that constant stimulation of the soleus muscles by gravity might activate the inflammation amplifier via their sensory nerves. Indeed, when mice were tail suspended so that the hind legs were released from the gravity stimuli, MOG-specific Th17 cells no longer accumulated at the L5 region. Instead, these Th17 cells accumulated at cervical cords as if a new “gate” was opened by gravity stimuli to the forearm muscles. Consistently, the tail suspension suppressed Ccl20 expression in the L5 dorsal blood vessels and decreased the expression of the neural activation marker, c-fos, in L5 DRG. Moreover, electric stimulations to the soleus muscles of tail-suspended mice restored Ccl20 expression, Th17 accumulation and c-fos levels at the L5 cord [19] (Figure 2). These results strongly suggest that neural inputs from soleus muscles in response to gravity play a role in activating the inflammation amplifier and lead to the expression of various chemokines including Th17-attracting Ccl20 in L5 dorsal blood vessels.

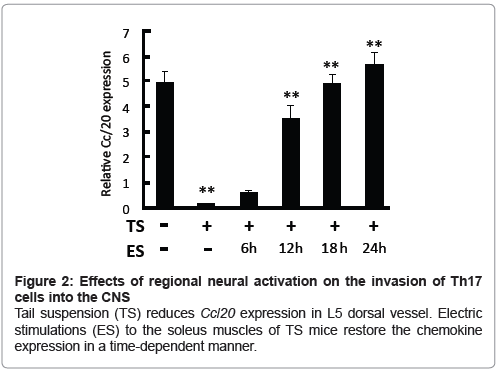

Figure 2: Effects of regional neural activation on the invasion of Th17 cells into the CNS Tail suspension (TS) reduces Ccl20 expression in L5 dorsal vessel. Electric stimulations (ES) to the soleus muscles of TS mice restore the chemokine expression in a time-dependent manner.

What mechanisms do afferent sensory neurons from the soleus muscle use to regulate the status of blood vessels at L5? Although a precise neural network remains elusive, we have shown sympathetic nerves to be involved. Blood flow speeds at L5 dorsal vessels become slower when mice are tail suspended, while electronic stimulation of the soleus muscles increases the flow speed suggesting that autonomic nerves including sympathetic ones are involved in the response. On the other hand, blood flow speeds in blood vessels other than the L5 region, such as femoral vessels, brain surface vessels and the portal vein, are not affected by tail suspension. Furthermore, treatment with atenolol, an α1 adrenergic receptor antagonist, or prazosin, a β1 adrenergic receptor antagonist, significantly inhibits Ccl20 mRNA expression, NF-κB activation and MOG-reactive Th17 accumulation at L5 vessels and also suppresses clinical signs of EAE [19]. It is also known that the main adrenergic receptors associated with blood vessels are α1 and β2 ones. We hypothesize that the β2 receptor might play a role just like the β1 receptor, because both β1 and β2 receptors activate NFκB pathway [29-31], which is the main pathway of the inflammation amplifier activation. Therefore, it is important to check whether the β2 receptor might play a role by using the inhibitors in our system.

Consistent with these in vivo results, the addition of norepinephrine, which is a neurotransmitter from sympathetic neurons, to a culture of endothelial cell lines, enhances the inflammation amplifier based on IL-6 and Ccl20 expressions. Thus, anti-gravity responses of the soleus muscles lead to sympathetic nerve stimulation, creating a gateway for immune cells to pass through the CNS via L5 dorsal vessels [19]. However, we do not comprehensively describe the link between the sensory activation and the L5 vascular changes, which makes it unclear if the locally released neurotransmitters directly affect the BBB integrity or the Th17 activity. Based on these findings, we proposed that MOG-reactive, disease-causing Th17 cells make use of the L5 gateway to infiltrate the CNS and induce local inflammation by producing cytokines like IL-17, which further induces chemokines via the inflammation amplifier in parenchymal non-immune cells and results in chronic inflammation in the CNS (Figure 3).


Figure 3: The gateway for autoreactive T cells into the CNS
Continuous stimulation of the soleus muscles by gravity leads to the constant activation of L5 DRG sensory neurons, followed by the activation of sympathetic neurons at the L5 region via unidentified circuits. Norepinephrine, a neurotransmitter from sympathetic neurons, augments the inflammation amplifier at the dorsal vessels of L5, causing an elevation of CCL20 and subsequent Th17 infiltration into the CNS.

The Gate Theory

Thigh muscles including the quadriceps are known to be regulated by L3 DRG neurons. Interestingly, electronic stimulation of these muscles led to an increased expression of Ccl20 in L3 cord vessels in mice. In a similar fashion, chemokine levels in the fifth cervical to fifth thoracic cord vessels were upregulated by stimulations of epitrochlearis/ triceps brachii and upper arm muscles, which are controlled by neurons located at the corresponding areas [19] (Figure 4). Based on these results, we propose “the gate theory”, which describes blood vessels that act as gates depending on the regional neural stimulations for immune cell infiltration into organs. Investigations whether the gate theory can be more generally applied to tissues beyond the CNS are currently undertaken. If true, manipulating the gate should have significant clinical benefits, as closing it in normal cells would dampen autoimmune inflammation in a target organ without any systemic immune suppression, while opening it in tumors could enhance cancer immunotherapy. The precise molecular mechanisms for gating still need to be studied, however, before this potential can be realized.


Figure 4: The gate theory
Electric pulses to the upper arm, thigh, and soleus muscles induce activation of the inflammation amplifier: chemokine upregulation, opening a gate in the dorsal vessels of the fifth cervical to fifth thoracic (C5-T5), third lumbar (L3), and fifth lumbar (L5) cords, respectively. This effect offers possible targets for the manipulation of immune cell migration in vivo.


  1. Hirano T, Yasukawa K, Harada H, Taga T, Watanabe Y, et al. (1986) Complementary DNA for a novel human interleukin (BSF-2) that induces B lymphocytes to produce immunoglobulin. Nature 324: 73-76.
  2. Tanaka T, Narazaki M, Kishimoto T (2012) Therapeutic targeting of the interleukin-6 receptor. Annu Rev Pharmacol Toxicol 52: 199-219.
  3. Jahromi MM, Millward BA, Demaine AG (2000) A polymorphism in the promoter region of the gene for interleukin-6 is associated with susceptibility to type 1 diabetes mellitus. J Interferon Cytokine Res 20: 885-888.
  4. Vandenbroeck K, Fiten P, Ronsse I, Goris A, Porru I, et al. (2000) High-resolution analysis of IL-6 minisatellite polymorphism in Sardinian multiple sclerosis: effect on course and onset of disease. Genes Immun 1: 460-463.
  5. Ghoreschi K, Laurence A, Yang XP, Tato CM, McGeachy MJ, et al. (2010) Generation of pathogenic T(H)17 cells in the absence of TGF-β signalling. Nature 467: 967-971.
  6. Zielinski CE, Mele F, Aschenbrenner D, Jarrossay D, Ronchi F, et al. (2012) Pathogen-induced human TH17 cells produce IFN-γ or IL-10 and are regulated by IL-1β. Nature 484: 514-518.
  7. Alonzi T, Fattori E, Lazzaro D, Costa P, Probert L, et al. (1998) Interleukin 6 is required for the development of collagen-induced arthritis. J Exp Med 187: 461-468.
  8. Kitabayashi C, Fukada T, Kanamoto M, Ohashi W, Hojyo S, et al. (2010) Zinc suppresses Th17 development via inhibition of STAT3 activation. Int Immunol 22: 375-386.
  9. Ogura H, Murakami M, Okuyama Y, Tsuruoka M, Kitabayashi C, et al. (2008) Interleukin-17 promotes autoimmunity by triggering a positive-feedback loop via interleukin-6 induction. Immunity 29: 628-636.
  10. Samoilova EB, Horton JL, Hilliard B, Liu TS, Chen Y (1998) IL-6-deficient mice are resistant to experimental autoimmune encephalomyelitis: roles of IL-6 in the activation and differentiation of autoreactive T cells. J Immunol 161: 6480-6486.
  11. Atsumi T, Ishihara K, Kamimura D, Ikushima H, Ohtani T, et al. (2002) A point mutation of Tyr-759 in interleukin 6 family cytokine receptor subunit gp130 causes autoimmune arthritis. J Exp Med 196: 979-990.
  12. Sawa S, Kamimura D, Jin GH, Morikawa H, Kamon H, et al. (2006) Autoimmune arthritis associated with mutated interleukin (IL)-6 receptor gp130 is driven by STAT3/IL-7-dependent homeostatic proliferation of CD4+ T cells. J Exp Med 203: 1459-1470.
  13. Lee J, Nakagiri T, Oto T, Harada M, Morii E, et al. (2012) IL-6 amplifier, NF-κB-triggered positive feedback for IL-6 signaling, in grafts is involved in allogeneic rejection responses. J Immunol 189: 1928-1936.
  14. Lee J, Nakagiri T, Kamimura D, Harada M, Oto T, et al. (2013) IL-6 amplifier activation in epithelial regions of bronchi after allogeneic lung transplantation. Int Immunol 25: 319-332.
  15. Murakami M, Harada M, Kamimura D, Ogura H, Okuyama Y, et al. (2013) Disease-association analysis of an inflammation-related feedback loop. Cell Rep 3: 946-959.
  16. Murakami M, Hirano T (2011) A four-step model for the IL-6 amplifier, a regulator of chronic inflammations in tissue-specific MHC class II-associated autoimmune diseases. Front Immunol 2: 22.
  17. Murakami M, Hirano T (2012) The pathological and physiological roles of IL-6 amplifier activation. Int J Biol Sci 8: 1267-1280.
  18. Steinman L (2013) Inflammatory cytokines at the summits of pathological signal cascades in brain diseases. Sci Signal 6: pe3.
  19. Arima Y, Harada M, Kamimura D, Park JH, Kawano F, et al. (2012) Regional neural activation defines a gateway for autoreactive T cells to cross the blood-brain barrier. Cell 148: 447-457.
  20. Odoardi F, Sie C, Streyl K, Ulaganathan VK, Schläger C, et al. (2012) T cells become licensed in the lung to enter the central nervous system. Nature 488: 675-679.
  21. Bartholomäus I, Kawakami N, Odoardi F, Schläger C, Miljkovic D, et al. (2009) Effector T cell interactions with meningeal vascular structures in nascent autoimmune CNS lesions. Nature 462: 94-98.
  22. Kebir H, Kreymborg K, Ifergan I, Dodelet-Devillers A, Cayrol R, et al. (2007) Human TH17 lymphocytes promote blood-brain barrier disruption and central nervous system inflammation. Nat Med 13: 1173-1175.
  23. Burke AC, Nelson CE, Morgan BA, Tabin C (1995) Hox genes and the evolution of vertebrate axial morphology. Development 121:333-346.
  24. Wellik DM (2007) Hox patterning of the vertebrate axial skeleton. Dev Dyn 236: 2454-2463.
  25. Annunziato F, Cosmi L, Santarlasci V, Maggi L, Liotta F, et al. (2007) Phenotypic and functional features of human Th17 cells. J Exp Med 204: 1849-1861.
  26. Fujiie S, Hieshima K, Izawa D, Nakayama T, Fujisawa R, et al. (2001) Proinflammatory cytokines induce liver and activation-regulated chemokine/macrophage inflammatory protein-3alpha/Ccl20 in mucosal epithelial cells through NF-kappaB [correction of NK-kappaB]. Int Immunol 13:1255-1263.
  27. Hirota K, Yoshitomi H, Hashimoto M, Maeda S, Teradaira S, et al. (2007) Preferential recruitment of CCR6-expressing Th17 cells to inflamed joints via Ccl20 in rheumatoid arthritis and its animal model. J Exp Med 204: 2803-2812.
  28. Ohira Y, Kawano F, Stevens JL, Wang XD, Ishihara A (2004) Load-dependent regulation of neuromuscular system. J Gravit Physiol 11: P127-128.
  29. Gornikiewicz A, Sautner T, Brostjan C, Schmierer B, Függer R, et al. (2000) Catecholamines up-regulate lipopolysaccharide-induced IL-6 production in human microvascular endothelial cells. FASEB J 14: 1093-1100.
  30. Yang EV, Kim SJ, Donovan EL, Chen M, Gross AC, et al. (2009) Norepinephrine upregulates VEGF, IL-8, and IL-6 expression in human melanoma tumor cell lines: implications for stress-related enhancement of tumor progression. Brain Behav Immun 23: 267-275.
  31. Zhang D, Ma Q, Wang Z, Zhang M, Guo K, et al. (2011) β2-adrenoceptor blockage induces G1/S phase arrest and apoptosis in pancreatic cancer cells via Ras/Akt/NFκB pathway. Mol Cancer 10: 146.
Citation: Kamimura D, Yamada M, Sabharwal L, Ogura H, Okuyama Y, et al. (2013) The Gate Theory Explains Regional Neural Regulation of Activated T cells Entering the Central Nervous System. J Clin Cell Immunol 4:156.

Copyright: © 2013 Kamimura D, et al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.
