Research Article - (2013) Volume 4, Issue 2

Liquid Anion Exchange Chromatographic Extraction and Separation of Platinum (IV) with N-Octylaniline as an Metallurgical Reagent: Analysis of Real Samples

Ashwini P Gaikwad1, Ganesh S Kamble1,2, Sanjay S Kolekar1 and Mansing A Anuse1*
1Analytical Chemistry Laboratory, Department of Chemistry, Shivaji University, Kolhapur–416 004, Maharashtra, India, E-mail: mansinganuse@yahoo.co.in
2Department of Engineering Chemistry, KIT’s College of Engineering, Gokul Shirgaon, Kolhapur, Maharashtra, India, E-mail: mansinganuse@yahoo.co.in
*Corresponding Author: Mansing A Anuse, Analytical Chemistry Laboratory, Department of Chemistry, Shivaji University, Kolhapur-416 004, Maharashtra, India, Tel: 91-231-260-9380, Fax: 91 231 2692333 Email:

Abstract

A simple and selective method was developed for the determination of platinum (IV) with n-octylaniline in toluene. In present study, the use of n-octylaniline in toluene for the extraction of platinum (IV) from ascorbate media was carried out. The effect of various parameters, such as pH, equilibrium time, extractant concentration and organic solvent on the extraction has been discussed. The back extraction of has been performed. On the basis of slope analysis, the composition of the extracted species was determined as [RR’NH2 + Pt (Succinate)2 -](org). The interfering effects of various cations and anions were also studied, and use of suitable masking agents enhances the selectivity of the method. The proposed method is rapid, reproducible and successfully applied for the determination of platinum (IV) in binary and synthetic mixtures. The separation of platinum (IV) from other associated metals has been studied. Comparison of the results with those obtained using an atomic absorption spectrophotometer were also tested the validity of the method.

Keywords: Platinum (IV); Solvent extraction; n-octylaniline; Toluene

Introduction

The platinum group of metals (PGMs: Pt, Pd, Rh, Ir, Ru, and Os) are extremely scarce in comparison to the other precious metals due to not only to their low natural abundance but also to the complexity of the processes required for their extraction and refinement. In comparison with other precious metals (Au and Ag), these platinum group metals (PGMs) are extensively in the use as catalysts in the automobile, chemical and petroleum industries. In automobiles, Pt and Pd are used as catalytic converter to reduce harmful emissions. In the petroleum cracking process, the catalyst containing Pt and Pd helps to break oil molecules into smaller organic molecules [1]. Besides, PGMs are also used as conductors in the electrical and electronic industries, in extrusion devices, in dental and medical prostheses, and in jewellery [2]. Due to their special chemical and physical properties, the substitution of PGMs by other metals is difficult [3]. Since the need for PGMs are more, recovery of PGMs from spent catalysts is very important.

Economically, the precious metals have been historically important as currency, and remain important as investment commodities. Gold, silver, platinum and palladium are internationally recognized as forms of currency under ISO 4217 [4]. Technological and analytical platinumcontaining solutions have diverse ratios of the concentrations of platinum and associate precious, base, and ferrous metals, acidities, and salt backgrounds. This diversity arises from the complex and variable composition of raw materials. Naturally, selective extraction and separation of platinum (as well as platinum-group metals and gold) from associate metals becomes a problem in subsequent hydrometallurgical processing of these complex solutions. Technological and analytical platinum-containing solutions have diverse ratios of the concentrations of platinum and associate precious, base, and ferrous metals, acidities, and salt backgrounds. This diversity arises from the complex and variable composition of raw materials. A major problem in developing extraction methods for the platinum group metal ions, especially for platinum (II) arises from slow extraction rates. Heating the solution [5-7] and/or the use of tin (II) chloride as a catalyst [8-10] have been commonly used to accelerate the extraction. Among the PGMs separations, Pd (II)/Pt (IV) mutual separation has been extensively investigated due to its difficulty based on their chemically similar properties. The large difference in the extraction rate between Pd (II) and Pt (IV) from aqueous chloride solutions, which is attributable to the extremely inert properties of Pt (IV) compared with Pd (II) is usually applied to their separation [11].

High molecular weight amine (HMWAs) finds many applications in the solvent extraction of platinum (IV) from weak organic acid and mineral acid medium. These are p-octylaniline [12], N-octyl-, N,N-dioctyl aniline and N,N,N-trioctyl anilinium O,O-di(iso-propyl) dithiophosphates [13], N-n-octylaniline [14], Tri-octylamine [15-20], alamine 336 [21-24], alamine 300 [25], quaternary amine base salts [25-32]. However, these amines shows emulsion formation, narrow extraction pH range. Extraction of platinum (II) by bis-acylated diethylenetriamine [33] from hydrochloric acid solution was studied. Platinum can be separated by this method from non-noble metals. Extraction of platinum (II) from acidic solution at pH 1-4 by using two hydrophobic analogs of N,N,N’,N’-tetrakis [2-pyridyl-methyl]-1,2- ethyl-enediamine (TPEN).

N,N,N’,N’-tetrakis[4-(2-butyloxy)-2-pyridyl-methyl]-1,2- ethylenediamine (TBPEN) and N,N,N’,N’-tetrakis (2-quinolinylmethyl)- 1,2-ethylenediamine (TQEN) [34] have shown enhanced solvent extraction performance in more acidic media than TPEN. The platinum ion was extracted in the deactivated catalyst for the hydrochlorination reaction of ethyne by acidic thiourea [35] solution. N’N’- dihexyl and phenyl and N’-hexyl and phenyl derivatives of N-benzoyl thiourea [36] are very good reagents for pH selective extractions, especially for platinum. Important interfering elements in the extraction of platinum as Cu, Fe, Ni. Solvent extraction of platinum (IV) by N,N-dihexyl- N’-benzoyl-thiourea [37] in toluene is substantially accelerated in the presence of stannous chloride. The extraction behavior of platinum (II) is not affected by the treatment of stannous chloride. Liquid- liquid extraction of the platinum (IV) with pure synthesized N,N-diethyl-N’-benzoyl-thiourea (DEBT) [38] was carried out by optimizing the concentration of acid, mole ratio of metal to chelating agent, temperature and extraction time. The extraction behavior of platinum (II) with 1,3-dimethyl-2-thiourea (DMTU) [39] from a chloride solution was studied. Bromocresol green ion as a counter anion and 1,2-dichloroethane as an extraction solvent were used. Platinum (II) was quantitatively extracted into 1,2-dichloroethane within 15 min. The interferences of Mn (II), Cu (II), Zn (II), Pd (II), Ag (I) and Cd (II) was removed by adding suitable masking agents. The extractant nonylthiourea (NTH) [40,41] in chloroform has been investigated for the extraction of platinum (IV) from chloride solution at ionic strength 4.0 M. It has been found that chloride concentration has a negative effect on the extraction while proton concentration has no effect. N-Phenyl-N’-[o-(2-ethylhexylthio)phenyl] thiourea (PEPT) [42] which contained donor atoms of sulfur and nitrogen, was synthesized to develop a selective extractant for platinum (IV) from base metals from acidic chloride media at 303 K.

In present study, the use of n-octylaniline in toluene for the extraction of platinum (IV) from ascorbate media was carried out. The extraction system is studied as a function of pH, extractant concentration, diluents, and equilibrium period. The conventional slope analysis method was employed for analysis of species formed in organic phase. The method is free from large number of interferences due to various foreign ions.

The review of literature for comparison of liquid-liquid extractive separation of platinum (IV) is given in table 6.

Experimental

Instruments

An Elico digital spectrophotometer model 12 Chemito 215D with 1 cm quartz cells was used for absorbance measurements and pH measurements were carried out using an Elico digital pH-meter model LI-127. All weighing operations were carried out by using Tapson’s analytical single pan balance model 200 T having 0.001 g accuracy.

Chemicals and solutions

Standard solution of platinum (IV) was prepared by dissolving 1 g of hydrogen hexachloro palatinate (IV) hydrate, H2PtCl6.H2O (Johnson and Matthey, U.K.) in 1 M hydrochloric acid and was standardized gravimetrically [43]. A working solution (100 μg/mL) was made there from by appropriate dilution. All chemicals used were of AR grade. Double distilled water was used throughout.

n-octylaniline, 0.1 mol L-1: The extractant n-octylaniline was prepared by the method of Pohlandt’s [44] and its 0.1 M solution was prepared in toluene. All other solutions were prepared from A. R. grade reagents and aqueous solutions were prepared using water.

Standard solution of diverse ions was prepared by dissolving AR grade reagents in water or dil HCl. All the organic solvents were used after double distillation. All chemicals used were of AR graded.

General extraction and determination procedure for platinum (IV)

An aliquot of 150 μg platinum (IV) solution was mixed with a sufficient quantity of ascorbic acid to make its concentration 0.01 M in a total volume of 25 mL of the solution. The pH of the aqueous solution was adjusted to 0.50 by dilute sodium hydroxide and hydrochloric acid solution. The solution was then transferred to a 125 mL separating funnel and shaken with 10 mL of 0.1 M n-octylaniline in toluene for 3 min. After separating the two phases, the aqueous phase was discarded and the organic phase was stripped with two 10 mL portions of water solution. The stripped aqueous phase was evaporated to moist dryness and extracted into water.

A percentage extraction (% E) and metal distribution ratio (D) were calculated according to Eqs. (1) and (2), respectively.(1)

Equation (1)



(2)

Where, [M]aq., init. represents the initial concentration of metal ion in the aqueous phase. [M]aq. and [M]org. are the total concentrations of metal ion in the aqueous and organic phases after equilibrium, respectively.

Estimation procedure for platinum (IV): The resulting aqueous phase was mixed with 5 mL of concentrated hydrochloric acid in 25 mL volumetric flask and 10 mL of 25% (W/V) stannous chloride in concentrated hydrochloric acid and the solution was diluted to mark with water. The absorbance of the resulted solution was measured at 405 nm [45]. The concentration of platinum (IV) was found from calibration curve.

Results and Discussion

Extraction as a function of pH

The extraction study of platinum (IV) was performed at fixed concentration of 0.01 M ascorbic acid and between pH 0.10-5.0 with a 0.1 M solution of n-octylaniline in toluene. The pH range observed for the quantitative extraction was 0.50-1.0 with n-octylaniline. Hence the extraction of platinum (IV) was carried out at pH 0.50 for all extraction experiments (Figure 1).

chromatography-separation-techniques-percentage-extraction

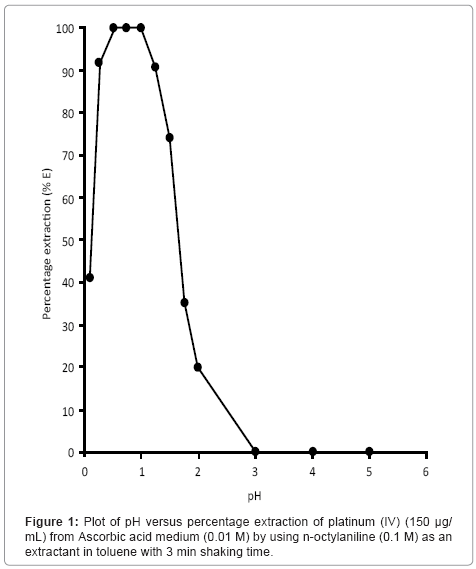

Figure 1: Plot of pH versus percentage extraction of platinum (IV) (150 μg/ mL) from Ascorbic acid medium (0.01 M) by using n-octylaniline (0.1 M) as an extractant in toluene with 3 min shaking time.

Effect of weak organic acid concentration

The extraction of platinum (IV) was examined at pH 0.50 with 0.1 M n-octylaniline in toluene in presence of varying concentrations from 0.001-0.1 M of ascorbic acid. The extraction of ion-pair complex of platinum (IV) was found to be quantitative in the range of 0.007-0.02 M ascorbic acid. Hence, 0.01 M concentration of ascorbic acid was used for further studies while zero extraction of platinum (IV) was found to be in sodium salicylate, malonate, succinate (Figure 2).

chromatography-separation-techniques-Extraction-platinum

Figure 2: Extraction of platinum (IV) (150 μg) with 0.1 M n-octylaniline at pH 0.50 as a function of weak acid concentration.

Effect of n-octylaniline concentration

Extraction of platinum (IV) was carried out with various concentrations of n-octylaniline in toluene. To optimize the extraction condition, other parameters like pH, period of equilibration and diluent were kept constant. The extraction was found to be increased with increasing reagent concentration. The extraction of platinum (IV) was quantitative in the range 0.09 M to 0.4 M of n-octylaniline in toluene. were kept constant. The extraction was found to be increased with increasing reagent concentration. The extraction of platinum (IV) was quantitative in the range 0.09 M to 0.4 M of n-octylaniline in toluene. However, 10 mL of 0.1 M n-octylaniline in toluene was recommended for general extraction procedure (Figure 3).

chromatography-separation-techniques-Extraction-platinum

Figure 3: Extraction of platinum (IV) (150 μg/mL) at pH 0.50 from 0.01 M Ascorbic acid medium as a function of n-octylaniline concentration.

Effect of diluents

The studies were then performed to find out the most suitable solvent for the extraction of the ion-pair complex of platinum (IV). It was found that a 0.1 M solution of n-octylaniline in benzene, toluene, xylene provides quantitative extraction of platinum (IV). The extraction of platinum (IV) was incomplete if n-octylaniline is dissolved in chloroform (23.8%), methyl isobutyl ketone (60.8%) while no extraction in amyl alcohol, 1,2-dichloroethane, n-butyl alcohol, amyl acetate (Table 1). On safety ground, toluene was preferred to other solvents.

Solvent Dielectric constant, (ε) Percentage extraction, (% E) Distribution ratio, (D)
Benzene 2.27 100
Xylene 2.30 100
Toluene* 2.38 100
Chloroform 4.80 23.8 0.78
Methyl isobutyl ketone 13.10 60.8 3.87
n-Butanol 17.80 No extraction -
Amyl alcohol 13.90 No extraction -
Amyl aceate 13.90 No extraction -
1, 2-Dichloroethane 10.50 No extraction -

Pt(IV)=150 μg Aq: Org=2.5: 1
pH=0.50 Ascorbic acid=0.01 M
Equilibrium time=3 min Strippant=Water (2×10 mL)* Recommended for general extraction procedure

Table 1: Extraction behaviour of platinum (IV) as a function of diluents.

Effect of equilibration time

The extraction of platinum (IV) was studied for various time intervals in the range of 1-20 min with 0.1 M n-octylaniline. It was observed that, under the optimized experimental conditions a minimum 2 min time interval was required for attaining equilibrium in the sense to extract platinum (IV) quantitatively. But with prolonged shaking over 10 min there was decrease in the percentage extraction of platinum (IV) due to the dissociation of ion-pair complex. Hence, in all further studies both the phases were equilibrated for 3 min.

Effect of stripping agent

Platinum (IV) from organic phase was stripped with the two 10 mL portions of various stripping agents at different concentrations of mineral acids, buffer solutions and some bases. Platinum (IV) was quantitatively stripped with water (Table 2). However, percentage recovery of platinum (IV) from organic phase was found to be incomplete with strippants ammonia, hydrochloric acid, nitric acid, sulphuric acid, sodium chloride and hydrobromic acid and no stripping in ammonia buffer (pH 10). In recommended procedure, two 10 mL portions of water were used for the complete stripping of loaded organic phase [46].

Strippant mol/L / pH Percentage extraction, (%E )
Ammonia 1-10 53.4
HCl 1-3 16.7
H2SO4 1-3 20.7
HNO3 1-3 31.9
HBr 1-3 12.3
Water* - 100
NaCl 1-5% 65.2
Ammonia buffer pH-10 No stripping

*Recommended for general extraction procedure
Pt(IV)=150 μg, Aq: Org=2.5: 1
pH=0.50, Ascorbic acid=0.01 M
Equilibrium time=3 min, n-octylaniline=0.1 M in toluene

Table 2: Extraction behavior of platinum (IV) as a function of stripping agents.

Effect of aqueous to organic volume ratio

The extraction of platinum (IV) was carried out in different aqueous volumes in the range 10-100 mL from 0.01 M ascorbic acid medium with 10 mL 0.1 M n-octylaniline in toluene (Table 3). There was observed quantitative extraction of platinum (IV) when phase ratio A/O maintained from 1:1 to 4:1. Therefore, in the recommended procedure the phase ratio 2.5:1 was maintained through the all experimental study.

Aqueous to organic volume ratio Percentage extraction (% E) Distribution ratio (D)
10:10 100
20:10 100
25:10* 100
30:10 100
35:10 100
40:10 100
50:10 94.6 43.79
75:10 74.1 7.15
100:10 59.4 3.65

*Recommended for general extraction procedure
Pt(IV)=150 μg, Aq: Org = 2.5: 1
pH=0.50, Ascorbic acid=0.01 M
Equilibrium time=3 min, n-octylaniline=0.1 M in toluene

Table 3: Extraction of platinum (IV) as a function of aqueous to organic volume ratio.

Metal loading capacity of extractant

The influence of the initial platinum (IV) concentration 50-2500 μg on the extraction by 0.1 M n-octylaniline in toluene was studied. It was observed that, varying the initial platinum (IV) concentration in the range of 50-1500 μg has no significant influence on platinum (IV) extraction with the 10 mL of 0.1 M extractant (Table 4). The maximum loading capacity of 10 mL 0.1M solution of n-octylaniline in toluene was found to be 1500 μg platinum (IV).

Pt(IV), (μg) Percentage extraction Distribution ratio
50 100
100 100
150* 100
200 100
300 100
600 100
800 94.6
1000 74.1
1500 59.4
2000 81.5 11.01
2500 39.5 1.63

*Recommended for general extraction procedure
pH=0.50, Aq: Org=2.5: 1
Ascorbic acid=0.01 M, Equilibrium time=3 min
n-octylaniline=0.1 M in toluene

Table 4: Metal loading capacity of n-octylaniline.

Nature of extracted species

Attempts were made to ascertain the nature of extracted species of platinum (IV) with the extractant using conventional slope analysis method. The distribution ratio of platinum (IV) evaluated at different concentration in molar of ascorbic acid was used at fixed n-octylaniline concentration at pH 1.25 and pH 1.50. A graph of log D[Pt(IV)] versus log C[ascorbate] gave a slope of 2.8 and 3.0 respectively (Figure 4). Similarly, a plot of log D[Pt(IV)] versus log C[n-octylaniline] concentrations at a fixed pH 1.25 and pH 1.50 with 0.1 M ascorbate gave slope of 1.3 and 1.2 respectively (Figure 5). This indicates a mole ratio of platinum (IV) to ascorbic acid as 1:3 and that of n-octyaniline as 1:1. Thus, the extracted species was calculated to be an ion association complex with the probable composition 1:3:1 (metal:acid:extractant).

chromatography-separation-techniques-Log-log-plot

Figure 4: Log-log plot of distribution ratio D[Pt(IV)] versus Log C[ascorbate] at fixed n-octylaniline concentration.

chromatography-separation-techniques-Log-log-plot

Figure 5: Log-log plot of distribution ratio D[Pt(IV)] versus Log C[n-octylaniline] at fixed ascorbate concentration.

In the extraction of platinum (IV) with ascorbate medium, first platinum (IV) was reduced to platinum (II) [47] then it was converted into platinum(II) ascorbate as an anion and interacted with [CH3(CH2)7C6H4NH3]+(org). Hence the probable extracted species in toluene is [CH3(CH2)7C6H4NH3.Pt(C6H7O6)3 -] (org).

Effect of various diverse ions on percentage extraction

The effect of various diverse ions was tested, when platinum (IV) was extracted with n-octylaniline in toluene. The tolerance limit was set as the amount of foreign ion causing a change ± 2% error in the recovery of platinum (IV). It was observed that the method is free from interference from a large number of cations and anions (Table 5). Species like iodide, thiocyanate, thiourea, palladium (II) and rhodium (III) interfere in the extraction of platinum (IV). Howee4r, the interference of Pd (II) and Rh (III) was eliminated by masking with tartrate.

Tolerance limit, mg Foreign ion added
25 Tartrate, Mg(II)
15 Fe(III), Zn(II), Mo(VI), Se(IV), Ba(II), Ce(IV), oxalate, citrate, bromide
10 Ni(II), Co(II), U(VI), Hg(II)
5 Cu(II), Pb(II), Cr(VI), Cr(III), Bi(III), Te(IV), Cd(II), EDTA, nitrate
2 Tl(I), Ca(II), Al(III), Cr(III), Cd(II)
1 Ag(I), Os(VIII), Ru(III)
0.5 Rh(III) a, Pd(II)a, Ir(III), Au(III)

amasked with 20 mg tartrate
Pt(IV)=150 μg, Aq: Org=2.5: 1
pH=0.50, Ascorbic acid=0.01 M
Equilibrium time=3 min, n-octylaniline=0.1 M in toluene

Table 5: Effect of foreign ions on the extraction of platinum (IV).

Applications

Separation and determination of platinum (IV) from binary mixture

The separation of Pt (IV) from some commonly associated metal ions like Ru (III), Au (III), Os (VIII), Se (IV), Te (IV), Fe (III), Co (II), Ni (II) and Cu (II) using n-octylaniline was achieved by taking advantage of the difference in the extraction conditions of metal such as pH of the aqueous phase, reagent concentration and use of masking agent (Table 6). All the added metal ions were remained quantitatively in aqueous phase from which they are determined spectrophotometrically by standard methods [45,47-52].

Amount of metal ion, (μg) Mass taken,/μg Average (%) Recovery* Chromogenic ligand
Pt(IV) 150 99.5
Ir(III) 100 99.4 stannous chloridehydrobromic acid
Pt(IV) 150 99.7
Rh(III)a 300 99.2 stannous chloride- KI
Pt(IV) 150 99.8
Pd(II)a 200 99.4 4’-ChloroPTPT
Pt(IV) 150 99.2
Ru(III) 200 98.9 4’-ChloroPTPT
Pt(IV) 150 99.8
Au(III) 200 99.1 SnCl2
Pt(IV) 150 99.7
Se(IV) 200 99.0 4’-ChloroPTPT
Pt(IV) 150 99.8
Te(IV) 200 98.9 4’-ChloroPTPT
Pt(IV) 150 99.4
Os(VIII) 200 99.0 Thiourea
Pt(IV) 150 99.4
Fe(III) 500 98.7 Thiocynate
Pt(IV) 150 99.0
Cu(II) 1000 98.6 4’-ChloroPTPT
Pt(IV) 150 99.0
Ni(II) 1000 97.9 DMG
Pt(IV) 150 99.9
Co(II) 500 97.8 Thiocynate

amasked with 20 mg tartrate

Table 6: Separation of platinum (IV) from binary mixtures.

Rh (III) and Pd (II) interfere in the extraction of Pt (IV). Rh (III) and Pd (II) were separated from Pt (IV) by masking with 20 mg tartrate.

Analysis of platinum (IV) in catalysts sample

Platinum (IV) activated alumina (0.1 g) was dissolved in 20 mL aqua regia. The solution was evaporated to moist dryness. Two 5 mL portions of hydrochloric acid were added and evaporated till all the nitric acid was removed. The residue was extracted in 1 M hydrochloric acid. The solution was filtered and the filtrate was diluted to 100 mL. An aliquot of this diluted solution was analyzed for platinum (IV) content by the proposed method. It was found that there is a good agreement with the certified value (Table 7).

Sr. No. Alloy Platinum (IV) taken, μg Platinum (IV) *Found by method in μg Average, % recovery Average, % recovery
1. Pt-Pd a -Rh a catalyst on alumina 150 149.2 99.4 0.6
2 Pt-Rh a catalyst on alumina 150 149.5 99.6 0.4
3 Pt-Pd a catalyst on alumina 150 149.8 99.8 0.2
4 Pt catalyst on alumina 300 299.5 99.8 0.2

amasked with 20 mg tartrate.
*Average of five determinations
Composition of synthetic mixtures in percentage
1. Pt, 0.03-0.25; Rh, 0.005-0.03
2. Pt, 0.03-0.15; Pd, 0.02-0.12
3. Pt, 0.03-0.20; Pd, 0.03-0.150; Rh, 0.015-0.05
4. Pt, 0.3-0.8

Table 7: Determination of platinum (IV) from catalysts.

Analysis of platinum (IV) from real samples

Cytoplatin (cisplatin injection): The method permits the separation and determination of platinum (IV) from drug sample, cytoplatin (cisplatin injection) and platinum-rhodium thermocouple wire. Cytoplatin (cisplatin injection) in an antineoplastic agent with the biochemical properties similar to those of bifunctional alkylating agents. Although, not yet clearly established, its cytotoxic actions and antitumor activity is consistent with the hypothesis that major cytotoxic target of cisplatin in DNA. The drug covalently binds to DNA bases and disrupts DNA functions. Cytoplatin appears to enter cells by diffusion.

Cytoplatin is a sterile solution of cisplatin I.P. 1.0 mg/mL, sodium chloride I.P. 9 mg/mL in water for injection I.P. Cytoplatin containing cisplatin which is a heavy metal platinum coordination complex containing a central atom of platinum surrounded by two entities each of chloride ions and two ammonia molecules in cis geometry. It has a melting point of 207°C.

The empirical formula of the active compound is PtCl2H6N2 with a molecular weight of 300.1.

A known volume (10 mL) of cisplatin solution was digested in perchloric acid /nitric acid (10:1) and evaporated to dryness until organic matter was removed. The obtained residue was dissolved in concentrated hydrochloric acid and diluted with water to 10 mL in a standard volumetric flask.

An aliquot of the sample solution was taken and platinum (IV) was determined using the recommended procedure (Table 7).

Thermocouple wire: A known weight (0.100) of thermocouple wire was preliminary fused with zinc powder and the melt was cooled and dissolved in hydrochloric acid. The black powder remained was treated with 5 mL aqua regia. After the reaction was over the whole solution was heated with two 5 mL portions of concentrated hydrochloric acid until complete removal of oxides of nitrogen and diluted with distilled water to 10 mL in standard volumetric flask.

An aliquot of sample solution was taken and platinum (IV) was determined using the procedure described earlier. The results of the analysis are given in table 8.

Sample Manufacturer Amount taken Amount of platinum(IV) found RSD, %
Cytoplatin (cisplatin injection) Cipla, Goa 200 μg/ mL 198.6 μg/mL 0.7
Platinumrhodium a thermocouple wire (Pt, 87; Rh,13) Ruia Resistance Wire Pvt. Ltd., Mumbai 87% 86.4% 0.6

amasked with 20 mg tartrate

Table 8: Analysis of platinum (IV) from real samples.

Conclusion

i. Quantitative extraction of platinum (IV) was achieved in 3 min with 0.1 M n-octyaniline in toluene at pH 0.50.

ii. Extraction reaction occurred through anion-exchange mechanism.

iii. Developed method is efficient for quantitative separation of platinum (IV) in presence of various interfering cations and anions.

iv. The proposed extractive separation method is simple, rapid, selective reproducible and suitable for separation and determination of platinum (IV) from associated metal ions, real samples and synthetic mixtures.

Acknowledgements

The authors are thankful to Sung. H. Han, Professor, Inorganic Nano-Materials Research Laboratory, Department of Chemistry, Hanyang University, Seoul, South Korea for constant encouragement. We are thankful to UGC-SAP and DST-FIST, Department of Chemistry, Shivaji University, Kolhapur.

References

  1. Lee JY, Kumar JR, Kim JS, Park HK, Yoon HS (2009) Liquid–liquid extraction/separation of platinum(IV) and rhodium (III) from acidic chloride solutions using tri-iso-octylamine. J Hazard Mater 168: 424-429.
  2. Swain B, Jeong JK, Kim SK, Lee JC (2010) Separation of platinum and palladium from chloride solution by solvent extraction using alamine 300. Hydrometallurgy 104: 1-7.
  3. Rao CRM, Reddi GS (2000) Platinum group metals (PGM); occurrence, use and recent trends in their determination. TrAC Trends Anal Chem 19: 565-586.
  4. Fujiwara K, Ramesh A, Maki T, Hasegawa H, Ueda K (2007) Adsorption of platinum (IV), palladium (II) and gold (III) from aqueous solutions onto L-lysine modified crosslinked chitosan resin. J Hazard Mater 146: 39-40.
  5. Rakoskii EE, Shveddova NV, Berliner LD (1974) Solvent extraction of the platinum metals in the presence of stannous chloride and di-o-tolylthiourea, J Anal Chem USSR 1978.
  6. Akimov VK, Busev AI, Koelua KV (1978) Thiopyrine and some of its derivatives as analytical reagents for palladium and platinum. J Anal Chem USSR 33 1851.
  7. Al-Bazi SJ, Chow A (1984) Polyurethane foam for the extraction of rhodium and its separation from iridium. Talanta 31: 431-435.
  8. Diamontatos A, Verbeek AA (1977) Method for the separation of platinum, palladium, rhodium, iridium and gold by solvent extraction, Anal Chim Acta 91: 287-294.
  9. Zolotov YA, Petrukhin OM, Shevchenko VN, Dunina VV, Rukhadze EG (1978) Solvent extraction of noble metals with derivatives of thiourea. Anal Chim Acta 100: 613-618.
  10. Mojski M (1980) Extraction of platinum metals from hydrochloric acid medium with triphenylphosphine solution in 1,2-dichloroethane. Talanta 27: 7-10.
  11. Cox M, Rydberg J, Musikas C, Choppin GR (eds.) (1992) Principle and practices of solvent extraction. M Dekker New York 10: 357.
  12. Belova VV, Vasileva AA (1986) The extraction of platinum from sulfate solutions with p-octylaniline, Izvestiya Sibirskogo Otdeleniya Akademii Nauk SSSR, Seriya Khimicheskikh Nauk 3: 58.
  13. Turaev KK, Turdikulov AK, Mukimova GZ (2002) Extraction of sulfate complexes of platinum metals with binary extractants, Ozbekiston Kimyo Jurnali 3: 19.
  14. Kolekar SS, Anuse MA (2003) Selective liquid-liquid extraction of platinum (IV) from ascorbate media by N-n-octylaniline: Its separation form associated elements and real samples analysis of real samples. Sep Sci Technol 38: 2597-2618.
  15. Fu J, Nakamura S, Akiba K (1995) Extraction of platinum(IV) with trioctylamine and its application to liquid membrane transport. Sep Sci Technol 30: 609-619.
  16. Fu J, Nakamura S, Akiba K (1997) Separation of precious metals through a trioctylamine liquid membrane. Sep Sci Technol 32: 1433-1445.
  17. Yoshizawa H, Shiomori K, Yamada S, Baba Y, Kawano Y, et al. (1997) Solvent extraction of platinum(IV) from aqueous acidic chloride medium with tri-n-octylamine in toluene. Solvent Extr Res Dev 4: 157-166.
  18. Sadyrbaeva, Tatiana (2007) Membrane extraction of platinum (IV) by tri-n-octylamine in the presence of nickel(II), Rigas Tehniskas Universitates Zinatniskie Raksti, Serija 1: Materialzinatne un Lietiska kimija, 15: 126.
  19. Shiomori K, Fujikubo K, Kawano Y, Hatate Y, Kitamura Y, et al. (2004) Extraction and separation of precious metals by a column packed with divinylbenzene homopolymeric microcapsule containing tri-n-octylamine. Sep Sci Technol 39: 1645.
  20. Barakat MA, Mahmoud MHH (2004) Recovery of platinum from spent catalyst. Hydrometallurgy 72:179-184.
  21. Seung LM, Young J, Rajesh KJ, Soo KJ, Jeong SS (2008) Solvent extraction of PtCl4 from hydrochloric acid solution with alamine 336. Materials Transactions 49: 2823.
  22. Sun PP, Lee MS (2011)Separation of Pt (IV) and Pd (II) from the loaded alamine 336 by stripping. Hydrometallurgy 109: 181–184.
  23. Jin-Young L, Rajesh K, Joon SK, Jeong-Soo S (2008) Solvent extraction of Pt (IV) from acidic chloride solutions using alamine 336, REWAS, 12: 1755.
  24. Sun PP, Lee MS (2011) Separation of Pt from hydrochloric acid leaching solution of spent catalysts by solvent extraction and ion exchange. Hydrometallurgy 110: 91-98.
  25. Basudev S, Jin-Ki J, Soo-Kyoung K, Jae-Chun L (2010) Separation of platinum and palladium from chloride solution by solvent extraction using alamine 300,Hydrometallurgy, 1041.
  26. Belova VV, Khol'kin AI, Zhidkova TI (2007) Extraction of platinum-group metals from chloride solutions by salts of quaternary ammonium bases and binary extractants. Theoretical Foundation of Chemical Engineering 41: 743-751.
  27. Watanabe H, Kakui A, Nagao K (2000) Extraction of platinum (IV) from hydrochloric acid solutions by dihexylsulfide containing micro amount of high molecular-weight amine under irradiation of light. Shigen to Sozai, 116: 291.
  28. Katsuta S, Yoshimoto Y, Okai M, Takeda Y, Bessho K (2011) Selective extraction of palladium and platinum from hydrochloric acid solutions by trioctylammonium-based mixed ionic liquids. Ind Eng Chem Res 50: 12735–12740.
  29. Singh, Pal W (2004) Extraction of platinum-group metals with diquaternary ammonium salts, U. S. Pat. Appl. Publ.
  30. Grote M, Huppe U, Kettrup A (1984) Solvent extraction of noble metals by formazans - Icomparative study on the extractability of platinum (IV), palladium(II) and silver(I) by formazans combined with a liquid anion- exchanger. Talanta 31: 755-762.
  31. Wenjun D, Qingxin R, Ruona C (1998)Extraction of thiocyanate complexes of platinum group metals ions by MIBK.
  32. Warshawsky, Abraham (1983) Separation of the rare platinum group elements (rhodium, iridium, ruthenium, osmium) by extraction with solvating p-donor ligands and polymers in the thiocyanate system. Separ Purif Method 12: 119.
  33. Zhidkova TI, Belova VV, Brenno YY, Zhidkov LL, Kholkin AI (2008) Study of platinum and palladium extraction from chloride solutions by trioctylmethylammonium dinonylnaphthalinsulfonate. Khimi. Tekhnol 12: 638.
  34. Khisamutdinov RA, Bondareva SO, Yu Murinov I, Baikova IP (2008) Extraction of palladium(II), platinum(II), and platinum (IV) by bisacylated diethylenetriamine from hydrochloric acid solutions. Russ J Inorg Chem 53: 462-469.
  35. Takeshi O, Kenji T, Glenn F, Mori A (2008) Extraction of soft metals from acidic media with nitrogen-donor ligand TPEN and its analogs. Sep Sci Technol 43: 2630-2640.
  36. Gaofei Q, Ying Z, Qin L, Wenwei J, Jide W, et al. (2011) Process and application of recovering platinum from used liquid-phase catalysts by solvent extraction with Thiourea. Chinese Journal of Applied Chemistry 28: 1337-1339.
  37. Koenig KH, Schuster M, Steinbrech B, Schneeweis G, Schlodder R (1985) Process for separation and purification of platinum group metals (I). Fresenius’ J Anal Chem 321: 457.
  38. Vest P, Schustger M, Koenig KH (1991) Influence of tin (II) chloride on the solvent extraction of platinum group metals with N,N-di-n-hexyl-N'-benzoylthiourea. Fresenius’ J Anal Chem 339: 142-144.
  39. Merdivan M, Aygun RS, Kulcu N (2000) Solvent extraction of platinum group metals with N,N-diethyl-N'-benzoylthiourea. Ann Chim 80: 407.
  40. Yoko T, Akemi H, Keiitsu S, Satomi M, Akihiko M (2003)Solvent extraction of platinum(II) with 1,3-dimethyl-2-thiourea and bromocresol Green, Bunseki Kagaku 52: 725-729.
  41. Uheida A, Zhang Y, Muhammed M (2003) Extraction of platinum (IV) with nonylthiourea dissolved in chloroform from hydrochloric acid media. Solvent Extr Ion Exch 21: 827-840.
  42. Uheida A, Zhang Y, Muhammed M (2004) Thermodynamic modeling of extraction equilibria of platinum and palladium with nonylthiourea from hydrochloric acid media. Sep Sci Technol 39: 3665-3677.
  43. Iwakuma M, Nakamura S, Baba Y (2004)Synthesis of a thiourea derivative containing a sulfur atom and extraction equilibrium of platinum(IV) from hydrochloric acid, Solvent extr Res Dev Jpn 11: 103-110.
  44. Tikhomirova TI, Fadeeva VI, Kudryavtsev GV, Nesterenko PN, Ivanov VM, et al. (1991) Sorption of noble-metal ions on silica with chemically bonded nitrogen-containing ligands. Talanta 38: 267-274.
  45. Pohlandt C (1979) The extraction of noble metals with n-octylaniline. Talanta 26: 199-206.
  46. Sandell EB (1965) Colorimetric Determination of Traces of Metals (Chemical Analysis), (3rdedn). Interscience. New York. 503-524.
  47. Hu X, Ning Y, Chen L, Jia C (2012) Physical properties and application performance of platinum-palladium-rhodium alloys modified with cerium. Platinum Metals Rev 56: 40-46.
  48. Markzenko Z (1976) Spectophotometric Determination of Elements. Ellis Horwood Limited, Chichester. 229-370.
  49. Anuse MA, Chavan MB (1984) Studies on extraction separation of platinum metals and gold (III) with pyrimidinethiol: spectrophotometric determination of palladium (II), osmium (VIII) and ruthenium (III). Chem Anal 29: 409.
  50. Kolekar GB, Anuse MA (1998) Extractive spectrophotometric determination of selenium (IV) using 1-(4’-bromophenyl)-4,4,6-trimethyl-1,4- dihydropyrimidine 2-thiol. Res J Chem Environ 2: 9.
  51. Anuse MA, Kuchekar SR, Chavan MB (1986) 1-(4’-Chlorophenyl)-4,4,6-trimethyl-1,4- dihydropyrimidine 2-thiol as an effective reagent for the spectrophotometric determination of copper after synergic extraction. Indian J Chem 25: 1041.
Citation: Gaikwad AP, Kamble GS, Kolekar SS, Anuse MA (2013) Liquid Anion Exchange Chromatographic Extraction and Separation of Platinum (IV) with N-Octylaniline as an Metallurgical Reagent: Analysis of Real Samples. J Chromat Separation Techniq 4:170.

Copyright: © 2013 Gaikwad AP, et al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.
Top
