Short Communication - (2016) Volume 2, Issue 1

A Novel Genetic Syndrome Caused by Haploinsufficiency of CHD2, a Regulator of Chromatin Structure

Kathleen Bone1,2 and Bob Argiropoulos2,3*
1Division of Anatomic Pathology and Cytopathology, Canada
2Cytogenetics Laboratory, Calgary Laboratory Services and Alberta Children’s Hospital, 2888 Shaganappi Trail NW, Calgary, AB, T3B 6A8, Canada
3Alberta Children’s Hospital Research Institute, University of Calgary, 3330 Hospital Drive NW, Calgary, AB, T2N 4N1, Canada
*Corresponding Author: Bob Argiropoulos, Cytogenetics Laboratory, Alberta Children’s Hospital, Calgary, Alberta, Canada, Tel: 403-955-7377 Email:

Abstract

Dynamic regulation of gene transcription, achieved through epigenetic modification of DNA/histones and chromatin remodeling, is essential for cell differentiation and development [1]. An emerging theme in the pathogenesis of genetic disease, including intellectual disability (ID), autism spectrum disorder (ASD) and congenital multisystem disorders, is the identification of mutations in genes involved in epigenetic modification or chromatin remodeling.

<

Introduction

Dynamic regulation of gene transcription, achieved through epigenetic modification of DNA/histones and chromatin remodeling, is essential for cell differentiation and development [1]. An emerging theme in the pathogenesis of genetic disease, including intellectual disability (ID), autism spectrum disorder (ASD) and congenital multisystem disorders, is the identification of mutations in genes involved in epigenetic modification or chromatin remodeling.

Deletion of CHD2 is linked to Neurodevelopmental Disease

There is accumulating evidence linking loss-of-function mutations in Chromodomain helicase DNA-binding domain containing protein 2 (CHD2) to neurodevelopmental disease. Recently, we described chromosome 15q26.1 microdeletions encompassing CHD2 in a series of patients ascertained from six genetic diagnostic laboratories that perform chromosomal microarray analysis for patients broadly ascertained to have motor, speech and/or cognition delay (developmental delay), global developmental delay or ID, multiple congenital anomalies, and/or ASD [2]. Four from a total of 42,313 patients analyzed were identified with de novo CHD2 deletions, ranging in size from 78 kb to 237 kb (Table 1). The clinical findings in these four patients included developmental delays, learning difficulties or ID, and seizures were documented in 3 of the 4 patients. Although dysmorphic features were common, there was no characteristic facial gestalt identified. Brain magnetic resonance imaging (MRI) was normal when performed. Analysis of 26,826 individuals from a population-based control cohort evaluated by chromosomal microarray analysis did not reveal CHD2 deletions, suggesting that haploinsufficiency of CHD2 directly contributes to the clinical phenotype of the patients studied.

down-syndrome-Genome-browser

Table 1: Clinical characteristics of patients with CHD2 microdeletions.

Prior to our publication, two individuals with microdeletions involving the CHD2 locus had previously been described. Capelli et al. reported a de novo deletion affecting CHD2 and the adjacent locus RGMA in a patient with speech and motor delays, ID, autistic features with attention deficit disorder, gait ataxia, and seizures which began at 24 months of age [3]. Pinto et al. reported one de novo deletion of CHD2 in a patient with mild ID and no documented seizures at the time of publication [4]. The phenotypic similarities in these unrelated patients underscore the hypothesis that CHD2 haplo-insufficiency is the underlying cause of the documented clinical features.

Since our publication, two additional patients with chromosome 15q26.1 microdeletions involving CHD2 and RGMA have been reported [5]. These two adult individuals had a similar phenotype to the patients previously published, including moderate ID, behavioural problems and generalized epilepsy (Table 1). Both patients also presented with differing degrees of scoliosis, which was noted in two of our microdeletion patients [2], in addition to adolescent-onset truncal obesity. The authors speculate that haplo-insufficiency of RGMA, encoding a member of the repulsive guidance molecule family that functions as an axon guidance protein in the developing and adult central nervous system, may contribute to the truncal obesity phenotype, while CHD2 haploinsufficiency is responsible for the neurodevelopmental phenotype and scoliosis [5]. Given that obesity was not noted in the other two patients with deletions overlapping both CHD2 and RGMA (Table 1 and Figure 1; Patients 4 and 6), there are clearly too few cases at this point to associate deletion of RGMA with obesity or whether it is a coincidental finding.

down-syndrome-Clinical-characteristics

Figure 1: Snapshot of the UCSC Genome browser (Human Feb. 2009 (GRCh37/hg19) Assembly) displaying all of the published chromosome 15q26.1 microdeletions involving CHD2 to date. The P# designation adjacent to each deletion (red bar) corresponds to the patient designation in Table 1.

A review of the literature also uncovered a single case describing a de novo chromosome 15q26.1 microdeletion encompassing CHD2 in a child with developmental delay, growth delay, mild dysmorphic features, and primary generalized epilepsy [6], providing additional evidence to support the requirement of CHD2 in proper neurodevelopment.

In total, 9 patients with chromosome 15q26.1 microdeletions (<1 Mb) encompassing CHD2 have been described in the literature (see Figure 1 and Table 1). Developmental delay and ID were reported in 9/9 (100%), behavioural problems were reported in 9/9 (100%), scoliosis was reported in 4/9 (44%) and seizures were reported in 7/9 (78%). Alignment of all patients’ deletions reveals that CHD2 deletions, with or without deletion of RGMA, may produce seizures indicating that deletion of RGMA is not required for manifestation of this phenotype. Larger and more complex deletions involving CHD2 have also been identified (reported deletions sizes were 3.3 Mb and 5 Mb, in addition to one patient with 6 copy number changes, including a 2 Mb chromosome 15q26.1 deletion) [7-9]. Although the clinical phenotypes are likely modified by the greater number of genes deleted in these patients, developmental delay, facial dysmorphia, and seizures were common features shared by these larger CHD2 deletion carriers. These data strongly suggest that haplo-insufficiency of CHD2 contributes to the spectrum of neurodevelopmental disorders identified in these patients.

Segregating Sequence Changes within CHD2 are Associated with Neurodevelopmental Disorder

In addition to the 9 patients that have been described with CHD2 microdeletions, patients with predicted pathogenic loss-of-function mutations in CHD2 have been reported in the literature. Although it is not clear whether the reported mutations are equivalent to haploinsufficiency, in our review of the literature, at least 21 individuals with unique de novo heterozygous CHD2 mutations have thus far been described (Table 2). These individuals were ascertained from a cohort of patients with epileptic encephalopathies, ID, and ASD [10-18]. The phenotype of CHD2 mutation carriers is comparable to chromosome 15q26.1 microdeletion carriers, and includes mild-to-profound developmental delay with instances of regression, ID, ASD, behavioural problems and seizures. The presence of dysmorphic features was generally not reported. Interestingly, the seizures associated with CHD2 mutation were generally more complex than the microdeletion carriers, and were reported in over 90% of the patients identified. Furthermore, sequence variants in CHD2 were found to be over-represented in patients with photosensitive epilepsy syndrome and associated with photosensitivity in common epilepsies suggesting that CHD2 may influence this particular trait [19]. Interestingly, partial loss of chd2 function in the zebrafish model leads to a similar phenotype of seizures [13] and photosensitivity [19].

down-syndrome-CHD2-mutations

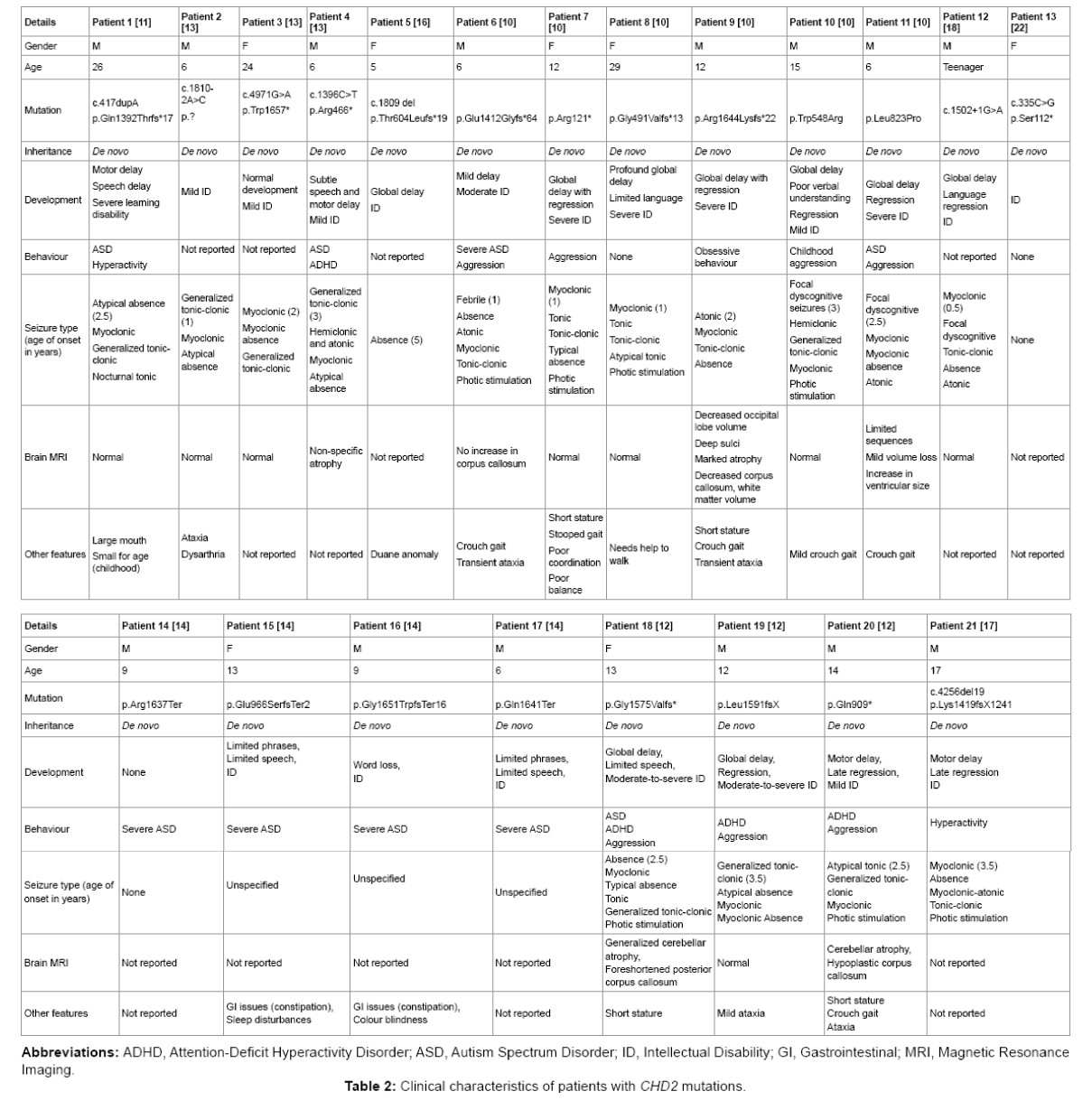

Table 2: Clinical characteristics of patients with CHD2 mutations.

CHD2 is Essential for Normal Neurodevelopment

While the genetic pathways regulated by CHD2 are currently not well elucidated, there is irrefutable evidence that CHD2 is required for proper development. Mice homozygous for a C-terminal truncating mutation of CHD2 are not viable, with general growth delay in late embryogenesis and perinatal death [20]. Heterozygous Chd2 mutants exhibit decreased survival rates, especially in the neonatal period, and have increased incidence of non-neoplastic lesions affecting a number of primary organs, most notably the kidneys.

A recent study has shown that CHD2 plays a role in embryonic neurogenesis [21]. CHD2, primarily expressed in Pax6 positive radial glial cells, was found to maintain the self-renewal capacity of this cell population, increasing the generation of intermediate progenitors through direct binding to the repressor element 1-silencing transcription factor (REST) genomic region. CHD2 knockdown led to a decrease in radial glial cells and an increase in intermediate progenitors, suggesting that loss of Chd2 expression during neurogenesis contributes to abnormal development of the central nervous system.

The Biochemical Function of CHD2

CHD2 is one member of a distinct family of nine evolutionarily conserved genes encoding proteins involved in chromatin remodeling. The protein domains characterizing CHD2 and this family include, but not limited to, the chromodomain (chromatin organization modifier), SNF2-related ATP-dependent helicase domain, and specific DNAbinding domains [22]. CHD2 was recently shown to function as an ATP-dependent chromatin assembly factor that has the ability to assemble periodic nucleosome arrays on a naked DNA template in vitro [23]. In vivo, more specifically in a human myoblast cell line, CHD2 was found to mediate the deposition of the H3.3 histone variant within the promoters of myogenic-specific loci, which serves as a functional epigenetic mark demarcating transcriptionally competent genes [24]. The absence of a skeletal muscle phenotype in patients with CHD2 deletions or mutations suggests that the role of CHD2 in this cell type may not be dosage-sensitive or its partial loss may be compensated for by the functional redundancy of the CHD proteins. Indeed, Siggens et al. have recently shown in K562 cells (a human erythromyeloblastoid leukemia cell line) that CHD1 and CHD2 cooperate via transcriptioncoupled recruitment to regulate the chromatin structure at transcriptionally active genes [25].

CHD Family and Genetic Disease

CHD proteins function in a variety of cellular processes through their ability to remodel chromatin and facilitate gene activation or repression of a multitude of genes targets. Therefore, it is not surprising that mutations in several CHD genes are directly linked to human disease. Most notably, haplo-insufficiency of CHD7 via microdeletions or heterozygous mutations in CHD7 causes CHARGE syndrome, an acronym summarizing the six cardinal features of the multisystem disorder (Coloboma, Heart defects, choanal Atresia, mental Retardation, Genital and Ear anomalies) [26] (extensively reviewed in [27] and [28]). It is interesting to note that Chd7 mRNA is expressed in organs affected in CHARGE syndrome. As Chd7 mutations in mice block neuronal differentiation, it has been proposed that a similar mechanism exists in humans [29].

Microdeletions encompassing CHD8 were identified in patients presenting with ID and/or ASD and/or macrocephaly [30]. While the minimal deleted region contains CHD8 and the adjacent SUPT16H locus, the importance of abrogated CHD8 function in the phenotype of these patients is underscored by the identification of disruptive CHD8 mutations in individuals with DD or ASD [31] and recapitulation of a subset of features of the human phenotype in the zebrafish model [32]. Although other CHD proteins have yet to be linked to human genetic disease, it has been demonstrated that CHD4 and CHD5 carry out important functions in neurogenesis [33,34]. Although beyond the scope of this communication, the contribution of CHD dysfunction in the etiology of cancer has been long recognized [35].

Conclusion

Haplo-insufficiency of the chromatin remodeler CHD2 causes neurodevelopmental disease in humans. Determining the tissuespecific transcriptional targets of CHD2 and deciphering the regulatory role it plays on chromatin will provide further insight on its functions in development and may help to predict the impact of disease mutations on that function. With the significant increase in the use of chromosomal microarrays and exome sequencing technologies in genetic diagnosis, it is conceivable that, given their pivotal role in chromatin remodeling, all CHD family members will be eventually linked to human disease.

References

  1. Clapier CR, Cairns BR (2009) The biology of chromatin remodeling complexes. Annu Rev Biochem 78: 273-304.
  2. ChénierS, Yoon G, Argiropoulos B, Lauzon J, Laframboise R, et al. (2014) CHD2 haploinsufficiency is associated with developmental delay, intellectual disability, epilepsy and neurobehavioural problems. J NeurodevDisord 6: 9.
  3. Capelli LP, Krepischi AC, Gurgel-Giannetti J, Mendes MF, Rodrigues T, et al. (2012) Deletion of the RMGA and CHD2 genes in a child with epilepsy and mental deficiency. Eur J Med Genet 55: 132-134.
  4. Pinto D, Pagnamenta AT, Klei L, Anney R, Merico D, et al. (2010) Functional impact of global rare copy number variation in autism spectrum disorders. Nature 466: 368-372.
  5. Courage C, Houge G, Gallati S, Schjelderup J, Rieubland C (2014) 15q26.1 microdeletion encompassing only CHD2 and RGMA in two adults with moderate intellectual disability, epilepsy and truncal obesity. Eur J Med Genet 57: 520-523.
  6. Dhamija R, Breningstall G, Wong-Kisiel L, Dolan M, Hirsch B, et al. (2011) Microdeletion of chromosome 15q26.1 in a child with intractable generalized epilepsy. PediatrNeurol 45: 60-62.
  7. Li MM, Nimmakayalu MA, Mercer D, Andersson HC, Emanuel BS (2008) Characterization of a cryptic 3.3 Mb deletion in a patient with a "balanced t(15;22) translocation" using high density oligo array CGH and gene expression arrays. Am J Med Genet A 146A: 368-375.
  8. Veredice C, Bianco F, Contaldo I, Orteschi D, Stefanini MC, et al. (2009) Early onset myoclonic epilepsy and 15q26 microdeletion: observation of the first case. Epilepsia 50: 1810-1815.
  9. Lund C, Brodtkorb E, Røsby O, Rødningen OK, Selmer KK (2013) Copy number variants in adult patients with Lennox-Gastaut syndrome features. Epilepsy Res 105: 110-117.
  10. Carvill GL, Heavin SB, Yendle SC, McMahon JM, O'Roak BJ, et al. (2013) Targeted re-sequencing in epileptic encephalopathies identifies de novo mutations in CHD2 and SYNGAP1. Nat Genet 45: 825-830.
  11. Lund C, Brodtkorb E, Øye AM, Røsby O, Selmer K (2014) CHD2 mutations in Lennox-Gastaut syndrome. Epilepsy Behav 33: 18-21.
  12. Thomas RH, Zhang LM, Carvill GL, Archer JS, Heavin SB, et al. (2015) CHD2 myoclonic encephalopathy is frequently associated with self-induced seizures. Neurology 84: 951-958.
  13. Suls A, Jaehn JA, Kecskes A, Weber Y, Weckhuysen S, et al. (2013) De novo loss-of-function mutations in CHD2 cause a fever-sensitive myoclonic epileptic encephalopathy sharing features with Dravet syndrome. Am J Hum Genet 93: 967-975.
  14. O'Roak BJ, Stessman HA, Boyle EA, Witherspoon KT, Martin B, et al. (2014) Recurrent de novo mutations implicate novel genes underlying simplex autism risk. Nat Commun 5: 5595.
  15. Hamdan FF, Srour M, Capo-Chichi JM, Daoud H, Nassif C, et al. (2014) De novo mutations in moderate or severe intellectual disability. PLoS Genet 10: e1004772.
  16. Rauch A, Wieczorek D, Graf E, Wieland T, Endele S, et al. (2012) Range of genetic mutations associated with severe non-syndromic sporadic intellectual disability: an exome sequencing study. Lancet 380: 1674-1682.
  17. Trivisano M, Striano P, Sartorelli J, Giordano L, Traverso M, et al. (2015) CHD2 mutations are a rare cause of generalized epilepsy with myoclonic-atonic seizures. Epilepsy Behav 51: 53-56.
  18. Epi4K Consortium; Epilepsy Phenome/Genome Project, Allen AS, Berkovic SF, Cossette P, Delanty N, et al. (2013) De novo mutations in epileptic encephalopathies. Nature 501: 217-221.
  19. Galizia EC, Myers CT, Leu C, de Kovel CG, Afrikanova T, et al. (2015) CHD2 variants are a risk factor for photosensitivity in epilepsy. Brain 138: 1198-1207.
  20. Marfella CG, Ohkawa Y, Coles AH, Garlick DS, Jones SN, et al. (2006) Mutation of the SNF2 family member CHD2 affects mouse development and survival. J Cell Physiol 209: 162-171.
  21. Shen T, Ji F, Yuan Z, Jiao J (2015) CHD2 is Required for Embryonic Neurogenesis in the Developing Cerebral Cortex. Stem Cells 33: 1794-1806.
  22. Hall JA, Georgel PT (2007) CHD proteins: a diverse family with strong ties. Biochem Cell Biol 85: 463-476.
  23. Liu JC, Ferreira CG, Yusufzai T (2015) Human CHD2 is a chromatin assembly ATPase regulated by its chromo- and DNA-binding domains. J BiolChem 290: 25-34.
  24. Harada A, Okada S, Konno D, Odawara J, Yoshimi T, et al. (2012) CHD2 interacts with H3.3 to determine myogenic cell fate. EMBO J 31: 2994-3007.
  25. Siggens L, Cordeddu L, Ronnerblad M, Lennartsson A, Ekwall K. (2015) Transcription-coupled recruitment of human CHD1 and CHD2 influences chromatin accessibility and histone H3 and H3.3 occupancy at active chromatin regions. Epigenetics Chromatin 8:4.
  26. Vissers LE, van Ravenswaaij CM, Admiraal R, Hurst JA, de Vries BB, et al. (2004) Mutations in a new member of the chromodomain gene family cause CHARGE syndrome. Nat Genet 36: 955-957.
  27. Sanlaville D, Verloes A (2007) CHARGE syndrome: an update. Eur J Hum Genet 15: 389-399.
  28. Zentner GE, Layman WS, Martin DM, Scacheri PC (2010) Molecular and phenotypic aspects of CHD7 mutation in CHARGE syndrome. Am J Med Genet A 152A: 674-686.
  29. Feng W, Liu HK (2013) Epigenetic regulation of neuronal fate determination: the role of CHD7. Cell Cycle 12: 3707-3708.
  30. Prontera P, Ottaviani V, Toccaceli D, Rogaia D, Ardisia C, et al. (2014) Recurrent ∼100 Kb microdeletion in the chromosomal region 14q11.2, involving CHD8 gene, is associated with autism and macrocephaly. Am J Med Genet A 164A: 3137-3141.
  31. Bernier R, Golzio C, Xiong B, Stessman HA, Coe BP, et al. (2014) Disruptive CHD8 mutations define a subtype of autism early in development. Cell 158: 263-276.
  32. Sugathan A, Biagioli M, Golzio C, Erdin S, Blumenthal I, et al. (2014) CHD8 regulates neurodevelopmental pathways associated with autism spectrum disorder in neural progenitors. ProcNatlAcadSci U S A 111: E4468-4477.
  33. Egan CM, Nyman U, Skotte J, Streubel G, Turner S, et al. (2013) CHD5 is required for neurogenesis and has a dual role in facilitating gene expression and polycomb gene repression. Dev Cell 26: 223-236.
  34. Sparmann A, Xie Y, Verhoeven E, Vermeulen M, Lancini C, et al. (2013) TheChromodomain helicase Chd4 is required for Polycomb-mediated inhibition of astroglial differentiation. EMBO J 32: 1598-1612.
  35. Li W, Mills AA (2014) Architects of the genome: CHD dysfunction in cancer, developmental disorders and neurological syndromes. Epigenomics 6: 381-395.
Citation: Bone K, Argiropoulos B (2016) A Novel Genetic Syndrome Caused by Haploinsufficiency of CHD2, a Regulator of Chromatin Structure. J Down Syndr Chr Abnorm 2: 104.

Copyright: © 2016 Bone K, et al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.
