Remote Sensing of Ecological Hotspots: Producing Value-added Information from Multiple Data Sources
Journal of Geography  & Natural Disasters

Journal of Geography  & Natural Disasters
Open Access

ISSN: 2167-0587

Research Article - (2013) Volume 3, Issue 1

Remote Sensing of Ecological Hotspots: Producing Value-added Information from Multiple Data Sources

Chandi Witharana1*, Uchitha S. Nishshanka2 and Jagath Gunatilaka2,3
1Center for Integrative Geosciences, University of Connecticut, Storrs, CT 06269-4087, USA
2Department of Geology, University of Peradeniya, Peradeniya, Sri Lanka
3Postgraduate Institute of Science, University of Peradeniya, Peradeniya, Sri Lanka
*Corresponding Author: Chandi Witharana, Center for Integrative Geosciences, University of Connecticut, Storrs, CT 06269-4087, USA, Tel: +1 860-450-0428, Fax: +1 860-486-1383 Email:

Abstract

Fusing high-spatial resolution panchromatic and high-spectral resolution multispectral images with complementary characteristics provides basis for complex land-use and land-cover type classifications. In this research, we investigated how well different pan sharpening algorithms perform when applied to single-sensor single-date and multi-senor multi–date images that encompass the Horton Plains national park (HPNP), a highly fragile eco-region that has been experiencing severe canopy depletion since 1970s, in Sri Lanka. Our aim was to deliver resolution-enhanced multitemporal images from multiple earth observation (EO) data sources in support of long-term dieback monitoring in the HPNP. We selected six candidate fusion algorithms: Brovey transform, Ehlers fusion algorithm, high-pass filter (HPF) fusion algorithm, modified intensity-hue-saturation (MIHS) fusion algorithm, principal component analysis (PCA) fusion algorithm, and the wavelet-PCA fusion algorithm. These algorithms were applied to eight different aerial and satellite images taken over the HPNP during last five decades. Fused images were assessed for spectral and spatial fidelity using fifteen quantitative quality indicators and visual inspection methods. Spectral quality metrics include correlation coefficient, root-mean-square-error (RMSE), relative difference to mean, relative difference to standard deviation, spectral discrepancy, deviation index, peak signal-to-noise ratio index, entropy, mean structural similarity index, spectral angle mapper, and relative dimensionless global error in synthesis. The spatial integrity of fused images was assessed using Canny edge correspondence, high-pass correlation coefficient, RMSE of Sobel-filtered edge images, and Fast Fourier Transform correlation. The Wavelet-PCA algorithm exhibited the worst spatial improvement while the Ehlers.MIHS and PCA fusion algorithms showed mediocre results. With respect to our multidimensional quality assessment,the HPF emerged as the best performing algorithm for single-sensor single-date and multi-sensor multi-date data fusion.We further examined the effect of fusion in the object-based image analysis framework. Our subjective analysis showed the improvement of image object candidates when panchromatic images’ high-frequency information is injected to low resolution multispectral images.

Keywords: Image fusion; Fusion evaluation; Ecosystem monitoring; Canopy dieback; Horton plains; Sri Lanka

Introduction

Forest ecosystems in developing countries are being depleted at alarming rates [1,2]. Sri Lanka is classified as one of the 25 biodiversity hotspots in the world. The country harbors two world-heritage nature reserves designated by the United Nations Educational, Scientific and Cultural Organization (UNESCO). Sri Lanka has been experiencing severe depletion of its biodiversity owing to overwhelming anthropogenic stresses acting on forest ecosystems. During last century, Sri Lanka’s total close-canopy forest cover has been decreased from about 84% of the total area to about 30% [3-5].

The Horton Plains National Park (HPNP) is a UNESCO designated world heritage nature reserve, which is located in the Central Highlands of Sri Lanka. This fragile eco-region provides habitats for nearly half of Sri Lanka’s endemic flowering plants and endemic vertebrates [6,7]. Studies reveal that some selected sites of HPNP are represented by 57 species of vascular plants belonging to 44 genera and 31 families [8]. Of these, 18 species are only seen in montane forests in Sri Lanka and India [7]. Apart from invaluable ecological richness, HPNP’s serene landscape has made an inextricable link to Sri Lanka’s tourism industry.

The HPNP has been received greater attention during last three decades owing to the sever canopy diebacks reported in certain parts of the park. Since the initial documentation occurred in late 1970s [9,10], nearly 37 plant species have been susceptible to dieback and 26 among them are endemic to Sri Lanka [11,12]. Through ground-based inventories of canopy cover and health status, investigators noted that approximately 17.2% of forested areas (~655 Ha) in the national park have been subjected to severe dieback [12,13]. Families like Lauraceae, Simplocaceae, and Myrtaceae have shown a greater vulnerability to forest dieback. Syzigium rotundifolium, Ilex walkeri, Euodia lunuankenda, Symplocos bractealis serve as the dominant species susceptible to forest dieback [11]. Ediriweera et al. [7] noted that the susceptibility to dieback gradually increases as the DBH class increases. Owing to HPNP’s high ecological and cultural values, there has been a growing interest on understanding factors associated with the canopy depletion. Several theories have been put forwarded such as, acid rain [14], climate change [15], elevated total nutrient content [16], diseases [11], sambur damage, and heavy metal contamination [6,12,17], however, the etiology of the forest dieback remains unexplained.

The utility of Earth Observation (EO) data in complex land cover mapping applications is a well addressed research problem, There is a plethora of literature on how air- and space-born data with varying spatial (coarse, moderate, high and very-high resolution), spectral, and radiometric resolutions assist in multi-scale vegetation information extraction, ranging from forest stand to individual tree canopies. However, we believe that the full strength of EO data and advanced image processing techniques are weakly exploited in relation to ecological applications in Sri Lanka. Remote sensing serves as a cost effective tool for developing countries [18]. Excluding very high resolution commercial satellite images, many other civilian-use sensors provide image data through public domains at no cost. For example, current and archived images of LandSat MSS/TM/ETM+, EO-1 ALI/ Hyparion, ASTER, and MODIS can be freely downloaded from the United States Geological Survey (USGS) Earth Resources Observation and Science (EROS) Center (https://www.earthexplorer.usgs.gov), global data explorer (https://www.gdex.cr.usgs.gov), and University of Maryland’s Global Land Cover Facility (GLCF) (https://www.glcf. umiacs.umd.edu). These images cover large geographical areas and offer the possibility of time series analysis given the large quantity of archived data spanning many years. Low spatial resolution of these images (e.g. LandSat MSS 60m) stands as the main disadvantage because accurate vegetation mapping also requires high frequency information. In this context, fusing multi-platform data types with complimentary characteristics serve as one of the most viable and cost effective solution.

Moderate and very-high resolution sensors typically record image data in a low resolution multispectral (MS) mode and high resolution panchromatic (PAN) mode (e.g., EO-1 ALI: PAN = 10m, MS = 30m; SPOT-5: PAN 5m, MS = 10m; IKONOS: PAN = 1m, MS = 4m, WorlView-2: PAN = 0.46cm, MS = 1.84m) due to the limited on-board storage capacity and data transmission rates from space-born platforms to the ground stations [19-21]. The high spatial resolution is needed to accurately describe the shapes of features and structures, and the high spectral resolution is needed to classify complex land-use and landcover types [22-24]. Fusing PAN and MS images with complementary characteristics can provide a better visualization of the observed area [22,23]. Image fusion can be applied to various types of data sets, such as single-sensor single-/ multi-date (e.g. PAN and MS images of IKONIOS, SAR multi-temporal images), multi-sensor single- /multidate (e.g. high and low resolution images of SPOT and LandSat, VIR and SAR multi-temporal images), single-data from multiple sensors (e.g. ERS-1 and ERS-2), and RS data with ancillary data (e.g. fusion of images with topographic maps). Many image-fusion algorithms were developed for combining complimentary characteristics of PAN and MS images to produce an enhanced multispectral image of high spatial resolution. Several classifications for grouping fusion algorithms have been proposed in literature [20,22,24-27]. In general, fusion techniques can be grouped as spectral substitution methods, arithmetic merging, and spatial-domain methods.

A fusion algorithm that preserves the spectral properties of the MS data and the spatial properties of the PAN data would be ideal, but there is always compromise [28,29]. Many studies report the problems and limitations associated with different fusion techniques [30,31]. The most-encountered problem in fusion algorithms is that the fused image exhibits a notable deviation in visual appearance and spectral values from the original MS image [32]. Spectral distortions including spatial artifacts affect both manual and automated classifications because any error in the synthesis of the spectral signatures at the highest spatial resolution incurs an error in the decision [23]. Qualitative comparison of the fused image and the original MS and PAN images for color preservation and spatial improvements is the most simple but effective way of benchmarking different fusion algorithms [28,33]; however, visual inspection methods are subjective and largely depend on the experience of the interpreter [24,34].

A number of objective metrics have been proposed to quantify spectral and spatial distortions incurred during the fusion process. Most widely used metrics for evaluating spectral fidelity are two-dimensional Correlation Coefficient (CC), Root Mean Squared Error (RMSE), relative difference of means, relative variation, deviation index, and band discrepancy. Workers like Vijayaraj et al. [35], Karathanassi et al. [36], Yakhdani and Azizi [27], and Witharana et al. [29] utilized Peak- Signal-to-Noise Ratio (PSNR) and entropy as spectral quality metrics in addition to common indicators. Wald [22] proposed the ERGAS metric (from its French acronym: erreur relatif globale adimensionnelle de synthe`se, which means relative dimensionless global error in synthesis), which aims to provide a quick but accurate measure of the overall quality of a fused product. Few workers used the spectral angle mapper (SAM) to assess the overall spectral quality of fused images. Wang et al. (2004) proposed another metric called Mean Structure Similarity Index (MSSIM), which was developed based on the findings of Wang and Bovik (2002). Compared to spectral quality indicators, only few metrics are available to evaluate the spatial fidelity of fused images [29,37], Ehlers et al. [24], Gangkofner et al. [20], Klonus and Ehlers [34], Yakhdani and Azizi [27], and Witharana [28] used highpass correlation and edge detection using filters like Canny, Sobel, and Perwitte.

This study serves a corner stone of our ongoing effort on introducing Geographic Object-Based Image Analysis (GEOBIA, also called OBIA) framework to the vegetation mapping efforts in the HPNP aiming on two foci: 1) forest dieback and 2) invasive plant species. GEOBIA (or OBIA) is a novel conceptualization of image understating that mimics innate cognition abilities of humans. Unlike pixel-based paradigm that is solely driven on spectral signatures of individual pixels, GEOBIA integrates spectral, spatial, and contextual properties into image classification workflows (Balschke 2010). Thus, in case of GEOBIA, spatial properties of images cannot be overlooked and injection of high frequency information is necessary for better image segmentation results. The central objective of this research is to investigate how well different fusion algorithms when applied to singlesensor single-date and multi-senor multi–date images taken over the Horton Plains national park representing crucial time intervals. The spectral and spatial fidelity of fused images were assessed using a variety of quantitative quality indicators and visual inspection methods. The quantitative indicators include eleven spectral quality metrics and three spatial quality metrics. A novel spatial metric based on Fourier transform was also integrated into our spatial quality budget. We made few preliminary quality assessments on image segmentation results to demonstrate the importance of data fusion in segmentation workflows.

The remainder of this paper is structured as follows. Section 2 describes study areas, image data, fusion algorithms, and evaluation methods. Section 3 reports the spatial and spectral fidelity of fused products in terms of quantitative indices and visual inspections. Section 4 contains a discussion explaining the results based on the performances of fusion algorithms. Finally, conclusions are drawn in Section 5.

Materials and Methods

Study area and data

The Horton Plains national park encompasses 3,200 Ha in Central Highlands of Sri Lanka (Figure 1). The park comprises upper montane rain forest (cloud forests) and wet patana grasslands and characterized by undulating terrain of rolling hills and valleys with a network of streams. The annual rainfall in the area ranges 2000 mm - 5000 mm. We selected a representative study area from the south west corner of the park comprising major land cover types and observable canopycover changes occurred over the time.

natural-disasters-Horton-Plain

Figure 1: Geographical setting of the Horton Plain national park. The park boundary (white solid line) and the area-of -interest (yellow dashed line) are shown on the area-detailed map.

Image scenes used in this study belong to two different platforms: 1) air-borne and 2) space-borne. The former group entails images from two different aerial missions commissioned in year 1956 and 1986. The latter comprises images acquired by four different satellite sensors ranging from moderate spatial resolution to very-high spatial resolution (Figure 2). Table 1 summarizes general characteristics of the source data. The images are spatially registered to the Universal Transverse Mercator (UTM) coordinate system on the WGS 84 datum.

natural-disasters-candidate-panchromatic

Figure 2: Subsets (2 km x 2 km) of candidate panchromatic (PAN) and multispectral (MS) images used for pan sharpening.

Platform Sensor Acquisition date Properties Source
spatial/scale spectral radiometric
Aerial Unknown 1956 1:40,000 PAN Scanned and stored as 8 bit data Department of Geology, University of Peradeniya, Sri Lanka
Unknown 1986 1:25,000 PAN Mahaweli Authority, Nawalapitiya,
Sri Lanka
Satellite LandSat Multispectral scanner (MSS) 1972 60m 4 bands 8 bit USGS EROS (http://www.earthexplorer.usgs.gov)
LandSat Thematic Mapper scanner (TM) 1986 30 m 7 bands 8 bit
LandSat Enhanced Thematic Mapper scanner (ETM+) 2000 28.5m (MS)
14.5 m (PAN)
8 bands 8 bit
LandSat Enhanced Thematic Mapper scanner (ETM+) 2003
  EO-1 Advanced Land Imager (ALI) 2004 10m (PAN)
30 m (MS)
10 bands 12 bit
  IKONOS-2 2005 1 m (PAN)
4 m (MS)
4 bands 11 bit Purchased

Table 1: General characteristics of image data.

Methods

We selected a 2km x 2km subset as the focal Area of Interest (AOI). The selection of the subset was made focusing on the land cover types that are most likely to be extracted (e.g., water, grassland, forest, and riverine vegetation) and distinct changes occurred over the time (e.g., depleted forest cover) .Aerial images acquired in 1956 and 1986 were scanned using 600 dots-per-inch (dpi) resolution and stored as 8-bit data. The images were then ortho-rectified using 90 meter Shuttle Radar Topographic Mission (SRTM) Digital Elevation Model (DEM) and co-registered with the IKONOS (2005) image. The scales of these images were known but lines-per-inch (lpi) count was unavailable, we therefore set spatial resolution of pre-processed images to 2m resolution. All other moderate resolution satellite images were coregistered with the IKONOS image to maintain the spatial consistency. We aimed to maintain the maximum spatial resolution ratio between PAN and MS as 1:4. Thus, high spatial resolution images were resampled as necessary to maintain 1:4 ratios. In case of the 1956 aerial (2m) and the 1972 LandSat MSS (60m) fusion, the aerial image was degraded to 15m resolution. When fusing the 1986 aerial (2m) and the 1992 LandSat TM (28.5m) images, the former was down sampled to 7m resolution.

We tested six fusion algorithms that are commonly encountered in the literature and built into image processing software packages: 1) Brovey (EH) transform, Ehlers (EH) fusion algorithm, High-Pass Filter (HPF) fusion algorithm, Modified Intensity-Hue-Saturation (MIHS) fusion algorithm, Principal Component Analysis (PCA) fusion algorithm, and the Wavelet-PCA (WV-PCA) fusion algorithm. Discussion of theoretical basis of these candidate algorithms is beyond our scope and we refer readers to relevant literature listed in Table 2. We used ERDAS Imagine 2011 to implement fusion algorithms. Some of the candidate fusion algorithms are proprietary (e.g., Ehlers fusion - ERDAS Imagine). Unlike the Brovey transform algorithm, which produce three-band fused images (B, G, and R or G, R, and NIR); other candidate algorithms are capable of accepting more than three bands at a time and producing four-band fused images in a single iteration. Therefore, we produced true- and false-color composites of BT algorithm and layer-stacked them to create fourband pan sharpened images. Fusion results were assessed using a series of quality metrics along with detailed visual inspection procedures to evaluate the spectral and spatial fidelity of fused products compared to their original MS and PAN images. Objective metrics were calculated independently for each subset and separately for each band (except for ERGAS and SAM). Subsequently, mean values were calculated for all bands. Use of eleven spectral and three spatial metrics, totaling 14 objective quality indicators in our evaluation procedure, might be questionable because these metrics. However, our justification is that it is important to employ a full complement of objective quality indicators and reexamine their stability and redundancy, and investigate the dependency of the ranking of fusion algorithms on quality metrics. These metrics’ mathematical and statistical bases are well addressed in literature; we therefore refer readers to Table 3 for relevant references. Beyond commonly found spatial quality indicators, we tested a new metric based on the Fast Fourier Transform (FFT) to assess the spatial fidelity which was initially proposed by Civco et al. [38]. In our recent work [37], we further investigated the discriminative capacity of this metric. Our argument is the original PAN image and the fused image should resemble in the Fourier domain if high frequency information is inject from the PAN image to the MS image during fusion. The fusion-evaluation workflow is depicted in Figure 3.

Algorithm Reference
Brovey transform (BT) [25,33,36,41-45]
Ehlers fusion (EH) [24,32,34,46]
High-pass filter (HPF) [20,30,47,48]
Modified intensity
hue saturation (MIHS)
[24,33,34,49]
Principle component
analysis (PCA)
[25,30,36,44,47,50]
Wavelet Transform (WV) [20,27,35,36,43]

Table 2: Candidate fusion methods and related literature.

Quality metric Addressed issue/domain/expected value Reference
Spectral Correlation coefficient (CC) •Quantifies the spectral correspondence between the original MS and fused images.
•domain [-1,1]
•As close to 1 as possible
[19,20,36]
Root-mean -square- error (RMSE) •Measures the average amount of spectral distortion in each pixel
•domain [0,inf)
•Lower value
[22,23,34]
Relative difference to mean (RDM) •Measure the changes in the shape of the histogram of fused image compared to original MS image.
•domain (-inf, inf)
•As close to 0 as possible
[21,35,36]
Relative difference to standard deviation (RDS) [21,23,36]
Spectral discrepancy (SD) •Band-wise measure of the spectral quality of the fuse image
•domain [0,inf]
•As close to 0 as possible
[27,32,51]
Deviation index (DI) •Quantifies the normalized absolute difference of the fused image with the original MS image.
•domain [0,inf]
•As close to 0 as possible
[32,34,36]
Peak signal-to-noise ratio (PSNR) •Indicates the radiometric distortion of the fused image compared to the original MS image.
•The highest possible PSNR
[36,52]
Entropy (E) •Measures the additional information (spectral and spatial) available in the fused image compared to the original MS image.
•The smallest possible entropy difference with the original MS image.
[35,36]
Mean structural similarity index (MSSIM) •Reveals the spectral and structural similarity between the fused and original MS image by luminance, contrast, and structure and applying to a moving window.
•domain [0,1]
•As close to 0 as possible
[19,24,32]
Spectral angle mapper (SAM) •Pixel-wise comparison of fused image and original MS image. The value 0 indicates low resemblance while 1 indicates a high resemblance.
•domain [0,1]
•As close to 0 as possible
[44,53,54]
Relative dimensionless global error in synthesis (ERGAS) •A global indicator that calculates the amount of spectral distortion.
•domain [0,inf)
•Lower value (< 3)
[22,23,54]
Spatial Canny edge correspondence (CEC) •A band-wise comparison of edges detected in the original PAN and the fused image. CES measured in percent.
•domain [0,100]%
•as close to 100 as possible
[24,27]
High-pass(HP) correlation coefficient (HP-CC) •Quantifies the correlation between the HP filtered bands of fused image and the HP-filtered PAN image.
•domain [-1,1]
•as close to 1 as possible
[20,24,55,56]
  RMSE of Sobel filtered Pan and fused images (Sobel-RMSE) •Measures the average amount of spatial distortion in each pixel
•domain [0,inf)
•Lower value
[19,34]

Table 3: Summary of quantitative quality metrics.

natural-disasters-fusion-evaluation

Figure 3: A schematic of fusion-evaluation workflow.

In order to demonstrate the value of injection of spatial structures into MS images in GEOBIA framework, we introduced fused product of 1956 aerial and 1972 LandSat MS fusion and the original LandSat MS image to the eCognition Developer’s Multi resolution Segmentation Algorithm (MRS). The quality of image segments (also called image object candidates [39]) of fused and non-fused images were compared. With the capability eCognition Developer’s Cognition Network Language (CNL), an exemplar classification was done by applying a class-modeling approach [40] where object candidates were refined in cyclic and adaptive manner to represent meaningful target.

Results

Fusion evaluation

Visual assessment: To inspect the color preservation and spatial improvement, fused images were compared to the original MS and PAN images, respectively. We selected false-color composites (bands 2, 3, and 4) for visual inspections because this band combination is widely used for many remote sensing applications. However, we had to use a true-color composite for the ALI (2004) single-sensor fusion Fused images along with their original images were inspected by two photo-interpretation experts to identify any spectral distortions, (e.g., brightness reversions, saturation, a complete change of spectral characteristics, unnatural/artificial colors) and spatial improvement. Although we inspected all fused images, only four scenarios are presented, i.e., aerial (1956) - LandSat MSS (1972), aerial (1986) - LandSat TM (1992), LandSat ETM (2003) - ALI (2004), and IKONOS (2005) in Figures 4-7, respectively. Based on expert evaluations, fused products were ranked and the results (best and worst fusion algorithms) are listed in Table 4.

Figure

Figure 4: Original images and fusion results of aerial image (1956) and LandSat MSS image (1972). Original MS image and fused images are shown as false-color composites.

natural-disasters-LandSat-TM

Figure 5: Original images and fusion results of aerial image (1986) and LandSat TM image (1992). Original MS image and fused images are shown as false-color composites.

natural-disasters-LandSat-ETM+

Figure 6: Original images and fusion results of LandSat ETM+ PAN image (2003) and EO-1 ALI MS image (2004). Original MS image and fused images are shown as false-color composites.

natural-disasters-single-sensor

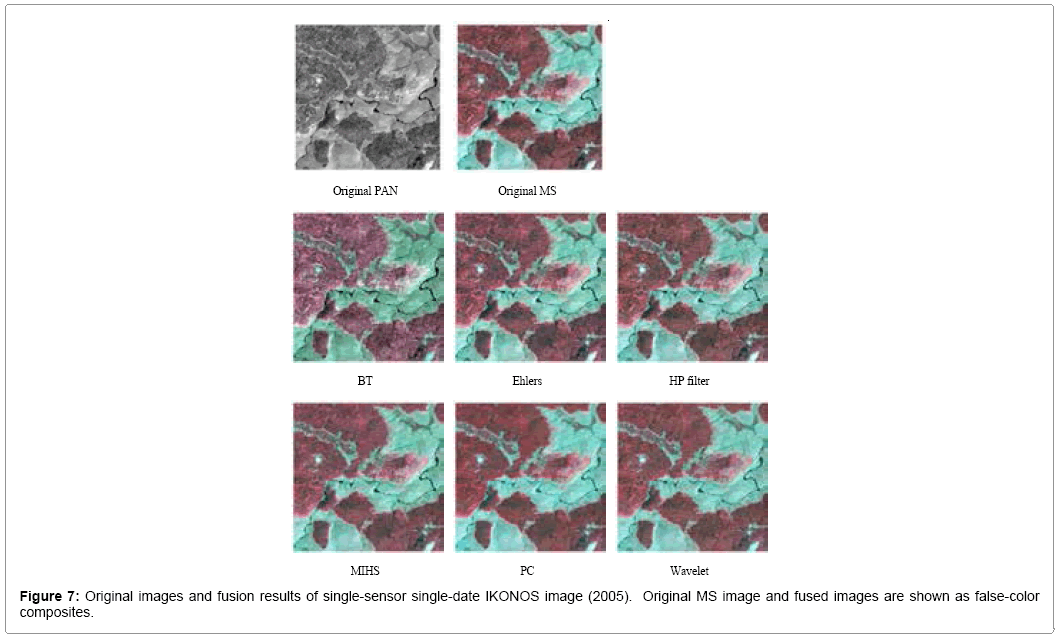

Figure 7: Original images and fusion results of single-sensor single-date IKONOS image (2005). Original MS image and fused images are shown as false-color composites.

Fusion Spectral similarity Spatial similarity
Best Worst Best Worst
Aerial (1956)-LandSat MSS (1972) HP filter Brovey Brovey Wavelet
Aerial (1986)-LandSat TM (1992) HP filter Brovey Ehlers Wavelet
LandSat ETM+ (2000) HP filter Brovey PC Wavelet
LandSat ETM+ (2003)-EO-ALI (2004) HP filter Brovey/MIHS Ehlers Wavelet
EO-ALI (2004) Brovey MIHS Brovey Wavelet
IKONOS (205) HP filter /Ehlers Brovey Ehlers Wavelet

Table 4: Objective evaluation of fused images by experts.

Quantitative assessment: We corroborated visual assessment with eleven spectral metrics and three spatial metrics. In order to give a detailed picture, band-wise scores of CC and PSNR and global scores of ERGAS and SAM are shown in Figure 8. Tables 5-10 summarize the mean scores (averaged over bands) reported by quality metrics for the six fusion scenarios. Fusion algorithms in each table are ranked by their correlation coefficient scores. The best value reported to a given metric is highlighted in gray while the worst value is in bold font. The spatial fidelity of fused images was further analyzed using a new metric, which is based on Fast Fourier Transform (FFT). We selected few fusion scenarios for demonstration purposes. Figure 9 and 10 depict exemplar Fourier-magnitude images of the original PAN and three fused images which showed best, worst and average spatial and spectral improvement with respect to the other quality indicators (i.e., Tables 5-10). The former represent aerial (1956) - LandSat (1972) fusion while the latter pertains to IKONOS (2005) single-sensor fusion. We plotted Digital Numbers (DN) of Fourier-magnitude images of original PAN images and those of selected fused images. Figure 11 shows scatter plots constructed for two multi-sensor data fusion scenarios.

natural-disasters-Band-wise-scores

Figure 8: Band-wise scores for spectral quality metrics (CC and PSNR) and two global metrics (SAM and ERGAS).

natural-disasters-Fourier-magnitude

Figure 9: Fourier magnitude images produced from: (a) the 1956 aerial image and three other selected fused images; (b) Brovey transform, (c) Wavelet-PCA, and (d) HP filter.

natural-disasters-IKONOS-PAN

Figure 10: Fourier magnitude images produced from: (a) IKONOS PAN image and three other selected fused images; (b) Brovey transform, (c) Wavelet-PCA, and (d) HP filter.

natural-disasters-multi-sensor-fusion

Figure 11: Scatter plots constructed based on Fourier magnitude images of the original PAN images and their corresponding fused images. Plots are given only for selected fusion algorithms focusing on two multi-sensor fusion scenarios.

Image segmentation: As a test run, we selected a crucial multisensor fusion scenario (aerial (1956) - LandSat MS (1972)) and applied eCognition Developer’s MRS algorithm to the fused image and the original LandSat MS image. The resulting image objects and the extracted canopy cover are shown in Figure 12.

natural-disasters-LandSat-MSS

Figure 12: The quality of image objects candidates derived from the original LandSat MSS image and the fused image (i.e., after injecting spatial structures from the high resolution aerial image using High-pass filter fusion algorithm). (a) Image objects of the original and the fused images draped over the high resolution aerial image, (b) Classified image objects as forest (in green), and (c) After applying advanced object fusion algorithm to merge forest’ objects.

Fusion algorithm Spectral metric Spatial metric
CC RMSE RDM RDS SD DI PSNR ENT MSSIM ERGAS SAM Canny edge HPF-CC Sobel-RMSE
HP Filter 0.814 2.04 0.031 -0.094 1.549 0.073 42.848 0.208 0.999 2.349 1.736 84.187 0.755 13.039
Wavelet 0.739 2.949 0.011 0.138 1.558 0.068 40.999 0.128 0.995 2.987 2.274 79.771 0.642 12.304
Ehlers 0.622 2.733 0.003 -0.095 2.073 0.095 40.185 0.635 0.997 3.144 2.11 83.815 0.73 13.052
PC 0.503 3.33 0.013 -0.104 2.657 0.109 39.577 0.326 0.996 3.427 2.79 87.246 0.808 12.579
MIHS 0.487 3.256 0.014 -0.087 2.521 0.115 38.727 0.202 0.996 3.712 3.012 83.891 0.754 12.914
Brovey 0.38 3.584 0.013 -0.099 2.849 0.126 37.999 0.244 0.995 3.971 2.775 94.696 0.989 8.571

Table 5: Reported scores of spectral and spatial quality metrics for the fusion of aerial image (1956) and LandSat MSS image (1972).

Fusion Algorithm Spectral metric Spatial metric
CC RMSE RDM RDS SD DI PSNR ENT MSSIM ERGAS SAM Canny edge HPF-CC Sobel-RMSE
HP filter 0.691 4.69 -0.011 0.3 2.557 0.064 35.572 0.154 0.993 2.844 2.525 84.837 0.792 22.213
Wavelet 0.609 5.063 0.006 0.113 3.146 0.076 39.112 0.18 0.992 3.123 2.719 80.719 0.624 21.469
MIHS 0.486 5.862 -0.009 0.213 3.751 0.093 34.111 0.083 0.989 3.734 3.091 87.261 0.762 22.065
Ehlers 0.371 7.504 -0.007 0.564 3.916 0.097 31.176 0.566 0.984 4.869 2.884 83.717 0.76 22.1
PC 0.37 8.593 -0.01 0.853 4.268 0.106 30.404 0.035 0.979 5.516 4.218 88.291 0.888 21.42
Brovey 0.327 8.277 3.306 -0.013 0.704 4.376 0.104 30.732 0.036 3.924 3.184 94.844 0.989 14.934

Table 6: Reported scores of spectral and spatial quality metrics for the fusion of aerial image (1986) and LandSat TM image (1992).

Fusion Algorithm Spectral metric Spatial metric
CC RMSE RDM RDS SD DI PSNR ENT MSSIM ERGAS SAM Canny edge HPF-CC Sobel-RMSE
HP filter 0.912 2.295 0.004 0.003 1.316 0.025 42.056 0.212 0.998 2.328 1.072 84.496 0.923 1.191
Wavelet 0.864 3.377 0.008 0.119 1.334 0.025 38.92 0.125 0.998 3.647 0.603 79 0.598 3.111
Ehlers 0.656 5.579 0.006 0.316 2.36 0.045 32.644 0.167 0.995 6.001 1.433 84.948 0.919 1.43
PC 0.616 5.489 0.008 0.31 2.835 0.054 33.937 0.34 0.993 5.757 2.177 86.251 0.935 0.968
MIHS 0.608 6.653 0.009 0.435 2.728 0.052 32.644 0.167 0.992 7.411 2.119 84.234 0.912 1.317
Brovey 0.47 5.787 0.009 0.2 3.422 0.065 33.057 1.14 0.992 5.805 2.458 87.383 0.923 1.491

Table 7: Reported scores of spectral and spatial quality metrics for the fusion of PAN and MS bands of the LandSat ETM+ image (2000).

Fusion Algorithm Spectral Metric Spatial Metric
CC RMSE RDM RDS SD DI PSNR ENT MSSIM ERGAS SAM Canny edge HPF-CC Sobel-RMSE
Wavelet 0.902 233.861 -0.001 0.079 116.729 0.039 25.068 1.595 0.862 3.630 1.702 78.018 0.568 242.994
HP filter 0.859 247.971 -0.002 -0.019 171.730 0.053 23.482 1.597 0.721 4.165 1.038 82.477 0.912 172.918
Ehlers 0.761 297.307 -0.005 -0.021 217.913 0.071 21.050 1.598 0.554 5.189 1.182 85.837 0.917 211.651
PC 0.737 350.045 0.003 -0.022 273.701 0.080 21.218 1.603 0.601 5.587 1.537 88.763 0.922 162.310
MIHS 0.622 356.016 0.000 -0.010 269.346 0.094 18.933 1.597 0.495 6.797 1.830 86.992 0.891 210.725
Brovey 0.524 320.422 -0.001 -0.020 243.866 0.090 18.856 3.272 0.517 5.995 1.347 76.487 0.604 3.474

Table 8: Reported scores of spectral and spatial quality metrics for the fusion of the PAN image of LandSat ETM+ image (2003) and the MS image of EO-1 ALI image (2004).

Fusion Algorithm Spectral Metric Spatial Metric
CC RMSE RDM RDS SD DI PSNR ENT MSSIM ERGAS SAM Canny edge HPF-CC Sobel-RMSE
Ehlers 0.913 56.499 -0.002 -0.018 38.394 0.035 32.025 3.259 0.828 1.392 0.991 90.645 0.918 30.187
Brovey 0.888 65.119 -0.002 -0.002 43.530 0.039 30.825 2.587 0.795 1.609 1.260 93.871 0.961 34.835
HP filter 0.888 65.473 -0.007 -0.031 44.609 0.040 30.838 2.699 0.816 1.625 1.062 93.059 0.975 32.285
PC 0.824 88.928 -0.008 -0.001 60.775 0.054 28.832 2.623 0.688 2.272 1.820 83.135 0.769 40.072
Wavelet 0.784 106.411 -0.008 0.052 67.196 0.062 27.687 2.628 0.629 2.810 2.466 81.107 0.328 81.044
MIHS 0.777 102.401 -0.009 0.004 69.801 0.062 27.799 2.870 0.627 2.660 2.254 83.026 0.722 43.684

Table 9: Reported scores of spectral and spatial quality metrics for the fusion of PAN image and visible bands of EO-1 ALI image (2004).

Fusion Algorithm Spectral Metric Spatial Metric
CC RMSE RDM RDS SD DI PSNR ENT MSSIM ERGAS SAM Canny edge HPF-CC Sobel-RMSE
Wavelet 0.891 28.886 -0.007 0.001 21.182 0.077 39.578 1.999 0.916 2.601 2.282 77.619 0.802 27.576
HP filter 0.867 30.929 -0.008 -0.005 22.398 0.083 38.456 2.001 0.890 2.839 2.734 87.912 0.970 22.326
PC 0.851 34.584 -0.007 -0.005 25.177 0.090 38.700 2.007 0.870 3.105 3.120 82.981 0.791 23.166
Ehlers 0.751 36.516 -0.008 -0.001 26.268 0.099 36.157 2.053 0.855 3.281 3.007 83.433 0.924 20.246
MIHS 0.704 40.565 -0.007 -0.007 29.036 0.108 35.438 1.995 0.831 3.615 2.307 83.295 0.890 22.303
Brovey 0.578 41.941 -0.007 -0.002 31.559 0.125 34.143 2.081 0.847 4.136 2.859 90.787 0.959 23.095

Table 10: Reported scores of spectral and spatial quality metrics for the fusion of PAN image and MS bands of IKONOS image (2005).

Discussion

From the point of visual inspections, no single algorithm was able to produce superior results by simultaneously preserving spectral and spatial properties of the original MS and PAN images. In most cases, the High-pass filter algorithm exhibited mediocre fusion results with respect to color similarity and spatial improvement. Visual inspections are necessary but alone are not sufficient; our contention is that they should always be corroborated with objective quality indices.

With respect to band-wise variations of correlation coefficient and peak-signal-to-noise ratio (Figure 8), the High-pass filter outperformed the other five algorithms in most cases. For example, in case of multiplatform scenarios (e.g., aerial (1956) - LandSat MSS (1972)), the High-pass filter algorithm reported consistently high values for CC and PSNR for all the bands and lowest values for SAM and ERGAS. This emphasizes the HPF algorithm’s ability to inject spatial structures from the high resolution aerial image to the low resolution MS image while preserving spectral and radiometric information of the MS image. When fusing PAN image of LandSat ETM+ (2003) and the MS image of ALI (2004), the Wavelet-PCA fusion algorithm exhibited high CC and PSNR values compared the HPF algorithm. In terms of SAM and ERGAS, the Wavelet-PCA algorithm was spectrally superior to the HPF algorithm. However, in general, all fusing algorithms reported notably low CC and PSNR values for NIR1 and NIR2 bands. As stated earlier, ALI sensor’s PAN image is restricted to the visible part of the spectrum (480nm - 690 nm). This limits the fusion of ALI sensor’s NIR and SWIR bands with its 10m resolution PAN image. However, the PAN image of the LandSat ETM+ (520 nm - 900 nm) expands over the visible and NIR bands of the ALI sensor. Thus, the design goal of ETM+ - ALI fusion scenario (i.e., LandSat ETM+ (2003) and ALI (2004)) was to inject high frequency information from the LandSat ETM+ image to ALI image and produce a five-band multispectral image (B,G,R,NIR1,NIR2) with 15m spatial resolution. This kind of fusion can be confronted mainly due to lack of archived data and cloud cover. We suspect that differences in sensor characteristics and radiometric resolutions of these two images might have attributed to the poor spectral quality of the fused products. When fusing PAN image and MS bands (B2, G, and R) of ALI image, Brovey transform algorithm, Ehlers algorithm, and High-pass filter algorithm exhibited equal performances for bandwise metrics and two global indicators (Figure 8). It is interesting note that the BT fusion algorithm’s improvement when only three bands are involved in fusion process. In case of IKONOS image, HPF algorithm, PC algorithm, and Wavelet-PCA, algorithm achieved notably high band-wise CC and PSNR values.

With respect to mean scores of the objective spectral quality indicators (Tables 5-10), HPF algorithm exhibited best values (see values highlighted in gray) for the majority of metrics in aerial-LandSat data fusion scenarios (Table 5 and 6) and the single-sensor fusion of LandSat ETM+ (Table 7) The Wavelet-PCA algorithm proven to be the best candidates in terms of spectral metrics in the multi-sensor fusion of LandSat ETM+ and ALI images and the single-sensor fusion IKONOS image (Table 9 and 10). The Ehlers fusion emerged as the best candidate when applied to ALI image (single-sensor fusion). The BT fusion algorithm reported the worst values for spectral metrics for the five for the six fusion scenario. This observation further emphasises the failure of BT algorithm when more than three bands are involved.

Regarding spatial quality assessment (Tables 5-10), despite the superior performances with respect to spectral similarity, wavelet- PCA algorithm exhibited poor spatial improvement while HPF and Ehlers fusion algorithms a showed mediocre spatial fidelity. Unlike for spectral quality metrics, the BT fusion algorithm achieved the best scores for spatial quality indicators. The poor spatial improvement of the wavelet-PCA algorithm is highlighted in both multi-sensor and single-sensor data fusion. Comparison of Fourier magnitude images of the original PAN and fused images further support the superiority and the inferiority of the HP fusion algorithm and the wavelet-PCA algorithm, respectively. It should be noted that the BT fusion algorithm exhibited the best scores for spatial metrics at the expense of sever spectral distortion. These observations emphasize the necessity of a combined approach (i.e., spectral and spatial fidelity) for benchmarking fusion results because the best color preservation of an algorithm can be observed even if no pan sharpening is performed; on the other hand, a fusion algorithm can achieve the best spatial improvement while producing results with the worst color preservation. Overall, scores reported for our spectral budget clearly demonstrated the superiority of spatial-domain methods (i.e., HPF algorithm and Ehlers fusion algorithm) compared to popular spectral substitution fusion techniques such as Brovey transform, MIHS, and PC.

We emphasized the importance of spatial information in the GEOBIA framework because the image segmentation process is not solely driven on per-pixel spectra but also integrates spatial and contextual characteristics when producing non-overlapping homogeneous image objects. The quality of image object candidates affects subsequent classification workflows. Figure 12 demonstrates the improvement of the quality of image objects when high frequency information of the aerial images is injected to the low resolution LandSat MSS image. Our understanding is that the fusions of two aerial images (1956 and 1986) with LandSat MSS (1972) and LandSat TM (1986) are of high value due to several reasons. The forest dieback was first documented in late 1970s, thus the fusion of aerial (1956) image and the LandSat MSS (1972) produces a high resolution MS image (15m) representing pre-dieback or early- stage dieback conditions of the HPNP. We could have spatially improved the LandSat MSS image to 10m resolution instead of 15m because the resolution ratio between the PAN image and MS image can reach up to 1:6. The second fusion scenario provides a 7m resolution MS image capturing a postdieback condition of the park. The most important reason is that we used archived data from public domains and produced useful spatially enhanced images for pre-IKONOS era (i.e., before 1999) time periods.

Fusion of two images with 20 year time difference might be questionable because in single-sensor multi-date and multi-sensor multi-date data fusion, near- contemporaneous images are desired. Due to the scarcity of decadal aerial surveys in Sri Lanka, the 1956 aerial image emerged as the best candidate to spatially enhance the 1972 LandSat MSS image. We also explored other high-spatial resolution data sources as an alternative to the 1956 aerial image. Especially KH-series declassified military intelligence imagery that is now available in public domains. KH-7 Surveillance System and the KH-9 Mapping System declassified satellite imagery consists of approximately photographic 50,000 images that were taken from 1963 to1980 of various locations around the world. Most of these images are found to be near-contemporaneous with the 1970 LandSat MSS data. However, we had to disqualify these images due to the heavy cloud cover over the HPNP.

Conclusion

We applied six fusion algorithms to single-sensor single-date and multi-senor multi–date images taken over the Horton Plains national park. Benchmarking of fusion algorithms was conducted visually and quantitatively, the latter based on eleven spectral and four spatial indices. From our multidimensional quality assessment, there is no fusion method that exhibited superior performances simultaneously for color preservation and spatial improvement. The HPF emerged as the best performing algorithm for single-sensor single-date and multi-sensor multi-date data fusion. Fusing high-spatial resolution panchromatic and high-spectral resolution multispectral images with complementary characteristics improves the quality of image objects and better delineates complex land cover types. Our findings shed new light on how multiple earth observation data with complimentary characteristics can be transformed into useful products in support of long-term ecosystem motoring applications.

Acknowledgements

This project is support by the ASPRS (American Society of Photogrammetry and Remote Sensing) GeoEye Award and the Alexander Goetz Award.

References

  1. FAO (2001) Global Forest Resources Assessment 2000: Main Report, FAO Forestry Paper No. 140, Rome, Italy
  2. Culas RJ (2007) Deforestation and the environmental Kuznets curve: An institutional perspective. Ecological Economics 61: 429-437.
  3. Erdelen W (1998) Forest ecosystems and nature conservation in Sri Lanka. Biological Conservation 43: 115-135.
  4. Wickramagamage P (1998) Large-scale deforestration for plantation agriculture in the Hill country of Sri Lanka and its impacts. Hydrological Process 12: 2015-2028.
  5. Nahallage CAD, Huffman MA, Kuruppu N, Weerasingha T (2008) Diurnal primates in Sri Lanka and people’s perception of them. Promate Conservation 23: 81-87.
  6. Ranasinghe PN, Dissanayake CB, Samarasinghe DVN, Galappatti R (2007) The relationship between soil geochemistry and dieback of montane forests in Sri Lanka: a case study. Environmental Geololgy 51: 1077-1088.
  7. Ediriweera S, Pathirana S, Singhakumara BMP, Wickramagamage P (2008) Monitoring forest dieback severity and plant communities diversity using multi-temporal satellite data in the Horton Plain National Park, Sri Lanka. Proceedings of the 29th Asian Conference on Remote Sensing, Colombo, Sri Lanka.
  8. Balasubramaniam S, Rathnayake SA, White R (1993) The montane forests of the Horton Plains nature reserve. In: Erdelen W, Preu C, Ishwaran N, MaddumaBandara CM (eds) Proceedings of the international and interdisciplinary symposium. Ecology and landscape management in Sri Lanka. Margraf scientific books, D-97985, Weikersheim, Germany.
  9. PereraWRH (1978) Totupolakanda an environmental disaster? Sri Lanka Forester 3: 53-55.
  10. Werner WL, Balasubramaniam S (1992) Structure and Dynamics of the the upper montane forest of Sri Lanka. Tropical Forests in Transition 15: 119-135.
  11. Adikaram NKB, Mahaliyanage TD (1999) Study of Phytosociology and Forest Health: Final Report. Horton Plains Forest Dieback Research Project, University of Peradeniya 22-122.
  12. Chandrajith R, Koralegedara N, Ranawana KB, Tobschall HJ, Dissanayake CB (2009) Major and trace elements in plants and soils in Horton Plains National Park, Sri Lanka: an approach to explain forest die back, Environmental .Geololgy 57: 17-28.
  13. Ranawana KB (1999) Damage by herbivores, seedling regeneration and extent of die back, final report. Horton Plains forest die back research project, University of Peradeniya, Sri lanka 123-145.
  14. Gunawardana ERN, Calder IR, Rosier PTW, Chandrasiri N (1998) Hydrological importance of Horton Plains National Park. In: Gunasena HDM (ed) Proceedings of the final workshop,University of Peradeniya, Oxford Forestry Institute link project 45-63.
  15. Werner WL (1988) Canopy dieback in the upper montane rain forests of Sri Lanka. Geojournal 17: 245-248
  16. Wijesundara DSA (1991) Phytosociology of a montane forest in Sri Lanka, M.Phil thesis, University of Peradeniya, Sri Lanka.
  17. Ranasinghe PN, Dissanayake CB 1999) Soil nutrients and micro elements. Final report. Horton Plains forest die back research project, University of Peradeniya, Sri Lanka 146-208.
  18. Ashraf S, Brabyn L, Hicks BJ (2012) Image data fusion for the remote sensing of freshwater environments. Applied Geography 32: 619-628.
  19. Pradhan PS, King RL, Younan NH, Holcomb DW (2006) Estimation of the Number of Decomposition Levels for a Wavelet-Based Multiresolution Multisensor Image Fusion. IEEE Transactions on Geoscience and Remote Sensing 44: 3674-3686.
  20. Gangkofner UG, Pradhan PS, Holcomb DW (2008) Optimizing the High-Pass Filter Addition Technique for Image Fusion. Photogrammetric Engineering & Remote Sensing 74: 1107-1118
  21. Kim M, Holt JB, Madden M (2011) Comparison of Global- and Local-scale Pansharpening for Rapid Assessment of Humanitarian Emergencies. Photogrammetric Engineering & Remote Sensing 77: 51-63.
  22. Wald L (2000) Quality of high resolution synthesised images: Is there a simple criterion? In: Ranchin T, Wald L (Editors) Fusion of Earth data: merging point measurements, raster maps and remotely sensed images. SEE/URISCA,Nice, Sophia Antipolis, France 166.
  23. Ranchin T, Aiazzi B, Alparone L, Baronti S, Wald L (2003) Image fusion--the ARSIS concept and some successful implementation schemes. ISPRS Journal of Photogrammetry and Remote Sensing, 58: 4-18.
  24. Ehlers M, Klonus S,strand PJ, Rosso P (2010) Multi-sensor image fusion for pansharpening in remote sensing. International Journal of Image and Data Fusion 1: 25-45.
  25. Pohl C, Van Genderen JL (1998) Review article multisensor image fusion in remote sensing: concepts, methods and applications. International Journal of Remote Sensing, 19: 823-854.
  26. Ranchin T, Wald L (2000) Fusion of high spatial and spectral resolution images: The ARSIS concept and its implementation. Photogrammetric Engineering & Remote Sensing 66: 49-61.
  27. Yakhdani MF, Azizi A (2010) Quality assessment of image fusion techniques for multisensor high resolution satellite images (case study: IRS-p5 and IRS-p6 satellite images). In: Wagner W, Szkely B (Editors) ISPRS TC VII Symposium 100 Years ISPRS. IAPRS, Vienna, Austria, Part7B.
  28. Witharana C (2012) Who Does What Where? Advanced Earth Observation for Humanitarian Crisis Management. Proceedings of the 6th International Conference on Information and Automation, Beijing, China.
  29. Witharana C, Civco DL (2012) Evaluating remote sensing image fusion algorithms for use in humanitarian crisis management. Proc. SPIE Remote Sensing Europe, Edinburgh, UK.
  30. Chavez PS, Sides SC, Anderson JA (1991) Comparison of three different methods to merge multiresolution and multispectral data: Landsat TM and SPOT panchromatic. Photogrammetric Engineering & Remote Sensing 57: 295-303.
  31. Wald L, Ranchin T (1997) Fusion of satellite images of different spatial resolutions: Asssessing the quality of resulting images. Photogrammetric Engineering & Remote Sensing 63: 691-699.
  32. Ling Y, Ehlers M, Usery EL, Madden M (2007) FFT-enhanced IHS transform method for fusing high-resolution satellite images. ISPRS Journal of Photogrammetry and Remote Sensing 61: 381-392.
  33. Nikolakopoulos KG (2008) Comparison of nine fusion techniques for very high resolution data. Photogrammetric Engineering & Remote Sensing 74: 647-660.
  34. Klonus S, Ehlers M (2007) Image Fusion Using the Ehlers Spectral Characteristics Preservation Algorithm. GIScience & Remote Sensing 44: 93-116.
  35. Vijayaraj V, Nicolas HY, Charles GOH (2006) Quantitative analysis of pansharpened images. Optical Engineering 45: 046202.
  36. Karathanassi V, Kolokousis P, Ioannidou S (2007) A comparison study on fusion methods using evaluation indicators. International Journal of Remote Sensing 28: 2309-2341.
  37. Civco DL, Witharana C (2012) Assessing the spatial fidelity of resolution-enhanced imagery using Fourier analysis: a proof-of-concept study. Proceedings of SPIE 8538, Earth Resources and Environmental Remote Sensing/GIS Applications III, Edinburgh, UK.
  38. Civco D, Chabaeva A, Parent J (2009) KH-series satellite imagery and Landsat MSS data fusion in support of assessing urban land use growth. In: Ulrich M, Daniel LC (Editors) Proceedings of SPIE 7478, Remote Sensing for Environmental Monitoring, GIS Applications, and Geology IX, 747-801.
  39. Blaschke T (2010) Object based image analysis for remote sensing. ISPRS Journal of Photogrammetry and Remote Sensing 65: 2-16.
  40. Lang S, Tiede D, Holbling D, Fureder P, Zeil P (2010) Earth observation (EO)-based ex post assessment of internally displaced person (IDP) camp evolution and population dynamics in Zam Zam, Darfur. International Journal of Remote Sensing 31: 5709-5731.
  41. Hallada WA, Cox S (1983) Image sharpening for mixed spatial and spectral resolution satellite systems. 17th International Symposium on Remote Sensing of Environment, Ann Arbor, Michigan, USA.
  42. Gillespie AR, Kahle AB, Walker RE (1987) Color enhancement of highly correlated images. II. Channel ratio and “chromaticity” transformation techniques. Remote Sens Environ 22: 343-365.
  43. Tu TM, Su SC, Shyu HC, Huang PS (2001) A new look at IHS-like image fusion methods. Information Fusion 2: 177-186.
  44. Du Q, Younan NH, King RL, Shah VP (2007) On the Performance Evaluation of Pan-Sharpening Techniques. IEEE Geoscience and Remote Sensing Letters 4: 518-522.
  45. Wu B, Xiong ZG, Chne YZ, Zhao Y (2009) Classification of quickbird image with maximal mutual information feature selection and support vector machine. Procedia Earth and Planetary Science 1: 1165-1172.
  46. Ehlers M, G hler M, Janowsky R (2003) Automated analysis of ultra high resolution remote sensing data for biotope type mapping: new possibilities and challenges. ISPRS J Photogramm 57: 315-326.
  47. Vrabel J (1996) Multispectral Imagery Band Sharpening Study. Photogrammetric Engineering & Remote Sensing 62: 1075-1083.
  48. Aiazzi B, Alparone L, Baronti S, Garzelli A (2002) Context-driven fusion of high spatial and spectral resolution images based on oversampled multiresolution analysis. IEEE Transactions on Geoscience and Remote Sensing 40: 2300-2312.
  49. Siddiqui Y (2003) The modified IHS method for fusing satellite imagery. ASPRS 2003 Annual Conference. American Society for Photogrammetry and Remote Sensing.
  50. Shettigara VK (1992) A Generalized Component Substitution Technique for Spatial Enhancement of Multispectral Images Using a Higher Reolsution Data Set. Photogrammetric Engineering & Remote Sensing 58: 561-567.
  51. Guo Q, Chen S, Leung H, Liu S (2010) Covariance intersection based image fusion technique with application to pansharpening in remote sensing. Information Sciences 180: 3434-3443.
  52. Garzelli A, Nencini F (2005) Interband structure modeling for Pan-sharpening of very high-resolution multispectral images. Information Fusion 6: 213-224.
  53. Aiazzi B, Baronti S, Selva M (2007) Improving Component Substitution Pansharpening through Multivariate Regression of MS +Pan Data. IEEE Transactions on Geoscience and Remote Sensing 45: 3230-3239.
  54. Alparone L, Wald L, Chanussot J, Thomas C, Gamba P, et al. (2007) Comparison of Pansharpening Algorithms: Outcome of the 2006 GRS-S Data-Fusion Contest. IEEE Transactions on Geoscience and Remote Sensing 45: 3012-3021.
  55. Zhou J, Civco DL, Silander JA (1998) A wavelet transform method to merge Landsat TM and SPOT panchromatic data. Int J Remote Sens 19: 743-757.
  56. Vrabel JC, Doraiswamy P, McMurtrey JE, Stern A (2002) Demonstration of the accuracy of improved-resolution hyperspectral imagery. Proceedings of SPIE 4725, Algorithms and Technologies for Multispectral, Hyperspectral, and Ultraspectral Imagery VIII.
Citation: Witharana C, Nishshanka US, Gunatilaka J (2013) Remote Sensing of Ecological Hotspots: Producing Value-added Information from Multiple Data Sources. J Geogr Nat Disast 3: 108.

Copyright: © 2013 Witharana C, et al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.
