Research Article - (2016) Volume 7, Issue 1

Nitrogen Fertilizer Effects on Nitrous Oxide Emission from Southwest Brazilian Amazon Pastures

André Mancebo Mazzetto1*, Arlete Simões Barneze2, Brigitte Josefine Feigl2, Carlos Eduardo Pellegrino Cerri1 and Carlos Clemente Cerri2
1Escola Superior de Agricultura Luiz de Queiroz, Universidade de Sao Paulo, Avenida Pádua Dias, 11, 13400-000, Piracicaba, São Paulo, Brazil, E-mail: Barneze@rediffmail.com
2Centro de Energia Nuclear na Agricultura, Universidade de Sao Paulo, Avenida Centenário, 303, 13400-970, Piracicaba, São Paulo, Brazil, E-mail: Barneze@rediffmail.com
*Corresponding Author: André Mancebo Mazzetto, Escola Superior de Agricultura Luiz de Queiroz, Universidade de Sao Paulo, Avenida Pádua Dias, 11, 13400-000, Piracicaba, São Paulo, Brazil, Tel: +551934294726, Fax: +551934294724 Email:

Abstract

Beef production is one of the most important agricultural activities in Brazil. In order to increase production without increasing deforestation, farmers are intensifying breeding and pasture improvements. The main technique for increasing pasture improvement is the application nitrogen fertilizer, but this action can result in emission of nitrous oxide (N2O). We assessed the impact of nitrogen fertilizer application on GHG emissions and pasture yield in a pasture located at Southwest Brazilian Amazon. Agronomic recommended rates of nitrogen fertilizer (NF) and higher rates, as two times (2NF) and four times (4NF) the recommended rate were applied. A control treatment with no fertilizer was also analysed. The experiment had 30 days duration, where we observed the baseline emissions from all treatments, including control. Nitrogen fertilizer application resulted in high N2O emissions. We found no differences between NF and 2NF treatments, but all treatments were different from control. The higher forage yield leads to low N2O emission per kg of forage in 4NF treatment. According to our study, the best (agro-environmental benefits) practice is the application of 100 kg N ha-1 (2NF treatment) in the region studied

<

Keywords: Beef production; Tropical climate; N2O; Pasture yield

Introduction

Brazil is the second largest beef exporter, responsible for 15% of worldwide production [1]. The typical system of beef production in Brazil is pasture-based, predominantly occurring on unimproved pastures. Pastures occupy three-quarters of the national agricultural area, about 180 million hectares [2]. There are projections of increased demand for beef in the order of 2.5% per year by 2017-2018. In order to meet this demand, Brazilian farmers must develop a more intensive system in order to produce more beef without increase deforestation [3]. This intensive system must have higher beef production per unit area, with low emissions of greenhouse gases (GHGs) per kg of beef produced. If farmers do not adopt sustainable options for pasture intensification, deforestation could be increased, increasing GHG emissions from the sector. The improvement of the whole system of beef production is a key component to reduce emissions from all relevant sources, including land use, land use change and livestock [4].

In order to improve the beef system, intensification methods must be applied, such as the use of nitrogen fertilizer. The main limiting nutrients for grass growth in Brazilian conditions are phosphorus (P) and nitrogen (N). The application of nitrogen fertilizer enhances the availability of N to the plant and microorganisms, but an excess of N can result in nitrous oxide (N2O) emissions through nitrification and denitrification processes [5]. The effect of N fertilizer on N2O emission is well reported in the literature [6,7]. However, there are very few studies in tropical climates examining N fertilizer application in pastures [8,9] with respect to GHG emissions and they do not cover the range of edaphoclimatic conditions.

We measured the effect of N fertilizer application on soil N2O emission. To simulate the intensification practices, we tested the effect of the application of the currently recommended levels of fertilizer on GHG emissions. There is anecdotal evidence that farmers usually apply more than the recommended rate. Therefore, we also tested higher rates of N fertilizer to verify the impacts on GHG intensities.

Materials and Methods

The experiment was carried out on a permanent pasture, covered by Brachiaria and was not grazed by livestock before or during the experiment. The studied site was split in 4 paddocks (0.1 ha). Plots consisted of an area fertilizer application (0.05 ha). The experiment was carried out from 09 November to 10 December of 2012 (summer) at Agropecuária Nova Vida, Rondônia state, Brazil (10º10’05’’S and 62º49’27’’W) under tropical climatic conditions (Aw-Kӧppen climatic classification). Soil is an Oxisol (Ustox), and its texture is sandy loam. Soil properties (upper 10 cm) at the start of the experiment are showed in Table 1. Meteorological data were recorded at the nearest meteorological station (rainfall and air temperature), which was within 1 km of the field site.

Sand Clay Silt pH Bulk density Total C Total N
 -------------------%------------------ CaCl2 g m-3  ---------g kg-1---------
65.0 26.7 8.3 5.1 1.5 27.3 3.0

Table 1: Soil properties (0-10 cm) at the beginning of the field experiment.

We studied the application of ammonium nitrate (NH4NO3) at rates of 0, 50, 100 and 200 kg N ha-1 (treatments C, NF, 2NF and 4NF, respectively), with five replicates to each treatment, in a complete randomized block design. The fertilizer was applied in the first day of the experiment, right before the first sampling.

The closed static chamber technique [10] was used to collect gas samples. At the field, unvented chambers (28 cm diameter, 13 cm height) were placed two days before the first gas sampling. The chambers were inserted to a depth of up to 3 cm to ensure an airtight seal. The volume enclosed by the chamber was approximately 11 L. At the time of sampling, lids were placed on top of the chambers and a seal was achieved via a water-filled groove on the chamber that the lid fitted in to. Gas sampling was normally carried out between 9:00 and 12:00. Samples were collected at 0, 10, 20 and 30 minutes after the chambers were closed. A 20 ml syringe was used to collect the gas samples from the chambers, which were then transferred to pre-evacuated 13 ml headspace vials using a hypodermic needle. The glass vials had a chlorobutyl rubber septum (Chromacol). The pre-evacuation was carried out using a vacuum pump.

Gas sampling was carried out daily during the first week, then twice a week for 3 weeks, and then once a week until the end of the experiment. The samples were analysed within 2 weeks of collection using gas chromatography (GC - Shimadzu 2014). The N2O was detected with an ECD (electron capture detector).

The flux of N2O was calculated using the linear change in the concentration as a function of the incubation time within the chamber. Gas fluxes were calculated from the time vs. concentration data using linear regression. These data were used to calculate the cumulative emissions over the experimental period by the linear interpolation of data points between two successive days and numerical integration of the area under the curve using the trapezoid rule [11]. The emission factors were calculated using the recommendations of the IPCC [12].

Designated soil sampling plots were installed adjacent to each gas chamber, which also received the same fertilizer rate. Soil (0-10 cm) was sampled on days 1, 7, 14, 21 and 28. Soil mineral N concentrations were determined by extraction with 2 M KCl with a 1:2 ratio of soil and extractant [13]. Soil extracts were filtered and stored at 4°C. Concentrations of NH4+ and NO3- in the extracts were determined by automated flow injection analysis (FIA) [14].

Gravimetric moisture contents were determined after drying at 105°C for 48 h. Grasses from each chamber were cut at 4-5 cm height at the end of the experiment. The green matter was transferred to a preweighed paper bag and dried at 70°C for 1 week. After that, dry matter weight was recorded.

Statistical analyses

Total GHG emissions were estimated by calculating cumulative fluxes over an experimental period of 30 days. Data were verified for normal distribution and treatment means for daily N2O fluxes and cumulative fluxes over the period of the experiment were compared using one-way analysis of variance. To determine the statistical significance of the mean differences, Turkey tests were carried out at 0.05 probability level.

Results

The average air temperature and total precipitation were 29°C (varying from 25 to 33°C) and 250 mm (varying from 3 to 107 mm) (Figure 1). Those conditions are representative of the summer season of the southwestern part of the Brazilian Amazon. Due to the periodical rainfall, the water-filled-pore-space (WFPS) was high during all the experiment, ranging from 69 to 86% (Table 2).

biofertilizers-biopesticides-Climatic-data

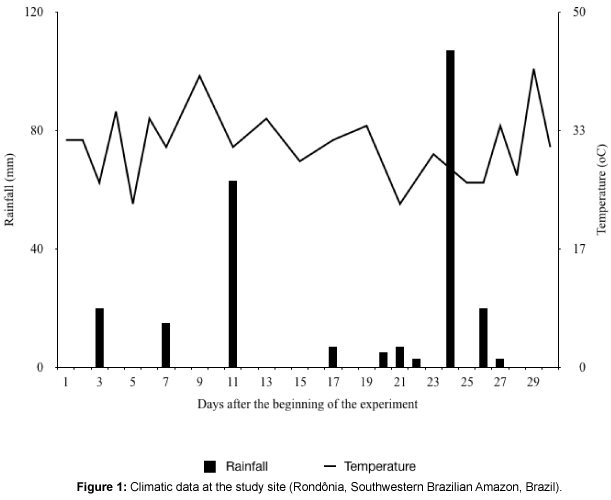

Figure 1: Climatic data at the study site (Rondônia, Southwestern Brazilian Amazon, Brazil).

  %   SD CV
Day 1 69.6 b 7.8 11.2
Day 7 72.4 b 8.3 11.5
Day 14 84.4 a 8.8 10.4
Day 21 82.3 a 10,4 12.6
Day 28 86.3 a 9.1 10.5

Table 2: Soil water filled pore space (WFPS-%) in the soil (0-10 cm) at the field experiment. SD: Standard deviation; CV: Coefficient of variation; Means followed by the same letters in columns are not statistically different (Tukey, pB 0.05).

Nitrous oxide emissions were variable over the study period (Figure 2). Our results showed that the application of N fertilizer increased N2O emissions, changing the pasture status from a net sink to a net source of N2O (Table 3). The increase in N fertilization had a high correlation with N2O emission (r2=0.99). The emission factors calculated were 0.45, 0.12 and 0.17 for NF, 2NF and 4NF treatments, respectively.

biofertilizers-biopesticides-studied-site

Figure 2: N2O emissions from the studied site. C: Control; NF: application of 50 kg N ha-1; 2NF: application of 100 kg N ha-1; 4NF: application of 200 kg N ha-1. The error bars denote the standard deviation.

Soil NH4+ levels in the NF treatment increased rapidly after the application of N fertilizer, with levels different from the control (p<0.05) throughout the experiment until day 21 (Figure 3). Soil NH4+ levels in the 2NF and 4NF treatments increased after day 7, and remained high until day 21 (Figure 3). Soil NO3- concentrations in all treatments were significantly higher than the control during throughout the experiment.

biofertilizers-biopesticides-standard-deviation-7

Figure 3: Ammonium (NH4+) and nitrate (NO3-) content in soil from the studied site. C: Control; NF: application of 50 kg N ha-1; 2NF: application of 100 kg N ha-1; 4NF: application of 200 kg N ha-1. The error bars denote the standard deviation.

The forage yield increased with N fertilizer application (Table 3). While all N-treated plots had significantly higher N2O emissions than the control, especially 4NF (Table 3), the increase in forage yield with N fertilizer lead to lower N2O emission per kg of forage (166, 59 and 105 mg N2O kg dry matter-1 for NF, 2NF and 4NF, respectively).

  N-N2O Yield
  mg m-2 kg DM m-2
Treatment CE   SD CV Average   SD CV
0N (control) -18.7 c 4.9 26.4 0.08 d 0.008 10.6
NF 3.9 b 1.2 26.9 0.14 c 0.009 6.9
2NF -7.0 b 0.4 6.1 0.19 b 0.023 11.7
4NF 15.4 a 6.2 40.2 0.32 a 0.025 8.0

Table 3: Cumulative N2O emission from field study and the effect of nitrogen fertilizer application on pasture yield. C: Control; NF: application of 50 kg N ha-1; 2NF: application of 100 kg N ha-1; 4NF: application of 200 kg N ha-1; CE: Cumulative emission; SD: Standard Deviation; CV: Coefficient of Variation; Means followed by the same letters in columns are not statistically different (Turkey, p ≤ 0.05).

Discussion

The increase in N2O emission was expected, since the application of ammonium nitrate increases the availability of nitrate in soil (Figure 3). The available N can be quickly taken up by plants or lost as N2O in a few days [15]. The assimilation of NH4+ is energetically more efficient than NO3- [16]. Brachiaria grasses are well adapted to the N poor soils from Brazil. When both NH4+ and NO3- are available in soil, the plant absorbs NH4+ preferably, leading NO3- that can be denitrified in soil [17].

The relationship between the N2O emission and the ammount of N fertilizer applied was not linear. Other studies showed that the expoential curve fits better [18]. In our study the N2O emission from NF and 2NF treatments did not show statistical difference. In this case was not possible to test wich curve would fit better, since there was only 2 possible points (NF × 4NF or 2NF × 4NF).

Soil moisture is a key factor for N2O emission [19]. During this study the soil showed high WFPS (Table 2) due to the periodical rainfall, typical from the summer in the Amazon region. The temperature is also an important factor in the studied situation, since the high temperature of the tropics can stimulate N turnover, consuming O2 and creating an anaerobic environment, ideal for the denitrification process. The interaction betweeen soil moisture and temperature can provide a possible explanation for the negative fluxes observed, mainly in the control treatment. The increase in temperature has a positive impact in the N mineralization, combined with the ideal anaerobic environment created by the high WFPS. Is such situation, most of the N of the soil is consumed by microorganisms or completed denitrificated to N2. Wetlands can act as N2O sinks [20]. The high WFPS can contribute to complete denitification, reducing even further the N2O emission. One possible explanation for the negative fluxes is the use of N2O as an final electron aceptor in the absence of other source [21]. Recently, more studies have been reported negative fluxes of N2O [22-24] but there are no consensus of wich mechanism is reponsible for the N2O consume. More studies must be done to address this gap, specially those in controlled conditions with different types of soil, moisture content and temperature, associated with a profile of the microbial communities.

The Biological Nitrification Inhibition (BNI) is other factor that can have a high impact on N2O emission from Brazilian pastures. In pastures covered by Brachiaria grasses the flow of N from NH4+ to NO3- is restricted by a natural root exudate (brachialactone), and NH4+ accumulates in soil [17]. In such situation, the BNI keeps NH4+ in the soil and the plant gradually absorbs this nutrient, while the excess is nitrified to NO3-. Such process must be investigated, since Brachiaria is the main type of grass in Brazilian pastures.

The emission factors obtained in this study are significantly lower than the recommended by the IPCC (1%), regardless the amount of N fertilizer applied. There is a lack of studies on N2O emissions from fertilizers in tropical pastures. The study of Morais et al. [9] was conducted in Rio de Janeiro, with a different source of N (urea) and a different type of grass (elephant grass), resulting in a higher emission factor (0.51%) than the obtained in our study. Other studies also reported that N2O fluxes are larger when ammonium nitrate is used as an N source compared to other mineral or organic fertilizers [14,25]. Cardenas et al. [26] showed higher N2O emissions in wetter regions of the UK. Soil temperature influences N2O emissions, increasing the nitrification and denitrification processes [27]. These differences in N source, rainfall and temperature can significantly change the N dynamics in soil. Therefore, our recommendation is that the emission factors for Brazilian conditions must be specific for the different sources of N, soil type and regions or biomes.

It is only recently that molecular-based analyses of microbial diversity have been combined with measurements of N2O production and process rates [28]. There are few studies that offer a rigorous assessment of the microbial community and N2O emissions, most of them with conflicting results [29-31]. We think that more studies concerning the microbial diversity and N2O emission must be encouraged and performed in order to obtain a better picture of this relationship.

Although our study was a short-term (30 days), we noticed that baseline emissions were achieved after this period of time. Furthermore, usually in Brazil the N fertilizer is applied in fractions during the rainy season. This one-month result completely fits in the interval of application. Our study showed that these fractions must not be higher than 100 kg N ha-1 (2NF treatment), since this dose increased the forage yield (agronomic benefits) and decreased N2O emission (environmental benefits) (Table 3), resulting in the lowest N2O emission per kg of Dry matter (agro-environmental benefits) in the studied area.

Conclusion

The application of N fertilizer resulted in an increase in N2O emission under the studied conditions. Our study showed that the application of N fertilizer at doses above the recommended rate increases the N2O emission even further. In order to improve grassland management, we advise the application of a maximum fertiliser rate of 100 kg N ha-1.

Acknowledgements

This work was supported by Fundação de Amparo à Pesquisa do Estado de São Paulo (FAPESP 2010/00554-0). We would like to thank the owners and employees of Agropecuária Nova Vida and the team from Biogeochemical Laboratory (CENA-USP).

References

  1. Food and Agriculture Organization (2012) The State of Food and Agriculture. Sales and marketing group, Viale delle Terme di Caracalla, 00153 Rome, Italy, pp: 1-182.
  2. IBGE (2006) National Agricultural Census. Farmers and Agricultural Enterprises, United nations organization, Brazil.
  3. Martha GB, Alves E, Contini E (2012) Land-saving approaches and beef production growth in Brazil. Agricultural Systems 110: 173-177
  4. Bowman MS,Filho BS, Merry FD, Nepstad DC, Rodrigues H, et al.(2012) Persistence of cattle ranching in the Brazilian Amazon: A spatial analysis of the rationale for beef production. Land Use Policy 29: 558-568
  5. Wrage N, Velthof GL, Beusichem ML, Oenema O (2001) Role of nitrifier denitrification in the production of nitrous oxide. Soil Biology and Biochemistry 33: 1723-1732.
  6. Beek CL, Pleijter M, Jacobs CMJ, Velthof GL, Groenigen JW, et al. (2009) Emissions of N2O from fertilized and grazed grassland on organic soil in relation to groundwater level. Nutrient Cycling in Agroecosystems 86: 331-340.
  7. Jassal RS, Black TA, Roy R, Ethier G (2011) Effect of nitrogen fertilization on soil CH4and N2O fluxes, and soil and bole respiration. Geoderma 162: 182-186.
  8. Sanhueza E, Cárdenas L, Donoso L, Santana M (1994) Effect of plowing on CO2, CO, CH4, N2O and NO fluxes from tropical savannah soil. Journal of Geophysical Research 99: 16429-16434.
  9. Morais RF, Boddey RM, Urquiaga S, Jantalia CP, Alves BJR (2013) Ammonia volatilization and nitrous oxide emissions during soil preparation and N fertilization of elephant grass (Pennisetum purpureum Schum.). Soil Biology and Biochemistry 64: 80-88.
  10. Jones SK, Rees RM, Skiba UM, Ball BC (2005) Greenhouse gas emissions from a managed grassland. Global Planetary Change 47: 201-211.
  11. Whittaker ET, Robinson G (1967) Trapezoidal and parabolic rules.4th edn.The Calculus Observation: A Treatise of Numerical Mathematics.
  12. IPCC(2007) Climate change: the physical science basis.In: Solomon S, Qin D, Manning M, Chen Z, Marquis M, et al.(Eds.), Contribution of Working Group I to the Fourth Assessment Report of the Intergovernmental Panel on Climate Change. Cambridge University Press, Cambridge,UK, p: 996
  13. Bremmer JM, Keeney DR (1966) Determination and isotope-radio analysis od different forms of nitrogen in soils. Exchageable ammonium, nitrate and nitrite by extraction-distillation methods. Soil Science Society of American 30: 577-582.
  14. Ruzicka J, Hansen EH (1981) Flow injection analysis. Interscience, Wiley Online, New York, USA.
  15. Jones SK, Rees RM, Skiba UM, Ball BC (2007) Influence of organic and mineral N fertiliser on N2O fluxes from a temperate grassland. Agriculture, Ecosystems and Environment 121: 74-83.
  16. Salsac L, Chaliou S, Morot-Gaudry J, Lesaint C (1987) Nitrate and ammonium nutrition in plants. Plant Physiology and Biochemistry 25: 805-812.
  17. Subbarao GV, Sahrawat KL, Nakahara K, Rao IM, Ishitani M, et al.(2013) A paradigm shift towards low-nitrifying production systems: the role of biological nitrification inhibition (BNI). Annals of Botany 112: 297-316.
  18. Shcherbak I, Millar N, Robertson GP (2014) Global metal analysis of the nonlinear response of soil nitrous oxide (N2O) emissions to fertilizer nitrogen. PNAS USA 111: 9199-9204
  19. Butterbach BK, Bags EM, Dannenmann M, Kiese R (2013) Nitrous oxide emissions from soils: how well do we understand the porcesses and their controls. Philosophical Transactions of Royal Society B 368:1-13
  20. Audet J, Hoffmann CC, Andersen PM, BaattrupPA, Johansen JA, et al.(2014) Nitrous oxide plants in undisturbed riparian wetlands located in agricultural catchments: emission, uptake and controlling factors. Soil Biology and Biochemistry 68: 291-299.
  21. Lardy L, Wrage N, Metay A, Chotte JL, Bernoux M, et al. (2007) Soils, a sink for N2O. A review. Global Change Biology Bioenergy 13: 1-17.
  22. Syakila A, Kroeze C, Slomp CP (2010) Neglecting sinks for N2O at the earth’s surface: does it matter. Journal of Integrative Environmental Sciences 7: 79-87
  23. Wu D, Dong W, Oenema O, Wang Y, Trebs I, et al.(2013) N2O consumption by low-nitrogen soil and its regulation by water and oxygen. Soil Biology and Biochemistry 60: 165-172.
  24. Schlesinger WH (2013) An estimate of the global sink for nitrous oxide in soils. Global Change Biology Bioenergy 19: 2929-2931.
  25. Dobbie KE, Smith KA (2003) Impact of different forms of N fertilizer on N2O emissions from intensive grassland. Nutrient Cycling in Agroecosystems 67: 37-46
  26. Cardenas LM, Thorman R, Ashlee N, Butler M, Chadwick D, et al.(2010) Quantifying annual N2O emission fluxes from grazed grassland under a range of inorganic fertiliser nitrogen inputs. Agriculture, Ecosystems and Environment 136: 218-226.
  27. Skiba UM, Sheppard LJ, Macdonald J, Fowler D (1998) Some key environmental variables controlling nitrous oxide emissions from agricultural and semi-natural soils in Scotland. Atmospheric Environment 32: 3311-3320.
  28. ButterbachBK, Baggs EM, Dannenmann M, Kiese R, Zechmeister-Boltenstren S(2013) Nitrous oxide emissions from soil: how well do we understand the processes and their controls? Philosophical Transactions of the Royal Society B 368: 1621.
  29. Philippot L, Cuhel J, Saby NBA, Cheneby D, Chronakova A, et al.(2009) Mapping field-scale spatial patterns of size and activity of the denitrifier community. Environmental Microbiology11: 1518-1526
  30. Henry S, Texier S, Hallet S, Bru D, Dambreville C, et al.(2008) Disentangling the rhizosphere effect on nitrate reducers and denitrifiers: insight into the role of root exudates. Environmental Microbiology10: 3082-3092.
  31. Cuhel J, Simek M, Laughlin RJ, Bru D, Cheneby D, et al.(2010) Insights into the effect of soil pH on N2O and N2 emissions and denitrifier community size and activity. Applied Environmental Microbiology76:1870-1878.
Citation: Mazzetto AM, Barneze AS, Feigl BJ, Cerri CEP, Cerri CC (2016) Nitrogen Fertilizer Effects on Nitrous Oxide Emission from Southwest Brazilian Amazon Pastures. J Fertil Pestic 7:167.
