Utility of Monitoring Azathioprine Metabolites in the Management
Journal of Hepatology and Gastrointestinal disorders

Journal of Hepatology and Gastrointestinal disorders
Open Access

ISSN: 2475-3181

+44-20-4587-4809

Research Article - (2016) Volume 2, Issue 1

Utility of Monitoring Azathioprine Metabolites in the Management of Children with Autoimmune Hepatitis

Jannone G1, Kafka K2 and Schwarz KB2*
1University catholique de Louvain, Faculty of Medicine, Brussels, Belgium, E-mail: jannone.g@hotmail.com
2Johns Hopkins University School of Medicine, Department of Pediatrics, Baltimore, Maryland, USA, E-mail: jannone.g@hotmail.com
*Corresponding Author: Schwarz KB, Department of Pediatrics, Johns Hopkins University School of Medicine, CMSC 2-116, 600 North Wolfe St, Baltimore, Md. 21287, USA, Tel: 410 955 8769, Fax: 410 955 1464 Email:

Abstract

Aim: Although monitoring of the active metabolite (6-thioguanine or 6-TG) and hepatotoxic metabolite (6 methylmercaptopurine or 6-MMP) of the drugs azathioprine (AZA) or 6-mercaptopurine is well-established in children with inflammatory bowel disease, there is little information about the utility of this practice in children with AIH.

Objectives: The purpose of this single center retrospective study was two-fold: 1) To determine if metabolite monitoring (MM) was associated with improved clinical outcome and 2) To determine levels of 6-TG associated with remission.

Methods: Chart review was performed of all patients ages 0-21 years at the Johns Hopkins Hospital with definite or probable AIH from 1991 to 2012 seen over two years of follow up.

Results: Twenty-one patients with AIH met the inclusion criteria of pre-transplant state and treatment with AZA or 6-MP. 10 patients did not have MM (Group 1); 11 patients had MM at least once (Group 2). Average AZA dose for Group 1 patients was 1.2 (0.6-1.8) mg/kg/day vs. 1.9 (1.3-2.9) for Group 2 patients (P=0.002). 4/10 (40%) Group 1 patients achieved remission vs. 7/11 (64%) Group 2 patients (P=0.39). The average 6-TG level for Group 2 remission patients was 162.7 pmol/8 × 108 red blood cells (RBC) (41.5-316; N=7). One patient developed liver failure presumably secondary to AZA-cholestasis (6-MMP level of 6792 pmol/8 × 108 RBC), since it resolved with discontinuation of AZA.

Conclusions: MM in children with AIH may prove useful for determining 6TG levels associated with remission, permit dose escalation as necessary, and assist in determination of AZA toxicity.

Keywords: 6 Thioguanine (6TG), 6 Methylmercaptopurine (6MMP), Pediatric liver disease, Drug Monitoring, Children, Autoimmune Hepatitis, Hepatotoxicity

Introduction

Optimal treatment of children with autoimmune hepatitis (AIH) is still being defined. Conventional treatment of AIH in children consists of prednisolone (or prednisone) 2 mg/kg/day (maximum 60 mg/day), which is gradually decreased over a period of 4 to 8 weeks [1], but formal guidelines for children are lacking. In addition, azathioprine (AZA) is usually administered as a steroid-sparing agent at a dose of 0.5 to 2 mg/kg/day. The optimal duration of immunosuppressive treatment for AIH is unknown and the majority of patients require chronic immunosuppression. Although testing for serum levels of AZA metabolites (6-thioguanine (6-TG) (the therapeutic component) and 6-methylmercaptopurine (6-MMP) (the hepatotoxic component) became commercially available in 1998, optimum levels in children with AIH have still not been determined [2]. There are conflicting reports as to the utility of measuring metabolite levels in children with inflammatory bowel disease [3-5]. Dubinsky et al. [4] reported that children with inflammatory bowel disease who achieve a level considered as therapeutic (235-450 pmol/8 × 108 red blood cells (RBC)) have improved outcome and decreased drug toxicity compared to children who do not. According to that study, the 6-MMP level which was considered potentially hepatotoxic was >5700 pmol/8 × 108 RBC.

There have been small and conflicting reports as to the optimum drug levels in children with AIH [2,6]. Dhaliwal reported that adults with AIH who maintained remission had significantly higher concentrations of 6-TG (237 versus 177 pmol/8 × 108 RBC) vs. those who did not [7]. The purpose of this report was to test the hypothesis that children with AIH in whom metabolite monitoring (MM) was performed will exhibit higher response rates and less drug toxicity of azathioprine (hepatitis and neutropenia) vs. children without MM.

Methods

Human subjects

40 patients ages 0-21 years and diagnosed with AIH were enrolled into the Pediatric Liver Center at Johns Hopkins from 1991 to 2012, and identified from the Pediatric Liver Center database. Inclusion criteria were a probable or definite AIH diagnosis according to the revised International Autoimmune Hepatitis Group (IAIHG) scoring system [8] pre-transplant state and AZA/6-MP therapy for at least 6 months. Exclusion criteria included no AZA or 6-MP therapy, overlap syndrome and/or diagnosis score <10 according to the revised IAIHG scoring system, hepatic encephalopathy at presentation, de novo AIH post liver transplant and missing ALT data. Data elements were tabulated according to 2 different groups: Group 1 (no MM) and Group 2 (MM at least once). Data were accessioned retrospectively from the electronic medical charts of all patients meeting eligibility criteria. Demographics, clinical features, laboratory and histological data were collected for 6 different time points: at the time of presentation, 6 months, 1 year and 2 years after presentation, at the end of therapy and 1 year after cessation of therapy. The follow up duration under AZA or 6-MP therapy ranged from 6 months to 2 years. 6-MP doses were converted to AZA equivalents by using a conversion factor of 2.08 [9]. RBC 6-TG and 6-MMP were measured periodically during the two year follow up for Group 2 patients, with a mean of 2 times per patient (1-3). Average values for each patient were used in the analysis. RBC 6-TG and 6-MMP were measured by quantitative high pressure liquid chromatography with separate stationary and mobile phase for each nucleotide in peripheral RBC (Prometheus Laboratories, San Diego, CA).

Treatment regimens were based on the 2010 American Association for the Study of Liver Diseases (AASLD) Guidelines [1], with prednisone 2 mg/kg/day (maximum 60 mg/day) gradually tapered down as soon as the serum aminotransferases normalized. In the same time, AZA was administered at a dose of 0.5 to 2 mg/kg/day. Outcome was characterized in 4 ways according to AASLD guidelines: (1) remission (normal alanine aminotransferase (ALT) level), (2) incomplete response (abnormal ALT level but no worsening of clinical, laboratory and histological remission), (3) treatment failure (worsening of initial condition) and (4) drug toxicity. No treatment failure outcome was observed in this study, probably because of the exclusion of patients if hepatic encephalopathy was observed at the onset of the disease. Treatment withdrawal was attempted if no clinical or biochemical disease activity had been observed for a 2 year period.

The study protocol was approved by the Johns Hopkins Institutional Review Board which granted exemption for the need to obtain signed informed consent given that the study was a retrospective chart review with de-identified clinical and laboratory data.

Statistical analysis

Statistical analysis was performed using SPSS 21.0 (IBM SPSS Statistics for software Windows version 21.0 Armonk, NY: IBM Corp) and Graphpad Prism 5.0 (GraphPad Software, La Jolla, CA, USA). The averages of the AZA doses, 6-TG and 6-MMP concentrations for each patient over the study period were used in the analysis. All results are presented as median (range). The Fisher’s exact probability test was used to compare dichotomous variables, and the unpaired t-test was used to compare differences in the means of continuous variables. Correlations were assessed by Pearson’s rank-correlation coefficient. A two-tailed p-value <0.05 was taken to indicate statistical significance in all analysis.

Results

40 patients with AIH were identified of whom 21 met the inclusion criteria of pre-transplant state and treatment with AZA or 6-MP. The other 19 patients were excluded for different reasons: no AZA or 6-MP therapy (N=8), overlap syndrome and/or diagnosis score <10 according to the revised IAIHG scoring system (N=5), hepatic encephalopathy at presentation (N=4), de novo AIH after liver transplantation (N=1) and missing ALT data (N=1). Patient outcomes are represented in Figure 1. 4/10 (40%) Group 1 patients achieved remission under immunosuppressive therapy vs. 7/11 (64%) Group 2 patients (P=0.39).

hepatology-gastrointestinal-disorders-Metabolite-Monitoring

Figure 1: Outcomes of AIH patients 0-21 years of age according to groups: Group 1 no Metabolite Monitoring (MM) and Group 2 MM.

Comparison of groups with and without metabolite monitoring

Among the 21 included patients, 10 did not have MM (Group 1) and 11 had MM at least once (Group 2). Demographical, clinical and histological data for the 21 patients are summarized in Table 1. Average AZA dose were significantly higher in Group 2 patients (1.9 mg/kg/day, range 1.3-2.9) vs. 1.2 mg/kg/day, range 0.6-1.8 in Group 1, P=0.002). Otherwise there were no other significant differences between the two groups at baseline. Data points throughout the two years were available for the following numbers of patients in Groups 1 and 2 respectively: presentation (10 vs. 11); 6 months (9 vs. 9); 12 months (6 vs. 8) and 24 months (4 vs. 8) Laboratory values (ALT, AST, alkaline phosphatase, ANC) did not differ between groups at any of the time points assessed over the two year period. For example, values for ALT for the two groups were respectively 61 (22-154) vs. 45 (17-2360) U/L at 6 months for Groups 1 & 2; 59 (19-83) vs. 28 (13-1034) U/L at 12 months and 49 (17-291) vs. 26 (10-137) U/L at 24 months.

  Group 1 (N=10)
No MM
Group 2 (N=11)
MM
Male (#/%) 6 (60%) 7 (64%)
Age at diagnosis (years) 13.5 (3-18) 10 (1-15)
Duration of AIH at start of study (years) 1 (0-7) 1 (0-4)
Follow up (months) 23.5 (6 – 40) 25 (6 – 69)
Type I/II AIH 10 (100%)/0 10 (91%)/1
Moderate-severe liver fibrosis at diagnosis 5 (50%) 5 (45%)
Average AZA dose (mg/kg/day) 1.2 (0.6-1.8) 1.9 (1.3-2.9)
Average prednisone dose (mg/kg/day) 0.4 (0.1-0.9) 0.4 (0.2-1.5)
Baseline ALT (U/L) 346 (62-1174) 120 (12-1110)
Baseline AST (U/L) 260 (32-1681) 90 (18-2458)
Baseline alkaline phosphatase (U/L) 246 (78-1020) 207 (83-595)
Baseline ANC (cells/µL) 3740 (1740-8730) 4760 (280-10250)

Table 1: Demographic and clinical characteristics of the 2 groups of AIH patients at baseline.

Experience with metabolite monitoring

Thiopurine Methyl Transferase (TPMT) levels, average 6-TG levels and average 6-MMP levels in Group 2 patients were 29.7 U/mL RBC (normal TPMT level) (16.6-42.4), 118 pmol/8 × 108 RBC (41.5-316) and 1212 pmol/8 × 108 RBC (186-6792). The last ALT levels available for the patients did not correlate with average 6TG levels, (r=-0.1; P=0.78) (Figure 2). ALT levels used in Figure 2 are the last ALT levels collected during immunosuppressive therapy (after 2 years of therapy for 8/11 patients, after 1 year of therapy for 1/11 patient and after 6 months of therapy for 2/11 patients). One patient had an unusually high ALT level (137 U/L) after 2 years of therapy with an average 6-TG level of 122 pmol/8 × 108 RBC; his average AZA dose was 2 mg/kg/d and his TPMT level was intermediate.

hepatology-gastrointestinal-disorders-alanine-aminotransferase

Figure 2: Correlation between last ALT (alanine aminotransferase) levels and average 6 TG (6 thioguanine) levels (r=-0.1; p=0.78)

The average 6-TG level for Group 2 remission patients was 162.7 pmol/8 × 108 RBC (41.5-316; N=7) versus 96.5 pmol/8 x108 RBC (50-122.5; N=3) for Group 2 incomplete response patients (P=0.34). The average AZA doses for Group 1 vs. Group 2 remission patients were 1.3 mg/kg/day (1.1-1.8) (N=4) vs. 1.8 mg/kg/day (1.4-2.6) (N=7), P=0.09 and for the Group 1 vs. Group 2 incomplete response patients were 1.2 mg/kg/day (0.6-1.4) (N=6) vs. 2 mg/kg/day (1.3-2) (N=3), P=0.04. Comparing AZA doses for remission patient’s vs. incomplete response patients in Group 1, p-value was 0.24 and for Group 2 p-value was 0.91. There was no correlation between average 6-TG levels & average AZA doses (r=0.17; P=0.61); in contrast there was a strong positive correlation between the average 6-MMP levels & average AZA doses (r=0.71; P=0.015) (Figures 3A and 3B).

hepatology-gastrointestinal-disorders-average-AZA

Figure 3A: Correlation between average 6 TG (6 thioguanine) levels and average AZA (azathioprine) dose (r=0.17; p=0.61)

hepatology-gastrointestinal-disorders-methyl-mercaptopurine

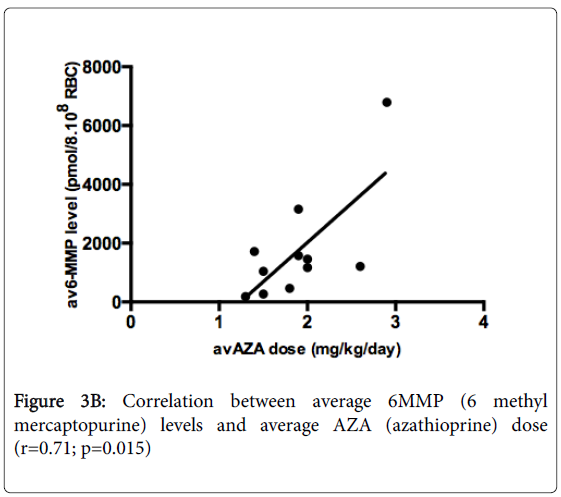

Figure 3B: Correlation between average 6MMP (6 methyl mercaptopurine) levels and average AZA (azathioprine) dose (r=0.71; p=0.015)

TMPT levels were measured for 2 patients in Group 1 and 7 patients in Group 2. Seven of those 9 patients had normal TPMT levels, 2 patients had intermediate TPMT levels (one from Group 1 & the other from Group 2), and no patient had low TPMT levels. Average AZA doses were not statistically different for normal TPMT levels patients (1.5 (1.1-2.9) mg/kg/day) comparing to intermediate TPMT levels (1.6 (1.1-2) mg/kg/day) (P=0.62) and missing TPMT levels (1.4 (0.6-2) mg/kg/day) (P=0.14).

Three patients had neutropenia (once). For 2 patients the TMPT levels are missing. One of those 2 patients had this neutropenia (1430 neutrophils/μl) when he was not under immunosuppressive therapy anymore. The other patient had an absolute neutrophil (ANC) count of 1360 neutrophils/μl once, while he was taking AZA 1.7 mg/kg/day (6- TG level=96 pmol/8 × 108 RBC).

A third patient developed cholestasis treated with escalating doses of AZA (from 50 to 100 mg per day) by an outside physician who believed the patient was in progressive liver failure from AIH but did not monitor the AZA metabolite levels. Of note the patient had a normal TPMP level of 27 U/mL RBC. Her weight had increased, secondary to both increasing ascites and prednisone-induced obesity from 55.6 kg when the 6MP was initiated to 73.6 kg; thus the 6MP dose was 0.7 to 1.4 mg/kg/day or 0.9 to 1.8 mg/kg/day depending on which weight was used. This 16 year old female patient had evidence of end stage liver disease with ascites, coagulopathy (INR 1.4) and pancytopenia (white blood cells 2 × 109/L, ANC 0.28 × 109/L, hemoglobin 11.1g/dl, platelets 104 × 109/μl). Total bilirubin was 13.6 mg/dl and direct bilirubin 10.7. AST was 90 U/L and ALT was 120 U/L. Ammonia was 100 mcg/dl (normal 15-45). She was transferred to our hospital and listed for a liver transplant. Abdominal ultrasound revealed a nodular liver consistent with cirrhosis, splenomegaly and ascites. 6-TG level was 223 pmol/8 × 108 RBC and she had normal TMPT activity; however 6-MMP level was 6792 pmol/8 × 108 RBC, in the hepatotoxic range (>5700)(4). AZA was discontinued and the patient eventually recovered, was removed from the transplant list, and was eventually treated with low dose tacrolimus. Now 8 years later she is clinically well, has graduated from college, and is employed.

Discussion

The main findings of our paper were as follows: 1) There was no statistically significant difference in outcome (remission rates) between the patients in whom drug metabolite levels were monitored and in those without monitoring 2) There was no statistically significant difference in 6-TG for remission/incomplete response patients 3) In patients in whom drug metabolites were monitored, AZA doses were higher vs. in those without monitoring and 4) AZA hepatotoxicity was closely correlated with AZA dose; 6-MMP drug levels were key to diagnosing apparent AZA hepatotoxicity in one patient in whom discontinuation of the drug reversed a potentially life-threatening condition and led to clinical resolution.

There are several interesting aspects of the remission achieved by our patients. Although remission rates were higher in those who were monitored (64%) vs. those who were not (40%), that difference was not statistically significant. Whether this lack of statistical significance meant that monitoring truly did not help achieve the goal of remission (similar to at least one report in patients with inflammatory bowel disease) [10] or whether the sample size was not large enough to detect a difference is not clear. We recognize that the small number of patients is a definite limitation of our study. However it is interesting that our patients with remission had lower 6-TG levels (163 pmol/8 × 108 RBC) compared to levels thought to be therapeutic in children with inflammatory bowel disease (235-450 pmol/8 × 108 RBC) [4] and lower than the levels thought to be therapeutic in adults with AIH (average 237 pmol/8 × 108 pmol/RBC) [7].

It is of interest to compare our experience with that of Rumbo [2] et al. Her group demonstrated that, in general, drug metabolites could be utilized to help children with AIH safely achieve target levels consistent with those recommended for children with inflammatory bowel disease and were useful in assessing compliance to medication. Our approach was somewhat different in that our purpose was to achieve remission rather than to aim for a particular 6-TG level. With that approach we were able to demonstrate that remission can be achieved in children with AIH with average 6-TG levels lower than those targeted in children with inflammatory bowel disease. Somewhat similar to our observations, Nguyen et al. [6] reported that 32.6% of their group of children with AIH achieved remission with metabolite levels below those recommended for children with inflammatory bowel disease although 41.6% of the group who achieved remission actually had 6-TG levels above the therapeutic range for children with inflammatory bowel disease. Interestingly this group showed that there was no difference in 6-TG levels between children with active disease and those in remission, somewhat similar to our data showing no difference in 6-TG levels between children with remission and incomplete response. However we completely agree with both Rumbo et al. [2] and Nguyen et al. [6] that large multicenter studies will be necessary in order to optimize drug dosing in children with AIH.

Determination of factors determining remission rates in children with AIH is multi-factorial and, in addition to AZA dosing, includes factors such as compliance and possible overlap syndrome [11]. Ebbeson and Schreiber pointed out that, while application of the IAIHG scoring system in children with AIH is generally helpful, use of gamma glutamyl transpeptidase in place of alkaline phosphatase helps distinguish between those with overlap syndrome (who are less likely to achieve remission) and those with AIH [12]. We did not have gamma glutamyl transpeptidase available on all patients so chose to use alkaline phosphatase as per the IAIGHG, so in theory could have missed children with overlap syndrome.

Our data reinforce the observations of both Rumbo [2] and Nguyen [6] that monitoring of AZA metabolites may be most useful in both diagnosing and avoiding drug-related hepatotoxicity and neutropenia. We clearly demonstrate that there is a dose response between 6MMP and AZA whereas that was not the case with AZA dose and 6-TG. According to the data of Rumbo et al. [2], azathioprine related neutropenia corresponds to an ANC < 1000/μl & 6-TG > 450 pmol/8 × 108 RBC. None of our series of children ever had a 6-TG level this high. Our dramatic case of apparent AZA-related hepatotoxicity was in accordance with the observations of Dubinsky et al. [4] that a 6-MMP level > 5700 pmol/8 × 108 RBC) can be hepatotoxic.

In summary, our data suggest that at least a portion of children with AIH who are being treated with AZA can achieve remission with levels of 6-TG lower than those traditionally recommended for children with inflammatory bowel disease and that monitoring of AZA metabolites can assist in diagnosing and avoiding drug toxicity. In children with AIH who do not respond to conventional dose of AZA, serial monitoring of drug metabolites during cautious dose escalation may prove useful to achieve a therapeutic response and avoid drug toxicity, similar to the experience reported by Cuffari et al. [13] in patients with inflammatory bowel disease. Large scale prospective multi-center trials are clearly needed to optimize drug dosing in children with AIH.

References

  1. Manns MP, Czaja AJ, Gorham JD, Krawitt EL, Mieli-Vergani D, et al. (2010) Diagnosis and management of autoimmune hepatitis. Hepatology 51:2193-2213.
  2. Rumbo C, Emerick KM, Emre S, and ShneiderB (2002) Azathioprine metabolite measurements in the treatment of autoimmune hepatitis in pediatric patients: a preliminary report. J PediatrGastroenterolNutr 35: 391-398.
  3. Cuffari C, Seidman EG, Latour S, Théorêt Y (1996) Quantitation of 6-thioguanine in peripheral blood leukocyte DNA in Crohn's disease patients on maintenance 6-mercaptopurine therapy.Can J PhysiolPharmacol. 74:580-585.
  4. Dubinsky MC, Lamothe S, Yang HY, Targan S, Sinnett D, et al. (2000). Pharmacogenomics and metabolite measurement for 6-mercaptopurine therapy in inflammatory bowel disease. Gastroenterology 118: 705–713.
  5. Gupta P, Gokhale R, Kirshner B (2000) 6-Mercaptopurine (6MP) metabolite levels in children with IBD: lack of correlation of 6-thioguanine (6TG) levels with clinical response. Gastroenterology 118:4202.
  6. Nguyen T, Daubard M, Le Gall C, Larger M, Lachaux A et al. (2010) Monitoring of Azathioprine Metabolites in Pediatric Patients With Autoimmune Hepatitis. Ther Drug Monit 32:433–437.
  7. Dhaliwal HK, Anderson R, Thornhill EL, Schneider S, McFarlane E, et al. (2012) Clinical Significance of Azathioprine Metabolites for the Maintenance of Remission in Autoimmune Hepatitis. Hepatology 56:1401-1408.
  8. Alvarez F, Berg PA, Bianchi FB, Bianchi L, Burroughs AK, et al. (1999) International Autoimmune Hepatitis Group Report: Review of Criteria for the Diagnosis of Autoimmune Hepatitis. Journal of Hepatology 31:929-938.
  9. Sandborn W (2001) Rational dosing of azathioprine and 6-mercaptopurine.Gut 48:590–593.
  10. Lowry PW, Franklin CL, Weaver AL, Pike MG, Mays DC, et al. (2001)Measurement of thiopurinemethyltransferase activity and azathioprine metabolites in patients with inflammatory bowel disease. Gut 49:665–670.
  11. Mieli-Vergani G, Vergani D (2008) Autoimmune paediatric liver disease. World J Gastroenterol14: 3360-3367.
  12. Ebbeson RL and Schreiber RA (2004) Diagnosing Autoimmune Hepatitis in Children: Is the International Autoimmune Hepatitis Group Scoring System Useful? Clinical Gastroenterology and Hepatology 2:935–940.
  13. Cuffari C, Hunt S, Bayless T (2001) Utilization of erythrocyte 6-thioguanine metabolite levels to optimize azathioprine therapy in patients with inflammatory bowel disease. Gut 48:642–646.
Citation: Jannone G, Kafka K, Schwarz KB (2016) Utility of Monitoring Azathioprine Metabolites in the Management of Children with Autoimmune Hepatitis. J Hepatol Gastroint Dis 2:114.

Copyright: © 2016 Jannone G, et al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.
