Review Article - (2016) Volume 6, Issue 1

Surface FTIR Techniques to Analyze the Conformation of Proteins/ Peptides in H2O Environment

Joseph D Combs, Cuauhtemoc U Gonzalez and Chengshan Wang*
Chemistry Department, Middle Tennessee State University, Murfreesboro, TN 37132, United States of America
*Corresponding Author: Chengshan Wang, Chemistry Department, Middle Tennessee State University, Murfreesboro, TN 37132, United States of America, Tel: 6156929167 Email:

Abstract

Proteins/peptides, which are involved in various biochemical processes in biological systems, contain infrared (IR) active vibrations. Among all the IR absorption bands of proteins/peptides, the amide I band arises mainly from the stretching vibration of the carbonyls (C=O) in backbone amide bonds and is sensitive to the conformations (such as α– helix, β–sheet, unstructured conformation, and so on) in a protein/peptide. Therefore, the amide I band has been used to monitor the biophysical/biochemical behavior of proteins/peptides in biological samples (e.g., living cells or tissues). However, obtaining reproducible IR spectra of proteins/peptides in H2O solution was challenging by direct transmission measurement using a liquid cell with milli-meter level path length, due to the intensive IR absorption of H2O around 1620 cm-1 which overlaps the amide I band. Thus, lots of the IR spectra of proteins/peptides were accomplished in D2O, which has IR absorption around 1200 cm-1. Since D2O may not be a favorable solvent for biological samples, the position of the amide I band of various conformations was needed as a reference for biological samples. Consequently, various surface FTIR techniques (such as Infrared Reflection-Absorption Spectroscopy or IRRAS, and Attenuated Total Reflection or ATR) have been developed to obtain the IR spectra of proteins/peptides in H2O environment and have been reviewed here.

<

Keywords: Amide I band; IRRAS; PM-IRRAS; ATR; Langmuir monolayer; 13C labels

Introduction

Background of peptides/proteins

Proteins are biological macro-molecules which are involved in various biochemical processes (e.g., oxidative phosphorylation [1,2], DNA replication [3,4], response to stimuli [5,6] and so on [7,8]). All the proteins found in biological systems comprise amino acids as shown in Figure 1 [9-11]. An α-carbon is at the center of an amino acid and is covalently linked to an amine group, a carboxylic group, hydrogen atom, and a residue group (i.e., the R group). Amino acids are distinguished according to the structure of the R group as shown in Table 1. When covalently linking amino acids by amide bonds (O=CNH in which the carbonyl group is from one amino acid and NH is from the adjacent amino acid as shown in Figure 1), the polypeptide chain of peptides (shorter polypeptide chains) or proteins (longer chains) is formed.

physical-chemistry-biophysics-amino-acid

Figure 1: Structure of an amino acid and the formation of the amide bond.

Amino acid Abbreviations Structure of R group shown in Figure 1
Alanine Ala A -CH3
Arginine Arg R -(CH2)3-NH-C(NH2)=NH
Asparagine Asn N -CH2-CO-NH2
Aspartic acid Asp D -CH2-COOH
Cysteine Cys C -CH2-SH
Glutamine Gln Q -(CH2)2-CO-NH2
Glutamic Acid Glu E -(CH2)2-COOH
Glycine Gly G -H
Histidine His H -CH2C3H3N2
Isoleucine Ile I -CH(CH3)-CH2-CH3
Leucine Leu L -CH2-CH-(CH3)2
Lysine Lys K -(CH2)4NH2
Methionine Met M -(CH2)2-S-CH3
Phenylalanine Phe F -CH2-C6H5
Proline Pro P -CH(CH2)3NH
Serine Ser S -CH2-OH
Threonine Thr T -CH(OH)-CH3
Tryptophan Trp W -CH2-C8H6N
Tyrosine Tyr Y -CH2-C6H5-OH
Valine Val V -CH-(CH3)2

Table 1: Structure of R groups of amino acids.

The sequence of the amino acids in the polypeptide chain of peptides/ proteins is the primary structure. The two termini of a polypeptide chain are termed as the N-terminus (it has a free amine group) and the C-terminus (it has a free carboxylic acid group). Because of the large number of amino acids in a protein, an abbreviation is used for every amino acid as shown in Table 1 to describe the protein sequence, which is usually written from N-terminus to C-terminus. For example, the sequence of a model peptide is HAAKAAAAKAAAAKAAY, which will be discussed in detail in section 2.7. Abbreviations with three letters are also used when discussing specific positions. The N-terminal residue (or the first residue) of the model peptide above is histidine, which can be referred to as either His1 or H1.

The secondary structure of a protein is the specific geometric shape caused by the intra and inter-molecular hydrogen bonding of amide groups. Typical secondary structures (also called conformations) are α−helix, β−sheets, and random coil [12-14]. Random coil structure is also called unstructured conformation, in which the polypeptide chain is well dissolved in the aqueous solution and moves freely in the aqueous environment. As a very common secondary structure, α–helix is characterized by the intra molecular hydrogen bonds between the amine group of one amino acid and the carbonyl group of another amino acid located 3~4 residues away along the polypeptide chain [13]. These hydrogen bonds are roughly parallel to the helical axis. The α-helix is usually right handed and contains approximately 3.6 amino acid residues per turn. The structural units of β–sheets are strands, which are fully extended structures characterized by multiple polypeptide strands arranged side-by-side [12]. Side chains are present above and below the plane of the polypeptide chain. Inter-strand hydrogen bonds are formed between the carbonyl oxygen of one chain and the amide hydrogen of the other chain.

Techniques to determine a protein’s/peptide’s structure

As mentioned above, proteins perform a variety of functions in biological systems, and their activity is influenced by the structure. Thus, techniques have been developed to determine the structure of proteins/peptides. X-ray crystallography is a widely used technique to address proteins structure by the diffraction of the X-ray from a single crystal of target proteins. However, lots of proteins cannot form a single crystal. Not requiring proteins to form single crystal, nuclear magnetic resonance (NMR) is another powerful technique to elucidate the structure of proteins. To obtain a high resolution of the structure, multidimensional NMR measurement of proteins is usually time consuming. Therefore, it is challenging for NMR to “snapshot” protein species with short life-times. In addition, repeating sequences in proteins will cause the overlap of NMR signals and result in difficulties in the analysis of the data. In contrast, Infrared (IR) techniques which have a quick response and are able to provide high resolution results have been developed to address the structure of proteins.

Fourier Transform IR (FTIR) spectroscopy

FTIR spectroscopy detects the vibrations in a molecule. As shown in Figure 1, proteins/peptides contain groups with IR active vibrations such as the amide group (i.e., O=C-NH), αC-H, and residue groups of amino acids. These groups result in several intensive bands in the FTIR spectra. For example, the amide A band around 3300 cm-1 is from the N-H stretching vibration in the amide group. The amide I band (mainly from the stretching mode of C=O in the amide group) and amide II bands (from the bending mode vibration of N-H in amide group) are in the range of 1600-1700 cm-1 and 1500-1560 cm-1, respectively. Among all the amide bands, the position of the amide I band is most sensitive to the conformation (i.e., the secondary structures) change of proteins/peptides and has been widely used to evaluate the fraction of various secondary structures in a protein/peptide.

Heavy water (D2O) is more widely used to obtain the FTIR spectra of proteins/peptides

Lots of FTIR spectra of proteins/peptides were obtained in D2O [15-20], not H2O, because the intensive IR absorption of H2O between 1500 to 1800 cm-1 overlaps the position of the amide I band [21,22]. Thus, the amide I band in the FTIR spectra of proteins/peptides can be clearly detected in D2O with the background IR absorption around 1200 cm-1 [21,22]. However, there are reasons to obtain the FTIR spectra of proteins/peptides in H2O rather than D2O. For example, in vivo proteins reside in an H2O environment and D2O is not favorable to biological systems [23,24]. For the analysis of the FTIR results of biological samples (such as living cells and tissue samples), the amide I band in H2O is needed as a reference [23,25,26]. Thus, efforts to obtain the FTIR spectroscopy of proteins/peptides in the absence of D2O have been tried by various methods, which are reviewed here in the order of the time when they were invented.

Techniques to Obtain FTIR Spectroscopy of Peptides/ Proteins in H2O Environment

Sample cells of CaF2 with the path length of 0.01 mm

CaF2 slides are widely used to construct sample containers for FTIR spectroscopy due to its very low background absorption [21,27,28]. Thus, CaF2 windows have been used first to build up homemade cells with a minimum path length of 0.01 mm (i.e., 10 μm) [21]. By this method, the amide I band was measured in both H2O and D2O environments and the amide I band of a certain protein was found to be 5-15 cm-1 higher in H2O than that in D2O, because of H/D exchange [21]. Notice that the actual path length of this cell might be affected by the surface roughness of the CaF2 windows. Therefore, it may be challenging to use this kind of cell to obtain reproducible FTIR results of proteins/peptides in H2O.

Reduce the H2O absorption by organic solvent

Increasing the path length of the above-mentioned CaF2 cell to 0.025 mm has been shown to improve reproducibility [28]. However, the H2O background absorption was too strong through a path length of 0.025 mm and made the detection of the amide I band difficult. To decrease the H2O absorption under this circumstance, organic solvents (such as dioxane) soluble in H2O have been used to dilute H2O and consequently decrease the H2O background absorption [28]. However, the amide bands of proteins/peptides shifted and the quantitative analysis of the conformation of a protein was challenging, because the organic solvent may change the hydration of the amide groups [28].

FTIR spectroscopy of proteins in Langmuir-Blodgett films

Proteins have been also spread at the air-water interface and then transferred onto solid substrates to form a Langmuir-Blodgett (LB) film, which can be analyzed by FTIR spectroscopy in the absence of D2O. High quality and reproducible results of the FTIR spectroscopy of proteins/peptides can be obtained [29-32]. However, small amount of the remaining H2O which is strongly absorbed by protein molecules in the LB film may be evaporated. To maintain the protein molecules in an H2O environment, IR Reflection-Absorption Spectroscopy (IRRAS) which can measure the FTIR spectroscopy of proteins at the air-water interface has been developed.

IRRAS studies of proteins at the air-water interface

Amphiphilic molecules such as stearic acid, which contains both a hydrophilic head group and a hydrophobic alkyl chain, can form a Langmuir monolayer (i.e., one single layer of molecules) at the airwater interface. The technique of IRRAS for the Langmuir monolayer was developed in 1985 [33]. Subsequently, some proteins were shown to be also able to form a Lanmguir monolayer and IRRAS has been consequently used to analyze protein samples in the Langmuir monolayer [14,34-38], which covers the surface of H2O. IRRAS can not only detect the FTIR signal of proteins, but also valuate the orientation of the proteins sample in the Langmuir monolayer due to the selection rules as discussed below [14,34-36,38].

Selection rules of IRRAS: There are two variables enabling IRRAS to evaluate the orientation of vibrations of the molecules in Langmuir monolayer. One variable is the polarization of the incident IR beam and the other is the incident angle, which is the angle between the incident IR beam and the normal of the air-water interface [38,39]. As shown in Figure 2, the incident IR beam and the normal of the air-water interface compose the incident plane. If the electric field of the incident IR beam is polarized in the incident plane, the IR is p-polarized [38,39]. The IR is s-polarized when the electrical field is perpendicular to the incident plane [38,39]. The peak intensity of a certain vibration depends on the orientation of the vibration, the polarization, and the incident angle. Because both the polarization and the incident angle can be monitored accurately during the measurement of IRRAS, the orientation of a certain vibration can be evaluated in the following.

physical-chemistry-biophysics-electric-field

Figure 2: The illustration of IRRAS. The electric field direction of the p-polarized IR beam is in the incident plane and perpendicular to the direction of the IR beam. The electric field of the s-polarized IR beam is perpendicular to the incident plane and is not shown here.

The s-polarized IRRAS can only detect the vibrations parallel to the air-water interface and the peak intensity of a certain vibration in the s-polarized IRRAS decreases with the increasing incident angle. Because almost no vibration in reality is absolutely perpendicular to the air-water interface, s-polarized IRRAS can detect almost all the IR active vibrations in the Langmuir monolayer. On the other hand, the p-polarized IRRAS is widely used to determine the orientation of vibrations in the Langmuir monolayer. For vibrations parallel to the interface, the peaks are initially negative and the peak intensity increases with an increase of the incident angle until the Brewster angle (e.g., 54.2º for the IR light at 2850 cm-1 reflected from the surface of water) is reached [38,39]. Above the Brewster angle, there is an inversion of the peaks to positive values and the intensity decreases with a further increase of the incident angle. Regarding a vibration perpendicular to the interface, the opposite should be observed for the sign (positive or negative) of the peak: The peak is positive when the incident angle is below Brewster angle and, becomes negative after the incident angle is above Brewster angle [38,39]. For a tilted vibration, the peak intensity in the p-polarized IRRAS is weak and sometimes the peak disappears.

IRRAS of example protein: The s- and p-polarized IRRAS results of the Langmuir monolayer of oganophosphorus acid anhydrolase (OPAA) are shown in Figure 3a and 3b, respectively [35]. OPAA contains most of the typical conformations (i.e., unstructured conformation, α-helix, β-sheet, turns and so on) as discussed above. The amide I band of turns, α-helix, unstructured conformation, and β-sheet has been reported to be at 1670, 1650, 1640, and 1630 cm-1, respectively. In Figure 3a, all of the above-mentioned peaks have been detected. The intensive peak at 1650 cm-1 in Figure 3a indicates the high fraction of α-helix in OPAA whereas the low peak intensity at 1630 cm-1 indicates the low fraction of β-sheet. However, the peak intensity of 1630 cm-1 was strong in the p-polarized IRRAS as shown in Figure 3b. Because the amide I band is mainly from the vibration of carbonyls (C=O) in the amide bond, the carbonyls in amide bond in the β-sheet conformation of OPAA in the Langmuir monolayer should be parallel to the air-water interface. Interestingly, the amide I band of unstructured conformation at 1640 cm-1 was not detected in p-polarized IRRAS. This result is reasonable because the carbonyls in unstructured conformation should be randomly distributed and this orientation is not preferred by p-polarized IRRAS, as discussed in the above section about the selection rules of IRRAS [35]. Similarly, some other proteins with high fraction of α-helix have been analyzed by IRRAS and important information about the change of both the conformation and orientation of the proteins has been addressed [35].

physical-chemistry-biophysics-surface-pressure

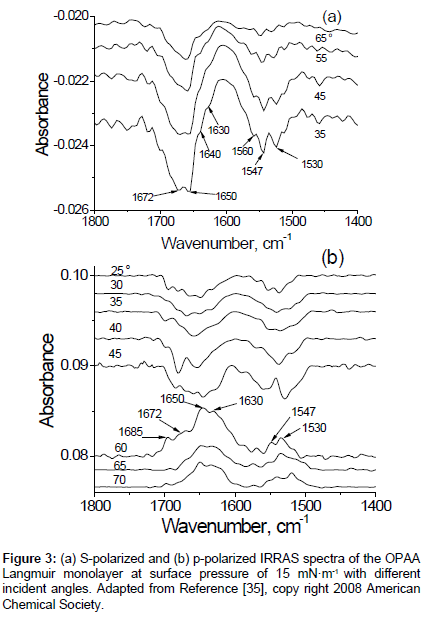

Figure 3: (a) S-polarized and (b) p-polarized IRRAS spectra of the OPAA Langmuir monolayer at surface pressure of 15 mN·m-1 with different incident angles. Adapted from Reference [35], copy right 2008 American Chemical Society.

IRRAS of proteins with other conformations than α-helix: The prerequisite of the IRRAS measurement of protein samples at the airwater interface is that the protein can form a Langmuir monolayer. Among the various conformations, α-helix has been shown to help proteins to form a Langmuir monolayer [40]. It is difficult for proteins with a high fraction of unstructured conformation to form the monolayer. This may because of the extensive hydration of unstructured proteins/peptides with the bulk H2O molecules. To facilitate the measurements of the IRRAS of proteins in other conformations than α-helix, the Langmuir monolayer of phospholipids has been used to adsorb proteins onto the interface [41]. For example, β-amyloid (Aβ) can form various types of aggregates, which are in β-sheet conformation and have been shown to be responsible for Alzheimer’s disease [42,43]. The aggregates can adsorb to the Langmuir monolayer of phospholipids and the p-polarzied IRRAS results showed that the carbonyls in the amide bond in the β-sheet are parallel to the interface [41].

Covalently linking short peptides to lipid molecules: It is still difficult for short peptides to go up to the air-water interface even in the presence of the Langmuir monolayer of phospholipids. To examine the IRRAS of short peptides, a covalently linked hydrophobic alkyl chain may be necessary to keep short peptides at the interface [32]. A short peptide with sequence of FWSHE has been used to mimic the structure of acetylcholinesterase [37], which contains an active site (comprising amino acid S, H, and E) and an aromatic gauge (comprising residues aromatic groups such as F and W) [44]. Due to its good solubility in H2O, FWSHE was linked to a stearoyl chain to form a peptidolipid to be analyzed by IRRAS as shown in Figure 4 [38]. As shown in Figure 4a, the s-polarized IRRAS detected all the vibrations in the peptidolipid. For example, the alkyl chains signal was detected at 2854 and 2923 cm- 1. The amide I and amide II band was detected in the range of 1630- 1660 and 1500-1557 cm-1, respectively. In addition, the vibration from the aromatic residue groups of F and W was also detected at 1580 cm-1. However, the peak from aromatic groups disappeared in the p-polarized IRRAS (c.f., Figure 4b) and the peak intensity of the alkyl chains was also weak. Thus, a tilted orientation of the aromatic rings and the alkyl chains was indicated. Interestingly, a specific interaction of this peptidolipid with paraoxon (a pesticide that can deactivate acetylcholinesterase) has been detected but the mechanism of the interaction was not known. Thus, IRRAS was utilized to address the interaction as discussed below [38].

physical-chemistry-biophysics-pure-water

Figure 4: (a) S-polarized and (b) p-polarized IRRAS of the peptidolipid Langmuir monolayer on pure water at 20 mN·m-1 against different incident angles. Adapted from Reference [38], copy right 2007 American Chemical Society.

Although not being able to form a stable Langmuir monolayer, paraoxon can still accumulate at the air-water interface. IRRAS results showed that the axis of the nitro-benzene is parallel to the air-water interface as shown in Figure 5a and the benzene ring can rotate freely (c.f., Figure 5b). The IRRAS results of paraoxon H2O solution was shown below in Figure 6 [38].

physical-chemistry-biophysics-Free-rotation

Figure 5: Free rotation of benzene ring of paraoxon when accumulated at the air-water interface. Adapted from Reference [38], copy right 2007 American Chemical Society.

physical-chemistry-biophysics-paraoxon

Figure 6: S-polarized (a) and p-polarized (b) IRRAS of paraoxon subphase at the concentration of 1.5 × 10-3 M. Adapted from Reference [38], copy right 2007 American Chemical Society.

Paraoxon has several IR active vibrations and two vibrations are very important, namely the asymmetric and symmetric vibrations of nitro group at 1526 and 1348 cm-1, respectively. Both of the peaks are intensive in the IR spectrum of the bulky paraoxon. However, the peak of the asymmetric vibration at 1526 cm-1 was weak in the s-polarized IRRAS (Figure 6a) of paraoxon and even disappeared in the p-polarized IRRAS as shown in Figure 6b. On the contrary, the peak of the symmetric vibration at 1348 cm-1 was very strong in both the s- and the p-polarized IRRAS. The only explanation is that the axis of the nitro-benzene of paraoxon is parallel to the air-water interface as shown in Figure 5a. This orientation makes the peak of the symmetric vibration intensive in both s- and p-polarized IRRAS. On the other hand, the benzene ring may rotate freely around the axis and this rotation makes the average orientation of the asymmetric vibration randomly distributed. As a consequence, the peak intensity at 1526 cm-1 is weak in Figure 6. Then, what is the mechanism of the specific interaction between paraoxon and the peptidolipid? IRRAS results of the peptidolipid in the presence of paraoxon are shown in Figure 7 [38].

physical-chemistry-biophysics-American

Figure 7: (a) s-Polarized and (b) p-polarized IRRAS of the peptidolipid Langmuir monolayer on paraoxon subphase at a concentration of 1.5 × 10-3 M at 20 mN·m-1 against different incident angles. Adapted from Reference [38], copy right 2007 American Chemical Society.

In the presence of the peptidolipid, both the peak of asymmetric vibration at 1526 cm-1 and that of symmetric one at 1348 cm-1 were weak in both the s-polarized (Figure 7a) and the p-polarized IRRAS results (Figure 7b). It is normal that the asymmetric vibration disappears in the s-polarized IRRAS because of its overlapping with the amide II band of the peptidolipid (Figure 7a). However, there is no overlapping between the peak of symmetric vibration of paraoxon at 1348 cm-1 with the peptidolipid. The peak at 1348 cm-1 was much weaker in Figure 7a than that in Figure 6a, both of which were s-polarized IRRAS. In addition, the peak at 1348 cm-1 disappeared completely in the p-polarized IRRAS (Figure 7b). Thus, Figure 7b indicates a tilted orientation of the axis of the nitro-benzene ring in paraoxon in the presence of the peptidolipid. Interestingly, the peak of the aromatic group in the peptidolipid at 1580 cm-1 also disappeared in Figure 7b. Thus, the nitro-benzene ring of paraoxon may be parallel to the aromatic group in the peptidolipid and a π-π interaction between paraoxon and the peptidolipid was reasonable, especially considering the fact that the fluorescence of W in the peptidolipid was quenched in the presence of paraoxon [38].

Polarization modulated IRRAS (PM-IRRAS)

The peak of water vapor is also intensive in the range of 1400-1800 cm-1, which overlaps with the amide I and amide II bands of proteins/peptides. The water vapor background IR absorption can be removed by either vacuum, pure N2 purging, or dry air purging. However, the above-mentioned methods may not work well for IRRAS because of the water subphase. During the measurement of IRRAS of a Langmuir monolayer at the air-water interface, a vacuum cannot be applied and pure N2 or dry air purging will not remove the water vapor from the continuous H2O evaporation of the water subphase. Although methods of delicate humidity control have been reported recently [38,39], a method able to automatically remove the water vapor IR absorption was welcomed and PM-IRRAS was developed as a consequence [34,45,46].

PM-IRRAS is similar to IRRAS and the difference between them stems from the polarization, which is switched between s- and p-polarization at a set frequency in PM-IRRAS. The PM-IRRAS signal is derived from results of p-polarization minus those of the s-polarization. Then, this subtraction was divided by the sum of the two polarized results. Thus, any isotropic vibration (i.e., the vibration with randomly distributed orientation) will disappear. The vibrations of water vapor disappear in the PM-IRRAS results due to its isotropic orientation in the air [34,45,46]. When the incident angle is above the Brewster angle, the selection rule of PM-IRRAS is very similar to the p-polarized IRRAS: the peak will be positive if the vibration is parallel to the air-water interface. For example, the PM-IRRAS of OPAA is shown in Figure 8. The positive amide I band in Figure 8 indicates that the carbonyls in various conformations are parallel to the air-water interface [35].

physical-chemistry-biophysics-Chemical-Society

Figure 8: PM-IRRAS spectra of the OPAA Langmuir monolayer with an incident angle at 70°. Adapted from Reference [35], copy right 2008 American Chemical Society.

Attenuated total reflection (ATR) technique

Although covalently linking short peptides to alkyl chains helps them to migrate to the air-water interface for IRRAS measurements, the biophysical and biochemical behavior of the short peptides or proteins may be affected substantially by alkyl chains. To measure the FTIR spectra of peptides/proteins without any external groups in H2O, ATR technique was developed. By monitoring the path length accurately in micro-meter level, ATR technique can measure the proteins/peptides IR spectroscopy in H2O environment with very good reproducibility [47,48] A crystal with high refractive index is usually used for ATR technique, which is illustrated in Figure 9 [49]. When the IR beam is introduced onto the interface with an incident angle θ, both the reflection and refraction occurs. The reflected angle is also θ and the refractive angle is Φ. The relationship between θ and Φ is given by the equation n1sinθ=n2sinΦ, where n1 is the refractive index of the incident material (i.e., the crystal) and n2 is that of the refractive material. In the ATR technique for the H2O solution samples of proteins/peptides, n1 (the refractive index of the crystal) is usually bigger than n2 (which is the refractive index of H2O) and consequently, θ is smaller than Φ. When the value of sinΦ reaches 1 (i.e., Φ reaches 90°), all the incident IR beam is reflected and no refraction occurs. This phenomenon is called total reflection. However, the incident IR beam still goes into the H2O phase about 0.1λ (λ is the wavelength of the incident IR) during each total reflection [49]. Thus, the IR beam will be absorbed by the H2O solution containing the proteins/peptides sample and becomes weaker during each total reflection. Therefore, this technique is termed as “attenuated total reflection”. By varying the dimension of the crystal and the incident angle, the number of total reflections can be manipulated and the path length of the IR beam in the H2O sample can be controlled accurately in micro-meter level [47,48]. Thus, ATR can measure the FTIR spectra of all types of proteins/peptides in H2O environment and has been widely used [50,51]. Since being reviewed by other papers [50,51], the ATR FTIR results of proteins/peptides are not covered in this paper.

physical-chemistry-biophysics-ATR-technique

Figure 9: The illustration of the ATR technique.

ATR FTIR spectroscopy of peptides with 13C labeled carbonyls

It has been shown that the fraction of conformations in a certain protein/peptide can be calculated by deconvolulting the amide I band. However, only the overall fraction of various conformations can be evaluated and no information can be provided about the conformation of the local (or specific) residues. Thus, 13C labels have been introduced into the carbonyl groups in the backbone amide bond of peptides and a new band (i.e., the 13C amide I band) was generated as a consequence [17,18]. The 13C amide I band which is in the range from 1585-1610 cm-1 has been shown to depend on the conformation of the 13C labeled residue (or amino acid) in D2O. For example, the 13C amide I’ band (i.e., the amide I band in D2O) of α-helix has been shown to be around 1596 cm-1 and that of anti-parallel β-sheet was at either 1590 cm-1 or 1600 cm-1 [19,20]. Interestingly, the 13C amide I band was not detected when the 13C labeled residue was in unstructured conformation [20]. Because every residue can be 13C labeled as desired during the synthesis of the peptide, the conformation of every residue can be screened by the 13C amide I’ band.

To verify that 13C-edited FTIR spectroscopy can be also used in H2O environment, 13C labeled carbonyls were introduced into the model peptide with sequence HAAKAAAAKAAAAKAAY (Pep17) [52]. At pH 5.0, Pep17 is unstructured conformation if its N-terminus is not covalently linked to an acetyl group. At pH 12.5, most of the residues of Pep17 transform to α-helix but several residues are still in unstructured conformation [52]. To address the residues still in unstructured conformation at pH 12.5, the FTIR spectra of Pep17 with 13C labels at different specific residues in H2O were studied by ATR and the results are shown in Figure 10 [52]. At pH 5, no 13C amide I band was detected for both unlabeled and 13C labeled Pep17 as shown in Figure 10a. This means that the 13C amide I band of unstructured conformation cannot be detected in H2O, either. At pH 12.5, the 13C amide I band at 1602 cm-1 appeared in the FTIR spectra for the Pep17 with 13C labels at N-terminal residues or the residues in the middle of Pep17. However, the 13C amide I band was absent in the FTIR spectrum of Pep17 with 13C labels at C-terminal residues (cf. Figure 10b). Therefore, the C-terminal residues are still in unstructured conformation even at pH 12.5 [52].

physical-chemistry-biophysics-Royal-Society

Figure 10: ATR FTIR spectra of Pep17 at: (a) pH 5.0 and (b) at pH 12.5. Reproduced from Reference [52] with permission from the Royal Society of Chemistry.

The Amide I Band Used as a Reference for Biological Samples and Future Perspectives

By the above-mentioned surface FTIR methods, the amide I band of various conformations has been determined in an H2O environment [13,21,34,53-55]. For example, the amide I band of α-helix is around 1650 cm-1 and that of unstructured conformation is around 1640 cm-1. The amide I band of β-sheet (at ~1630 cm-1 as well as ~1685 cm-1) and that of other conformations such as β-turns have been also determined [13,21,34,53-55]. The position of the amide I band in H2O has been widely used as a reference to address the conformation of proteins in tissues and living cells [23,25,26], both of which are in H2O environment. It is probable that 13C labeled peptides will be induced into living cells to obtain information about the behavior of specific region of the 13C labeled peptide/protein in the living cells. Notice that the 13C amide I’ band of various conformations in D2O has been determined systematically [17-20]. However, just like what has been done for the regular amide I band in H2O, the 13C amide I band in H2O will be welcomed as a reference to track specific 13C labeled peptide/protein in the samples of tissues and living cells. Compared with regular amide I band of various conformations in H2O environment, work still remains to be done for the 13C amide I band in H2O. To the best of our knowledge, only the 13C amide I band of α-helix and unstructured conformation in H2O has been studied as mentioned above. Therefore, the 13C amide I band of β-sheet and other remaining conformations still needs to be studied, to set up a systematical reference for future FTIR studies of biological samples.
