Research Article - (2013) Volume 6, Issue 4
Background: Histology-directed tissue Matrix-Assisted Laser Desorption/Ionization Mass Spectrometry (MALDI MS) has been used to identify lipid profiles that can distinguish cancerous epithelium from normal epithelium.
Methods: In order to evaluate if lipid profiles may assist with diagnosis, frozen resected tumor samples collected from papillary thyroid carcinoma patients were analyzed using Matrix (DHB/CHCA)-Assisted Laser Desorption/ Ionization (MALDI) Mass Spectrometry (MS), together with adjacent normal tissue samples.
Results: Lipid peaks differentially expressed between cancer and normal samples at a feature selection P<0.001 correctly predicted class labels of test set samples (7 pairs) in 100 random training-to-test partitions, at the median class prediction accuracy of 100%. In addition, lipid peaks differentially expressed between 14 pairs of cancer and adjacent normal samples correctly predicted 100% of validation set samples (8 out of 8 samples). Phosphatidylcholines (PC) 32:0 and PC 34:1, sphingomyelin 34:1, and several phosphatidylinositols were overexpressed, while lysophosphatidylcholine 18:3 and lysophosphatidylserine 18:1 were underexpressed in papillary thyroid carcinomas, compared with normal tissue.
Conclusions: Lipid MALDI MS profiles accurately distinguish papillary thyroid carcinoma epithelium from normal epithelium, and demonstrate the potential as a diagnostic aid.
Keywords: MALDI; Lipid; Papillary thyroid carcinoma
Thyroid cancer is the most common cancer in Korea, with papillary thyroid carcinoma being the most frequent histologic subtype [1,2]. Preoperative histopathologic diagnosis is based on the degree of atypia of biopsy samples. According to the National Cancer Institute Thyroid FNA State of the Science Conference, thyroid lesions are categorized as benign, atypia, follicular neoplasm, suspicious for malignancy, and malignant [3,4]. Suspicious for malignancy category includes papillary thyroid cancers displaying subtle and focal nuclear and architectural changes . Nodules called suspicious for papillary carcinoma are usually resected, and most (60–75%) prove to be papillary carcinomas . Given the difficulty in diagnosing papillary thyroid carcinoma using small tissue samples, therefore, more sensitive and specific diagnostic tools are urgently needed for this disease .
Histology-directed Tissue Matrix-Assisted Laser Desorption/ Ionization (MALDI) Mass Spectrometry (MS) is a sensitive proteomic technology that can distinguish cancerous epithelium from normal epithelium . We and others have demonstrated that MALDI MS can also be used to obtain lipid profiles in clinical tissue samples [8-12]. We have previously reported that lipid profiles accurately differentiate lung cancers from normal tissue . Recently, Ishikawa et al.  reported thyroid cancer-specific lipid MALDI MS profiles using relatively small number of thyroid cancer specimens, but they did not validate the clinical utility of this approach in sufficiently large number of patients. Using a larger set of clinical samples, here we demonstrate that lipid profiles that may possibly assist with the diagnosis of papillary thyroid carcinomas.
Tissue preparation and MALDI MS data acquisition
Samples were obtained, with informed consent and institutional review board approval, from 22 papillary thyroid cancer patients undergoing surgery at National Cancer Center in Korea. Twenty of them (90.1%) were female. Samples were collected at the time of surgery, and stored at liquid nitrogen until analysis. Thin (10 μm) cryosection slides were obtained from frozen tissues. One glass slide cryosection was stained with Hematoxylin and Eosin (H&E), and the other sections were thaw-mounted onto an Indium Tin Oxide (ITO) slide (HST Inc., Newark, NJ), desiccated in vacuum for subsequent MALDI MS profiling. The H&E-stained cryosection slide was evaluated tumor-rich (>75%) area [8-10].
We prepared the MALDI MS matrix solution by dissolving 7 mg each of 2,5-dihydroxybenzoic acid (DHB) and α-cyano-4- hydroxycinnamic acid (CHCA) in 1 ml of 70% methanol plus 0.1% TFA and 1% piperidine  and deposited the matrix on tissue-loaded ITO slides using the CHIP-1000 instrument (Shimadzu, Kyoto, Japan). Mass spectra were acquired using UltrafleXtreme (Bruker Daltonics) at a laser frequency of 1,000 Hz. An external calibration was conducted using lipid-mixed calibration standards with m/z 674-834 (positive ion mode) and m/z 564-906 (negative ion mode). Guided by the H&Estained cryosection slide, deposited matrix spots representing tumorrich area were selected using FlexImaging software (version 2.1, Bruker Daltonics) for each tumor sample (Figure 1). Mass spectra data from selected spots was then exported to ClinProTools (version 2.2, Bruker Daltonics) for further data processing.
Figure 1: General procedure. Representative optical image of the cryosection ITO slide with matrix (left) and magnified areas of the H&Estained consecutive cryosection slide of a tumor sample (right) are shown. The H&E-stained cryosection slide was evaluated for tumor-rich (>75%) area. Guided by the H&E-stained cryosection slide, deposited matrix spots on ITO cryosection slides representing tumor-rich area (shown in red) were selected using FlexImaging software for each tumor sample. Similar procedures were performed for normal tissue samples. Mass spectra data from selected spots was then exported to ClinProTools for further data processing.
Data processing and statistical analysis
Baseline subtraction, spectral recalibration, and spectral area calculation were performed using ClinProTools (version 2.2, Bruker Daltonics). A resolution of 300 was applied to the peak detection method, and the Top Hat baseline with 10% minimal baseline width was used for baseline subtraction. Data reduction was performed at a factor of four, and spectra were recalibrated with a maximal peak shift of 2,000 ppm between reference and peak masses. All data with signalto- noise ratios >5 were acquired. An average peak list was set up for each tissue sample by choosing peaks on the calculated total average spectrum for each tissue sample to create one average spectrum per patient. After excluding peak m/z 616 (non-lipid) in the positive mode, we normalized positive-mode datasets and negative-mode datasets to the average area. Average-normalized datasets (i.e., positive- and negative-mode lipid datasets) were then combined into a single dataset and subjected to statistical analysis using BRB-ArrayTools (NCI, USA, version 4.1) . We performed class prediction analyses using all classifier functions of BRB-ArrayTools (compound covariate predictor, diagonal linear discriminant analysis, 1- and 3-nearest neighbors, nearest centroid, and support vector machine). Class prediction analyses were first performed by randomly dividing the training set into two (training and test) subsets at 1-to-1 ratio (i.e., 7 and 7 pairs). nQuery Advisor software (version 7.0, Statistical Solutions, Saugus, MA) was used for randomization. Each classifier predicted class labels of 7 pairs in the test set for each of 100 random training-to-test partitions. Informative peaks identified in training set (14 pairs) were then used to predict class labels of 8 samples in the validation set.
MALDI LIFT (MS/MS) analysis was performed on cryosections after MALDI MS and the data were mapped to public lipid databases (www.lipidmaps.org).
MALDI MS analyses were performed for 36 surgical tissue samples (16 cancers and 20 adjacent normal tissue samples) from 22 patients (Table 1). Among these 36 samples, 28 samples (14 tumor/normal pairs) were from the same patients. These 14 tumor/normal pairs were used as a training set. Another 8 unpaired samples (2 cancers and 6 adjacent normal tissue samples) were used as a validation set.
|Training set||Validation set|
|Number of patients||14 (paired samples)||8 (unpaired samples)|
|Median age (year)||49.5||55|
|Female||13 (93%)||7 (88%)|
|Male||1 (7%)||1 (12%)|
|Primary tumor location|
|Unilateral||10 (71.4%)||8 (100%)|
|Bilateral||4 (28.6%)||0 (0%)|
|Total thyroidectomy||13 (93%)||8 (100%)|
|Lobectomy||1 (7%)||0 (0%)|
Age ≥ 45
|T1aN0 Stage III||3 (21.4%)||0|
|T3N0||3 (21.4%)||1 (50.0%)|
1AJCC, American Joint Committee on Cancer (7th Edition)
Table 1: Patient characteristics.
In the positive ion mode, MALDI MS signals from 3 to 20 spots (with a median value of 11) were averaged to generate an average mass spectrum for each cancer sample, and signals from 3 to 23 spots (with a median value of 15) were averaged in normal samples. In the negative ion mode, MALDI MS signals from 3 to 26 spots (with a median value of 13) were averaged to generate an average mass spectrum for each cancer sample, and signals from 5 to 19 spots (with a median value of 14) were averaged in normal samples. As shown in figure 2, 84 features (39 and 45 for positive and negative modes, respectively) were finally processed for subsequent analyses.
Figure 2: Overlays of average mass spectra obtained from papillary thyroid carcinoma (shown in red) and adjacent normal tissue (shown in green), in positive-(upper panel) and negative-(lower panel) ion modes, respectively. Results are the average of all cancer samples (shown in red) and average of all normal tissues (shown in green), respectively.
Papillary thyroid carcinomas in the training set demonstrated significantly different lipid profiles from normal tissue samples. There were 27 lipid peaks differentially expressed between cancer and normal at a feature selection P value <0.001, and the probability of getting at least 27 peaks significant by chance if there are no real differences between cancer and normal samples is less than 0.001, suggesting the clear difference in lipid profiles (Table 2). According to the principal component analysis, papillary thyroid carcinoma samples were separately clustered from adjacent normal tissue samples (Figure 3).
|Overexpressed in cancer|
|p741.6||0.0001||0.0008||8.1||12.0||1.5||SM (34:1) K+|
|p772.7||<0.0001||0.0002||5.5||9.1||1.6||PC (32:0) K+|
|p798.6||0.0001||0.0005||7.5||14.5||1.9||PC (34:1) K+|
|Underexpressed in cancer|
1Ratio, Ratio of cancer to normal;
2p741.6, m/z 741.6 in the positive ion mode;
3n552.6, m/z 552.6 in the negative ion mode
FDR: False Discovery Rate; SM: Sphingomyelin; PC: Phosphatidylcholine; PI: Phosphatidylinositol; PI:Cer, Phosphatidylinositol:ceramide; LPC: Lysophosphatidylcholine; LPS: Lysophosphatidylserine
Table 2: Peak differentially expressed between papillary thyroid carcinoma and normal tissue at p<0.001.

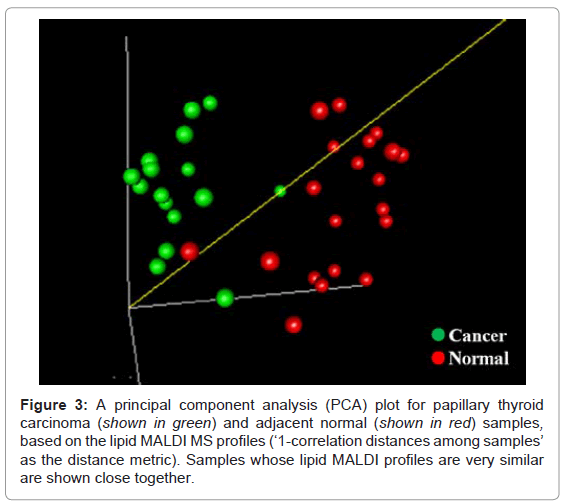

Figure 3: A principal component analysis (PCA) plot for papillary thyroid carcinoma (shown in green) and adjacent normal (shown in red) samples, based on the lipid MALDI MS profiles (‘1-correlation distances among samples’ as the distance metric). Samples whose lipid MALDI profiles are very similar are shown close together.
We performed class prediction analysis after randomly dividing 28 training set samples into two groups at 1-to-1 ratio. The median class prediction accuracy of all predictors in random test sets was 100% (7 out of 7 pairs) in 100 random training-to-test partitions (feature selection P <0.001). Then, 8 additional samples (2 cancer and 6 adjacent normal samples) were used to validate informative peaks identified using 14 pairs of samples in the training set. Using peaks differentially expressed between 14 pairs of cancer and adjacent normal samples, we could correctly predict 100% of validation set samples (8 out of 8 samples) by all predictors. These results clearly demonstrate that papillary thyroid carcinomas and adjacent normal tissues have distinct lipid profiles (Supplementary table 1).
Seven tumor samples were collected from American Joint Committee on Cancer (AJCC) stage I thyroid cancer patients and 9 tumor samples were from stage III patients (Table 1). There were 3 peaks differentially expressed between cancer and normal at a feature selection P value<0.1, and the probability of getting at least 3 peaks significant by chance if there are no real differences according to stage was 0.78. This result indicates that lipid profiles are not significantly different between stage I and stage III cancers.
Using MS/MS analysis, we identified lipid MALDI peaks differentially expressed between cancer and normal tissue samples at a feature selection P value<0.001 (Figure 4). Peaks m/z 741.6, m/z 772.7, and m/z 798.6 in the positive ion mode, that were overexpressed in thyroid cancer, were identified as sphingomyelin (SM) 34:1, phosphatidylcholine (PC) 32:0, and PC 34:1 (Figure 4A). Peaks m/z 599.5, m/z 835.6, m/z 861.7, and m/z 885.7 in the negative ion mode, that were overexpressed in thyroid cancer, were identified as phosphatidylinositol (PI) (18:0/0:0), PI (16:0/18:1), PI:Cer (d18:1/22:0) and PI (18:0/20:4) (Figures 4B and 4C). Lysophosphatidylcholine 18:3 (m/z 518.4 in the positive ion mode) and lysophosphatidylserine 18:1 (m/z 524.4 in the positive ion mode) were identified as lipids under expressed in papillary thyroid carcinomas (Figure 4D).
Figure 4: Molecular identification using MALDI LIFT (MS/MS) analyses. (A) Peaks at m/z 741.6, 772.7, and 798.6 in the positive ion mode (B) Peaks at m/z 599.5 and 835.6 in the negative ion mode (C) Peaks at m/z 861.7 and 885.7 in the negative ion mode (D) Peaks at m/z 518.4 and 524.4 in the positive ion mode.
This study demonstrates that the lipid profiles are different between papillary thyroid carcinoma and adjacent normal tissue samples. We identified phosphatidylcholines 32:0, and 34:1 as overexpressed peaks in papillary thyroid carcinoma. While we prepared this manuscript, Ishikawa et al.  reported that PC 32:0, PC 34:1 and SM 34:1 are overexpressed in a thyroid cancer patient. Our study extends the finding of prior smaller-scale lipid MALDI MS study, by assigning a larger number of cancer-associated peaks and by demonstrating the diagnostic utility of this approach in prospective clinical samples. Collectively, our data comprise an unparalleled comprehensive list of papillary thyroid carcinoma-specific lipids. Increase in the phosphatidylcholine content has been observed in several common solid tumors [8-10]. Since phosphatidylcholine is a major constituent of cell membrane, phosphatidylcholine requirement may increase in rapidly growing cells. Eliyahu et al.  reported that choline transport rates and choline kinase activity increase by several fold in breast cancer, leading to increased phosphocholine. Increased phosphocholine, in turn, may contribute to the increased content of phosphatidylcholine in cancer. Several investigators reported that choline kinase plays a role in carcinogenesis [15-17]. Thus, increase in phosphatidylcholines 32:0, and 34:1 is consistent with the data in the literature. Our study also reveals that lysophosphatidylcholine 18:3 and lysophosphatidylserine 18:1 were underexpressed in papillary thyroid carcinomas, compared with normal tissue. While lysophospholipids are generated by phospholipase and reactive oxygene species generated in inflammatory conditions , decrease in these lysophospholipids in cancers has not been reported thus far. Further studies are needed to validate this interesting finding.
Our study demonstrates that the lipid MALDI MS profiles distinguish cancerous epithelium from normal epithelium at 100% accuracy, for the first time to our knowledge. Papillary thyroid carcinomas often pose a diagnostic challenge to pathologists. In this regard, our finding that papillary thyroid carcinomas and normal tissue have highly distinct lipid profiles is noteworthy. In addition to the high classification power, potential advantages of histology-directed lipid MALDI MS analysis may include low reagent cost, rapid experimental procedure, and small amount of tissue required for the analysis. Hence, further studies using larger clinical sample sets may be warranted to evaluate the possibility of clinical translation of lipid profiles we have identified.
The work was supported by grants from Converging Research Center Program (2012K001506), through the Ministry of Education, Science and Technology of Korea and Proteogenomic Research Program through the National Research Foundation of Korea funded by the Korean Ministry of Education, Science and Technology.
