Herpes simplex virus (HSV) is a common human pathogen, causing infections of orofacial mucosal surfaces (HSV-1) and genital mucosal surfaces (HSV-2). Productive infection results in the formation of vesicular lesions in the mucosal epithelia, followed by spread of the virus to sensory neurons and establishment of a latent infection that may remain for the life of the host [1]. Nearly one half-billion people worldwide are infected with herpes simplex virus type 2 (HSV-2) and another one-quarter billion have genital infection caused by herpes simplex virus type 1 (HSV-1) [2,3]. The disease manifestations vary from asymptomatic genital infection to severe, recurrent ulcerative genital disease [4-6]. Genital herpes poses major risks to newborns delivered through an infected birth canal with an estimated 14,000 annual cases globally and a mortality of 60% if untreated [3,7]. HSV-2 genital infection carries a three-fold increased risk for acquisition and transmission of HIV [8]. The common cold sores caused by HSV-1 and the genital herpes lesions caused by HSV-2 are not life-threatening conditions, but serious pathology can result from infections of the cornea (keratitis) or central nervous system (encephalitis), and infection of newborns or immunocompromised individuals can result in severe disseminated disease [9], and Varicella-zoster virus (VZV) or human herpes virus 3 (HHV-3) is 1 of 9 human herpes viruses [10]. VZV is a human pathogen that spreads to children as varicella or chicken pox and reemerges later in life as zoster or shingles [11,12]. The virus is well adapted to its human host and infects most people in a given community [13]. The VZV genome is also the smallest among the human herpes viruses; it encodes 71 open reading frames, 3 of which are duplicated [14]. Of note, VZV lacks the herpes simplex virus 1 (HSV-1) ICP34.5 neuro virulence gene [15].

HSV is a member of a family of viruses whose genomes consist of a single large double-stranded DNA molecule [16], and consists of four components: [17] an electron-dense core containing viral DNA [18]; an icosadeltahedral capsid [19], an amorphous, at times eccentric layer of proteins, designated tegument, which surrounds the capsid; and an envelope [20]. The capsid consists of 162 capsomeres and is surrounded by the tightly adhering tegument, the envelope surrounds the capsid-tegument structure and consists of at least 10 glycosylated and several non-glycosylated viral proteins, lipids, and polyamines [21].

The aim of the study is to predict effective epitope-based vaccine against human herpes virus-3 glycoprotein E Development in immune genetics will enhance apprehension of the impact of genetic factors on the inter individual and inter population variations in immune responses to vaccines that could be helpful for progress new vaccine strategies [22]. In -silico/reverse vaccinology had replaced conventional culture-based vaccine because it reduces the cost required for laboratory investigation of pathogen, also speeds up the time needed to achieve the results [23,24]. Therefore, using immunoinformatics approaches to predict this new kind of vaccine could be magnificently additive in the way forward of preventing varicella or chicken pox. Normally, the investigation of the binding affinity of antigenic peptides to the MHC molecules is the main goal when predicting epitopes. Using such tools and information leads to the development of new vaccines [25,26]. While these approaches permit the optimization of a vaccine for a specific population, the problem can also be reformulated to design a ‘universal vaccine’: a vaccine that provides maximum coverage on the whole worlds’ population [27,28].

In-silico studies

A complete total sequences 130 of glycoprotein E [Human herpes virus 3] were obtained from NCBI in FASTA format in March 2016 , all sequences were identified from NCBI separately in Table 1. These sequences of Glycoprotein E were subjected to software of multiple sequence alignments by using CLUSTALW tool of BIOEDIT sequence alignment editor (version 7.0.9.1) in order to detect conserved regions between sequences (Figure 1). Then an applied analysis epitopes prediction test was done using different tools in immune epitope data base IEDP software.

Table 1: Countries and accession numbers of retrieved sequences from NCBI; *Ref sequence, remaining data as extra file, N.A*: not available.

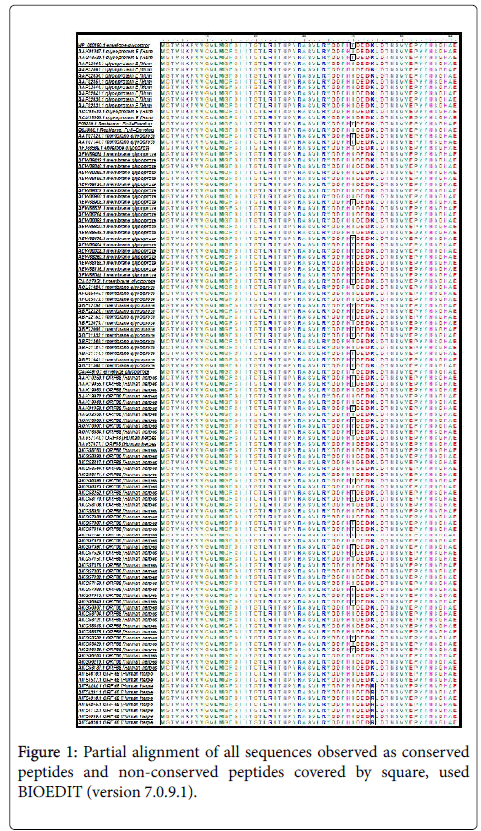

Figure 1: Partial alignment of all sequences observed as conserved peptides and non-conserved peptides covered by square, used BIOEDIT (version 7.0.9.1).

Predication of B-cell epitopes

The initial test for identification by B cells is BepiPred-test which was done from immune epitope database [27] as linear prediction of Bcell epitopes after being selected from conserved region with a default threshold value of 0.210. A combination between hidden (Parker and Levitt) method and Markov model (HMM) was done to predict epitopes accurately (Figure 2-4) [27].

Figure 2: Bepipred linear Epitope Prediction, yellow diagram above threshold describe any predicted peptides.

Figure 3: Emini surface accessibility of peptides prediction, the average is 1.000 the yellow part is considered as predicted peptides with maximum score and green part as unpredicted peptides (Epitopes prediction).

Figure 4: Kolaskar and Tongaonkar Antigenicity Result of peptides prediction, with average score of 1.034 as threshold, yellow part shows predicted peptides and green part shows unpredicted peptides.

Surface accessibility prediction

Through prediction of Emini surface accessibility tool of IEDB [28], the surface accessibility of epitopes were predicted from the region where they were conserved and the default threshold holding value is 1.0.

Epitopes antigenicity sites

The antigenicity method of Kolaskar and Tongaonker was proposed to determine the sites of antigenic epitopes with a default threshold value of IEDB (Table 2).

Table 2: Predicted peptides in Bepipred test with their Emini and Antigenicity score for each peptide.

Several specific tests of IEDB were used to select predicated peptides by determining the binding of MHC class I, MHC class I under specific scoring of inhibitory concentration 50.

MHC class I epitope prediction

First step in major histocompatibility class I affinity test of prediction process has been tested on large set of different peptide MHC class I measurement affinity on the IEDB [29], this process has been done by artificial neutral network (ANN) method with specific length of nine amino acids, score of bound used ≤ 100 IC₅₀ of conserved epitopes for structural protein were chosen for further analysis [30].

MHC class II binding prediction

Subsequent immunological steps to predicate targeting peptides included MHC class II test to estimate the available MHC class II in world with binding prediction tools performances. MHC II binding tool from IEDP was used by relating NN align as prediction process. Then value of prediction of ≤ 500 IC₅₀ of conserved epitopes were chosen for more analysis [31].

Population coverage

The estimation of the population coverage was based on the result of MHC. Nemours established tools to predict population coverage of T cell epitope-based analytical and vaccine-based on MHC binding with or without T cell restriction data [32]. All alleles that interact with epitopes from glycoprotein E were exposed to population coverage tool of IEDB to estimate the whole world population coverage of MHC class I, and MHC II alleles for glycoprotein E [32].

Homology modeling

The 3D structure for Glycoprotein E obtained using Raptor X structure prediction server [33] and Chimera 1.8 [34] was used to show the structure of suggested T cell epitopes that can be utilized for vaccine development as shown in Figures 5-7.

Figure 5: 3D Structure of Glycoprotein E, obtained by “Chimera 1.8” program.

Figure 6: 3D of promising conserved peptide with highest score in population coverage in MHC I, obtained by ‘Chimera 1.8’ program.

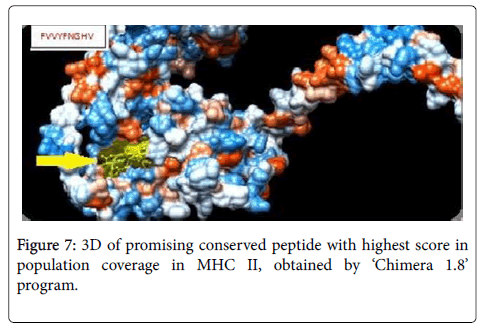

Figure 7: 3D of promising conserved peptide with highest score in population coverage in MHC II, obtained by ‘Chimera 1.8’ program.

Prediction of B cell epitopes

Glycoprotein E of human herpes virus 3 was tested to isolate best peptides passing specific score for the major tests in B cell via Bepipred linear epitope production, Emini surface accessibility and Kolaskar and Tongaonkar antigenicity tools of IEDB. Bepipred linear epitope calculation method used specific average binding score for glycoprotein E of 0.210. All values equal or above than score of default threshold were considered as potential B-cell binders [35]. Concerning Emini surface accessibility prediction, the binding score was 1.00. All values equal or greater than the default threshold were predicted to have good surface accessibility. The last test of protein used Kolaskar and Tongaonkar antigenicity prediction tool of IEDB to predict peptides with probability of being antigenic, with an average threshold value of 1.034. Any epitope of target protein with values equal or greater than the average score were considered as antigenic peptides. The values resulting after peptides tested for Glycoprotein E by the three tests are shown in Table 2. The highest result of scores was in Emini surface accessibility (“DEDKLDTNSVYEPYYHSDHAESSWVNRGESSRKAYDHNSPYIW PRNDYDGF”) with score 21.807, and “LKFVDTPESL" with score 1.061 for Kolaskar and Tongaonkar antigenicity test.

Prediction of T-cell epitopes and MHC class I interaction analysis

The epitopes sequences of glycoprotein E were subjected to MHC I in binding prediction tool of IEDP and T-cell epitope was predicted to interact with different MHC class I alleles using ANN (artificial natural network) as prediction method and a length of nine amino acids [35] using the same score for each peptide interacted with MHC I. The top three peptides which had highest affinity to interact with largest coverage of different alleles were “KAYDHNSPY” (HLA-B*35:01, HLA-B*15:01, HLA-B*15:02, HLA-*30:01), “MWNYHSHVF” with HLA-B*35:01, HLA-B*15:01, HLA-A*24:02, HLA-A*23:01 and “SSYTVYIDK” with HLA-A*11:01, HLA-A*03:01, HLA-A* 68:01,HLA-A*30:01. These data found in Table 3.

Table 3: Conserved peptides interacted with MHC I and linked alleles, also show percentile rank number and IC₅₀ for each peptide.

Prediction of T helper cell epitopes and interaction with MHC class II

Via MHC class II binding prediction tools of IEDB and depending on NN align with IC₅₀ of 500 was used in analysis of glycoprotein E in predicated epitopes which interacted with MHC II, the top core sequence FVVYFNGHV bind to highest number of alleles “16 alleles” (HLA-DRB1*15:01, HLA-DRB1*01:01, HLADRB5* 01:01, HLA-DRB1*13:02, HLA- DRB1*07:01, HLADRB1* 13:02, HLA-DRB1*04:05, HLA-DRB1*04:04, HLADRB3* 01:01, HLA-DRB1*04:01, HLA- DRB3*01:01, HLADQA1* 01:01/DQB1*05:01, HLA-DRB1*07:01, HLA-DPA1*02:01/ DPB1*01:01, HLA-DRB1*11:01, HLA- DRB3*01:01) (Table 4).

Table 4: Conserved core peptides and their peptides interacted with MHC II and linked alleles, also show percentile rank number and IC₅₀ for each peptide (Remaining data in extra file).

Examination of population coverage

Epitopes of MHC I and MHC II were analyzed to detect the accurate affinity for each predicted peptides with their interacted alleles, and it was used to determine the actual percent of the world coverage. The aim from Population coverage test was to observe all epitopes of the world coverage binds to MHC I alleles and MHC II alleles also to join MHC 1 and MHC 11 as well as a selection of the best promising epitope for each test [36].

The best epitope with the highest coverage for MHC I was “SLSGLYVFV” with the coverage percent “42.53%”, and the coverage of population set for whole epitopes was 97.74%, for MHC II the best one epitope was “FVVYFNGHV” with highest coverage percent “68.32%” and the coverage of population set was 81.65% (Table 5, Figures 8,9).

Table 5: Summarizing the high score population coverage in MHC I and MHC II with their epitopes set percent.

Figure 8: Result of MHC class one score with explanation diagram of population coverage of the world. PC90* minimum number of epitope hits/combination recognized in by 90% of population.

Figure 9: Result of MHC class two score with explanation diagram of population coverage of the world. PC90* minimum number of epitope hits/combination recognized in by 90% of population.

Note: Same alleles were not available and therefore not included in the calculation.

The purpose of this study was to obtain candidate peptide-based vaccine for [Herpes simplex virus 3] glycoprotein E, the study selected Herpes virus based on a surprising number of spreading this disease among people and we specified this selecting by studies of the virulence factors and determined “Glycoprotein E” as good immunogenic part designed for targeting and fasting stimulation to immune response. So we used immunoinformatics examinations accordingly to previously proposed idea to achieve the best response with little vaccine dose using candidate peptide-based vaccine. Many studies used immunoinformatics tools as vaccine designated tools to several viruses, such as Zika virus, Ebola, human papilloma virus, merkel cell polyoma virus and Duvenhage Rabies Virus. So firstly we must be achieve the FASTA format of “Glycoprotein E” with identified number “NP_040190.1” from NCBI data base followed by the initial antibody epitope prediction of B cell examination by Bepipred linear Epitope predication method to predict the location of B-cell using a combination of a hidden Markov model and propensity scale method. The result with scores above threshold “0.210” was considered to be part of an epitope [36-40].

All successful predicted epitopes were examined in Emini surface accessibility scale “1.00” based on formulae to calculate the surface factional probability. The third examination done was Kolaskar and Tongaonkar antigenicity scale “1.034” which belong to physicochemical properties of amino acids remaining and their occurring frequencies in epitopes developed to antigenic determinant on protein, for that reason we considered any peptides scored both tests have candidate properties peptide can be selected as excellent stimulation in immune reaction determined by B-cells. So we found a number of peptides having a highest score including “DEDKLDTNSVYEPYYHSDHAESSWVNRGESSRKAYDHNSPYIWP RNDYDGF” with score 21.807 and “LKFVDTPESL” with score 1.061 in surface accessibility and antigenicity tests consequently, but these peptides don’t achieve exact score for both tests.

One of the importances in methods in IEDB-analysis resource that exists as complementary steps to B-cell was MHC binding prediction tools for T-cell epitopes, these tools based on used IC₅₀ values was predicted for any peptides binding to target molecules of MHC. Firstly, we tested our peptides to know if any amino acids sequence has ability in specific binding to MHC class one molecules and we found multipeptides in target sequence with different alleles binding to each on candidate peptides. The subsequence step was examined by specific binding to MHC class two molecules, this tool was available with different methods to predict epitopes, and from these methods we selected NN-align approach. These services were also developed to predict multiple alleles independent of CD4-T cell immunogenicity on the population.

The T cell epitope results recognized one specific immunogenic peptide of Glycoprotein E (471-479) and (478-486) that were able to stimulate cellular immunity since they were predicted to bind to 2 and 16 different HLA alleles (HLA- A*02:01, HLA-A*02:06), (HLADRB1* 15:01, HLA-DRB1*01:01, HLA-DRB5*01:01, HLA-DRB1* 13:02, HLA-DRB1*07:01,HLA-DRB1*13:02, HLA-DRB1* 04:05, HLA-DRB1*04:04, HLA-DRB3*01:01, HLA-DRB1* 04:01, HLA-DRB3*01:01, HLA- DQA1*01:01/ DQB1*05:01, HLA-DRB1*07:01, HLA-DPA1*02:01/ DPB1*01:01, HLA-DRB1*11:01, HLA-DRB3*01:01) consequently.

All epitopes predicted were tested using population coverage tool of IEDB to given measured percentage of people in whole world who have potential to developed immune response as vaccine contains this epitope (Table 5).

Peptide results in our population coverage mentioned availability or coverage the linked alleles with it result to induced specific immunity more reporting in different population with percentage of each peptide to select a highest score. We considered four peptides as top promising immunogenic which prevents any type of hyper-immunogenic responses at the same time, and these peptides can be safely used to at all population even for an immunocompromised patient. Due to these properties of slight reaction and quick cellular immunity response with limited sensitivity reaction, no problem was reported with people who have a weak immune system. Our greatest outcome for MHC I, MHC II classes create it best epitope which can be used for vaccine design as it has the ability to stimulate T cell immune reaction.

The efficiency and degree of safety in predicted candidate epitopes by used computational examination methods are required to be estimated through studies of animal model, to check whether they were able to induce a good defending immune response or not with previous mentioned properties. There are 130 sequences of glycoprotein E available in the database at that time; so these numbers of sequences are considered good to be evaluated increasing significance of the induced immunity result. The succeeding projected peptides are commended as “multiple peptides vaccine design” against HSV3; “SLSGLYVFV” and “FVVYFNGHV”. This vaccine will cover good population coverage and fewer side effects among life attenuated vaccine and we could see potential induced result of “DEDKLDTNSVYEPYYHSDHAESSWVNRGESSRKAYDHNSPYIWP RNDYDGF” and “LKFVDTPESL” in B-cell predicted examination.
