Dry powder of different plant parts of Lepidium sativum (Garden Cress) are known to be used for treatment of fracture (bone healing) from ancient times. Seeds as in vivo plant part and callus as in vitro plant parts were chromatographically tested to identify and estimate β-sitosterol and various phytoestrogens. Plant-derived sterols and estrogens in tissues and oilseeds of Lepidium sativum were isolated by solvent extraction method. β-sitosterol, diadzein and formononetin were estimated qualitatively and quantitatively through TLC and HPTLC techniques. In vitro grown callus was compared biochemically with in vivo plant parts. CAMAG HPTLC was used and the developed plates were photo-documented using UV and white light. The amount of β-sitosterol was estimated to be about 0.20% w/w for seed powder and 0.024% w/w for callus powder. Daidzein and formononetin isolated from the samples of Lepidium sativum showed Rf values 0.73 and 0.67 and peak areas were 546.8 and 1033.5, respectively. Chloroform: methanol (8:2) gave excellent results in the present investigation for all samples. Results indicated that applied assay is accurate and reliable for the determination of phytoestrogens in the plant.<
Keywords: Lepidium sativum; HPTLC; Diadzein; Formononetin
β: Betasitosterol; Stg: Stigmasterol; Ln: Lanosterol; D: Daidzein; G: Genistein; Fr: Formononetin; Sp: Sprout; C: Callus; S: Seed
The plant species Lepidium sativum L. belongs to family Brassicaceae (Synonym: Nasturtium sativum Medik) is also known as Garden Cress, Pepper Cress in English, Chandrasoora (/ˈtʃɑː.də
-səˈrɑ, -ˈrɔ/), Chandrika (/ˈtʃɑː.də rɪk.ə/) in Sanskrit, and vernacularly
as Haim (/hæɪm/), Hin-Chansur (/hɪn ˈtʃɑːn.sɝ r/) etc.. It is cultivated throughout India and Tibet as a culinary vegetable and grows as a wild plant. It is also found distributed in North Africa, Palestine, Syria, Mesopotamia, Iran, ex-USSR, Southern and middle European Part, New Caledonia and in Australia and Indonesia. In Rajasthan (Mewar region, India), this plant has been studied under exploited fodder species . The plant demonstrates weedy habit, grows on waste land and cultivated places. It is an erect, annual herb, up to 50 cm height. The plant extract is bitter, used as tonic, galactogogue, and aphrodisiac, in the treatment of dysentery, pain in abdomen, blood and skin disorders, injuries, tumors, eye diseases, asthma, cough, and bleeding piles. Seeds of L. sativum are useful in the treatment of fracture  and induce production of breast milk. Garden cress seed oil is rich in omega-3 fatty acid . Seed powder has been proved useful in the treatment of fracture healing . Lepidium sativum is one of the herbs mentioned in ancient scriptures of Ayurveda. Anti-osteoporotic effect of the plant has been discussed by many authors . Sudard is an herbal formulation containing extracts of 11 medicinal plants including Lepidium sativum seeds. Bio-Trib is a synergic preparation including L. sativum roots-effective, safe and useful for successful treatment of a wide range of male sexual health disorders. Delentigo (made up of Lepidium sativum sprout extract) is an efficient and targeted solution for reducing age spots. Flex, Laksha gogglu, painmukti etc. are other formulations of Lepidium. Phytosterols and phytoestrogens are some important compounds present in higher quantities in this medicinal plant. Phytoestrogens have been suggested as cancer preventatives and as treatments for menopausal symptoms and osteoporosis. Phytoestrogens like Diadzein, formononetin containing diet can be useful for the prevention and treatment of many diseases including osteoporosis . The widely distributed C-29 sterols are formed from acetate via melvaonic acid pathway by higher plants. Phytosterols have been reported in many plants by several workers [4,7-9].
Separation of phytoestrogens by chromatography is particularly very useful, since it permits their identification, confirmation and/or quantification. The focus of this study was to simplify the extraction procedure and to qualitatively analyze various in vivo and in vitro parts of Lepidium sativum for relative determination of phytoestrogens.
Seeds of mature plant of Lepidium sativum were collected locally from different regions of Rajasthan (India). In vitro grown hypocotyls of Lepidium sativum were inoculated after several rinses with sterile distilled water on MS medium supplemented with various combinations of growth regulators. Ideal medium for callus establishment through nodal stem segment explant was MS-medium supplemented with NAA (1.0 mg/l) in combination with BAP (5.0 mg/l). Callus tissues thus grown were harvested periodically (2, 4, 6 and 8 weeks), dried and calculated for growth indices separately. Five such replicates of seeds and callus were examined and the mean values were recorded.
Plant derived sterols in tissues and oilseeds of Lepidium sativum can be isolated by solvent extraction with diethyl ether followed by saponification and chromatographic purification to obtain total sterols.
In vitro grown callus tissue and selected plant seeds were striped and milled before they were extracted by diethyl ether in a soxhlet extractor. After removal of solvent using evaporator, 30 ml of extracts were saponified with 9% alcoholic potassium hydroxide for 5 hrs. The resulting solution was then diluted two times by distilled water and extraction procedure followed five times with diethyle ether. The ether solution was dried to obtain unsaponifiable matters of plant seed oils and dried in vitro cultured callus. Five replicates were analyzed in each case. Identification of sterols was carried out by TLC, IR spectra, and HPTLC studies. Methanolic extracts of seed powder and callus were used in case of phytoestrogen studies.
Thin layer chromatography
The crude extracts were applied separately on silica gel ‘G’ coated and activated thin glass plates along with standard reference sample of sterols (β-sitosterol, stigmasterol, lanosterol, cholesterol). The plates were developed in different organic solvent mixturers of Benzene: Ethyl acetate (3:1) and Hexane: Acetone (8:2) . The developed plates were air dried, sprayed with 50 % sulphuric acid or Anisaldehyde reagent and subsequently heated at 100°C for 10 minutes. To quantify phytoestrogens-diadzein, genistein and formononetin, different organic solvents like chloroform: methanol (8:2); chloroform: acetone: formic acid (75:16.5:8.5) were tested. Five to ten replicates were run and average Rf values were calculated for the standard and plant parts’ extracts (in vivo and in vitro).
Preparative thin layer chromatography (PTLC)
The extracts along with standard reference β-sitosterol, stigmasterol, lanosterol, cholesterol were applied separately on thick (0.3 mm to 0.4 mm) silica gel ‘G’ coated and activated glass plates. The plates were developed in an organic solvent mixture of Hexane: Acetone (8:2). The developed plates were air dried and visualized by spraying 50% sulphuric acid and anisaldehyde reagent to mark the steroidal bands. Each of the mixture was eluted with chloroform, elutes were dried in vacuo, crystallized separately with acetone and methanol. The purified material was subjected for IR spectrum and HPTLC analysis.
The TLC spots corresponding to sterols were eluted by methanol (1/1 v/v). The separation was made on HPTLC system equipped with a sample applicator device CAMAG lino mate 5, CAMAG twin through chamber, CAMAG TLC scanner and integration software (Win CATS), stationary phase for the sample was pre washed HPTLC silica gel plates 60 F254, mobile phase for the samples was Hexane: Diethyl Ether (6.5:3.5). The developed bands were analyzed on 520 nm (β-sitosterol) and on 380 nm (Diadzein and formononetin). Peaks of standard sterols were compared with the peaks of in vitro callus tissue and with the peaks of in vivo plant parts. The plates were photo-documented by using UV and white light.
Qualitative analysis showed the presence of β-sitosterol in all in vivo (seeds) and in vitro (callus) samples of Lepidium sativum. The developed TLC plates showed coloured spots for isolated β-sitosterol of seeds (Rf- 0.62) and callus (Rf-0.63) samples which coincided with that of the reference β-sitosterols (Rf- 0.64, purple). The Rf value of standard β-sitosterol in HPTLC analysis was found to be 0.18 and peak area recorded was 3580.50. Callus and seed extracts of the plant showed Rf value 0.18 and 0.20 respectively; which coincided with standard Rf value and peak area was 176.10 and 1449.1 respectively. The amount of β-sitosterol was estimated to be about 0.20 % w/w for seed powder and 0.024 % for callus powder (Figure 1A-1D). The 3D spectra of all tracks scanned at 520 nm are shown in (Figure 2).

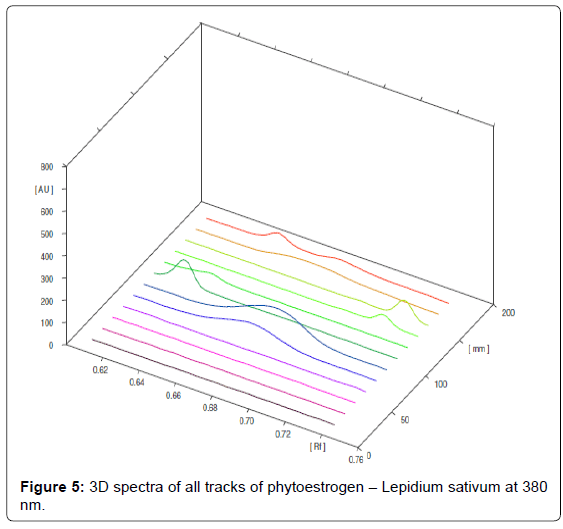

Daidzein and formononetin isolated from the samples of Lepidium sativum showed Rf value 0.73 (for seeds) and 0.67 (for callus) and peak area was 546.8 and 1033.5 respectively (Figure 3A-3C) (Figure 4A- 4D). Chloroform: methanol (8:2) gave excellent results in the present investigation for all samples. During HPTLC analysis the amount of daidzein was estimated to be about 18.81 % w/w in seed and minimum in callus (9.99 % w/w) by using the HPTLC values. The 3D spectra of all tracks scanned at 380 nm (Figure 5).
β-sitosterols have antifungal, antibacterial and anti-inflammatory activity [11,12]. In the present investigation Chloroform: methanol (8:2) combination showed best results and exhibited coherence with the results of [13,14]. HPTLC technique with other biochemical assays supplemented evidence to confirm the presence of some bioactive compounds, which have provided the plants an important position in folkloric usage  In the present study, quantitative and qualitative biochemical methods can be employed as a stability indicator  that can be used for the routine quality control analysis and quantitative determination of β-sitosterol from Lepidium sativum. Results obtained by HPTLC for diazdzein and formononetin were coincided with the results of [17-19]. Although originally identified in cementum, PTPLa/ CAP is very effective at inducing bone repair and healing and therefore this novel molecule has a great potential to be used for mineralized tissue bioengineering and tissue regeneration studied by . Lepidium sativum seeds have been used in traditional folk medicine to heal fractured bones especially in cases of glucocorticoilds induced osteoporosis [21,22]. Results thus obtained provided a chromatographic fingerprint of specific phytochemicals and are suitable for identify and purify raw materials from such medicinal plants.
These results indicate that, the assay is accurate and reliable for the determination of phytoestrogens in Lepidium sativum. This technique greatly simplifies the analysis of phytoestrogens. The HPTLC method provided a quick and easy approach for detection and quantitation of biomarker β-sitosterol in Lepidium sativum.
We are thankful to Rajasthan State Department of Science and Technology for the financial support to complete the research project, the part of which is presented here.
