Special Tools to Treat Difficult Peripheral Arterial Chronic Total Occlusions-Review

Paulo Eduardo Ocke Reis1* and Irlandia Figueira Ocke Reis2
1Adjunct Professor of Vascular Surgery, Federal Fluminense University, RJ, Brazil
2Nurse Coordinator of the Vascular Clinic Ocke Reis, Brazil
*Corresponding Author: Paulo Eduardo Ocke Reis, Adjunct Professor of Vascular Surgery, Federal Fluminense University, RJ, Brazil, Tel: 021988774982 Email:


The current treatment of lower limb ischemia involves aggressive interventions in order to save the compromised limb and the patient’s life. The risk factors for peripheral arterial occlusive disease are essentially the same as those for atherosclerosis. Ischemic limb has a negative impact on the cardiovascular system and has been associated with increased mortality in patients with arterial occlusive disease. Atherosclerotic lesions with chronic total occlusion in the peripheral arteries are a difficult subset to treat by open or endovascular approaches. Improvements in revascularization techniques have produced more efficient results, in this situation, a minimally invasive endovascular intervention is a more attractive option compared to conventional open procedures, because it is associated with reduced surgical trauma. Now a days we`ve had new endovascular techniques, tactics and surgical materials to contribute to the technical development and improvement of our results for treatment of peripheral arterial disease. Total atherosclerotic arterial occlusions may be a limiting factor for endovascular treatment because of the difficulty in crossing the lesions with conventional guide wires and catheters. Achieving true lumen after subintimal crossing can be challenging and specialized catheters can be used to re-enter the true lumen. In this article, we provide a review of specific devices frontrunner and outback that may increase the procedural success of treating peripheral arterial total occlusions.


Keywords: Arterial occlusive diseases; Arteriosclerosis obliterans; Intermittent claudication; Endovascular procedures; Angioplasty; Peripheral arterial disease


New endovascular techniques and materials exist to help us with the improvement of our results for the treatment of peripheral arterial disease (PAD). Few decades ago was established the concept of percutaneous transluminal angioplasty (PTA) [1,2].

The challenge to treat those lesions was the passage of the guide wire by total occlusions. It can be intraluminal or subintimal intentional recanalization as described by Bolia [3]. There is no evidence in the literature of superiority of one technique over the other, either in success or recanalization patency [4-6].

Chronic arterial total occlusions (CTOs) with a strong calcium component and extensive lesions (>15 cm) are still today, a factor limiting for endovascular treatment because of the difficulty in transposing these lesions with guide wires and catheters commonly used [7-13]. We can use specialized devices to cross lesions such as FrontrunnerEquation- Cordis (Figure 1, 2).

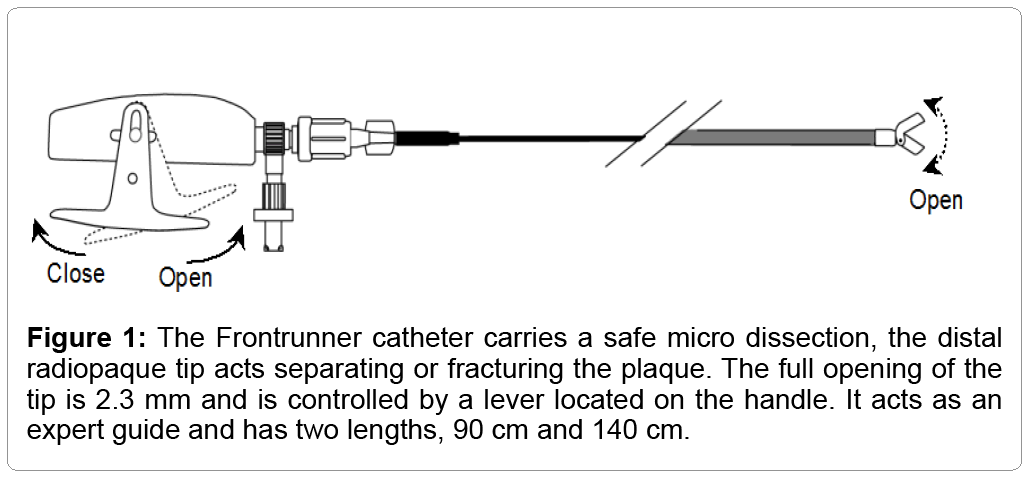

Figure 1: The Frontrunner catheter carries a safe micro dissection, the distal radiopaque tip acts separating or fracturing the plaque. The full opening of the tip is 2.3 mm and is controlled by a lever located on the handle. It acts as an expert guide and has two lengths, 90 cm and 140 cm.


Figure 2: The distal tip of the catheter can be rotated and change it "shape" to facilitate to cross the lesion. Support a micro catheter, hydrophilic and wired with 4,5F crossing profile, compatible with 6F sheath, available in 132 cm and radiopaque tip ends the whole system.

Achieving the true lumen after subintimal crossing can be challenging and specialized catheters can be used to re-enter the true lumen (Figure 3). In recent years, the reentry devices designed to prevent this series of events has been increasingly used. Not only in patients with critical limb ischemia, but also those with claudication [8-10,13-20].


Figure 3: The Outback TM LTD reentry catheter, 22G cannula in detail and the release button.

The ability to treat CTOs was limited by the failure to cross the occlusion and the inability to cross back into the true lumen after crossing the occluded segment. Those special devices during the operation procedure have the accuracy of achieving true lumen reentry easier at the point desired without side-effects as not extending the dissection, occlusion or arterial rupture.

Outback®Cordis reentry system is a device that allows precise and controlled return to the true lumen. The device is an "over the wire" system, guided via a guide wire (0.014") until the desired re-entry point; in the same way as the balloon angioplasty catheter would be guided. During this phase the reentrant cannula highlighted, is retracted (Figure 3). After the device is positioned at the desired re-entry point, the cannula direction is performed to the true lumen through radiopaque markers "L and T" easy viewing, the guide wire is retracted and the cannula is driven through the side of the catheter shaft, allowing the return of the guide wire to the true lumen after occlusion. The tip of the cannula is then retracted and the Outback is removed, leaving free the guide wire to guide the balloon catheter. The Outback system can be used in anterograde and retrograde access, including contralateral access. It is compatible only with the guide wire 0.014" (Table 1 and Figure 4).

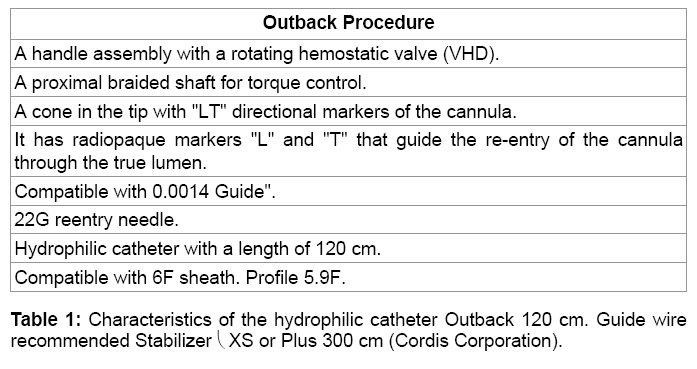

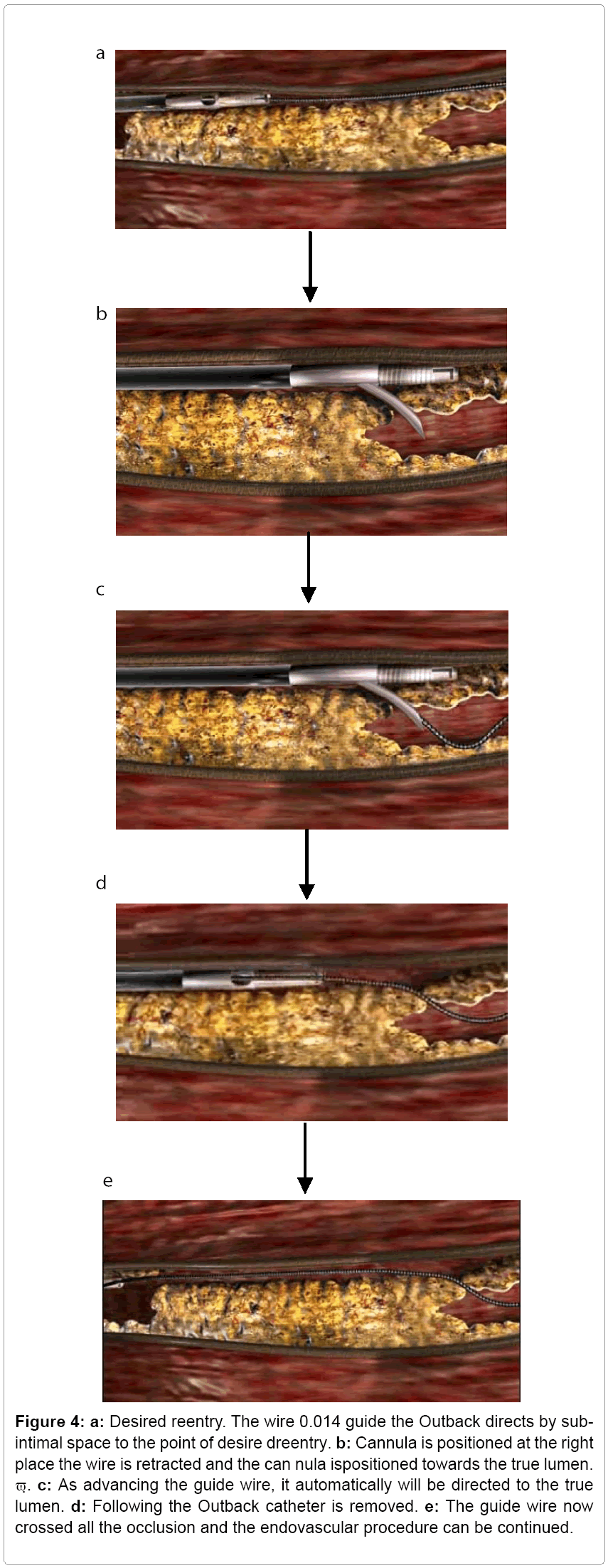

Figure 4: a: Desired reentry. The wire 0.014 guide the Outback directs by subintimal space to the point of desire dreentry. b: Cannula is positioned at the right place the wire is retracted and the can nula ispositioned towards the true lumen. ϖ. c: As advancing the guide wire, it automatically will be directed to the true lumen. d: Following the Outback catheter is removed. e: The guide wire now crossed all the occlusion and the endovascular procedure can be continued.

The reentry catheter has attached a curve needle 22G that enters the vessel lumen when triggered. An “L” marker indicates the direction of needle in an image generated by fluoroscopy (Figure 5a). The tip of the horizontal leg of the "L" should be directed toward the arterial lumen, indicating the way into the vessel. Angling the device in 90graus, orthogonal projection over the first cast, you can view a "T"; the horizontal part of the "T" must be contrasted on the artery (Figure 5b). Right now we know that this cannula directed towards the true lumen, "L" brand, and the device is aligned with the artery "T" mark. Therefore, the fluoroscope will return to its first incidence where there was a "L" mark and the firing of the cannula can be realized because confirm that the Outback is positioned. Upon firing, the wire should be retracted 15cm into the catheter body. After shooting, the guide wire advances in the vessel enabling the continuity of the endovascular procedure (Figure 5c).


Figure 5: Respectivaly- “ L” and “T ”markers.


Analysis of indications and results

The advantage of subintimal technique is that the plaque is close to the intima and the false lumen created between the intima and media layers are free of endothelium, hindering the formation of atheroma. This can improve the long-term results; since the restenosis is the result of neointimal hyperplasia or atheroma [3,20,21].

The femoropopliteal occlusion is the classic indication for reentry catheter use in patients with intermittent claudication or critical ischemia member [8, 10, 13-20]. There are also reports of successfully use of the device in the aortoiliac and popliteal segments. Importantly, most cases of atherosclerotic occlusions are technically feasible to be realized by the traditional technique of endovascular procedure, but only during the PTA the vascular surgeon has the exact dimension of the technical difficulty of the procedure. In prospective or retrospective studies in patients with claudication or acute ischemia the percentage of patients with occlusions where it was not possible to cross the lesion with a traditional guide wire was 21% ranging between 16.5% and 27% [19-23]. Others report a rate of 10 to 15% [7,24-26]. A study in diabetic population where the primary method of treatment was angioplasty, the technical impossibility to use the traditional endovascular procedure was observed in 25% (144/564) of them [27]. The reentry catheters rate to cross the critical atherosclerotic plaques ranges from 65% to 96%, possible explanations for the different rates of successes includes: surgeon's learning curve, occlusion length, severity of calcification and location of the lesion (aortic, iliac, superficial femoral or popliteal artery) [13-18, 28-31].

Treatment of chronic total occlusions can be challenging, and high failure rates are not unusual. Sometimes intraluminal passage is impossible, and the sub-intimal technique is the option. Recanalization failure in this situation is commonly due to the inability to re-enter distal to the occlusion. Commercially available re-entry devices, such as Outback catheters, were designed to overcome this situation. Early reports have shown a very high technical success rate. Described complications related to the use of the devices are: failure of the procedure, arterial bleeding or perforation with contrast extravasation. Most of them does not compromise or aggravates the patient's condition. In 2 patients, a series of 118 (1.7%) cases, the retractable needle could not be removed with the catheter. In both cases the system was removed without damaging the artery. Bleeding due to the use of the device in the target vessel occurred in 5/118 (4.2%) cases. Four of then were successfully completed. The fifth patient had his intervention stopped and the bleeding controlled by manual compression. It was not necessary surgical conversion.13


Technical success provided by the re-entry catheter has allowed the advance in endovascular approach to treat peripheral arterial disease, in addition to the increase in technical success also in complex cases of arterial occlusions added precision to the intervention. Help us to limit the distal dissection and not pass away the "end point", thus not increasing the dissection, avoiding complications and assist in preserve the collateral vessels. New tactics, techniques and surgical approaches arises to solve cases where failed percutaneous revascularization attempts have been recovered with the re-entry catheter. Its implementation has been more extensive and highlights the fact that the re-entry devices have become essential tools in the treatment of atherosclerotic occlusions of the complex peripheral arteries and should be available for all these cases.


  1. Dotter CT, Judkins MP (1964)Transluminal treatment of arteriosclerotic obstruction. Description of a new technique. Circulation 30: 654-670.
  2. Gruntzig A, Hoppf H (1974) Perkutanerekanalisationchronischerarteriellerverschlusse nit einerdilatationskatheter. Deutsc Med Wochenschr99:2502-2505.
  3. Bolia A, Mikes KA, Brennan J (1990) Percutaneous transluminal angioplasty of occlusions of the femoral and popliteal arteries by subintimal dissection. CardiovascInterventRadiol 13:357-363.
  4. Lipsitz EC, Ohki T, Veith FJ, Suggs WD, Wain RA, Cynamon J, et al. (2003) Does subintimal angioplasty have a role in the treatment of severe lower extremity ischemia? J VascSurg 37:386-391.
  5. London NJ, Srinivasan R, Naylor AR, Hartshorne T, Ratliff DA, et al. (1994)Subintimal angioplasty of femoropopliteal artery occlusions: the long-term results. Eur J VascSurg 8:148-155.
  6. Saket RR, Razavi MK, Padidar A, Kee ST, Sze DY, et al. (2004) Novel intravascular ultrasound-guided method to create transintimal arterial communications: initial experience in peripheral occlusive disease and aortic dissection. J EndovascTher11:274-280.
  7. Nadal LL, Cynamon J, Lipsitz EC (2004)Subintimal angioplasty for chronic arterial occlusions. Tech VascIntervRadiol7: 16-22.
  8. Neves DQ, Ocke Reis PE (2012) Advances in materials and endovascular treatment of chronic total arterial occlusions: a case report. J Vasc Bras 11: 226-231.
  9. Marchiori A, Messinger G (2013) Do básicoaoavançadousandoOutback. Revistade Angiologia e de Cirurgia Vascular-Rio de Janeiro 15-24.
  10. Reis OPE, Diniz P, Rotolo M (2013) Como eutratooclusõesfemoraisTasc C e D. Revista de Angiologia e de Cirurgia Vascular-Rio de Janeiro 10-13.
  11. ScheinertD, Braunlich S, Scheinert S (2005) Initial clinical experience with an IVUS- guided transmembrane puncture device to facilitate recanalization of total femoral artery occlusion. EuroIntervention1:115-119
  12. Scheinert D, Laird JR, Schroder M (2001)Excimer laser–assisted recanalization of long, chronic superficial femoral artery occlusions. J EndovascTher 8:156-166.
  13. Bausback Y, Scheinert D, Braunlich S(2011) Outback Catheter for Femoropopliteal Occlusions:Immediate and Long-term Results. J EndovascTher18:13-21.
  14. Hausegger KA, Georgieva B, Portugaller H(2004) The Outback catheter: a new device for true lumen re-entry after dissection during recanalization of arterial occlusions. CardiovascInterventRadiol27:26-30.
  15. Wiesinger B, Steinkamp H, Konig C (2005) Technical report and preliminary clinical data of a novel catheter for luminal re-entry after subintimaldissection. Invest Radiol40: 725-728.
  16. Jacobs DL, Motaganahalli RL, Cox DE(2006) True lumen re-entry devices facilitate subintimal angioplasty and stenting of total chronic occlusions: initial report. J VascSurg 43:1291-1296.
  17. Beschorner U, Sixt S, Schwarzwalder U(2009) Recanalization of chronic occlusions of the superficial femoral artery using the Outback re-entry catheter: a single center experience. Catheter CardiovascInterv 74:934-938
  18. Husmann H, Federer J, Keo HH (2009) Bailout revascularization of chronic femoral artery occlusions with the new Outback catheter following failed conventional endovascular intervention. J EndovascTher 16:206-212.
  19. Setacci C, Chisci E, de Donato G (2009) Subintimal angioplasty with the aid of a re- entry device for TASC C and D lesions of the SFA. Eur J VascEndovascSurg 38:76- 87.
  20. Ocke Reis PE (2015) Cateteres de ReentradaparaDoença Arterial OclusivaPeriférica. In: Armando de CarvalhoLobatoCirurgia Endovascular. (3rd edition), São Paulo: icve 277-285.
  21. Smith M, Pappy R, Hennebry T (2011) Re-Entry Devices in the Treatment of Peripheral Chronic Occlusions. Texas Heart Institute Journal 38: 392-397.
  22. Jacobs DL (2006) True Lumen reentry devices facilitate subintimal angioplasty and stenting of total chronic occlusions: Initialreport. J VascSurg 43: 1291-1296.
  23. Ramjas G,Thurley P (2008)The use of a re-entry catheter in recanalization of chronic inflow occlusions of the common iliac artery. CardiovascInterventRadiol31:650-654.
  24. ShinSH(2011) Limitations of theOutbackTM LTD re-entry device in femoropopliteal chronic total occlusions. JVascSurg53:1260-1264.
  25. Srivatsa SS, Edwards WD, Boos CM (1997) Histologic correlates of angiographic chronic total coronary artery occlusion: influence of occlusion duration on neovascular channel patterns and intimal plaque composition. J Am CollCardiol29: 955-963.
  26. Walker C (2013) Guideline selection for peripheral vascular interventions. Endovasc Today 12:80-83.
  27. Faglia E (2009) Long Term prognosis of diabetic patients with critical limb ischemia: a population based cohort study. Diabetes Care 32:822-827.
  28. Das TS(2006) Complex Chronic Total Occlusion Treatment Using a Re-entry Catheter. Endovascular Today 9: 67-69.
  29. Bozlar U (2008)Outback catheter-assisted simultaneous antegrade and retrograde access for subintimal recanalization of peripheral arterial occlusion. Clin Imaging 32: 236-240.
  30. Latacz P (2008) Subintimal recanalization of chronic superficial femoral artery occlusion with the use of a re-entry system. Cardiol Pol 66: 1121-1126.
  31. Mixon TA (2009). Novel technique using the outback TM LTD catheter for a common iliac artery occlusion. Catheter Cardiovascinterv 73: 415-418.
