Research Article - (2017) Volume 10, Issue 3
Peroxisome Proliferator-Activated Receptor Gamma encoded by PPARG gene is also known as type II nuclear receptor in humans plays a significant role in regulating the glucose metabolism, adipocyte differentiation and serves as a lipid sensor. This has been implicated in the pathology of various diseases like obesity, diabetes, atherosclerosis, and cancer. In search of drugs that uses PPAR gamma as a therapeutic target for its inhibition: Insilico CADD approaches has been widely used in this aspect to understand the intrinsic molecular aspects and their interaction with the chemicals. In-silico based virtual screening helps in identification of optimum molecule among the large dataset to elucidate the effects on a particular target through binding interaction and can be used for further experimentations. In the present study, two PPAR gamma/antagonists GW9662 and T0070907 were selected for this study as they serves as potent therapeutics to minimize the effects of PPAR gamma in chronic diseases. A set of structural analogs of GW9662 and T0070907 were screened from ZINC public database. Ligand based screening is followed by 80% similarity search, Lipinski filter, Pharmacophore based and toxicity based screening. Structure based virtual screening follows the output and final molecular docking using iGemdock and Autodock explained the binding affinity and pharmacological interactions. The results between the GW9662, T0070907 and screened structural analogs show better binding affinity with respect to the former one with similar pharmacological interactions
Keywords: GW9662; T0070907; PPAR gamma; Virtual Screening; Molecular docking
Breast cancer is measured as the most widespread cancer in women, with an estimate of 1.38 million new cases per year across the globe . Usually classified on the basis of clinical features and histopathological findings, but an escalation has been seen that in cellular and molecular characteristics which are of significant importance. Estrogen alpha receptor is considered as the standard biomarker in prediction of breast cancer in response to endocrine treatment and has been found to be expressed in 70-80% of patient suffering from breast cancer. There are significant proportions of ER-positive tumours which are resistant to endocrine therapy, either anew or acquired, and more specific biomarkers as well as new therapeutic targets for endocrine-resistant tumours are needed . The mechanisms of endocrine resistance include loss of ER expression or expression of truncated ER isoforms, post translational alteration or modification of the ER, elimination of cofactors, or overstimulation of tyrosine kinase receptor growth signalling pathways. The peroxisome proliferator-activated receptor γ (PPARγ) ligands show anticancer activity against a wide range of neoplastic cells in vitro. Peroxisome proliferator-activated receptor gamma (PPAR-γ or PPARG), also known as the glitazone receptor, orNR1C3 (nuclear receptor subfamily 1, group C, member 3) is a type II nuclear receptor which in humans is encoded by the PPARG gene . It is expressed primarily in adipose tissue with less expression in cardiac, skeletal, and smooth muscle cells, islet cells, macrophages, and vascular endothelial cells. Along with adipocyte differentiation, PPAR activity also promotes uptake of circulating fatty acids into fat cells and the shifting of lipid stores from extra-adipose to adipose tissue. The uptake of circulating fatty acids is the basis for the pharmacological application of PPAR gamma in breast cancer patients. It is regulated by ligand binding and post-translational modifications . The previous demonstration shows that endogenous transactivation promotes an aggressive phenotype of malignant breast cells. According to recent findings NR1D1 and the peroxisome proliferator-activated receptor-γ (PPARγ)- Binding Protein (PBP) both act through a common pathway and are responsible for upregulating several genes in the de novo fatty acid synthesis network, which is said to be highly active in ERBB2-positive breast cancer cells . Both NR1D1 and PBP are functionally related to PPARγ, which is a well-established positive regulator of adipogenesis and lipid storage. The PPARγ pathway is responsible for reduction of Aldehyde Dehydrogenase (ALDH)-positive population in ERBB2- positive breast cancer cells. The in vitro tumorsphere formation assay shows that the two antagonist of PPARγ namely GW9662 and T0070907 are responsible for deduction of tumorsphere formation in ERBB2- positive cells, but not other breast cell . Now talking about the two antagonists GW9662 and T0070907, GW9662 is potent antagonist which shows the inhibition of growing breast tumour cells and also promotes the anticancer effects of the PPARγ agonist rosiglitazone, independent of PPARγ activation . Whereas T0070907 helps in suppression of breast cancer cell proliferation and motility via PPAR gamma-dependent as well as independent mechanisms . The present work is aim to identify the diverse Structural analogs of GW9662 and T0070907 from public database that can act as prominent Antagonists to PPAR gamma.
Selection of target
As per the literature review the Crystal Structure of PPAR gamma complexed with Telmisartan is downloaded from protein data bank with pdb_id 3VN2 an x-ray diffraction data at resolution 2.18 Angstrom . It is a selective angiotensin II type 1 receptor blocker. Recently it was reported that telmisartan acts as agonist for PPAR gamma .
Active site identification
The active site residues of the Crystal Structure of PPAR gamma complexed with Telmisartan was predicted using Cast-P sever (Computer Atlas of Surface Topology of Proteins) , with probe radius 1.4 Armstrong, and validated through Auto dock 4.1  and Discovery studio visualizer 4.0 .
Selection of ligands

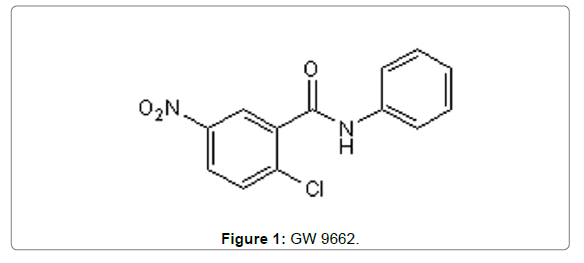

PPAR gamma Antagonists: In this present study we have considered molecules they are GW9662 and T0070907 [5,6]. GW9662 is an irreversible PPARγ antagonist and inhibits connective tissue growth factor and activation of CD36 by IL-4 (Figure 1) and shows PPAR alpha agonist activity . Whereas T0070907 (Figure 2) is very similar in structure and activity to PPARgamma antagonist GW 96662. It is more potent and has higher selectivity for PPAR gamma over all other subtypes that are about 800 fold more . Based on GW9662 and T0070907 their structural analogs were retrieved from ZINC database .
Data mining of ligands
Ligand based screening: Mining of optimum ligand structural analogs from public domain database is a difficult task. ZINC is public database which consist of more than 35 million commercial data sets and non-redundant datasets at noncommercial charges and hence mining of dataset from this database helps in acquiring a less non – redundant datasets .
An 80% similarity search was performed using ZINC database against GW9662 and T0070907, resulting in more than 1000 molecules were screened from 35 million compounds. Whereas a second pass filter was carried with property based activity and drug likeness features were exhibited (Table 1): a) Molecular weight; b) Logarithm of the calculated n-octanol/water partition coefficient; c) Number of hydrogen bond acceptors; d) Number of hydrogen bond donors; and e) Number of rotatable single bonds.
Table 1: Summary of physicochemical properties (Often used to predict “Drug- Likeness”).
Being with two pass filter the screened compounds still showed some structural diversity at the basic scaffold level. Hence, Considering a basic scaffold one to one screening was carried out on the basis of basic scaffold of structure and out of 500 molecules 146 molecules were screened, 62 belonging to GW9662 and 84 molecules belonging to T0070907 (Table 2). Filtering the duplication of molecules using ZINC-id 05 molecules identified as common in both the list and total 141 molecules were subjected for the analysis.
|S. No.||ZINC-id||S. No.||ZINC-id||S. No.||ZINC-id||S. No.||ZINC-id|
Table 2: Structural analogs of GW9662 and T0070907.
Pharmacophore based screening: A 2D structure of 141 structural analogs of GW9662 and T0070907 were sketched using Chemsketch  and 3D optimization is carried out using Merck molecular force field (MMFF) in Ligand Scout . A pharmacophore model is created with following features: hydrogen bond donors (HBD), hydrogen bond acceptors (HBA), ring aromatic (RA), and hydrophobic (HY), by considering GW9662 one of the dataset in training and T0070907 as one of the test set condition with 70% and 30% to identify the most closest aligned Pharmacophore model.
Toxicity based screening: The theoretical toxicity based screening was calculated for 92 structural analogs using OSIRIS property explorer (http://www.organic-chemistry.org/prog/peo/) , and represented by toxicity risks (mutagenic, irritant, tumorigenic and reproductive effects), states high, medium and low risks profile.
OSIRIS compares input dataset with predefined four subsets of the chemical datasets from RTECS database; they are 7504 mutagenic compounds, 2841 tumorogenic compounds, 2372 irritant compounds and 3570 reproductive effective compounds . The prediction process relies on a precomputed set of 5300 structural fragments from RTECS database datasets that are known to be active in a certain toxicity class and give rise to toxicity alerts in case if they meet in the input structural data .
Structure based screening and molecular docking study: Molecular interactions plays an important role in all biological reactions. Drugs are either mimicking or copying the effect of native ligands binding to the receptor by applying the pharmacological and biological reactions. Computational approaches are used to recognize and understand this mode of binding, interacting and multiple conformations of ligands into the active site to their receptors which is called as Molecular Docking [16,17].
As pharmacological interactions are useful for understanding ligand binding mechanisms to a therapeutic target. These interactions are often inferred from a set of active compounds that were acquired experimentally. Moreover, most docking programs loosely coupled the stages (binding-site and ligand preparations, virtual screening, and post-screening analysis) of structure-based virtual screening (VS). iGEMDOCK is an integrated virtual screening environment from preparations through post-screening analysis with types of bonding and pharmacological interactions . To initially screen on the basis of binding energy and types of bonding we selected the therapeutic protein target 3VN2.pdb  and 52 low toxicity risk structural analogs of GW9662 and T0070907. After the generations of the profiles, the compounds were finally subjected to second pass molecular docking, which is carried out using Auto dock 4.1. .
The predicted size of active site with an area of 3045.3 and a volume of 4343.7 units Armstrong followed by the input co-ordinates in Auto dock: x=45.444; y=21.713 and z=26.876 respectively and size value of 40 to all the coordinate space (Figure 3), with the following residual information in Table 3.
|Amino acid||Amino acid||Amino acid||Amino acid|
|1||TYR (222)||28||HIS (323)|
|2||PHE (226)||29||ILE (326)|
|3||PRO (227)||30||TYR (327)|
|4||LEU (228)||31||MET (329)|
|5||THR (229)||32||LEU (340)|
|6||LYS (230)||33||ILE (341)|
|7||ILE (249)||34||SER (342)|
|8||LEU (255)||35||GLU (343)|
|9||GLY (258)||36||MET (348)|
|10||GLU (259)||37||ARG (350)|
|11||ILE (262)||38||LEU (353)|
|12||ALA (278)||39||LYS (354)|
|14||ILE (281)||41||PHE (360)|
|15||PHE (282)||42||GLY (361)|
|16||GLU (284)||43||PHE (363)|
|17||CYS (285)||44||MET (364)|
|18||GLN (286)||45||GLU (365)|
|19||PHE (287)||46||LYS (367)|
|20||ARG (288)||47||PHE (368)|
|21||SER (289)||48||LEU (381)|
|22||GLU (291)||49||HIS (449)|
|23||ALA (292)||50||LEU (453)|
|24||VAL (293)||51||LEU (465)|
|25||GLU (295)||52||LEU (469)|
|26||ILE (296)||53||ILE (472)|
|27||VAL (322)||54||TYR (473).|
Table 3: Active site residues.
Ligand based screening
Mining a data set from over a 35 million compounds is a difficult task, but with a ligand structure based similarity search of 80% has revealed the ease ness of compound selection with an additional filters of physiochemical properties based too. A set of more than 1000 compounds/structural analogs of GW9662 and T0070907 compounds been reduced to set of 500 compounds. With the one to one selection criteria considering the basic scaffold as a prime target the compounds were more refined and 146 total compounds, 62 belonging to GW9662 and 84 molecules belonging to T0070907. Filtering with ZINC-id, 5 duplicates were removed and total 141 compounds were further considered for analysis.
Based on pharmacophore features HBD, HBA, RA and HY alignment in Ligand scout exhibited 92 structural analogs with closest structural feature analogs of GW9662 and T0070907 (Figure 4).
Toxicity prediction: These entire 92 molecules is dividing in two set of toxicity level tested via OSIRIS online tool grouping 40 compounds with high risk to toxicity level for mutagenic, irritant, tumorogenic and reproductive effects, and 52 compounds with low risk to toxicity level (Table 4).
|S. No.||Molecule with high toxicity risk||S. No.||Molecule with low toxicity risk||S. No.||Molecule with low toxicity risk|
Table 4: Results from OSIRIS.
Structure based screening
Determining the structure based virtual screening, here we submitted 52 low risk compounds for screening, the output from IGemdock resulted in a good prediction of binding energy and exhibited the hydrogen bond, Vanderwaal and electro-static interactions with the receptor and ligand (Table 5).
|S. No.||Ligands||Total Energy||VDW||HBond||Elec|
Table 5: Result from IGem dock.
Molecular docking study

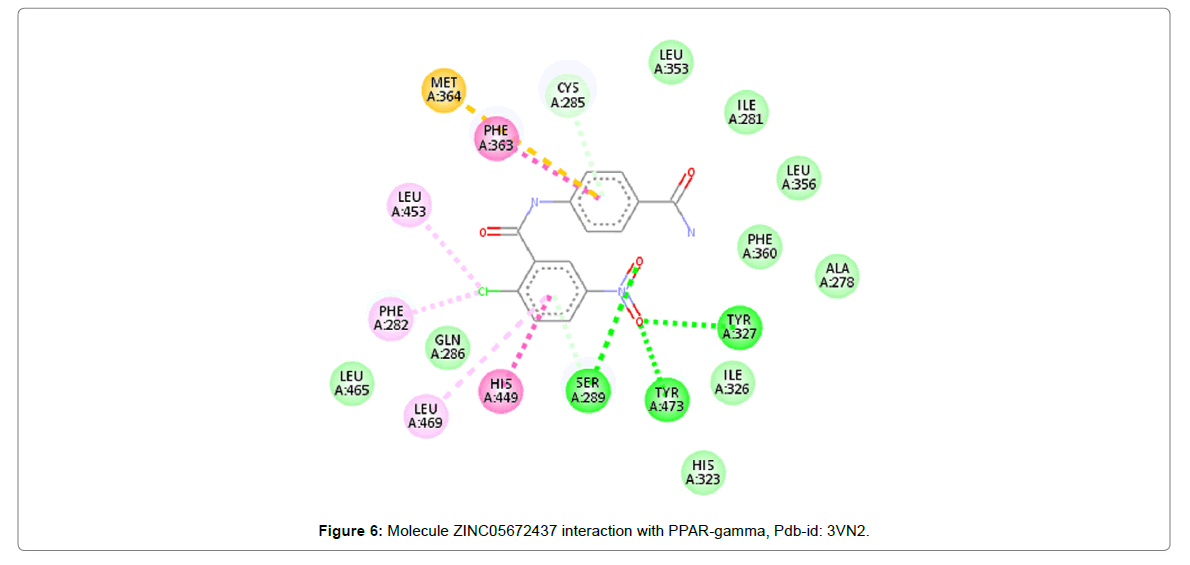

The final docking study was performed on Auto dock 4.1 running on Windows 7. The Auto dock 4.1 uses an evolutionary genetic algorithm approximates a systematic search of positions, orientations and conformations of the ligand in the receptor-binding pocket via a series of hierarchical filters. The shape and properties of the binding site from receptor protein are represented on a grid by a rectangular box confining the translations of the mass center of the ligand. A set of initial ligand conformations or poses were created, of which the most accurately binded ligand pose are selected on the basis of minimum binding energy and desired pharmacological interactions were studied. The binding energy for GW9662 and T0070907 is 9.0 and 8.5 KJ/mol, whereas the ZINC00293261 (Figure 5), ZINC05672437 (Figure 6), ZINC00103124, ZINC29020806, ZINC00438391, ZINC03153944, ZINC35121683 and ZINC37250760 exhibits a more stable energy with binding energy value of -10.7, -10.1, -9.8, -9.6, -9.5, -9.3, -9.1 and -9.0 KJ/mol respectively (Table 6).
|S. No.||Compound||Hydrogen bonding||Pi-interaction||Energy|
|1||GW9662||TYR 327||CYS 285, PHE 363, MET 364, HIS 449, LEU 453||-9.0|
|2||T00070907||SER 289, TYR 327, TYR 473||PHE 282, CYS 285, PHE 363, MET 364, HIS 449||-8.5|
|3||ZINC00293261||CYS 285, SER 289, TYR 327, TYR 473||ILE 281, PHE 282, LEU 356, PHE 360, PHE 363, MET 364, LEU 453, HIS 449, LEU 469||-10.7|
|4||ZINC05672437||CYS 285, SER 289, TYR 327, TYR 473||PHE 282, PHE 363, MET 364, HIS 449, LEU 453, LEU 469||-10.1|
|5||ZINC00103124||CYS 285, SER 289, TYR 327, TYR 473||ILE 281, PHE 282, LEU 356, PHE 363, MET 364, HIS 449, LEU 453||-9.8|
|6||ZINC29020806||CYS 285, TYR 473||PHE 282, CYS 285, PHE 363, MET 364, LEU 453, TYR 473||-9.6|
|7||ZINC00438391||CYS 285, SER 289, MET 364, TYR 473||PHE 282, CYS 285, PHE 363, MET 364||-9.5|
|8||ZINC03153944||SER 289, TYR 327, MET 364, TYR 473||CYS 285, PHE 363, MET 364, HIS 449, LEU 469||-9.3|
|9||ZINC35121683||CYS 285, TYR 327, TYR 473||PHE 282, CYS 285, PHE 363, MET 364, HIS 449, LEU 453, LEU 469||-9.1|
|10||ZINC37250760||SER 289, TYR 327, TYR 473||ILE 281, PHE 282, CYS 285, PHE 363, MET 364, HIS 449||-9.0|
|11||ZINC37032925||TYR 327, TYR 473||PHE 282, CYS 285, PHE 363, MET 364, LEU 469, TYR 473||-8.9|
|12||ZINC23634253||CYS 285||PHE 282, CYS 285, PHE 363, MET 364, HIS 449, LEU 453||-8.7|
|13||ZINC29017357||CYS 285, TYR 327, PHE 360||CYS 285, LEU 353, PHE 363, MET 364, HIS 449||-8.6|
|14||ZINC00458448||CYS 285, SER 289, TYR 327, HIS 449, TYR 473||PHE 282, CYS 285, ILE 326, PHE 363, MET 364||-8.6|
|15||ZINC02573600||ARG 288||CYS 285, ARG 288, ALA 292, ILE 326, MET 329, LEU 330, LEU 333||-8.5|
|16||ZINC00103088||ARG 288, SER 289, PHE 363||CYS 285, ARG 288, ILE 326, TYR 327, LEU 330||-8.4|
|17||ZINC12223463||CYS 285||PHE 282, CYS 285, PHE 363, MET 364, HIS 449, LEU 453||-8.3|
|18||ZINC21959624||CYS 285||PHE 282, CYS 285, PHE 363, MET 364, HIS 449, LEU 453||-8.3|
|19||ZINC05538460||LEU 228, ARG 288||ALA 292, GLU 295, ILE 326, MET 329, LEU 330, LEU 333||-8.1|
|20||ZINC37286046||CYS 285, SER 289, TYR 327, TYR 473, HIS 449||ILE 326, PHE 363, MET 364||-7.9|
|21||ZINC37247723||CYS 285, ARG 288, SER 289||CYS 285, ARG 288, ALA 292, ILE 326, MET 329, LEU 330, VAL 339, MET 364||-7.6|
|22||ZINC00091503||CYS 285, SER 289, TYR 473||CYS 285, VAL 322, HIS 323, ILE 326, PHE 363, MET 364, HIS 449, LEU 469||-7.6|
|23||ZINC00126121||ARG 288||ARG 288, ALA 292, GLU 295, ILE 326, MET 329, LEU 330, LEU 333||-7.5|
|24||ZINC01216529||SER 288||CYS 285, ARG 288, LEU 330, ILE 341||-7.5|
|25||ZINC00039173||ARG 288, SER 289||CYS 285, ARG 288, TYR 327, LEU 330||-7.5|
|26||ZINC00375580||ARG 288||CYS 285, ARG 288, ALA 292, ILE 326, LEU 330, ILE 341||-7.4|
|27||ZINC04045634||CYS 285, SER 289, TYR 473||PHE 282, CYS 285, ILE 326, PHE 363, MET 364, HIS 449, LEU 469||-7.3|
|28||ZINC00103103||SER 289||CYS 285, ARG 288, LEU 330||-7.1|
|29||ZINC00434561||ARG 288||LEU 228, ARG 288, ALA 292, GLU 295, ILE 326, MET 329, LEU 330, LEU 333||-7.1|
|30||ZINC00377492||SER 289||ARG 288, ALA 292, ILE 326, MET 329, LEU 330||-7.0|
|31||ZINC00225355||SER 342||ILE 281, GLY 284, CYS 285, ARG 288, ILE 341||-6.7|
Table 6: Binding energy and interactions between GW9662, T0070907, structural analogs and PPAR-gamma.
Pharmacophore based mapping and ligand features mapping has made an enormous knowledge generation in the field of drug screening and development. Where each atom from ligand and receptor protein interaction is considered on the type of bonding and nature of their interactions such as hydrogen bonding, electrostatic interaction, hydrophobic interactions etc. Comparing the 52 structural analogs of GW9662 and T0070907 with low toxicity risk profile 29 molecules appropriately placed them in the cavity of the receptor protein and forms a hydrogen bonding and pi-interaction and forms similar pharmacophoric interactions as compared to GW9662 and T0070907 with PPAR-gamma receptor protein.
The work presented here was to identify the optimum structural analogs from public database with respect to structural, binding affinity and pharmacological interaction. A number of in-silico techniques have been implemented to screen the diverse molecule from the set of molecules. The screening was not dependent on the structural similarity but also on the physio chemical parameters. The pharmacophore model based screening was one where Hydrogen Bond Donors (HBD), Hydrogen Bond Acceptors (HBA), Ring Aromatic (RA), and Hydrophobic (HY) has generated a immense knowledge to screened the most optimum on the basis of these activity. Whereas the criteria for toxicity prediction; Mutagenicity, Tumorigenicity, Irritating effects and Reproductive Effect helped in reducing those dataset which has close structural and physiochemical similarity to the parent one. Finally the structure based screening has generated the most promising results where few structural analogs showed better binding affinity and very close pharmacological interaction patterns with respect to GW9662 and T0070907. Further these molecules could be studied in in vitro conditions further to evaluate its detail function over PPAR gamma.
The author(s) of manuscript “Screening and Identification of Structural Analogs of GW9662 and T0070907 Potent Antagonists of Peroxisome Proliferator-Activated Receptor Gamma: In silico Drug-Designing Approach” declare that they have no competing interests.
