Review - (2020)Volume 13, Issue 2
Plants are naturally sessile and cannot move away from adverse environmental conditions. Environmental stress may induce loss of membrane integrity, which is a seminal feature of premature senescence. Therefore, plants must respond in other ways to protect themselves from abiotic and biotic stresses that involve protein kinases, which are crucial to signal transduction pathways. Protein kinases are involved in the phosphorylation of serine/threonine and tyrosine side chains of proteins. Among these protein kinases, mitogen-activated protein kinase (MAPK) cascade genes are key components of signal transduction pathways that help transduce extracellular signals to intracellular responses in animals, plants, and fungi. Interestingly, reactive oxygen species (ROS) are important and common messengers that are produced in various biotic and abiotic stresses; ROS are known to activate many of the MAPKs. In this review, we highlight the mechanisms of crosstalk between ROS and MAPK cascades in the post-harvest senescence of horticultural products and summarize recent findings about MAPK regulation and functioning in various cellular processes.
ROS; MAPK; Signal transduction; Post-harvest; Senescence
As perishable commodities, fresh horticultural crops are prone to post-harvest economic losses of quality and quantity due to biotic and abiotic stresses . These stresses lead to a series of morphological, physiological, biochemical, and molecular changes in horticultural products . To address these changes, plants have evolved both passive and active mechanisms to prevent infection. Active defense mechanisms are based upon the early detection of and quick response to invading organisms. Plants utilize resistance proteins (e.g., protein kinases) and other receptors to detect the presence or activity of pathogens . Plants respond to abiotic and biotic stresses that involve protein kinases and are crucial to signal transduction pathways. Among these protein kinases, mitogenactivated protein kinase (MAPK) cascade genes are key components of signal transduction pathways that help transduce extracellular signals to intracellular responses in animals, plants, and fungi . Interestingly, reactive oxygen species (ROS) are important and common messengers that are produced in various biotic and abiotic stresses, and are known to activate many of the MAPKs (Figure 1). ROS were initially thought to be toxic byproducts of aerobic metabolism, but they are now regarded as central players in the complex signaling network of cells .

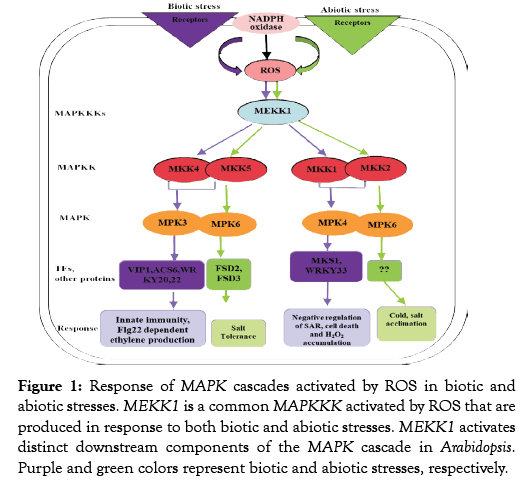

Figure 1: Response of MAPK cascades activated by ROS in biotic and abiotic stresses. MEKK1 is a common MAPKKK activated by ROS that are produced in response to both biotic and abiotic stresses. MEKK1 activates distinct downstream components of the MAPK cascade in Arabidopsis. Purple and green colors represent biotic and abiotic stresses, respectively.
The classical MAPK signaling cascade is minimally composed of three kinases, namely, MAPK, MAPK kinase (MAPKK), and MAPKK kinase (MAPKKK). These kinases operate as sequential signal transducers that channel, integrate, and amplify information from the cellular environment to transcriptional and metabolic response centers via phosphorylation. MAPKs are activated by MAPKKs through the phosphorylation of conserved threonine and tyrosine residues in the Thr-X-Tyr (T-X-Y) motif that is located in the activation loop (T-loop) between the catalytic subdomains VII and VIII. Furthermore, MAPKKs are activated by MAPKKKs through phosphorylation of serine and serine/threonine residues in the S/TXXXXXS/T motif . Previous efforts to identify and characterize MAPK cascade proteins in rice, Arabidopsis and other plants have provided a wealth of information. In this review, we highlight the mechanisms of crosstalk between ROS and MAPK cascades in the post-harvest senescence of horticultural products and summarize recent findings regarding MAPK regulation and functioning in various cellular processes.
New advances in the post-harvest senescence mechanism of horticultural products
Fresh horticultural products are living tissues that experience continuous changes after harvest. Their commodities are perishable products, with active metabolism during the post-harvest period , which induces post-harvest losses. These post-harvest losses, especially in terms of quality and nutritional composition, could be better controlled with an improved knowledge of their postharvest physiology . The primary objective of post-harvest research has been to maintain quality, while extending the shelf lives of harvested horticultural commodities. These objectives have been most effectively realized by regulation of the rate of respiratory metabolism , which changes throughout the life of the commodity. Luo et al.  found that the respiratory metabolic pathways of post-harvest fruits and vegetables vary during storage. Metabolic activity is especially high during the initial growth of the commodity, ripening of climacteric fruit, and periods of wound healing. After an initial surge to repair the wounds encountered during harvest, respiration typically declines in vegetative tissues and non-climacteric fruit (Figure 2) . Plant senescence is affected by respiratory metabolism, which provides the energy for a range of biochemical processes . In leafy crops such as salads, pre-harvest and post-harvest stresses (even of short duration) contribute to changes in metabolism that accelerate quality losses . The major symptoms of post-harvest senescence of Zizania latifolia are shell etiolation, surface browning, transpiration, respiratory disorders, and tissue hollowness .
Figure 2: Changes in respiration (CO2 production) during the development, growth, maturation, and harvest of vegetative commodities and of climacteric and non-climacteric fruit.
Respiration in plants involves several pathways, such as the Embden–Meyerhof–Parnas pathway, tricarboxylic acid cycle, mitochondrial electron transport, cytochrome pathway, pentose phosphate pathway, and glyoxylate pathway. Each pathway has unique biological functions. The Embden–Meyerhof–Parnas pathway, which oxidizes glucose to pyruvate, is a basic respiratory pathway followed by the tricarboxylic acid cycle and cytochrome pathway, which are essential for energy provision in post-harvest fruits and vegetables during storage. Unlike the many diverse and often unique reactions that include secondary metabolism, these four pathways contain sets of reactions that are common to all vascular plants . Recent studies have shown that the energy deficit caused by a decline in adenosine triphosphate synthesis is the main cause of membrane damage and browning of post-harvest horticultural products . Moreover, Aghdam et al.  reported that sufficient intracellular adenosine triphosphate supply and supportive extracellular adenosine triphosphate signaling are crucial for attenuation of stresses, postponement of senescence, and maintenance of quality in post-harvest horticultural crops. In addition, reactive oxygen species accumulation can cause inhibition of the tricarboxylic acid cycle in mitochondria, as well as the upregulation of glycolysis and the oxidative pentose phosphate pathway .
Reactive oxygen species metabolism and senescence
Plants experience two principal stresses, biotic and abiotic, both of which can be deleterious. A common feature of the plant response toward these stressors is the production of ROS. Plant cells continuously generate ROS in various organelles from the electron transport chains of photosynthesis and respiration . The reactive oxygen species signal itself may carry a decoded message, similar to the calcium signals that contain specific oscillation patterns within defined cellular locations . NADPH oxidase, photorespiration, amine oxidase, and cell wall-bound peroxidases are sources of ROS production in plant cells . Reactive oxygen species are known to play toxic roles in lipid peroxidation, membrane damage, and protein and DNA oxidization processes, resulting in cell death [14,15]. High levels of ROS can lead to phytotoxicity, whereas relatively low concentrations can be used for acclamatory signaling . The roles of ROS as both toxic byproducts and as signaling molecules have been reported in fruit development and ripening . To prevent accumulation of toxic levels of ROS, plants develop enzymes and non-enzyme antioxidant chemicals as defensive forces against excess ROS . The enzymatic antioxidant system represents the primary mechanism for controlling production of ROS, thereby partly regulating the degree of lipid peroxidation. Superoxide dismutase, catalase, ascorbate peroxidase, and peroxidase are the key antioxidant enzymes of ROS scavenging . Glutathione peroxidase, superoxide dismutase, and catalase play important roles in balancing the induction and removal of ROS in plants; these proteins are encoded by families of closely homologous genes . Indeed, it was found that superoxide dismutase can protect cells from oxidant stress by dismutation of O2·- to H2O2; in contrast, catalase, peroxidase, and ascorbate peroxidase are enzymes that control the decomposition of H2O2. High levels of activity of these antioxidant enzymes and their coordinated action have been identified as components of the mechanism implicated in the alleviation of lipid peroxidation and the delay of senescence in many horticultural crops . Loss of membrane integrity under senescence stress during storage of peach fruit is generally linked with the excessive accumulation of ROS, including O2·- and H2O2, and the enhancement of lipoxygenase activity and malondialdehyde levels . In the middle stage of fruit development, O2·- and H2O2 act as potential signaling molecules. In the late stage of fruit ripening, H2O2 functions as a major toxic molecule to stimulate lipid peroxidation and oxidative stress . Luo et al.  showed that browning in Z. latifolia was associated with a loss of membrane integrity, which resulted from lipid peroxidation. ROS metabolism, which is dependent on various functionally interrelated antioxidant enzymes, such as superoxide dismutase, catalase, and ascorbate peroxidase, is involved in lipid peroxidation; thus, Luo et al. concluded that chitosan/nanochitosan coatings could effectively prevent the browning and lignification of cut Z. latifolia and maintain its fresh-cut color and texture for 12 days at 1°C. In general, lower doses of ROS act as signals that mediate at least a portion of the responses toward stress. At higher concentrations, they pose a significant threat that may eventually lead to programmed cell death . Huang et al.  found that peaks of O2·- and H2O2 occurred in the middle stage of peach fruit development, and that these peaks were closely followed by the rapid development of peach fruit. The production of ROS implies that they might serve as signaling molecules, stimulating the rapid development of fruit. However, in the late stage, H2O2 might be a major toxic molecule, which can induce oxidative stress. While ROS have the potential to cause oxidative damage to cells during environmental stress, they also play a key role in plants as signal transduction molecules involved in mediating responses to pathogen infection, environmental stresses, programmed cell death (accelerated by adenosine triphosphate depletion and altered redox states in cells ), and various developmental stimuli. These diverse stresses activate similar cell signaling pathways and cellular responses .
The MAPK-cascade signaling and senescence
MAPK cascades are evolutionarily conserved from unicellular to complex eukaryotic organisms, and constitute major signaling pathways involved in the regulation of a wide range of cellular activities from growth and development to cell death . In the plant kingdom, MAPK cascades are a well-studied signaling mechanism, which includes a class of proteins that can sense stress signals and transduce them into suitable responses. These responses hold the key to the adaptation and survival of plants. A MAPK cascade is a divergent combination of at least three protein kinases, such as MAPKKK (MKKK/MEKK, MAP3K), MAPKK (MEK/MKK), and MAPK (MPK), which stimulate each other in a consecutive approach through phosphorylation . The available data show that MAPKs are involved in plant signal transduction in response to pathogens, drought, salinity, cold, wounding, ozone, ROS, and hormonal stimuli . Multiple studies have demonstrated clear roles for this cascade in growth and development, as well as in defense/stress responses, in plants . Some studies have been conducted to determine the response and regulation of rice MAPKs, particularly for their possible role/function in rice selfdefense pathways . In rice, 16 rice MAPKs (OsMPKs) have been identified; these are located on chromosomes 1, 2, 3, 5, 6, 10, and 11, with a particularly notable distribution on chromosomes 1, 5, and 6 . Pedley and Martin  concluded that MAPK cascades participate in plant immunity. In addition, 28 MPKs and eight MKKs were identified in Helianthus annuus . Pedley and Martin  identified two phylogenetically unrelated MAPK kinases (LeMKK2 and LeMKK4) in tomato that, when overexpressed in leaves, elicited cell death and activated LeMPK2 and LeMPK3. In Arabidopsis, there are 20 MAPKs, 10 MAPKs, and approximately 60 putative MAPKKKs. Among these 60 putative MAPKKKs, 12 belong to the MEKK subgroup; the remaining putative MAPKKKs belong to the constitutive triple response 1 (CTR1) subgroup. Biochemical and genetic evidence has demonstrated that at least some of the 12 MEKK members are bona fide MAPKKKs . In strawberry (Fragaria vesca), there are 12 MAPK genes in the genome. Protein domain analysis has shown that all FvMAPKs have typical protein kinase domains. Sequence alignments and phylogenetic analyses classified the FvMAPK genes into four different groups . In the apple (Malus domestica) genome, 28 putative apple MAPK genes (MdMPKs) and nine putative apple MAPKK genes (MdMKKs) have been identified [24,25]. Phylogenetic analysis revealed that MdMAPKs and MdMAPKKs can respectively be divided into four subfamilies (groups A, B, C, and D), respectively. The predicted MdMAPKs and MdMAPKKs were distributed across 13 of 17 chromosomes, with different densities. In addition, analyses of exon–intron junctions and of the intron phase inside the predicted coding region of each candidate gene revealed high levels of conservation within and between phylogenetic groups. These analyses demonstrated the existence of 14 MAPKs, five MAPKKs, 62 MAPKKKs, and seven MAPKKKKs in Vitis vinifera  and cucumber (Cucumis sativus L.). In Cucurbitaceae crops, which are highly susceptible to environmental stress and pathogen attack, analyses demonstrated the presence of at least 14 MAPKs, six MAPKKs, and 59 MAPKKKs . The numbers of MAPK gene families in various plants are summarized in Table 1 [23-25].
|No.||Name of plant species||Abbreviation of MAPK||Total number of MAPK genes|
|7||Chlamydomonas reinhardtii||CreinMPK Algae||6|
|10||Coccomyxa subellipsoidea||CsubMPK Algae||4|
|31||Selaginella moellendor ffii||SmMPK||6|
|39||Volvox car teri||VcMPK||16|
Table 1: Numbers of MAPK gene families in assorted plants.
Networking of ROS signaling with mapk signaling pathways
As mentioned above, reactive oxygen species (ROS) have a dual effect on plant metabolism: they can act as damaging byproducts of general metabolism; conversely, they can serve as signaling molecules . These signaling networks include protein kinase networks, calcium signaling, cellular metabolic networks, and redox responses. In some instances, ROS accumulation has been found to precede the activation of signaling through these networks; in other instances, ROS accumulation was found to be a direct result of signaling through these networks . In eukaryotes, the transmission of oxidative signals is controlled by protein phosphorylation involving MAPKs . Therefore, a notable example of a ROS-activated signaling network is the MAPK cascade. An important MAPKKK in Arabidopsis, MEKK1, is activated upon exposure to abiotic factors (e.g., salt, cold, and wounds) and drought and biotic factors (e.g., bacterial and fungal elicitors). In response to abiotic stimuli, MEKK1 activates the MKK2-MPK4/6 module; in response to biotic stress, it activates the MKK4/5-MPK3/6-VIP1/ ACS6 module  (Figure 2). The Arabidopsis MAPK 8 (MPK8) reportedly connects protein phosphorylation, Ca2+, and ROS in wound signaling pathways .
Figure 3: Possible signaling pathways involved in postharvest senescence of horticultural products.
Under environmental stress conditions, MPK3 and MPK6 have been shown to play key roles in ROS signaling. Expression of the genes encoding these proteins is induced by ozone treatment; plants that lack MPK3 or MPK6 are hypersensitive to ozone. Stress-induced expression of MPK3 and MPK6 leads to ROS accumulation and ethylene biosynthesis, thus inducing early leaf senescence [27,28]. Notably, MAPKs can be activated by the accumulation of H2O2; they can also trigger an H2O2-induced oxidative burst. In Nicotiana benthamiana, the MAPK cascades MEK2-SIPK/NTF4 and MEK1-NTF6 were reported to participate in the regulation of the radical burst induced by the oomycete pathogen Phytophthora infestans through nitric oxide and RbohBdependent ROS generation. An experiment using Arabidopsis protoplasts showed a correlation between the activation of plant MAPK cascades and H2O2, which was generated by various stress factors. H2O2 was found to activate the MAPKKK, ANP1, which then phosphorylated two downstream kinases, AtMPK3 and AtMPK6. Protein phosphorylation through MAPK cascades has been suggested to trigger positive feedback regulation of Ca2+ and ROS through the activation of RbohD and RbohF in Arabidopsis . Hydrogen peroxide is known to activate MPK3 and MPK6 in rice and can be activated by an upstream kinase, MKK6. This cascade is involved in providing resistance to fungal pathogens and tolerance against abiotic stresses (e.g., heavy metals, salt, cold, and UV rays) . There is a feedback mechanism by which MAPK cascades, activated by ROS associated with particular stimuli, are known to regulate ROS production. Some studies have suggested that MAPK cascades exert positive feedback on ROS production. A study of maize revealed that abscisic acid activates 46 kDa MAPK, which acts downstream of H2O2 and positively regulates RBOH for H2O2 production. In addition to the positive regulation of ROS production, the NDPK2-MPK3/6 cascade is known to negatively regulate ROS production, providing further tolerance against cold, salt, and oxidative stress . These examples of ROS-mediated crosstalk among MAPKs suggest that ROS produced in response to various environmental stresses mediate the activation of similar MAPKs; however, the interactions within MAPK pathways and the final responses to these stresses become fundamentally distinct. The differences originate from the abilities of MAPKs to interact with separate downstream targets. Scaffolding proteins also play a major role in this interaction. It is also apparent that ROS have important roles as messengers that encode information for activation of different responses .
Possible signaling pathways of post-harvest senescence of horticultural products
Plants have evolved exceptional resistance mechanisms to manage many biotic and abiotic stresses. ROS are common messengers produced in response to abiotic and biotic stresses that activate MAPK pathways. On the basis of the available information, ROS can clearly activate a similar MAPK cascade in different stresses and can exert different responses accordingly. Understanding these pathways in horticultural products is very important for improving shelf life and quality retention during the harvest and post-harvest handling of horticultural products. The possible signaling pathways of the post-harvest senescence of horticultural products are shown in Figure 3. AC, adenylyl cyclase; AIF, apoptosis inducing factor; AKT, protein kinase B; AOC, allene oxide cyclase; AOS, allene oxide synthase; Apaf-1, apoptotic protease activating factor-1; Arts, apoptotic protease activating factor-1; ATF-2, activating transcription factor-2; Bak, Bax, Bcl-2, apoptosis-promoting gene; bHLH, basic Helix-Loop-Helix; CaM, calmodulin; CaMPK, calcium/calmodulin-dependent protein kinase; cAMP, cyclic adenosine monophosphate; Casp-2/-3/-9, caspase-2/-3/-9; CDPK, calcium-dependent protein kinases; COI1, coronatine insensitive 1; cPLA2, cytosolic phospholipase A2; C-Raf, downstream signal after RAS signal activation; Cyto c, cytochrome c; Cyto P450 74A2, cytochrome P450 74A2; DAG, diacyl glycerol; DFF, DNA fragment factor; Endo G, endonuclease G; EPAC, exchange protein directly activated by cAMP; ETC, electron transport chain; F-6-P, fructose 6-phosphate; F-box, F-box protein; FLIP, Fas-associated deathdomain- like IL-1 β-converting enzyme inhibitory protein; G-6-P, glucose-6-phosphate G; GR, glutathione reductase; GRB2, growth factor receptor-bound protein 2; Gαβγ, small g-protein HtrA2, HtrA, HtrA serine peptidase 2; IP3, inositol 1,4,5-triphosphate; Jas, jasmonic acid; JAZs, jasmonate ZIM-domain; MAPKKK, MEKK, MAPK kinase kinase; MAPKK, MKK, MEK, MAPK kinase; MAPK, MPK, MAPK; MYC2, transcription factor; NINJA, Jaz coupling factor; NOS, nitric oxide synthase; OPR, 12-oxo-phytodienoic acid reductase; PDK1, phosphoinositide dependent kinase-1; PEP, phosphoenolpyruvate; PTEN, phosphatase and tensin homology deleted on chromosome 10; PI3K, phosphatidylinositol 3-kinases; PIP2, PtdIns(4,5)P2; PIP3, PtdIns(3,4,5)P3; PKA, protein kinase A; PKC, protein kinase C; PKCθ, protein kinase C θ; PLC, phospholipase C; Rap1, Ras, small Rap1/Ras-related GTP-binding protein; RasGEF SOS, rat sarcoma guanine nucleotide exchange factor (GEF) son of sevenless; SCF, SKP1/CULLIN/F-box; Smac/ Diablo, second mitochondria-derived activator of caspases; TCA, tricarboxylic acid cycle; TFs, transcription factors; XIAP, X-linked inhibitor of apoptosis protein.
In summary, many studies of the post-harvest senescence mechanisms of horticultural products have been conducted; however, the relevant senescence signals and their transduction mechanisms have not yet been fully clarified. Potential signal transduction pathways must be verified by further experiments. We presume that further in-depth studies will reveal the postharvest senescence mechanisms of horticultural products, which could provide a theoretical basis for exploring better storage and transportation techniques for post-harvest horticultural products.
Citation: Gouda MHB, Zhang C, Wang J, Peng S, Chen Y, Luo H, et al. (2019). ROS and MAPK Cascades in the Post-harvest Senescence of Horticultural Products. J Proteomics Bioinform 13:1. doi: 10.35248/0974-276X.1000508
Received: 09-Jan-2020 Accepted: 10-Feb-2020 Published: 17-Feb-2020 , DOI: 10.35248/0974-276X.1000508
Copyright: © 2020 Gouda MHB, et al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.
