Regulatory T Cells Cease Fire at the Right Place
Immunogenetics: Open Access

Immunogenetics: Open Access
Open Access

+44 1223 790975

Commentary - (2016) Volume 1, Issue 3

Regulatory T Cells Cease Fire at the Right Place

Miao-Tzu Huang1,2,3 and Bor-Luen Chiang1,2,3*
1Department of Medical Research, National Taiwan University Hospital, Taipei, Taiwan
2Department of Pediatrics, National Taiwan University Hospital, Taipei, Taiwan
3Graduate Institute of Clinical Medicine, School of Medicine, National Taiwan University, Taipei, Taiwan
*Corresponding Author: Bor-Luen Chiang, M.D, Ph.D, Department of Medical Research, National Taiwan University Hospital No. 7, Chung-Shan South Rd, Taipei, Taiwan, Tel: +886-2-23123456 Email:


Since the characterization of CD4+CD25+ regulatory T cells (Tregs) as a specific T-cell lineage with immune regulatory function in the 1990s, approaches manipulating Treg expansion and activities have been proved potential therapeutic strategies for immune-mediated diseases. On the other hand, harnessing leukocyte migration during inflammation as a therapeutic modality for immunologic diseases has not only supported by theoretical basis but also clinically shown potential. Whilst advances have been made in the understanding of the effector mechanisms of Treg-mediated immune suppression, the migration phenotypes as well as the anatomic sites where Tregs exert immune regulation remain obscured.
In a recent study by using the foot-pad inflammation model and adoptive Treg-cell transfer, Huang et al. demonstrated that blockage of Treg lymph node localization abrogated the immune suppressive function of Tregs, suggesting an indispensable role of lymph node trafficking in Treg-mediated immune regulation. Important messages have arisen from this study that migration pattern, i.e. lymph node localization vs. tissue trafficking, matters in the context of Treg-mediated immune regulation and Treg-based cell therapy.
Whilst inflammatory response can be regulated by modulating the migration property of inflammatory leukocytes and be a feasible therapeutic modality, the impact of altered Treg migration phenotypes on the overall inflammatory outcome and the effectiveness of therapy of this kind should be taken into account.

Keywords: Regulatory T cells; Immune regulation; Leukocyte migration


Tregs: Regulatory T cells; Teff: Effector T cells; LNs: Lymph Nodes; IBD: Inflammatory Bowel Disease


Therapeutic measures to induce peripheral tolerance have been in the central stage for treatment of various immunological diseases in the past two decades [1,2] and Tregs are the most well-known key player in this novel therapeutic modality [3,4]. Tregs exert immune suppression via direct cell-cell contacts with APC or effector T cells. Although the effector mechanisms underlying Treg-mediated immune regulation have been thoroughly studied (Figure 1A), where the immune suppression takes place in vivo is unclear. It is conceivable that this unsolved issue is crucial for the feasibility and effectiveness of Treg-based cell therapy as well as treatments targeting inflammatory leukocyte migration. Huang et al. investigated the migration characteristics of Tregs by using a shear-stress flow assay and envisaged the relationship between Treg migration phenotypes and their immune regulatory function in a footpad inflammation model [5]. Both anergic T cells generated by CD80/CD86 blockage and FoxP3-expressing Tregs exhibited decreased adhesion to endothelial cells compared to antigenactivated effector T cells. It was speculated that a sessile phenotype rendered Tregs less tissue-trafficking and hence inefficient to suppress inflammation, which suggested the lymph nodes (LNs) as the anatomic site for optimal Treg immune regulation. In accordance with this speculation, inhibition of Treg LN entry by using CCR7 or CD62L blocking Ab abrogated the suppressive effects of adoptively transferred Tregs in footpad inflammation.

Tregs have been recovered from both lymphoid organs and peripheral tissues at either homeostatic state or during inflammation. It is therefore conceivable that Tregs exert immune regulation in both the draining LNs and the peripheral tissues, i.e. at immune induction stage as well as the effector phase of an immune reaction. However, studies of different experimental conditions have yielded contradictory and mutually exclusive results regarding the anatomic sites of optimal Treg immune regulation [6-9]. CD62L and CCR7 are two main molecules orchestrating LN trafficking of leukocytes. Inhibition of CCR7 or CD62L impairs LN trafficking of both inflammatory leukocytes and Tregs. In the context of immune regulation, LN positioning of Tregs has been shown essential for Treg-mediated immune suppression by using CCR7 blockage, in CCR7-deficient mice [10] as well as by CD62L blockage [11,12] . Whist enhanced graft rejection or exacerbated inflammation developed in these animals, the pathology can be rescued by adoptive transfer of Tregs with LNtrafficking ability [13]. Additionally, the essential role of LN trafficking in Treg immune regulation was demonstrated in studies of autoimmune disease which showed that strategic LN positioning of Ag-specific Tregs induced long-term inhibition of autoreactive T-cell expansion in the draining LNs [14,15]. Nonetheless, studies using fucosyltransferase VII-deficient mice have shown an indispensible role of tissue localization in Treg-mediated immune regulation. Deficiency of P-/E-selectin ligands hampered tissue trafficking of Tregs and prevented these cells from mitigating skin inflammation [8]. However, in studied using b7 integrin-deficient mice, impaired Treg tissue localization did not prevent these Tregs from suppressing intestinal inflammation [9]. These seemingly contradictory findings that Tregs regulate immune responses in both the LNs and peripheral tissues plausibly reflect the in vivo scenario that Tregs regulate immune reaction not only at the induction phase of the immune response, but also during the effector stage of the reaction. These findings also uncovered the “division of labor” for Tregs wherein individual Treg subsets are equipped with distinct migration properties [6,8,12]. There are at least two Treg subpopulations identified so far-the naïve-like Tregs that re-circulate through the LNs and the effector-like Tregs that traffic to the inflammatory tissues. The distinct homing/transmigration properties of the Treg subpopulations can be attributed to the differential expression profile of chemokine receptors and adhesion molecules of the particular Treg subpopulation (Figure 1B). It is conceivable that distinct Treg subpopulations are selectively expanded in response to situations that emerge along the course of an inflammatory reaction.

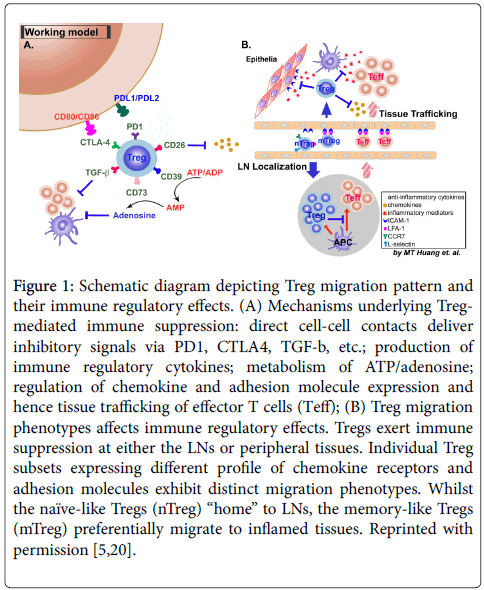

Figure 1: Schematic diagram depicting Treg migration pattern and their immune regulatory effects. (A) Mechanisms underlying Tregmediated immune suppression: direct cell-cell contacts deliver inhibitory signals via PD1, CTLA4, TGF-b, etc.; production of immune regulatory cytokines; metabolism of ATP/adenosine; regulation of chemokine and adhesion molecule expression and hence tissue trafficking of effector T cells (Teff); (B) Treg migration phenotypes affects immune regulatory effects. Tregs exert immune suppression at either the LNs or peripheral tissues. Individual Treg subsets expressing different profile of chemokine receptors and adhesion molecules exhibit distinct migration phenotypes. Whilst the naïve-like Tregs (nTreg) “home” to LNs, the memory-like Tregs (mTreg) preferentially migrate to inflamed tissues. Reprinted with permission [5,20].

Extravasation of leukocytes from the blood vessels and migration into the peripheral tissues are highly orchestrated and crucial processes during immune surveillance and inflammation. It is theoretically feasible that the nature and outcome of an immune reaction, i.e. the elicitation and magnitude of the immune response vs. the induction of immune tolerance, can be achieved by modulating leukocyte migration. Novel therapeutic strategies exploiting blocking antibodies against integrins or integrin ligands to regulate leukocyte migration have been approved for clinical trials of inflammatory bowel disease (IBD) [16,17]. Whilst success have been claimed in some studies, there were reports of aggravated disease in a small population of patients treated with α4b7 Ab (vedolizumab) [18] or β7 integrin Ab (etrolizumab) [19] for ulcerative colitis. Since Treg migration phenotypes affect the effectiveness of their immune suppressive function, it is possible that blockage of integrin-mediated adhesive function inhibited tissue trafficking of not only the inflammatory leukocytes but also the immune regulatory Tregs. The impact of altered Treg migration may override the disease-alleviating effects of decreased leukocyte recruitment that cumulated in exacerbated colitis.

Huang et al. and recent studies have demonstrated the necessity for Tregs to traffic to the right anatomic sites to exert optimal immune regulation. The Treg subpopulations with distinct migration phenotypes, the stage of the immune response that Tregs encounter and the strategies undertaken to combat the disease are decisive factors to favorable outcome. Based on current experiences in therapies by harnessing leukocyte migration in IBD, this therapeutic modality can be potentially applied to other inflammatory diseases. The overall outcome of immune regulation attributed to altered Treg migration phenotypes should be taken into consideration.


We are grateful for the funding of this work from the Ministry of Science and Technology, Taiwan (NSC96-2314-B-002-037-MY3) & National Taiwan University Hospital (NTUH 105-04).

We also thank Ms. Yu-Ka Hsiao for helping with the cartoon drawing.

Conflict of Interest Disclosure

The authors declare no commercial or financial conflict of interests.


  1. Mayer L, Shao L (2004) Therapeutic potential of oral tolerance. Nat Rev Immunol 4: 407-419.
  2. Sakaguchi S, Miyara M, Costantino CM, Hafler DA (2010) FOXP3+ regulatory T cells in the human immune system. Nat Rev Immunol 10: 490-500.
  3. Caton AJ, Weissler KA (2014) Regulatory cells in health and disease. Immunol Rev 259: 5-10.
  4. Huang MT, Lin BR, Liu WL, Lu CW, Chiang BL (2016) Lymph node trafficking of regulatory T cells is prerequisite for immune suppression. J LeukocBiol 99: 561-568.
  5. Huehn J, Hamann A (2005) Homing to suppress: address codes for Treg migration. Trends Immunol 26: 632-636.
  6. Mottet C, Uhlig HH, Powrie F (2003) Cutting Edge: Cure of colitis by CD4+CD25+ regulatory T cells. J Immunol 170: 3939-3943.
  7. Siegmund K, Feuerer M, Siewert C, Ghani S, Haubold U, et al. (2005) Migration matters: regulatory T cell compartmentalization determines suppressive activity in vivo. Blood 106: 3097-3104.
  8. Denning TL, Kim G, Kronenberg M (2005) Cutting Edge: CD4+CD25+ regulatory T cells impaired for intestinal homing can prevent colitis. J Immunol 174: 7487-7491.
  9. Dvalos-Misslitz AC, Rieckenberg J, Willenzon S, Worbs T, Kremmer E, et al. (2007) Generalized multi-organ autoimmunity in CCR7-deficient mice. Eur J Immunol 37: 613-622.
  10. Ochando JC, Yopp AC, Yang Y, Garin A, Li Y, et al. (2005) Lymph node occupancy is required for the peripheral development of alloantigen-specific Foxp3+ regulatory T cells. J Immunol 174: 6993-7005.
  11. Szanya V, Ermann J, Taylor C, Holness C, Fathman CG (2002) The subpopulation of CD4+CD25+ splenocytes that delays adoptive transfer of diabetes expresses L-selectin and high levels of CCR7. J Immunol 169: 2461-2465.
  12. Schneider MA, Meingassner JG, Lipp M, Moore HD, Rot A (2007) CCR7 is required for the in vivo function of CD4+ CD25+ regulatory T cells. J Exp Med 204: 735-745.
  13. Samy ET, Parker LA, Sharp CP, Tung KSK (2005) Continuous control of autoimmune disease by antigen-dependent polyclonal CD4+CD25+ regulatory T cells in the regional lymph node. J Exp Med 202: 771-781.
  14. Wheeler KM, Samy ET, Tung KSK (2009) Cutting Edge: Normal regional lymph node enrichment of antigen-specific regulatory T cells with autoimmune disease-suppressive capacity. J Immunol 183: 7635-7638.
  15. Cominelli F (2013) Inhibition of leukocyte trafficking in inflammatory bowel disease. N Engl J Med 369: 775-776.
  16. Rivera-Nieves J (2015) Strategies that target leukocyte traffic in inflammatory bowel diseases: recent developments. CurrOpinGastroenterol 31: 441-448.
  17. Feagan BG, Greenberg GR, Wild G, Fedorak RN, Pare P, et al. (2005) Treatment of ulcerative colitis with a humanized antibody to the a4b7 integrin. N Engl J Med 352: 2499-2507.
  18. Rutgeerts PJ, Fedorak RN, Hommes DW, Sturm A, Baumgart DC, et al. (2013) A randomised phase I study of etrolizumab (rhuMAb b7) in moderate to severe ulcerative colitis. Gut 62: 1122-1130.
  19. Huang MT, Chen, YL, Chiang BL (2016) Location, location, location-positioning Tregs to the right place at the right time. Inflamm Cell Signal 3: e1267.
Citation: Huang MT, Chiang BL (2016) Regulatory T Cells Cease Fire at the Right Place. Immunogenet Open Access 1: 113.

Copyright: © 2016 Huang MT, et al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.
