Research Article - (2009) Volume 2, Issue 5
Proteomics facilities accumulate large amounts of proteomics data that are archived for documentation purposes. Since proteomics search engines, e.g. Mascot or Sequest, are used for peptide sequencing resulting in peptide hits that are ranked by a score, we apply ranking algorithms to combine archived search results into predictive models. In this way peptide sequences can be identified that frequently achieve high scores. Using our approach they can be predicted directly from their molecular structure and then be used to support protein identification or perform experiments that require reliable peptide identification. We prepared all peptide sequences and Mascot scores from a four year period of proteomics experiments on Homo sapiens of the Proteome Center Tuebingen for training. To encode the peptides MacroModel and DragonX were used for molecular descriptor computation. All features were ranked by ranking-specific feature selection using the Greedy Search Algorithm to significantly improve the performance of RankNet and FRank. Model evaluation on hold-out test data resulted in a Mean Average Precision up to 0.59 and a Normalized Discounted Cumulative Gain up to 0.81. Therefore we demonstrate that ranking algorithms can be used for the analysis of long term proteomics data to identify frequently top scoring peptides.
Keywords: Peptide ranking, Feature selection, Preference learning, Mascot, Sequest, RankNet, FRank, Greedy search algorithm, SMILES, Ligprep.
FTICR-Fourier Transform Ion Cyclotron Resonance;
GSA- Greedy Search Algorithm;
HPLC- High Performance Liquid Chromatography;
MAP- Mean Average Precision;
MRM- Multiple Reaction Monitoring;
MS- Mass Spectrometry;
NDCG- Normalized Discounted Cumulative Gain;
SMILES- Simplified Molecular Input Line Entry Specification;
SVM- Support Vector Machine;
XML- Extensive Markup Language
Proteomics facilities archive data for documentation purposes and may wonder, whether this data can be used to improve their service. Intuitively, their data contains a lot of information about their experimental quality. The problem is that this data originates from diverse experiments and therefore cannot be analyzed as a whole by classical statistics. Statistical tools for classification and regression are often built on the assumption of independent and identically distributed random variables, which does not hold for this data. However, often all these experiments share the same experimental protocol.
In most proteomics experiments proteins are first digested using a specific protease, e.g. trypsin or LysC. After that the resulting peptides are chromatographically separated by High-Performance- Liquid-Chromatography (HPLC) and then detected using mass spectrometry (MS). Then a database search engine, as Mascot or Sequest (Perkins et al., 1999; Yates et al., 1995), identifies possible peptide sequences that could have produced the obtained spectrum. For this task, the search algorithm compares the acquired spectrum with a set of theoretical spectra that were computed from a sequence database. At least one confidence score for each comparison is computed by the search engine, indicating how likely the theoretical spectrum and its peptide have produced the detected one. Using this score to order peptide sequences, a ranking of peptides is obtained for each database search.
Ranking algorithms like RankNet (Burges et al., 2005) or FRank (Tsai et al., 2007) allow to generate predictive models from a collection of rankings. They optimize different loss functions to obtain a ranking model that performs best in reproducing the ordering of all given training input. The input of ranking algorithms consists of a set of rankings, referred to as queries. During training all elements of a query can be directly compared with each other and are examples for the ordering that is learned.
By learning ranking models peptides that frequently achieve top scores can be identified and predicted. These peptides then can be considered as being reliably detectable with high confidence scores. This property was also requested by other prediction approaches as described in other studies (Mallick et al., 2006; Sanders et al., 2007; Webb-Robertson et al., 2008). Since these methods used algorithms for classification, they required training on a curated data set from different facilities, on data obtained from a standardized experiment or on data that was verified by extremely sensitive mass spectrometry. Consequently, the obtained predictors were either not specific for a proteomics facility or required extra costs for calibration and verification experiments. By applying ranking algorithms predictors can be obtained from data that is already available (see Figure 1). These predictive models can help to select those peptides for a focused analysis of proteins, i.e. MRM experiments, or support protein identification within an experimental setting. Also measuring the prediction error over time periods could serve as quality control, since a reliable experimental setup should yield predictable results. To the best of our knowledge ranking algorithms have not been applied for this kind of analysis so far.

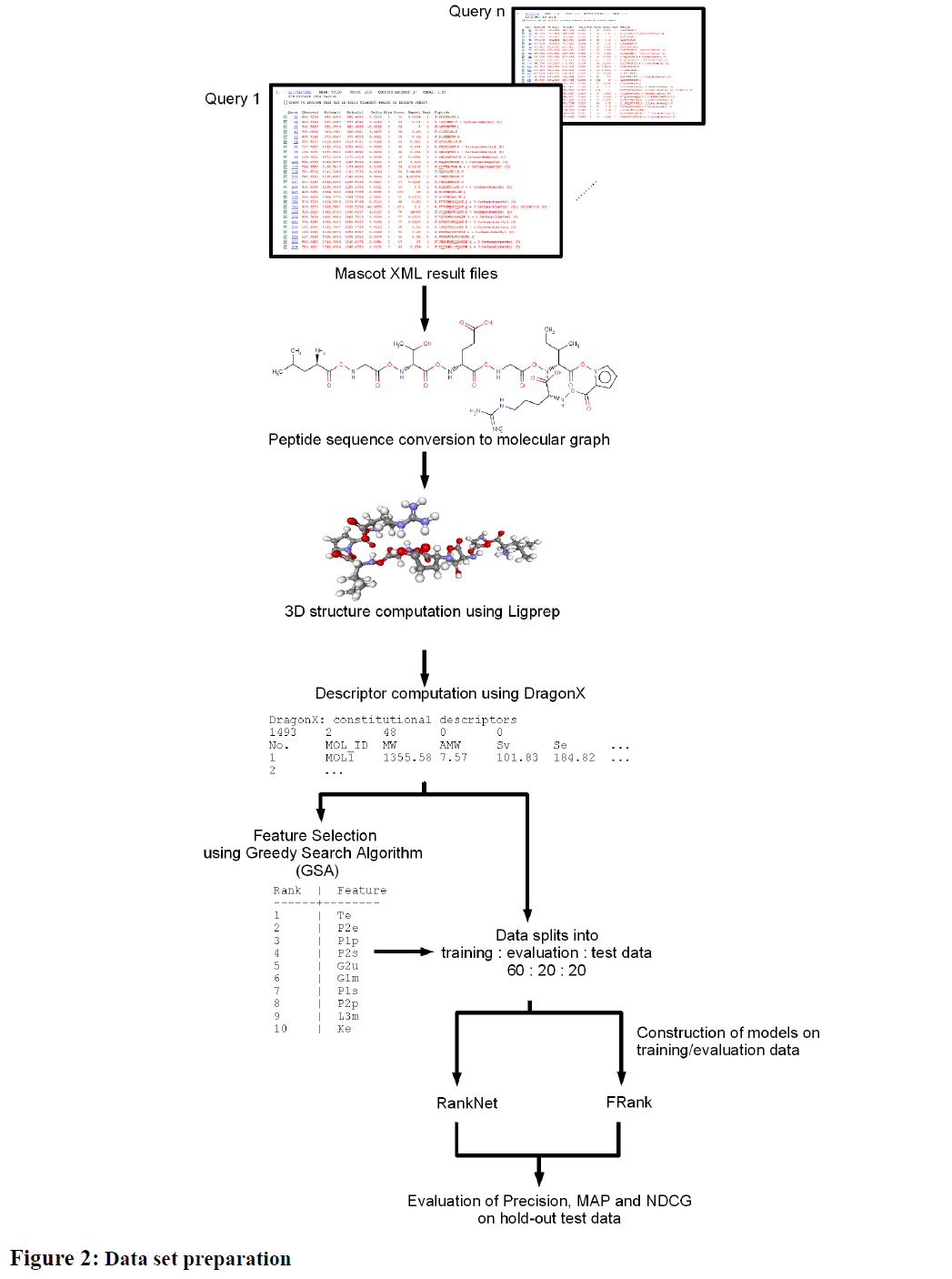

In this paper we demonstrate how ranking algorithms can be used to predict top scoring peptides from a long term data set of Mascot (Perkins et al., 1999) queries (see Figure 2). In our approach peptides are encoded as SMILES (Weininger, 1988) and prepared by MacroModel to compute molecular descriptors using DragonX (Tetko et al., 2005). Then we perform ranking specific feature selection using the Greedy Search Algorithm (Geng et al., 2007) and train RankNet (Burges et al., 2005) and FRank (Tsai et al., 2007) models. Finally the generalization performance is tested on hold-out data sets using the ranking specific evaluation measures precision, NDCG and MAP.
Our goal was the prediction of the search engine ranking directly from the peptide sequences. Therefore, we first extracted the search results from the archived proteomics data, followed by encoding the sequences as molecular graphs. Then feature selection, model training and performance evaluation were carried out. In this order each of these steps is described in the following sections.
The first step in our ranking experiment was to extract and prepare the training data into queries. This data consisted of mass spectra acquired by NanoHPLC-MS/MS on an Ultimate-LC (Dionex, Idstein, Germany) coupled online to a QStar MS (QStar Pulsar i, Applied Biosystems, Darmstadt, Germany). All experiments were carried out for Homo sapiens throughout a four year period by the Proteome Center Tübingen following a similar protocol as described in (Hala et al., 2008). During this time Mascot 2.2 (Perkins et al., 1999) was used to generate the protein identifications. We extracted all database searches encoded as XML files from the Mascot result page using the “Save as XML’’ option and setting the threshold to 0.0 to avoid filtering. Next, we extracted all peptide sequences together with their corresponding Mascot score from each XML file. Each pair of peptide sequence and score was assigned a unique query identifier to distinguish its origin for the ranking algorithm.
For training ranking predictors each peptide sequence was converted into a vector of numerical descriptors representing its molecular graph by DragonX (Tetko et al., 2005). DragonX allows for the computation of 1,664 molecular descriptors for each input structure. These are organized in 20 blocks of different sizes (shown in Table 1) and each block requires a specific level of detail of the input. For example, while the [Constitutional] descriptors count only atom and bond types, the [Geometrical] block requires a refined molecule description including 3D atom coordinates.1 To compare all the different descriptor blocks, each sequence had to be converted into a 3D representation of the peptide.
|Descriptor Block||Block Size||Required Information|
|[Walk and Path Counts]||47||2D|
Table 1 - DragonX descriptor blocks
Overview of DragonX descriptor blocks and the number of corresponding features and dimension of the required information.
This was accomplished by encoding each sequence into a linear Simplified Molecular Input Line Entry Specification (Weininger, 1988) of the molecular graph and then computing atom coordinates using MacroModel from the Schödinger Molecular Modeling Suite. The first step was achieved by replacing each amino acid letter by its substitution SMILES from Table 2. The strings are designed such that a concatenation forms the peptide bond and in this way a valid molecular graph is obtained. Next we applied MacroModel to convert all generated SMILES into the MDL SD file format (Dalby et al., 1992) containing appropriate atom coordinates. For this reason MacroModel was run using the OPLS2005 force field to compute energetically optimized atom positions. After that the SD files were processed by DragonX to compute the molecular descriptor blocks encoding the peptides. Using the generated numerical descriptors, we encoded each peptide sequence within each query for feature selection and training.
|One Letter Code||Substitution SMILES||Amino Acid Name|
Table 2 - Substitution table
Substitution table used to convert one letter code into valid SMILES for MacroModel preparation. Each substitution SMILES is designed such that a concatenation yields a valid peptide molecular graph. Extending this table could facilitate the descriptor generation for modified peptides, e.g. phosphorylations.
To facilitate training and assess the impact of each descriptor, we conducted ranking specific feature selection. We applied a method proposed by Geng et al. (Geng et al., 2007), which is named the Greedy Search Algorithm (GSA). Using this method 10 features from each block were selected, since the [Charge] descriptor block consists only of 14 descriptors. The GSA searches a set of features that is maximal with respect to a scoring function, but also maximizes dissimilarity between the selected features. As scoring function the Mean Average Precision (MAP) with the top 30% of a query to be hits was used. The trade-off parameter c between maximum score and maximal dissimilarity was set to 0.8. To simplify this section, MAP is described in section “performance evaluation’’.
Training Ranking Models
We compared the established ranking models RankNet (Burges et al., 2005) and FRank (Tsai et al., 2007) to set up a performance baseline.
Memory requirements became also an issue when training on the large set of queries and using hundreds of descriptors. So experiments using RankSVM (Joachims, 2002) failed due to the memory requirements of this method, which prevented loading the complete data set into memory. In contrast to RankSVM, RankNet as well as FRank are online learning algorithms that require only scanning through the data without the need to load it completely. Therefore they are capable of handling large data sets.
Both algorithms are iterative gradient descent methods that require a stopping criterion while processing the training data. We implemented both algorithms to control the generalization performance on a hold-out evaluation data set. If the optimized loss function was not decreased on this data under its minimal value within k subsequent steps, the iteration was stopped. For our experiments we chose k to be 30.
To compute the required training and evaluation data sets as well as a hold-out test data set for the model evaluation, we randomly split our encoded queries into 60% training data, 20% evaluation data and 20% test data. The random splits were computed such that no query was divided during this procedure and the available peptide sequences approximated the 60:20:20 distribution.
The neural network RankNet was trained using the configuration in (Burges et al., 2005) having m = 10 hidden neurons for a maximum of 1000 epochs each composed of 100 backpropagation iterations. The step-size parameter η was initially set to 1.0 and was scaled by 1.1 when evaluation performance increased and by 0.9 in the case of a decrease. In this way a significant speed up in training time was achieved. The probability P- that the trained order is correct was set to 1.0.
The boosting method FRank (Tsai et al., 2007) was run to select at least t =10 binary Weak- Learners. Then, further iterations were allowed until the stopping criterion was fulfilled. FRank was initialized with 50 precomputed Weak- Learners per feature that were obtained by selecting equally distributed thresholds over the feature value range.2 The probability P- was set to 1.0 as in the case of RankNet.
Because of the many combinations and long training times, which were on the order of days, we trained five models for each combination of descriptor block, feature selection and ranking algorithm. Training was performed on a computing cluster comprising 24 nodes each composed of AMD Opteron 250 dual-core processors having 2.4 GHz and 6 GB RAM. All ranking algorithms (RankNet/FRank) as well as the feature selection method (GSA) were implemented in Java 1.5. For data preparation a set of PERL scripts was developed. Our software is available for free download at www.ra.cs.uni- tuebingen.de/software/.
We evaluated the precision, the Mean Average Precision (MAP) and the Normalized Discounted Cumulative Gain (NDCG) as ranking-specific performance measures. The NDCG was computed according to (Järvelin and Kekäläinen, 2002) using b = 2 as basis function. Using a gain function, the NDCG measures the fraction of the optimal gain, which is normalized to 1.0, obtained when examining the query at a specific position. Since the queries have different length this position was specified relative to the top of a query. We evaluated the NDCG at the 10%, 20%, 30%, 40% and 50% position of each hold-out test query. Additionally to a specified position in a query, the precision requires also the definition of hits. Hits are the samples of a query that are considered relevant and therefore should be ranked at the top. Similarly to the NDCG positions, we defined the hits to be the top 10%, 20%, 30%, 40% and 50% of a query. Using these position and hit specifications we evaluated the precision at position n of a query, which is defined as
P@n = | hits within top n | / n (1)
The precision reports the fraction of hits, defined as the top fraction of a query, within the top fraction of the predicted ranking. Thus for the precision only positions within the range of hits were considered. Based on the precision the most commonly used performance measure for ranking is the MAP. It averages all precisions with respect to hits and is defined as
MAP = 1 / | number of hits | ∑hit at position i P@i (2)
MAP is a measure of the spreading of hits within the prediction.
Since every ranking method has to deal with the problem of ties, which are samples assigned to the same rank in a query or prediction. To solve this problem we averaged each measure 100 times for randomized orderings of each tie. Finally we averaged all five training replicates on the different test data sets to obtain the final ranking performance.
The aim of this study was to apply ranking methods to identify and predict frequently top scoring peptides for mass spectrometry based proteomics (see Figure 1 and Figure 2). This was achieved by training the ranking models RankNet and FRank on proteomics search engine rankings. To optimize prediction performance we also conducted ranking-specific feature selection using the GSA algorithm.
We used a Homo sapiens experimental dataset and extracted 9,967 peptides as well as the corresponding search engine scores from 915 Mascot XML files containing search results to form queries. Each peptide sequence was converted into a numerical descriptor vector using DragonX (Table 1). This step required the computation of atom coordinates by MacroModel and the conversion of peptide sequences into a molecular graph representation. A flexible method for the latter task was using the substitution Table 2. To reduce computational effort long peptides were filtered out by Ligprep, a wrapper for MacroModel, removing 20% of all peptides and resulting in 7,973 distinct sequences for the remaining experiments. This filtering does only minimally affect our training because long peptide sequences achieve in most cases low Mascot scores due to the limited mass detection range of the QStar MS (m/z < 900).
Next we performed ranking specific feature selection using the GSA algorithm. The results are summarized in Table 3 in which only those blocks are listed, for which subsequently trained ranking models with an optimal generalization error for any configuration of feature selection, ranking algorithm and performance measure were obtained. The column “block usage’’ counts how many optimal models are based on a specific descriptor block. In this statistic each model of RankNet and FRank that was either trained with or without feature selection is considered. Descriptors that are related to electro-chemistry and polarizability are written in bold font, because in former studies these properties were considered to be relevant for mass spectrometry (Mallick et al., 2006; anders et al., 2007; Webb-Robertson et al., 2008).
|Descriptor Block||Block Usage||1.||2.||3.||4.||5.||6.||7.||8.||9.||10.|
Table 3 - Feature selection results
This table shows the selected features from each DragonX descriptor block. Only blocks that were used by best-performing models for at least one evaluation measure are listed. The values in the block usage column count how often a descriptor block is used within Table 4 indicating its importance for model performance. Electro-physical properties are marked by bold font. Asterisks (*) indicate 3D descriptor blocks.
As listed in Table 3 our results show, that three descriptor blocks performed best to train optimal models as indicated by the number in the block usage column. (1) The [Edgeadjacency] descriptor block was best to train optimal models regardless of ranking method and feature selection (block usage 35). This block was followed by (2) the [Topological] block and the (3) the [Functional Group] block with a block usage of 25 and 18, respectively. The [Edge-adjacency] block consists of descriptors that are computed from the adjacency matrix and therefore encode the topology, molecular constitution and connectivity, and they also include information about the molecular dipole moments. The [Topological] block provides information about quantifying molecular topology, which are based on the molecular graph representation encoding chemical information about atom types or bond multiplicity. These features have been designed to be sensitive to size, shape, symmetry, branching as well as cyclicity. Finally, the [Functional Group] contains defined molecule fragments together with information about their hybridization state.
A closer look at the selected features reveals that ranking methods require two kinds of descriptors for good performance: (1) descriptors that are related to the target variable, which in this case are the electro-chemistry related properties. This is supported by the observation that two to three of ten features belong to this category. And (2) descriptors that discriminate between different molecules, which is corroborated by the fact that blocks containing descriptors being sensitive to molecular constitution, e.g. the [Edge-adjacency] block or the [Topological] block, often generate optimal ranking models (see also Table 3 and Table 4).
|(4a) RankNet without feature selection|
|(4b) FRank without feature selection|
|(4c) RankNet with feature selection|
|(4d) FRank with feature selection|
Table 4a to 4d - Prediction results for RankNet and FRank
These tables show the prediction results for RankNet (4a, 4c) and FRank (4b, 4d) with and without feature selection for all evaluation measures. The headings of each table denote the query part considered as hits. The first column contains the evaluation position. The rightmost column shows values for NDCG evaluation, while the bottom row reports the hit-based MAP values. The center of each table lists the precision values for a given query position and top fraction of hits. All overall optimal values for a given measure are marked by bold fonts. Each table shows only the optimal performance for a ranking algorithm trained with or without feature selection.
We only found two 3D descriptor blocks to be useful for model training, the [Geometrical] and the [Whim] block (Table 3). Interestingly, four of ten selected features are related to electro-chemistry, which is similar to the blocks discussed above. To summarize our results we assume that 3D information might improve the training of ranking models to some extend but is neither crucial nor sufficient.
Tables 4a-d summarize the evaluation on hold-out data of the 400 ranking models. The use of RankNet in combination with feature selection achieved the best prediction performance for nearly all measures (table 4c). Interestingly, all these results were obtained by training on the [Edgeadjacency] descriptor block rendering this combination as most useful. We compared our NDCG and MAP values to those achieved on other ranking problems. In (Tsai et al., 2007) MAP values range between 0.13 to 0.25, NDCG values range up to 0.55 and the precision is below 0.4. In comparison we achieve MAP values between 0.14 to 0.59, NDCG values up to 0.81 and our precision is below 0.6. Therefore, our results are 1.5- to 2.5-fold better than those achieved in another study on a web-learning problem (Tsai et al., 2007).
Feature selection using GSA significantly improved the prediction performance of both ranking methods. RankNet (Table 4c) as well as FRank (Table 4d) achieved better generalization errors when trained with feature selection for nearly all measures. This improvement achieved by feature selection ranges up to 5% for RankNet and up to 31% for FRank.
Summarizing our results, we have demonstrated that using a selection of ten [Edge-adjacency] descriptors enables RankNet to efficiently predict top scoring peptides learned from Mascot search results.
Similar studies with alternative experiments were performed and published. A predictor employing Gaussian- Mixture models was used to classify proteotypic peptides from publicly available data sets (Mallick et al., 2006). Their predictor identified reliably detectable peptides for up to 60% of all proteins, but was not specific for an experimental setting. Another approach trains on a specially created data set using a known protein mixture (Sanders et al., 2007). They set a threshold on the identification score to define flyable peptides, being reliably detectable, within this data set to obtain a balanced data set for neural network classification. Their predictor is specific for an experimental setting, but has the drawback to require a standardized experiment for training purposes each time the instrumental setup changes. In a similar way Webb-Robertson et al. train SVM classifiers on a large set of MS identifications that were verified using FTICR MS (Webb-Robertson et al., 2008). This method yields also facility specific classifiers, but requires an additional verification of the training data.
In contrast to all these published methods, our new approach has the clear advantage to analyze the protein identifications made during a time period for learning a ranking function that ranks top scoring peptides. In this way, our approach does not require any kind of additional experiments, while resulting in predictors that are specific for a certain facility. Since these advantages come in with the usage of ranking methods, a direct comparison to classification algorithms is prohibitive due to differences of the learning problem.
This paper applies ranking methods to predict peptide sequences that achieve frequently higher search engine scores without performing additional experiments or needing expensive hardware. By using a SMILES substitution table each peptide sequence was encoded into a molecular graph representation. We evaluated diverse molecular descriptors sets in combination with feature selection and showed that RankNet trained on the [Edge-adjacency] block obtained optimal prediction performance.
Because our approach is independent of the employed proteomics database search engine a training on queries obtained from different search engines or eventually consensus scores could easily be integrated and may result in decreased false-positive rates. Also, our ranking method would not only increase confidence in normal protein identification but would also conduct targeted peptide based experiments, e.g. MRM.
Also, our approach is well suited to address the task of ranking proteotypic peptides having post- translational modifications by incorporation of phosphorylations or oxidations into the substitution table.
Future work should compare other methods for peptide encoding as well as other ranking methods. Additionally, analysis methods could be developed that exploit the structure immanent in rankings, e.g. align ranking predictions with search engine queries to deduce quality statements.
CH designed and implemented the experiment. GH created the SMILES conversion table and supported the usage of MacroModel and DragonX. SJ prepared Mascot results for further processing. JM performed the MS experiments. WS, SJ, AN and AZ critically read the manuscript and supervised experimental design.
