Prevention of whiplash injuries remains an outstanding challenge in vehicle accident research. As yet, there is still uncertainty as to which injury gives rise to whiplash symptoms so diagnosis and mitigation are subject to supposition. The same can be said for whiplash injury mechanisms although some evidence is available. Some studies suggest that having the head turned at impact is one of the risk factors for whiplash. For example, Barnsley et al. [1] suggested a mechanism of injury in which impact to the rear of a vehicle causes an occupant’s head (if it is already slightly rotated), to rotate further before neck extension occurs, pre-stressing various cervical spinal structures and increasing their susceptibility to injury. Sturzenegger et al. [2] assessed 117 patients for long-term whiplash and also found head position to be statistically significant. They postulated as a mechanistic basis that the permitted range of extension of the neck is reduced by half when it is rotated. They also referred to further experiments with cadavers showing that the anterior longitudinal ligament was more liable to rupture when the head was rotated before application of an extension strain to the neck.

Some compilations of accident case files [3,4] have recorded whether occupants were actually turning their heads to the side at the time of impact. Jakobsson [4] concluded that “Sitting posture, such as turned head and increased head to head restraint distance, significantly increases AIS 1 neck injury rates” [5]. Winkelstein et al. [6] suggested that “axial pre-twist of the head and neck increase facet capsular strain and may play a role in the whiplash injury mechanism”. Jakobsson et al. [7] reported that “Occupants responding that they had turned their head (rotated around z axis to any degree) at the time of impact had a statistically significant higher risk of initial as well as persistent neck symptoms compared to those facing straight forward”. Kumar et al. [8] however, struck a precautionary note based on tests of 20 healthy volunteers, not finding evidence that rotation of the head at impact necessarily increases the risk of neck injury-indeed they conjectured that it may be protective. However this notion was not supported by Bunketorp and Elisson [9] who observed that although the study of Kumar et al did not find a greater injury risk when the head was rotated in their summary of electromyographic investigations, their data could only be used to evaluate the muscular reactions, not the load on the cervical spine.

Laboratory tests on specimens of the human spine have also provided mixed results. Maak et al. [10] found that, “The dynamic strains of the alar, transverse, and apical ligaments during impact did not exceed the corresponding non-injurious baseline values” while Siegmund et al. [11] reported that an axial rotation, “Doubles the MPS in the capsular ligament compared to the neutral posture”. They also found that capsular strains during the simulated whiplash exposure with the head turned were not significantly different from the Maximum Principal Strain (MPS) associated with partial failure of the capsule.

Observational studies of head position and posture in vehicles have been undertaken by Parkin at el. [12], Chapline et al. [13] and Park et al. [14]. These three studies featured a relatively large number of subjects but only a snapshot of their seating position at one moment of time that was taken to represent the driver’s normal condition. The relative position of the head and head restraint was measured along the longitudinal axis of the car but no account was made of head rotation in any of the studies. More recently, Jonsson et al. [15] and Shugg et al. [16] used observational recording instrumentation in the car to improve accuracy but also did not measure head rotation.

However, ideally the design of seats, including the head restraint and associated safety technologies, should be optimized across the range of postures that occupants exhibit at the moment of impact. This includes translational movements and rotations of the head. A natural approach to optimizing seat design for a range of conditions is to run computer simulations of the interaction between the occupant and seat under crash conditions thereby obtaining a prediction of the dynamic load on the spine. At present the refinement of numerical models of the occupant to a high level of biofidelity in the spinal region poses a technical challenge; nevertheless with recent work in the area (e.g. Linder [17]) and developments in computing power and digital resources, the capability to evaluate the performance of seats and anti-whiplash technologies using computer simulations will be achieved in the foreseeable future. At this time, to account for head rotation and occupant posture in the design of anti-whiplash systems, it is necessary to have exposure data.

In accordance with this requirement and to promote the ergonomic design of vehicle seats for occupant safety, the aims of this study were therefore;

(a) to describe the position and rotation of drivers’ heads in naturalistic driving under conditions when rear impacts may occur,

(b) to summarize the experimental data in a parametric statistical model suitable for use in computer simulations.

Participants

Nine volunteers were available for the study (Table 1), each of whom drove for around 30-60 minutes through a designated route accompanied by an experimenter. In the first series of trials (subjects 1-4, route 1), travel directions were provided verbally by the experimenter while in the second series (subjects 5-9, route 2) travel directions were provided by a portable navigation device mounted on the dashboard. The volunteers were Loughborough University staff members and associates.

Table 1: Age and sex of subjects in naturalistic driving trials.

Apparatus

The vehicle used for the trials, a 2010 Ford Mondeo sedan, was fitted with three main test instruments: a data logger for speed, acceleration and satellite location (GPS); an eye-tracker (faceLAB™5) for head position and rotation; and a four-track video system.

Driving route

A review of in-depth accident data indicated that occupants in passenger cars most often receive neck strain in rear impacts while stationary or moving relatively slowly in stop-go or congested traffic (Table 2) [18]. This guided the choice of a route for the trials passing through Leicester, England, a city with a population of over 300,000. Following experience that the traffic density on the routes leading into and out of the city was too light to provide conditions relevant to the possible occurrence of a rear collision, the route was shortened to run entirely through the urban and suburban areas of the city.

Table 2: Manoeuvre of vehicles with rear impact resulting in neck strain to occupants (N=344).

Procedure

The duration of the nine driving trials was over 60 minutes for trials 1-4 (route 1) and over 30 minutes for trials 5–9 (route 2). The periods when they were braking or stationary, and therefore considered to be at greater risk of rear impact, lasted around 8–18 minutes across the nine trial runs. The digital readings from the vehicle data logger and the eye-tracker were filtered to periods of interest by categorizing each moment of driving as ‘stopped’, ‘stopping’ or ‘other’. ‘Stopped’ was defined as a continuous period of at least one second when the vehicle speed was under 8 km/h and ‘stopping’ was defined as a period of continuous deceleration leading to being ‘stopped’. The 8 km/h threshold was an arbitrary low speed, comparable to walking pace and consistent with stop-go or slow moving traffic. Sections of the trials where the vehicle was ‘stopped’ or ‘stopping’ were then selected for detailed analysis because of their relevance to whiplash injury.

Operation of the eye-tracker was based on real-time image processing of facial features captured from two rearward-facing cameras mounted on the dashboard in front of the driver. Digital data could be lost when the head was rotated widely to the side or rotated rapidly from side to side disrupting the capability of the device to continuously track facial features. For this reason the analysis of the instrument readings was complemented by a review of the video recording to obtain a qualitative assessment of head movement. Focus was placed on periods of driving when the vehicle was stopped or stopping.

Data was extracted from the eye-tracker as text files and processed using PostgreSQL 9.2.3 and MATLAB R2013a. The data tables included a state variable that registered at each instant whether the image-processing algorithm had fixed on the facial features of the driver. Data readings during moments or periods of time when the algorithm was “searching” for the features were categorized as missing. In addition, preference was given in analysis to statistical parameters such as the median and quantiles that are insensitive to outlying values. The video analysis was conducted in slow-motion replay using a proprietary playback function supplied with the eye-tracker that linked the video frame number to the digital data [19]. Glances to the internal and external mirrors, instrument panel, passenger and exterior were recognized by the direction of the head and detail of the eyes.

Data analysis

The eye-tracker recorded the position and rotation of the head on three axes (relative to the vehicle): longitudinal, lateral and vertical. Of the six resulting parameters, some were correlated in a predictable manner, for example rotation on the vertical axis (looking to the side) was associated with a lateral movement of the face, and leaning sideways associated a lateral movement of the head with a rotation on the longitudinal axis (a sideways tilt). These physically based correlations (which arise for example from the fixation of the base of the spine on the seat cushion) will automatically appear in any computer simulation using a realistic human model. Data analysis was therefore simplified by concentrating on three independent measures with a large range during driving: displacement in the longitudinal and lateral directions and rotation (left-right) on the vertical axis.

In order to use experimental readings for the optimization of seat design using computer simulation, it is convenient to have the data modeled in parametric form. More than 20 forms of statistical distribution were considered, of which the t location-scale distribution stood out for the quality of fit to the experimental results. This distribution has the density function

with gamma function , location parameter μ, scale parameter σ and shape parameter ν [20]. This distribution is considered useful for modeling data distributions that are more prone to outliers than the normal distribution; smaller values of ν yield heavier tails while at larger values of ν the t location-scale distribution approaches the normal distribution.

Further details of the vehicle instrumentation, driving routes, and six measured parameters are provided in Schick et al. [21].

Actual durations of the driving trials are shown in Figure 1. The duration of missing readings (when the eye-tracker was not able to fix on facial features to assess head position and rotation) are outlined at the top of each bar and shaded in yellow where the video was reviewed manually to categorise head movement. The proportion of missing readings varied widely from almost negligible in case 2 to over half in case 6.

Figure 1: Duration of driving trials and vehicle movement for nine subjects. Missing instrument readings are shown in outline and shaded yellow where video reviewed manually.

The median and interquartile range of lateral head position for the nine drivers while their vehicle was stopped or stopping is shown in Figure 2. There was a bias towards the left, i.e. center of the passenger compartment. The interquartile range lies within 0–50 mm left of center for seven of the nine cases and the median value was close to zero (centered) in the other two cases.

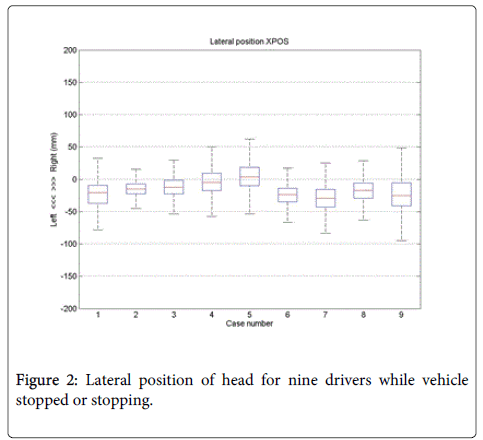

Figure 2: Lateral position of head for nine drivers while vehicle stopped or stopping.

The median and interquartile range of longitudinal head positions for the nine drivers while their vehicle was stopped or stopping is shown in Figure 3. The interquartile range lies within around 25 mm for each subject while the median value varied considerably between drivers reflecting their preferred seating distance from the steering wheel and foot pedals, with subject 8 adopting the most forward position.

Figure 3: Longitudinal position of head for nine drivers while vehicle stopped or stopping.

The position of the head restraint was identified using the eyetracker by asking the subjects to rest their heads lightly against the head restraint for a few seconds before or after each trial run (Table 3). The values recorded are in each case somewhat higher than the recorded range of movement, consistent with the head restraint presenting a physical obstruction to further backward movement. Thus back-set (defined as the distance between the back of the head to the front of the head restraint) could be calculated. While not the focus of this study, back-set is a parameter of traditional interest to seat designers in the context of soft-tissue neck injury. Taking case 1 as an example, the position of the head on the longitudinal axis had a median value of 886 mm while driving and a value of 939 mm while rested against the head restraint; the median value of dynamic back-set was therefore 53 mm.

Table 3: Reference position of head against head restraint for assessment of back-set.

The median and interquartile range of head rotation on the vertical axis (i.e. looking left-right) for the nine drivers while their vehicle was stopped or stopping is shown in Figure 4. The median value varied from close to twenty degrees towards the right (subject 2) to around eight degrees towards the left (subject 5) while the interquartile range varied from around three degrees (subject 2) to fifteen degrees (subject 4).

Figure 4: Rotation of head left-right (degrees) for nine drivers while vehicle stopped or stopping.

In order to use the results presented in Figure 2, Figure 3 and Figure 4 for the optimisation of seat design using computer simulation, it is most convenient to have the data modelled in parametric form. The t location-scale distribution stood out for the quality of fit to the experimental data as mentioned above. It is shown below in comparison with a best-fit normal distribution for a single example that was fairly representative of the recorded data (Figure 5).

Figure 5: Example of modelling the instrument readings with normal and t location-scale distributions: position of head on longitudinal axis (subject 1).

The experimental distributions typically had shorter tails than a Gaussian (normal) distribution. Longitudinal position was more skewed than the other parameters, consistent with the limitation of movement towards the back of the vehicle presented by the head restraint. The parametric values that provided a best fit to the experimental data are presented in Table 4. These can be used directly or adapted for use in computer simulations.

Table 4: Parameters of t location-scale model for head position and rotation while vehicle stopped or stopping.

Approximately 23 minutes of video were manually reviewed for the four drivers with the highest proportion of missing readings while their vehicle was stopped or stopping. This video review clarified the activity of drivers during the periods of missing data within the resources available for the work. Two types of activity were observed to provide the main explanation for the missing data: firstly, rotation of the head beyond the measurable range of the eye-tracker and, secondly, rotation of the head rapidly from side to side, not necessarily beyond the range of measurement of the eye-tracker, but too fast for it to maintain continuous, real-time image processing. These are described as ‘extreme head turning’ (7 minutes) and ‘repeated head turning’ (13 minutes) in Figure 6. The explanation for missing readings in the remaining 2–3 minutes was either ‘other types of head movement’ or ‘unknown’.

Figure 6: Activity of drivers obtained from video review while vehicle stopped or stopping and digital instrument readings not captured.

The median values of lateral head position tended to be left of center and the median values of head rotation were also off-center (non-zero) in several cases. This phenomenon is thought to be real. Subjects were observed to adopt asymmetrical driving postures and sometimes appeared to focus their attention towards objects and activities on the side of the road, especially in urban areas. Furthermore the driver’s side window and door obviously restrict lateral movement in that direction while some of the controls that the driver may reach for while the vehicle is stationary are located on the center console. These asymmetries may have implications for the optimal position and width of the head restraint.

The dynamic measurement of longitudinal head position and, by implication, back-set raises the question of how best to define this important parameter. The median value while driving—the natural choice in this context—may not be identical to the static position taken up on request by subjects in other studies.

The eye-tracker generated a proportion of missing readings across all phases of the naturalistic driving trials for reasons that were fairly well understood, including ambient light fluctuations and physical obstruction of the line of sight between camera and face. Of greatest significance to this study were missing readings due to specific types of head movements because of the bias this could introduce to the results. The video review indicated that in fact two types of conditions are probably under-represented in the digital readings; (a) having the head turned to the side at an angle that is out of the range of measurement of the face-tracker as configured in the trials and (b) a relatively flat distribution of angles from wide left to wide right that is lost because of a rapid speed of motion which is a characteristic of looking in both directions for an opportunity to pull out into a carriageway. It is suggested that these two conditions could be modeled independently in computer simulations as an adjunct to the parameters of the t location-scale model.

A primary aim of this study was to clarify the range of conditions under which seat performance should be optimised to mitigate the risk of neck injury. A further outcome to the study, given that computer models of occupants are under continuing development, is that the results also indicate the range of biofidelity that is desirable in the computer models. To accommodate for example 50% of the range of head movement that drivers exhibit while most likely to incur neck strain in a rear impact, it would on the basis of the information available be necessary to deal with approximately ± 15 mm lateral movement, ± 10 mm longitudinal movement and ± 7.5 degrees leftright rotation of the head.

The degree of variation between subjects particularly exemplified in Figure 3 and Figure 4 and summarized in Table 4 was not known until the experimental program had been carried out. It was considered statistically inadvisable to combine the cases into a group analysis on the present number of cases given the level of inter-subject variability and the unequal duration of ‘stopped or stopping’ periods in the naturalistic driving trials. It is suggested that when the statistical parameters of the t location-scale model are used in computer simulation to appropriately randomise the position of the driver’s head at impact, a choice should be made at that stage whether to optimise the seat for one or two representative drivers or across the full range of variation indicated by this study.

The core results of the seat posture driving trials ultimately derive from nine subjects driving a single vehicle on two routes through a single city for 75 minutes. It would be unsafe to recklessly extrapolate the findings to a wider population of drivers, vehicles, routes or cities. However, the value of this study lies in sketching the outlines of a picture about which little or no information was previously available: quantifying the range of head movement as a risk factor for whiplashassociated disorders among car drivers under traffic conditions when a rear impact could occur. The degree of similarity among the subjects lends a qualified confidence to the expectation that the results would be consistent with the outcome of a wider, deeper or more diverse study.

Of the three parameters described in detail, lateral head position demonstrated most uniformity of median value and interquartile range for the nine subjects; longitudinal position showed uniformity of the interquartile range but wide differences in the median value; while left-right rotation showed considerable differences in both the median value and interquartile range. Incorporating these three main independent movements into a computer model of a seated human body or crash test dummy using the statistical parameters provided would produce an effective first-order simulation of a driver’s posture while in control of a vehicle. This would include posture under traffic conditions associated with a risk of soft-tissue neck injury from rear impact. Data would enable the design of seats to be optimised for the mitigation of whiplash taking into account head position and rotation as an aggravating risk factor.

Technical improvements for future studies of this type should aim at a reduction in the proportion of missing readings from the eyetracker and an increase in its range of measurement, particularly sideto- side rotation. A larger sample of drivers, vehicles and routes would be beneficial in future research to consolidate the pioneering results of this study and to obtain a more detailed correlation of head position with specific vehicle manoeuvres and traffic situations.
