Number of Cysteine Interactions with the Activity in GRX Family
Journal of Proteomics & Bioinformatics

Journal of Proteomics & Bioinformatics
Open Access

ISSN: 0974-276X

+44 1223 790975

Research Article - (2017) Volume 10, Issue 4

Number of Cysteine Interactions with the Activity in GRX Family

Wafa Ali Eltayb1, Mohnad Abdalla1,2*, Abdus Samad1, Amr A EL-Arabey1, Ghanam AR1 and Waleed A Almahi1
1School of Life Sciences, University of Science and Technology of China, Hefei, Anhui 230027, People’s Republic of China
2Faculty of Science and Technology, Omdurman Islamic University, Sudan
*Corresponding Author: Mohnad Abdalla, School of Life Sciences, University of Science and Technology of China, Hefei, Anhui 230027, People’s Republic of China, Tel: +86-13956041597

Abstract

Grx families are small proteins that are present in eukaryotic and prokaryotic organisms, and in a few viruses, most species have several glutaredoxin isoforms. This study primarily aims a comparative analysis on the duplication of amino acids and its effect on protein function and interaction with the active site. The second active-site cysteine or non-catalytic cysteine affects the reactivity of the catalytic cysteine. Most of the proteins can form an intramolecular the disulfide between cysteines of the two active sites, which could play the role of a protective mechanism for the cell. The non-catalytic cysteine is unnecessary for deglutathionylation reaction or a true catalytic intermediate formed during the reduction of particular disulfide substrates or in particular conditions or compartments where glutathione levels are insufficient to support Grx regeneration. However, all these factors can be influenced by differences in the expression pattern and subcellular localization.

Keywords: Cysteine;Grx;Glutaredoxin;Active-site;Dithiol;Monothiol

Introduction

Glutaredoxins (GRXs or GLRXs) tend to be little pervasive oxidoreductases that belong to the Thioredoxin (Trx) superfamily and commonly contain a CxxC/S active-site motif. By utilizing reduced Glutathione (GSH) as reductants, as well as an NADPH-dependent Glutathione Reductase (GR), Grxs have the ability to reduce the disulfide bridges or glutathionylateproteins [1].

In the whole life kingdom, there are various Grx isoforms that could be categorized into three unique subgroups. The first type, which consists of Grxs along with C[P/G/S][Y/F][C/S] motifs, is actually homologous to the conventional Dithiol Grxs such as Yeast Grx1 and 2, Escherichia coli Grx1 and 3, and mammalian Grx1 and 2. The second type has a conserved CGFS active-site sequence consisting of Grxs homologous to E. coli Grx4 and yeast Grx3, Grx4, and Grx5. The third type specially exists in plants containing a CC[M/L][C/S] active site [2,3]. Glutaredoxins and thioredoxin follow two distinct reaction mechanisms that require either one or two cysteines in the active-site motif.

Among all organisms, higher plants have a huge number of genes coding for Grxs [4], while a Drosophila melanogaster and Saccharomyces cerevisiae have only a limited number of Grxs family members (Figure 1).

proteomics-bioinformatics-Grx-proteins

Figure 1: Distribution of Grx proteins in some species.

Glutaredoxins tend to be evolutionarily conserved; glutathione-dependent oxidoreductases are vitally implicated in the maintenance of cellular redox homeostasis [5].

Knowledge about the Grx family is expanding progressively day by day. At the time of writing this review, PubMed listed approximately 1518 entries for glutaredoxin. This study focuses on comparative analysis of the duplication of amino acid in the active site and explains how it affects the active site and protein function.

Method

All the data presented here was collected from the PDB and UniProt database, while the multalin sequence created by ClustalW.

Grx Multiple Sequence Alignment

Figure 2 Grx sequences have been shortened to about 25 amino acids in front of the active site and about 70 amino acids beyond the active site (blue). This keeps the active site and the GSH-binding site intact. In addition, this removes any existing N-terminal signal peptides, after the arrival of Grxs to their destinations. So they do not have any direct impact on Grx function. TVP (green) and GG (red) motif take part as the interface in the substrate GSH and also interact with GSSG, while the pink motif denotes are positively charged residues.

proteomics-bioinformatics-sequence-alignment

Figure 2: Grx multiple sequence alignment.

Glutaredoxins are redox proteins and divided into two subclasses: Dithiol and Monothiol. Several Grxs have been shown to form iron-sulfur cluster belonging to both the classes, depending on the presence of one or two cysteines in the active site (CGFS and CPYC). The Dithiol Grx homodimer is proposed to act as a sequestration form and its iron-sulfur cluster as an oxidative stress sensor. While the Monothiol Grx homodimer has been suggested to serve as a scaffold for iron-sulfur cluster delivery [6], different Grxs have a different number of Cys in their sequence (Table 1). Most of the tetramers and dimers have one or two Cys while most of the monomer has more than three Cys. Human GLRX5 has a single cysteine in its CGPS active-site motif; it has been shown to have thiol reductase activity, while the 2nd cysteine Cys-117 is essential for the catalytic activity [7]. Human GLRX2 known to form an iron-sulfur containing dimer, in addition, mutation of non-catalytic cysteine residues annul dimer formation during recombinant bacterial expression, and for these reasons, the non-catalytic cysteine has been suggested to mediate dimerization by coordinating the iron-sulfur cluster [8]. In the situation of a more oxidizing environment, an excessive redox potential for the viral glutaredoxin would be needed to ensure that a major fraction of the enzyme dwells in the active reduced state; in this case, a related adaptation may be the loss of three non-catalytic cysteine residues that are conserved in most mammalians. In humans, Grx-1, Cys8, Cys79, and Cys83 have been suggested to play a redox-sensitive regulatory role. Cys8 and Cys79 are surface-exposed and oxidation of Cys8 has been shown to decrease the lifetime of human Grx-1 due to disulfide-linked aggregate formation [9].

PDB ID Title Oligo State Ligands Active-site motif Organism N. Cys
2cq9 GLRX2 protein Monomer None CSYC Homo sapiens 4
3d4m Glutaredoxin-2, mitochondrial Monomer None CPYC Saccharomyces cerevisiae 2
2fls Glutaredoxin-2 Monomer 1 × GSH CSYC Homo sapiens 4
3d5j Glutaredoxin-2, mitochondrial Monomer 1 × GSH CPYS Saccharomyces cerevisiae 1
2e7p Glutaredoxin Homo-tetramer 4 × GSH, 1 × FES CGYC Populus tremuloides 3
2ht9 Glutaredoxin-2
3.05
Hetero-oligomer 2 × GSH, 1 × FES CPYS Homo sapiens 1
3ctg Glutaredoxin-2 Monomer None CPYC Saccharomyces cerevisiae 2
1z7r Glutaredoxin Monomer None CGYC Populus tremuloides 3
3c1s Glutaredoxin-1 Monomer 1 × GSH CPYC Saccharomyces cerevisiae 2
3rhc Glutaredoxin-C5, chloroplastic 2.57 Homo-dimer 2 × GSH, 1 × FES CSYC Arabidopsis thaliana 4
1jhb GLUTAREDOXIN Monomer None CPYC Homo sapiens 5
4rqr Glutaredoxin-1 Monomer 2 × COM CPYC Homo sapiens 5
1z7p Glutaredoxin Monomer None CGYC Populus tremuloides 3
3d5j Glutaredoxin-2, mitochondrial Monomer 1 × GSH CPYS Saccharomyces cerevisiae 1
2jac. GLUTAREDOXIN-1 Monomer 1 × GSH CPYS Saccharomyces cerevisiae 1
3c1r Glutaredoxin-1 Monomer 1 × MES or
1 × GSH
CPYC Saccharomyces cerevisiae 2
1kte Thiol transferase Monomer None CPFC Sus scrofa 4
3fz9 Glutaredoxin S12 Monomer 1 × GSH CSYS Populus tremula x 2
3qmx Glutaredoxin Monomer None CPFC Synechocystis sp. 4
2hze Glutaredoxin Monomer None CPFC Ectromelia virus 3
3ipz Monothiol glutaredoxin-S14 Monomer None CGFS Arabidopsis thaliana 3
1aaz T4 glutaredoxin Monomer 2 × CD CVYC Enterobacteria phage t4 sensu lato 2
2wul GLUTAREDOXIN RELATED PROTEIN 5 Homo-tetramer 4 × GSH, 2 × FES CGFS Homo sapiens 2
3gx8 Glutaredoxin-5 Monomer None CGFS Saccharomyces cerevisiae 2
3msz Glutaredoxin 1 Monomer 1 × CAC, 1 × GSH CPYC Francisella tularensis 2
2wci GLUTAREDOXIN-4 Homo-tetramer 4 × GSH, 2 × FES CGFS Escherichia coli 2
2yan GLUTAREDOXIN-3 Monomer 1 × GSH, 1 × FE CGFS Homo sapiens 1
3zyw Glutaredoxin(Glrx3) Monomer None CGFS Homo sapiens 3
5j3r Glutaredoxin-6 Dimer 2 × GSH, 1 × FES CPYS Saccharomyces cerevisiae 1
Cacodylate dimethylarsinate (Synonym) (CAC), Glutathione (GSH), Cadmium (CD), 2-(N-Morpholino) Ethanesulfonic acid (MES), Thioethanesulfonic acid (COM).

Table 1: Comparison between Grx families member.

It has been reported that human Grx1 consists of extra active-site cysteines (Cys3) and oxidative treatment led to the identification of several possible post-translational modifications. Disulfide-bonded dimers and oligomers, intramolecular disulfide, glutathione adducts, and nitrosylation play a role in inhibition [10]. Cys3 was found to be either glutathionylated or nitrosylated or involved into a disulfide bond formation. Similarly, redox changes occur of plant GrxC1 and C2 upon treatment with oxidants that could further provide clues about the possible function of this cysteine. In the presence of H2O2, this cysteine was found to be involved in disulfide-bridged homodimers, while in the presence of GSSG or GSNO, Cys3 is prone to oxidative modification, but in the form of a glutathione adduct [4].

Poplar GrxC1 have four chains A, B, C and D. Chains B and D do not directly interact with the [2Fe–2S] cluster but serve to stabilize the tetramer structure [11]. The cluster was not observed in the poplar Grx C1 C31S variant, showing that the catalytic cysteine (Cys-31) is likely to be a cluster ligand; at the same time, both Cys-34 and Cys-88 play a role in stabilizing the [2Fe–2S] cluster against oxygen degradation. The Cys-28 in addition to Cys-113 in human Grx2 perhaps has a structural role that assists Fe–S cluster assembly instead of providing cluster ligands [11].

In plants GrxC1 and GrxC2 and other eukaryote Grxs, the mutation of the second cysteine (Cys2) increased their activity. The data indicates that the presence of Cys2 slows down the reaction for some reason. It was found that mutation could not affect the activity of plant GrxC3 and GrxC4 [4]. Structural analysis of AtGRX displayed that Cys172 is existing in the α5-helix in the C-terminus. On the molecular surface form an intermolecular disulfide bond with Cys172 of a symmetry-related Grx molecule [9].

E. coli Grx-1 structure demonstrates the covalent intermediate of disulfide reduction by glutaredoxin together with a mixed disulfide between Cys11 of the enzyme and Cys75 of the peptide. Cys14 and Cys75 were mutated to serine to obtain a stable complex [9]. Accumulating evidence shows that Monothiol Glutaredoxins are essential both in yeast and E. coli. Their conserved appearance in higher order genomes proposes that any rife functionality in this subfamily is most likely for fundamental biological mechanisms [12]. With the Presence of three cysteines in E. coil Grx4; glutathione should be attached to the cysteine in the CXFX tetrad. The remarkable surface conservation among Monothiol proposes that they are all able to employ the same cysteine to form a mixed disulfide with glutathione [13]. It has been noted that the presence of Cys60 and Cys117 in yeast Grx5 resulted in a higher reactivity of the protein toward GSSG [14].

In monothiol glutaredoxins with only one cysteine in addition to that in the CXFX tetrad, a structural change on glutathionylation could encourage mixed disulfide formation with specific targets or in oligomerization events [13]. John and Bart suggest that the replacement of three non-catalytic cysteine residues that are conserved in many mammalian sequences prevents enzyme inhibition in oxidizing environments [15]. Li et al. [9] in comparative studies denote that the active-site motifs in monothiol Grxs are quite likely to be flexible and some conformational changes may occur when a ligand binds to an enzyme. While more of amino acids similar to the active site may make several conformational changes.

From an evolutionary point of view, it is spectacular to observe that the monothiol Grxs show a high degree of homology when compared with the Dithiol Grxs. Proteins having mono cysteine are unable to execute the whole reduction of a disulfide group. They are able to raid a disulfide bridge of model proteins in vitro, creating a stable intermediate complex. When the positivity and negativity of non-catalytic cysteine residues are similar to what is in the active site, it will be more difficult to crystal and also it will affect the probability of FES linkage, conformational changes, post-translational modifications, and so on.

Grx Domain Distribution

CGFS and CPYC domains are the most common domains in Grx family (Figure 3). Grx CGFS and CPYC domain might be combined as multidomain with Frataxin-Rhodanese, thioredoxin, Peroxiredoxin domain, pyridine nucleotide-disulfide oxidoreductases, and peptide methionine sulfoxide reductase as well as to other less characterizing protein domains, while Grx CCMC domain is found as a single domain in higher plants. This indicates that Grx widespread function and somehow shares the same function in different stages of the same biological process. Also, the genomes of some organisms encode larger proteins with Grx domains that need to be characterized.

proteomics-bioinformatics-UniProt-database

Figure 3: Classification of Grx domains based on the UniProt database.

Grx Average Temperature Factor

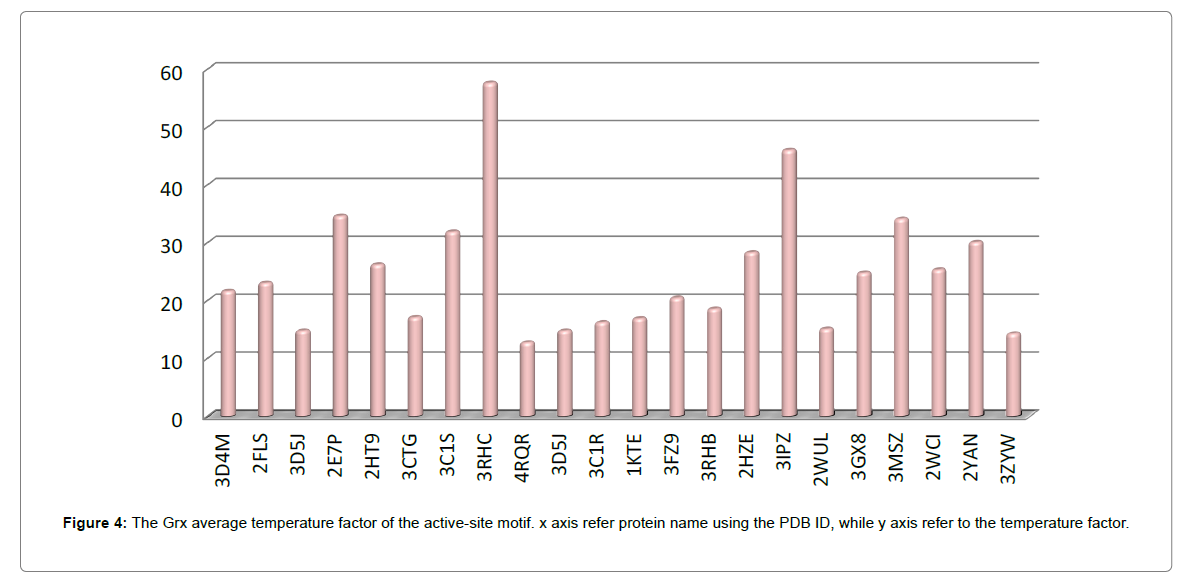

This Grx average temperature factor of the active-site motif (Figure 4) suggests that the conformation of the active-site motif in Grx has higher B factor and is less stable, which agrees with our conclusion that the active-site motif in monothiol Grxs is more flexible.

proteomics-bioinformatics-average-temperature

Figure 4: The Grx average temperature factor of the active-site motif. x axis refer protein name using the PDB ID, while y axis refer to the temperature factor.

Acknowledgements

A. R. Ghanam and Waleed A Almahi, is a recipient of Chinese Scholarship Council (CSC), Mohnad Abdalla, Wafa Ali Eltayb, Abdus Samad, Amr A EL-Arabey, is a recipient of CAS-TWAS President's PhD Fellowship. The authors declare that they have no conflicts of interests.

References

  1. Subramani J, Kundumani-Sridharan V, Hilgers RH, Owens C, Das KC (2016) Thioredoxin Uses a GSH-independent Route to Deglutathionylate Endothelial Nitric-oxide Synthase and Protect against Myocardial Infarction. J Biol Chem 291: 23374-23389.
  2. Abdalla M, Dai YN, Chi CB, Cheng W, Cao DD, et al. (2016) Crystal structure of yeast monothiol glutaredoxin Grx6 in complex with a glutathione-coordinated [2Fe–2S] cluster. Acta Crystallogr F Struct Biol Commun 72: 732-737.
  3. Li S (2014) Redox Modulation Matters: Emerging Functions for Glutaredoxins in Plant Development and Stress Responses. Plants (Basel) 3: 559-582.
  4. Couturier J, Jacquot JP, Rouhier N (2013) Toward a refined classification of class I dithiol glutaredoxins from poplar: biochemical basis for the definition of two subclasses. Front Plant Sci.
  5. Holmgren A, Johansson C, Berndt C, Lönn ME, Hudemann C, et al. (2005) Thiol redox control via thioredoxin and glutaredoxin systems. Biochem Soc Trans 33: 1375-1377.
  6. Iwema T, Picciocchi A, Traore DAK, Ferrer JL, Chauvat F, et al. (2009) Structural basis for delivery of the intact [Fe2S2] cluster by monothiol glutaredoxin. Biochemistry 48: 6041-6043.
  7. Johansson C, Kavanagh KL, Gileadi O, Oppermann U (2007) Reversible sequestration of active site cysteines in a 2Fe-2S-bridged dimer provides a mechanism for glutaredoxin 2 regulation in human mitochondria. J Biol Chem 282: 3077-3082.
  8. Lillig CH, Berndt C, Vergnolle O, Lönn ME, Hudemann C, et al. (2009) Characterization of human glutaredoxin 2 as iron-sulfur protein: a possible role as redox sensor. Proc Natl Acad Sci USA 102: 8168-8173.
  9. Li L, Cheng N, Hirschi KD, Wang X (2010) Structure of Arabidopsis chloroplastic monothiol glutaredoxin AtGRXcp. Acta Crystallogr D Biol Crystallogr 66: 725-32.
  10. Hashemy SI, Johansson C, Berndt C, Lillig CH, Holmgren A (2007) Oxidation and S-nitrosylation of cysteines in human cytosolic and mitochondrial glutaredoxins: effects on structure and activity. J Biol Chem 282: 14428-14436.
  11. Rouhier N, Unno H, Bandyopadhyay S, Masip L, Kim SK, et al. (2007) Functional, structural, and spectroscopic characterization of a glutathione-ligated [2Fe-2S] cluster in poplar glutaredoxin C1. Proc Natl Acad Sci USA 104: 7379-84.
  12. Fernandes AP, Fladvad M, Berndt C, Andrésen C, Lillig CH, et al. (2005) A novel monothiol glutaredoxin (Grx4) from Escherichia coli can serve as a substrate for thioredoxin reductase. J Biol Chem 280: 24544-24552.
  13. Fladvad M, Bellanda M, Fernandes AP, Mammi S, Vlamis-Gardikas A, et al. (2005) Molecular mapping of functionalities in the solution structure of reduced Grx4, a monothiol glutaredoxin from Escherichia coli. J Biol Chem 280: 24553-24561.
  14. Ströher E, Grassl J, Carrie C, Fenske R, Whelan J, et al. (2016) Glutaredoxin S15 Is Involved in Fe-S Cluster Transfer in Mitochondria Influencing Lipoic Acid-Dependent Enzymes, Plant Growth, and Arsenic Tolerance in Arabidopsis. Plant Physiol 170: 1284-1299.
  15. Bacik JP, Hazes B (2007) Crystal structures of a poxviral glutaredoxin in the oxidized and reduced states show redox-correlated structural changes. J Mol Biol 365: 1545-1558.
