Influence of Carrying Loads on Ratings of Perceived Exertion and
Journal of Ergonomics

Journal of Ergonomics
Open Access

ISSN: 2165-7556

+44 1300 500008

Research Article - (2016) Volume 6, Issue 5

Influence of Carrying Loads on Ratings of Perceived Exertion and Heart Rate during Walking

Siddhartha Sen*
Punjabi University, Patiala, India
*Corresponding Author: Siddhartha Sen, Research Scholar, Punjabi University, Patiala, India, Tel: 919412985124 Email:

Abstract

Introduction: There is evidence that schoolbags may be a contributing factor for musculoskeletal complaints in schoolchildren. Several studies have reported an association between carrying heavily loaded schoolbags and pain or discomfort. Methods: 105 collegiate students were conveniently recruited in this study; heart rate (HR) and perceived exertion were measured immediately after the treadmill walking with the back pack, right side pack and left side pack. Subject has to walk for 20 min after that the HR was measured using pulse oximeter and perceived exertion was measured using Borg’s RPE scale. Results: It showed there is a significant increase in RPE with right side pack, with left side pack and with back pack after treadmill walking. Conclusion: Ratings of Perceived Exertion (RPE) increased after treadmill walking with carrying load in right side pack, left side pack and back pack.

Keywords: Side pack; Back pack; Perceived exertion; Heart rate

Introduction

The backpack and side pack is one of the various forms of manual load carriage that provides flexibility in load carrying and is often used by the soldiers, school children as well as by the college students [1]. Backpack carriage is common among adults, collegiate students, schoolchildren and adolescents for daily transferring of personal belongings, laptops, books and stationeries to and from offices, colleges or schools. As the load of backpack is directly applied to the spine via the shoulder straps and external loading has been demonstrated to be associated with spinal disorders [2]. De Paula et al. [3] found that a significant number of students carry backpacks weighing more than 10% of their BWs most of the time. This heavy stress puts the student at an increased risk of injury [4].

There is evidence that schoolbags may be a contributing factor for musculoskeletal complaints in schoolchildren [5]. Several studies have reported an association between carrying heavily loaded schoolbags and musculoskeletal pain or discomfort [6]. Load carriage has been associated with an increased risk of musculoskeletal disorders in the back and upper and lower limbs in recreational hikers [7] with females suffering significantly higher injury rates than males when participating in the same hiking activities in outdoor education [8].

Backpack carried by collegiate students and their role in the development of musculoskeletal pain has been the subject of recent attention [9] and reducing backpack weight has been suggested as one prevention strategy to reduce hiking-related injury [10] with previous research recommending a 30% body weight (BW) as the maximum load for healthy adult males [11]. If it is necessary to carry loads more than 10% of BW, the modified backpack helps the integrity of the back and neck. Also, it helps to reduce muscular stresses on the back when the backpack exceeds the lifted weight of 10% of student’s BW. Therefore, the use of the modified backpack is better than to use the commercial one [12].

Backpack straps often compress the anterior part of the shoulder, situated in the region over the brachial plexus, axillary artery and vein [13]. Therefore, if compression of these tissues occurs it may affect hand/arm circulation and sensation. One study found that a third of backpackers report transient upper extremity paresthesias [14]. In some occupational categories, upper extremity and hand function is required to perform work while donning a heavy backpack. Therefore, reduced sensation and blood perfusion in the hand could impair task function.

Furthermore, several studies observed that carrying a heavy backpack causes a decrease in walking speed [15], a decrease in walking time [16], an increase in cardiorespiratory responses an increase loads on lumbar intervertebral discs [17], an increase in trunk forward lean [18] and an increase in foot-ground forces [19].

At present, however, community-based therapists are reporting an increase in the number of students requiring treatment for musculoskeletal injuries and discomfort [20]. This increase in the number of students as patients has been suggested to be related to students’ increased use of computers. It is evident that a lot of research work has been done related to back pack and RPE but there is a paucity of research linking the involvement with side pack in their perceived exertion during walking, thus there is a need to do a work on that specific aspect. The purpose of the study is to find out the changes in perceived exertion after treadmill walking with backpack and side pack.

Methodology

Participants

105 collegiate student form Sardar Bhagwan Singh (PG) Institute of Biomedical Sciences and Research, Balawala, Dehradun were conveniently recruited in this study. The detailed protocol of the research was explained and consent of every subject was taken prior to their inclusion in the study. The whole research was approved by the human subjects ethics review committee at the Punjabi University, Patiala, India. Healthy collegiate students of both male and female with age group of 17-25 years who carry their back pack/side pack at least two hours a day were included and subjects with history of any trauma and history of any cardiovascular conditions were excluded from the study.

A Custom made double-strap backpack was used in this study. An internal aluminum frame covered with rigid plastic material was used and position the center of gravity of the backpack approximately at the participant’s T12 level [21]. Weights were attached to the custom made back pack about the midline of the backpack until the overall weight of the backpack was 10% [15] of the participant’s BW. The lengths of the backpack straps were adjusted according to the participant’s comfort at the beginning of the experiment to minimize the effect on the pulmonary function [22].

HR and perceived exertion were measured immediately after the treadmill walking with the back pack and side pack. Subject has to walk for 20 min after that the HR was measured using pulse oximeter and perceived exertion was measured using Borg’s RPE scale. The data were recorded in back pack, right side pack and left side pack in different days.

Measurement of heart rate

Every subject was undergone treadmill walking to find out the muscular activity and exertion. Subject walked for 20 min at a speed of 4-5 km/hour with the right side pack then immediately after walking HR was measured using pulse oximeter. The pulse oximeter was placed in the index finger of the subjects and wait for readings. The digital screen will display the heart rate. The whole procedure was repeated with left side pack and back pack.

Measurement of Borg’s Ratings of Perceived Exertion (RPE)

The Borg’s RPE scale was used to assess whole body perceived exertion during treadmill exercise. Before the treadmill walking, all participants were read standardized instructions. [23] The low and high perceptual anchors for the RPE scale were established during the maximal treadmill walking exercise test. A rating of 6 (low anchor) was assigned to the lowest exercise intensity, whereas a rating of 20 was assigned to the highest exercise intensity [24]. The meaning of the perception of physical exertion was initially explained; this was defined as an intensity exertion, discomfort, stress, or fatigue that the individual feels during exercise. The following specific instructions were read to participants: “Please use this scale to translate into numbers your feelings of exertion while exercising. The numbers on the scale represent a range of feelings from very, very light to very hard. To help you select a number that corresponds to your feelings regarding the exercise, consider the following: When the exercise exertion feels very, very light, respond with a number 7. For example, you should respond with a number 7 when you are walking very slowly on the treadmill. When the exercise exertion feels very, very hard, respond with a number 19. For example, a response of 19 is appropriate when your feelings of exertion are the same as when you run on a treadmill almost as fast and hard as you can. If your exercise feelings are less intense than very, very light, respond with a number 6, and if your feelings are more intense than very, very hard, respond with a number 20. When you rate your overall exertion, be sure to select the number that most accurately represents your whole body’s feelings. If the exercise exertion feels somewhere between very, very light (RPE 7) and very very hard (RPE 19) then you should give a number of between 7 and 19.” The RPE values were recorded during the last 15 seconds of each minute throughout the treadmill walking test [25].

Data analysis and result

Paired sample t test was done to find out the changes of HR which was measured before and after treadmill walking and the result showed significant differences in all types of pack viz. right side pack, with left side pack and with back pack. When comparison of HR readings was done between different pack before and after treadmill walking, the result showed non-significant differences between right side pack and left side pack, and right side pack and back pack and significant differences between left side pack and back pack before treadmill walking. After treadmill walking results showed significant differences when compared between right side pack and left side pack, and left side pack and back pack (Tables 1 and 3 and Figures 1 and 3).

  Minimum Maximum Mean SD
Age 18.00 28 22.15 1.94
Height 150.00 188 164.54 7.73
Weight 40.00 78 65.23 7.53

Table 1: Demographic Statistics.

  Mean ± SD SEM t-value p-value Significant
Pre post
Right Side Pack 6.35 ± 0.48 10.66 ± 1.97 0.1713 25.178 0.0001 S
Left Side Pack 6.19 ± 0.39 10.74 ± 2.10 0.1815 25.074 0.0001 S
Back Pack 6.17 ± 0.37 10.09 ± 1.99 0.1710 22.943 0.0001 S

Table 3: Comparison of RPE (Rating of Perceived Exertion) Readings of right side and left side with different packs

ergonomics-Mean-Comparison

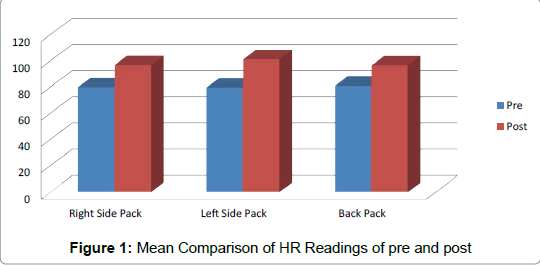

Figure 1: Mean Comparison of HR Readings of pre and post.

ergonomics-Perceived-Exertion

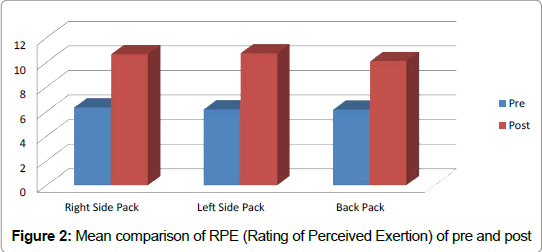

Figure 2: Mean comparison of RPE (Rating of Perceived Exertion) of pre and post.

ergonomics-Different-Pack

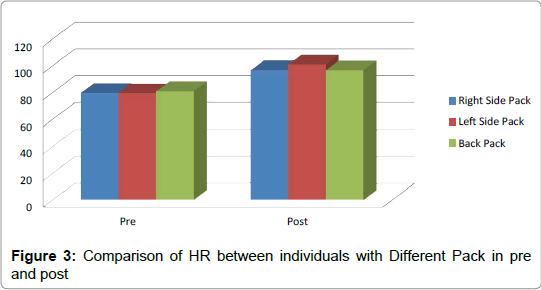

Figure 3: Comparison of HR between individuals with Different Pack in pre and post.

RPE also was measured before and after treadmill walking and the result showed significant differences with right side pack, with left side pack and with back pack. When comparison of RPE readings was done between different pack, the result showed significant differences between right side pack and left side pack, and right side pack and back pack before walking and showed significant differences between, right side pack and back pack and left side pack and back pack after treadmill walking (Tables 2, 4 and 5 and Figures 2 and 4).

  Mean ± SD SEM t-value p-value Significant
Pre post
Right Side Pack 79.88 ± 4.58 96.86 ± 14.20 1.2451 13.638 0.0001 S
Left Side Pack 79.60 ± 4.31 101.16 ± 12.69 1.1494 18.758 0.0001 S
Back Pack 81.04 ± 6.22 96.72 ± 11.16 0.7147 21.932 0.0001 S

Table 2: Comparison of HR Readings of before & after treadmill walking with different packs.

    SEM t- value p-value Significant
  pre Right Side vs.  Left side 0.5704 0.501 0.618 NS
Right side vs. Back Pack 0.7780 1.493 0.138 NS
Left side vs. Back Pack 0.6801 2.128 0.036 S
  post Right Side vs. Left side 1.745 2.460 0.016 S
Right side vs. Back Pack 1.726 0.083 0.934 NS
Left side vs. Back Pack 1.5681 2.830 0.006 S

Table 4: Comparison of HR between individuals with Different Pack in Pre reading.

    SEM t-value p-value Significant
  pre Right Side vs. Left side 0.0543 2.979 0.004 S
Right side vs. Back Pack 0.0502 3.602 0.0001 S
Left side vs. Back Pack 0.0448 0.425 0.672 NS
  post Right Side vs. Left side 0.2230 0.342 0.733 NS
Right side vs. Back Pack 0.2235 2.556 0.012 S
Left side vs. Back Pack 0.2135 3.033 0.003 S

Table 5: Comparison of RPE between individuals with Different Pack in Pre reading.

ergonomics-Comparison-RPE

Figure 4: Comparison of RPE between individuals with Different Pack in pre and post.

Discussion

RPE was measured before and after treadmill walking and comparison was done between before and after treadmill walking in individuals with different pack, the results of the study showed significant differences with right side pack, with left side pack and with back pack, that means RPE was increased after treadmill walking with all types of pack. So when students carrying load that increases the exertion level and they feel a noticeable change in pain when carrying loads which supports with the findings of Devroey et al. [26] that loads of 0% is significantly different than loads of 10% BM. During the walking period, heart rates showed a significant difference, indicating that the student had reached a good exercise state at each workload. The trends of changing HR in this study were also found in other studies on loads carried by children [27]. Findings of Astrand and Rodahl [28] found that when a fit subject is exercising at less than 65% of maximum cardiovascular response is in a steady state.

Moreover, the increase in RPE during the treadmill walking can be explained by increments in perceived pulmonary efforts that are attributable to progressive hyperventilation. Indeed, leg effort should be near maximal from the very beginning of the exercise bout; conversely, ventilation would increase because of progressive metabolic acidosis and contribute markedly to RPE measures as the load was increased during the walking [29]. In addition, RPE has been correlated with several physiological indicators of exercise intensity such as oxygen consumption, blood lactate concentration, and HR during a variety of exercise protocols [30].

When comparison of RPE readings was done between different pack before and after treadmill walking, the result showed significant differences between right side pack and left side pack, and right side pack and back pack and non-significant differences between left side pack and back pack.

This might be because treadmill walking started with right side pack first then left side pack and lastly with back pack thus at the end the exertion was reached a steady level.

The HR was measured before and after treadmill walking and comparison was done between pre and post HR with different pack, the result showed significant differences in all types of pack viz. right side pack, with left side pack and with back pack that means HR was increased after treadmill walking with all types of packs. HR is the component has been commonly observed during static muscular exercise. Kilbom [31] has concluded in his review that the resulting increase in cardiac output during static contractions is mainly directed towards the peripheral parts of the body and only a small part is supplied to the myocardium. In this study standing while carrying a backpack, however, required no significant extra metabolic energy which is in agreement with other studies [32]. In most studies it has been assumed that the metabolic cost per kg load is not dependent on the total mass for loads carried centrally on the body [32].

The increased forward flexion of the spine will possibly increase the shear forces on the segments of the spinal column and it has been noted that sagittal and lateral shear should not be ignored in the assessment of lumbar load (Jager and Luttmann) [33]. This type of loading may be a factor contributing to chronic injuries and subsequent reports of low back pain. Although there was a strong trend towards higher discomfort in the poorer neck posture assumed for laptop use [34].

Conclusion

Based on our results and analysis, we can concluded that RPE increased after treadmill walking with carrying load in right side pack, left side pack and back pack.

References

  1. Knapik J, Harman E, Reynolds K (1996) Load carriage using packs: A review of physiological, biomechanical and medical aspects. ApplErgon27:207-216.
  2. Korovessis P, Koureas G, Zacharatos S, Papazisis Z (2005) Backpacks, back pain, sagittal spinal curves and trunk alignment in adolescents: a logistic and multinomial logistic analysis. Spine 30:247-55.
  3. De Paula AJF, Silva JCP, Paschoarelli LC, Fujii JB (2012) Backpacks and schoo l children’s obesity: challenges for public health and ergonomics. Work 41:900-906.
  4. Mackie HW, Legg SJ, Beadlea J, Hedderley D (2003) Comparison of four different backpacks intended for school use. ApplErgon34:257-264.
  5. Negrini NS, Carabalona R (2002) Backpacks on! Schoolchildren’s perceptions of load, associations with back pain and factors determining the load. Spine 27:187-195.
  6. Dianat I, Javadivala Z, Jafarabadi MA, Hashemi AA, Haslegrave CM (2013) The use of schoolbags and musculoskeletal symptoms among primary school children: are the recommended weight limits adequate? Ergonomics56:79-89.
  7. Twombly SE, Schussman LC (1995) Gender differences in injury and illness rates on wilderness backpacking trips.Wilderness Environ Med4:363-376.
  8. Leemon D, Schimelpfenig T (2003) Wilderness injury, illness, and evacuation: National Outdoor Leadership School’s Incident Profiles. Wilderness Environ Med 14:174-182.
  9. Javadivala Z, Allahverdipour H, Dianat I, Bazargan M (2012) Awareness of parents about characteristics of a healthy school backpack.Health PromotPerspect2:166-172
  10. McIntosh SE, Leemon D, Visitacion J, Schimelpfenig T, Fosnocht D (2007) Medical incidents and evacuations on wilderness expeditions. Wilderness Environ Med18:298-304
  11. Haisman MF (1988) Determinants of load carrying ability. ApplErgon 19:111-121.
  12. Mohamed Z. Ramadan, Al-Shayea AM (2013)A modified backpack design for male school children. Int J IndErgonom43:462-471.
  13. Makela JP, Ramstad R, Mattila V, Pihlajamaki H (2003) Brachial plexus lesions after backpack carriage in young adults. ClinOrthopRelat Res 45:205-209.
  14. Boulware DR (2003) Backpacking-induced paresthesias. Wilderness Environ Med14:161-166.
  15. Chow DH, Kwok ML, Au-Yang AC, Holmes AD, Cheng JC, et al. (2005)The effect of backpack load on the gait of normal adolescent girls. Ergonomics 48: 642-656.
  16. Hong Y, Li JX, Fong DTP (2008) Effect of prolonged walking with backpack loads on trunk muscle activity and fatigue in children. J Electromyography Kinesiol16: 990-996.
  17. Neuschwander T, Cutrone BM, Cutrone S, Murthy G, Chambers H, et al. (2008) Typical school backpack loads significantly compress lumbar discs in children. In: Proceedings of the NASS 23rd Annual Meeting. The Spine J8:S69.
  18. Safikhani H, FadilahT, Kamalden T, Amri SB, Ahmad M (2012) The effect of different backpack loading systems on trunk forward lean angle during walking among college students. Eur J Sport Sci1:1-5.
  19. Pau M, Corona F, Leban B, Pau M (2011) Effects of backpack carriage on foot-ground relationship in children during upright stance. Gait Posture33:195-199.
  20. Grimmer K, Dansie B, Milanese S, Pirunsan U, Trott P (2002) Adolescent standing postural response to backpack loads: a randomized controlled experimental study. BMC Musculoskeletal Disorders3:10.
  21. Bygrave S, Legg SJ, Myers S, Llewellyn M (2004) Effect of backpack fit on lung function. Ergonomics. 47:324-329.
  22. Robertson RJ (2001)Exercise testing and prescription using RPE as a criterion variable. Int J Sport Psychol 32:177-188.
  23. Noble BJ (1996) Perceived Exertion. Champaign, IL: Human Kinetics Books.
  24. Elsangedy HM, Krinski K, Costa EC, Haile L, Fonteles AI, et al. (2013) The rating of perceived exertion is not different at the ventilatory threshold in sedentary women with different body mass indices. J ExercSci Fit 11:102-106.
  25. Devroey C, Jonkers I, de Becker A, Lenaerts G, Spaepen A (2007) Evaluation of the effect of backpack load and position during standing and walking using biomechanical, physiological and subjective measures. Ergonomics 50:728-742.
  26. Malhotra MS, Sen Gupta J (1965) Carrying of school bags by children. Ergonomics 8:55-60.
  27. Astrand PO, Rodahl K (1977) Textbook of Work Physiology. New York: McGraw-Hill.
  28. Pereira G, CorreiaR, UgrinowitschC, Nakamura F, RodackiA, et al. (2011) The rating of perceived exertion predicts intermittent vertical jump demand and performance. J Sport Sci29:927-932.
  29. Eston R, Lambrick D, Sheppard K, Parfitt G (2008) Prediction of maximal oxygen uptake in sedentary males from a perceptually regulated, sub-maximal graded exercise test. J Sport Sci26:131-139.
  30. Kilbom A (1976) Circulatory adaptation during static muscular contractions. A review. Scand J Work Environ Health2:1-13.
  31. Pierrynowski MR, Winter DA, RW N (1981) Metabolic measures to ascertain the optimal load to be carried by man. Ergonomics24:393-399.
  32. Jager M, Luttmann A (1992)The load on the lumbar spine during asymmetrical bi-manual materials handling. Ergonomics 35:783-805.
  33. Straker L, Miller J, Mangharam J, Bates M, Pollock C (1992) Performance effects of postural changes at a VDU work station.
