Exhibitors to Bleeding Disorders in the Context of Pre-Eclampsia: Analytical Preliminary Study About 50 Cases at Laquintinie Hospital (Douala, Cameroon)
Gynecology & Obstetrics

Gynecology & Obstetrics
Open Access

ISSN: 2161-0932

Research - (2021)Volume 11, Issue 6

Exhibitors to Bleeding Disorders in the Context of Pre-Eclampsia: Analytical Preliminary Study About 50 Cases at Laquintinie Hospital (Douala, Cameroon)

Henri Essome1,2*, Florence Obono Ebo1, Fulbert Mangala Nkwele1, Robert Tchounzou4, Merlin Boten3, Gertrude Moukouri Same2, Ingrid Ofakem Ilick2, Grace Tocki Toutou6, Guy Pascal Ngaba1 and Pascal Foumane5
*Correspondence: Henri Essome, Faculty of Medicine and Pharmaceutical Sciences, University of Douala, Cameroon, Tel: +237696475672, Email:

Author info »


Introduction: Pre-eclampsia is one of the major causes of maternal and neonatal morbidity and mortality in the world. The complexity of its etiopathogenesis involves, among other things, age, primi-gravidity, obesity, lack of sensitization to the partner's sperm. Our objective was to describe the socio-clinical profile of the preeclampsia pregnant woman received in consultation in our department and to investigate its influence on certain coagulation parameters (prothrombin level, activated partial thromboplastin time).

Methodology: We carried out an analytical cross-sectional study from 01st November 2018 to 31st May 2019, in the gynecology and obstetrics department of the Laquintinie Hospital in Douala. We recruited 150 pregnant women including 50 preeclampsia matched to 100 non-preeclampsia all with a gestational age greater than 20 weeks of amenorrhea. The variables of interest were age, pregnancy, parity, gestational age, marital status and body mass index, Prothrombin Level (PL), and Activated Cephalin Time (ACT). Statistical tests were considered significant for a p-value <0.05.

Results: The majority age group in both groups was that of 25-30 years with a mean age of 27.80 ± 5.80 in the pregnant preeclampsia; the latter was predominantly pauci-gravid, nulliparous, and grade 1 obese with a gestational age predominantly ≥ 37 weeks of amenorrhea.

In linear regression analysis and unvaried regression analysis, we did not find any socio-clinical factors exposing to coagulation disorders in preeclampsia.

Conclusion: Our preliminary study reveals the non-existence of socio-clinical factors exposing to coagulation disorders in preeclampsia in our setting.


Pre-eclampsia; Pauci-gravid; Obesity; PT


Pre-eclampsia is defined as the Occurrence of Hypertension (HTN) associated with proteinuria after 20 weeks of amenorrhea in a previously normal pregnant woman [1] and occurs in 2% to 7% of pregnancies [2]. According to the WHO, it is one of the major causes of maternal and neonatal morbidity and mortality in the world (14%) and especially in developing countries [3]. It is the third leading cause of maternal mortality, after postpartum hemorrhage and infections in Cameroon [4]. Although the exact cause of preeclampsia is not fully understood, it can be attributed to certain factors, including changes in placental perfusion, endothelial dysfunction, fibrin deposition, inflammation, and hypercoagulability [5,6]. Hypercoagulability is an imbalance between coagulation and fibrinolysis activities leading to the development of multiple thrombi and the rapid consumption of platelets, prothrombin, fibrinogen, and other coagulation factors [7,8] and is thought to be responsible for around 15% of maternal deaths due to preeclampsia [9].

An abnormal enhancement of coagulation activity is involved in the pathogenesis of preeclampsia, as suggested by the increased frequency of venous thromboembolic events, thrombotic placental abnormalities, and thrombin generation in this population [10,11]. This state of hypercoagulability is described in the literature as being more severe in preeclampsia compared to normal pregnancies [12- 14]. In France in 2013, a study found the level of prothrombin higher in pre-eclampsia during pregnancy, childbirth, and postpartum [12]. In China, Han et al. in 2014 found that during the third trimester, pregnant women with preeclampsia presented a state of higher hypercoagulability with the prolongation of the Activated Partial Thromboplastin Time (APTT) and Thrombin Time (TT), the increase in D-dimer and mean platelet volume [13]. In Sudan, Husham et al. in 2016 found that women with severe preeclampsia had significantly higher levels of Thrombin-Activatable Fibrinolysis Inhibitor (TAFI), Plasminogen Activator Inhibitor (PAI) 1, and a significantly lower level of PAI-2 [14].

In Cameroon, several studies have been done on preeclampsia, but data on hypercoagulability and preeclampsia are scarce. To improve the knowledge and the management of hypercoagulability associated with pre-eclampsia in Cameroon, we conducted a preliminary study whose aim was to evaluate the coagulation of pregnant women with preeclampsia in the Laquintinie Hospital Douala through the level of prothrombin and activated cephalin time.


Type of study

This was a cross-sectional analytical case-control study.

Period, duration and place of study

Our study took place from November 1st 2018 to May 31st 2019 (i.e., 7 months) in the obstetrics and gynecology department of Laquintinie Hospital in Douala.

Study population

It consisted of pre-eclampsia and non-preeclampsia pregnant women received during our study period.

Inclusion criteria: We included in our study pregnant women from our study population who gave their informed consent without distinction of age, pregnancy, or parity.

Pre-eclampsia group: Pregnant women with moderate or severe preeclampsia without distinction of gestational age

Non-preeclampsia group: Absence of pre-eclampsia.

Gestational age greater than or equal to 20 weeks of amenorrhea.

Exclusion criteria: Were excluded from our study.

Common exclusions: Smoking, chronic renal failure, chronic liver disease, blood crass disorders, treatment with anti-vitamin K.

Specific exclusions: Non-preeclampsia group: risk factors for preeclampsia (previous diabetes, chronic arterial hypertension, anti-phospholipid syndrome, lupus, history of preeclampsia), gestational hypertension.


We carried out a convenient, consecutive, and not exhaustive sampling.


Administrative procedures: The study protocol had been approved by the Institutional Research Ethics Committee for Human Health of the University of Douala by issuing an ethical clearance N° 1727 CEI-Udo/ 02/2019/T. The collection was carried out with respect for confidentiality by means of anonymous files. We also obtained authorizations from the director of Laquintinie Hospital.

Collection of data: After obtaining informed consent following the explanations relating to the study, the data was collected using a structured data sheet whose variables of interest were:

Socio-demographic: Age, marital status (single, married,), gestational age in the week of amenorrhea, pregnancy, and parity.

Medical (History): Hypertension, diabetes, tobacco addiction, thromboembolic disease, pre-eclampsia, autoimmune disease, hematological conditions, chronic liver disease, chronic renal failure, anticoagulant use. The positivity or negativity of this history was made based on documentation at the medical record level.

Physical: a) Anthropometric and hemodynamic parameters

Weight (kg): was measured using a CAMRY brand scale (Hong Kong, China); the patient standing and barefoot, standing upright on the scale.

Height (in cm) was measured with a measuring rod, the patient with bare feet standing upright with his head horizontal.

The Body Mass Index (in kg/m2) was obtained using the 2 previous measurements by Quételet's formula (the ratio of weight (in kg) to the square of the height (in m). The interpretation was as follows: Normal weight (18.5-24.9), overweight (25-29.9), Obesity grade 1 (30-34.9), Obesity grade 2 (35-39.9), Morbid obesity ( ≥ 40).

Blood pressure (in mmHg): after 10 minutes of rest, it was measured in both arms. This measurement was made using electronic blood pressure monitors from OMRON (Kyoto, Japan). Anyone with BP ≥ 140/90 mm hg was considered hypertensive.

b) Urinary dipstick (for proteinuria testing): It was done using MISSION brand urine strips LOT no.: URS8060151 only in nonpreeclampsia patients. Proteinuria was said to be significant from two crosses.

Biological data: a) Parameters of hemostasis: We explored the coagulation phase of hemostasis through Quick Time (QT), Prothrombin Level (PL), and Activated Cephalin Time (ACT):

The ACT consists of activating the intrinsic pathway of coagulation and explores the factors of the contact system (FXll and FXI, high molecular weight kininogen, prekallikrein), of the antihemophilic complex (FIX, FVll l), of the complex prothrombinase (FX, FV), prothrombin (FII) and fibrinogen (ex-FI).

The Prothrombin time (PT) consists of measuring the time elapsed until fibrin formation after addition to a citrated plasma of an excess of calcium thromboplastin containing tissue factor, phospholipids, and calcium. It is customary to express the prothrombin time as a percentage after calibration. The test is then incorrectly called prothrombin level (PL). Prothrombin time explores factors VII, X, V, II, and fibrinogen.

A) Place of sampling:Samples were taken in obstetrical emergencies, in antenatal care, or the pathological pregnancy department by venipuncture at the fold of the elbow.

B) Sample collection and analysis: For each patient, 5 ml of blood was taken in 01 citrated tube for the determination of QT, PL, INR, and ACT. And the analysis was carried out within 2 hours, after centrifugation at most 15 minutes after sampling, to obtain a plasma poor in platelets by a semi-automatic coagulometer of the BIO SOLEA 2 brand, serial number: 026020-00345 in the laboratory of the Laquintinie hospital.

Statistical analysis

The data collected was recorded, analyzed, and entered using Epi Info 7, Excel 2013, and the software Epi-Data 3.1 (Lauritzen, Denmark).

Quantitative variables were grouped as a mean with standard deviation.

Qualitative variables in the form of numbers and percentages.

The comparison of the qualitative values was made with the Chisquare test and the quantitative variables with the Student t-test. The calculation of the odds ratios and their 95% confidence interval was only done when comparing the biological parameters of the two groups during univariate analysis. Multiple linear regression models were performed, in which PT and ACT levels were dependent variables, and age, parity, gestational age, BMI, and pre-eclampsia were the independent predictors of interest. The p-value was significant if it was less than 0.05.


We approached 187 pregnant women and retained 150 (Figure 1)

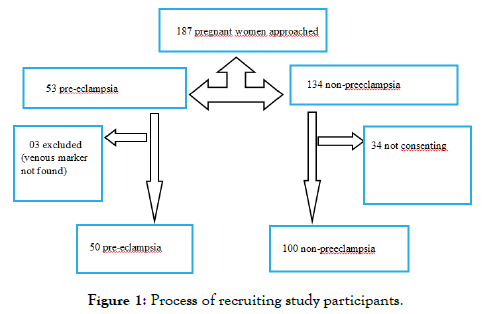

Figure 1: Process of recruiting study participants.

General characteristics of the study population

The ages varied from 16 to 40 years old. The mean age of preeclampsia was 27.80 ± 5.80 and 29.05 ± 5.29 in non-preeclampsia patients without a statistically significant difference. Preeclampsia and non-preeclampsia drugs were more represented in the 25-30 years age group, respectively 32% versus 37% without statistically significant difference. Singles were in majority in both groups, 68% in preeclampsia and 62% in non-preeclampsia patients without statistically significant difference (Table 1).

The mean gravidity was 2.66 ± 1.45 in the preeclampsia and 2.82 ± 1.76 in the non-preeclampsia patients without a statistically significant difference, with the extremes of 1 and 8. The paucigravid was the most common in preeclampsia (40%) and primigravid in non-preeclampsia patients (34%). The mean parity of the preeclampsia was 1.26 ± 1.30 and 1.37 ± 1.42 in the nonpreeclampsia, without a statistically significant difference, with the extremes of 0 and 5. The nulliparas were a majority in both groups (Table 2).



Normal pregnant women


n (%)

n (%)


2.66 ± 1.45
17 (34)
20 (40)
13 (26)
0 (0)

2.82 ± 1.76
34 (34)
32 (32)
30 (30)
4 (4)


Mean ± standard deviation
Grand multigravid


1.26 ± 1.30
21 (42)
7 (14)
18 (36)
4 (8)

1.37 ± 1.42
39 (39)
22 (22)
26 (26)
13 (13)


Mean ± standard deviation

Table 2 : Obstetric history of our population.

The majority gestational age in the two groups was ≥ 37 weeks with a mean in the preeclampsia of 36.16 ± 3.41 against 33.43 ± 5.61 in the non-preeclampsia with a statistically significant difference (p=0.047).

The mean body mass index in preeclampsia patients was 31.16 ± 4.71 compared with 30.23 ± 4.73 in non-preeclampsia patients without a statistically significant difference. Obese Grade 1 pregnant women were significantly in majority among those with preeclampsia (40% versus 16%) (p=0.001). On the other hand, grade 2 obesity significantly affected 21% of non-preeclampsia patients compared with 6% of preeclampsia patients (p= 0.018) (Table 3).



Normal pregnant women


n (%)

n (%)

Gestational age (wa)

36.16 ± 3.41
18 (36)
8 (16)
24 (48)

34.43 ± 5.61
37 (37)
26 (26)
37 (37)


Mean ± standard deviation
= 37

BMI (Kg/m²)

31.16 ± 4.71
3 (6)
21 (42)
20 (40)
3 (6)
3 (6)

30.23 ± 4.73
8 (8)
51 (51)
16 (16)
21 (21)
4 (4)


Mean ± standard deviation
= 40

Table 3: Gestational age and Body mass index in our population.

Biological parameters: Pregnant women with preeclampsia were 4.89 times more likely to develop hypercoagulability than normal pregnant women (Table 4).

Variables Preeclampsia Normal OR CI p
n (%)
pregnant women
n (%)
PT (seconds) 12.13 ± 1.24
29 (58)
17 (34)
4 (8)
12.53± 0.84
22 (22)
78 (78)
0 (0)
Mean ± standard deviation
PL (%) 100.59 ± 19.63
4 (8)
17 (34)
29 (58)
93.50± 12.50
0 (0)
78 (78)
22 (22)
Mean ± standard deviation
ACT (seconds) 34.08 ± 4.37
0 (0)
44 (88)
6 (12)
32.98 ± 3.47
0 (0)
100 (100)
0 (0)
Mean ± standard deviation

Table 4: Comparison of the biological parameters of our population

We did not find any socio-clinical factors exposing coagulation disorders in preeclampsia either in linear regression analysis or in univariate analysis (Tables 5 and 6).


Prothrombin level

Activated cephalin time

Coefficient SE               p Coefficient SE          p
Age 0.03 0.02 0.175 0.01 0.05 0.761
BMI 0.1 0.06 0.12 0.02 0.03 0.432
Gestational age 0.11 0.09 0.259 0.03 0.04 0.381
Parity 0.01 0.02 0.473 0.04 0.02 0.069
Gravidity 0.02 0.01 0.286 0.02 0.01 0.226
Preeclampsia 0.07 0.02 0.008 0.11 0.06 0.096
SE: Standard Error

Table 5: Linear regression analysis of the factors associated with PL, ACT.

Variables Prothrombin level OR CI p
> 100
n (%)
n (%)
Age (years)   16 (55.2)
13 (44.8)
  13 (61.9)
8 (38.1)
  0.75   0.24 -2.38   0.634
= 28
> 28
Gravidity   22 (75.9)
7 (24.1)
  15 (71.4)
6 (28.6)
  1.25   0.35-4.48   0.724
= 3
> 3
Parity   18 (62.1)
11 (37.9)
  10 (47.6)
11 (52.4)
  1.80   0.57-5.61   0.309
= 1
> 1
Gestational age (sa)   18 (62.1)
11 (37.9)
  8 (38.1)
13 (61.9)
  2.65   0.83-8.45   0.093
= 37
Marital status   8 (27.6)
21 (72.4)
  5 (23.8)
16 (76.2)
  1.21   0.33-4.44   0.763
BMI (Kg/m²)   14 (48.3)
15 (51.7)
  10 (47.6)
11 (52.4)
  0.97   0.31-2.99   0.963
= 30

Table 6: Univariate analysis of risk factors associated with hypercoagulability in preeclampsia.

We did not find any socio-clinical factors associated with coagulation disorders in preeclampsia in our study.


Sociodemographic and clinical characteristics

The international literature recognizes advanced age, primigravidity, nulliparity, obesity, and lack of exposure to sperm of the partner, as factors that may lead to the onset of preeclampsia.

These socio-clinical factors are variably found in our study as much as the work of other authors.

Age: The mean age of preeclampsia and non-preeclampsia was 27.80 ± 5.80 and 29.05 ± 5.29, respectively, without a statistically significant difference. The range was 16 years to 40 years and the 25-30 age group was the majority in the two paired groups with respectively 32% in preeclampsia and 37% in the match group. Our findings are similar to data from the literature as reported by Awolola et al. in 2016 in Nigeria [7], Han et al. in 2014 in China [13], Chen et al. in 2017 in China [15], Namavar et al. in 2009 in Iran [16] and Nirmala et al. in 2015 in India [17]. The 25-30 age group corresponds to the optimal period of human procreation.

Obstetric History:

Gestation: The mean pregnancy was 2.66 ± 1.45 in the preeclampsia and 2.82 ± 1.76 in the non-preeclampsia patients, with a statistically insignificant difference. These results are identical to those found by Namavar et al. in 2009 in Iran [16]. Paucigravid was the most prevalent in preeclampsia (40%) and primigravid in nonpreeclampsia patients (34%). These results are contradictory to those found by Nirmala et al. in 2015 in India [17] including 61% of primigravid among preeclampsia. The high number of previous miscarriages in our study may be the explanation.

Parity: The mean parity of preeclampsia was 1.26 ± 1.30 and 1.37 ± 1.42 in non-preeclampsia patients with a non-significant statistical difference. These results are identical to those found by Awolola et al in 2016 in Nigeria [7]. Nulliparas were in the majority in the two groups as opposed to Han et al. in 2017 in China [13] who found only nulliparas. This difference can be explained by conjoint facts: on one hand the limitation of birth in China due to their overpopulation and our customs on the other.

Gestational age: The mean gestational age in preeclampsia patients was 36.16 ± 3.41 and 33.43 ± 5.61 in non-preeclampsia patients with a statistically significant difference. These results are identical to those found by Awolola et al. in 2016 in Nigeria [7], Namavar et al. in 2009 in Iran [16], and Nirmala et al. in 2015 in India [17]. This can be explained by the fact that the preeclampsia pregnant women included were predominantly at term.

The body mass index: The mean BMI in the two paired groups was 31.16 ± 4.71 in the preeclampsia and 30.23 ± 4.73 in the nonpreeclampsia patients without a statistically significant difference. Our results contradict those reported by Han et al. in 2017 in China [13] who found an average BMI of 23.8 ± 0.8 in preeclampsia and 23.4 ± 1.2 in non-preeclampsia patients. This difference can be attributable to the racial stature of these studies.

Socio-clinical factors exposing coagulation disorders

We looked for the risk factors for coagulation disorder in preeclampsia especially maternal age, gestational age, and obesity which are risk factors identified as such by the international literature [18-20] and we did not find any. This result is identical to the study conducted by Christelle et al. in 2014 in France [10].

Thus, our results reported in Table V were not influenced by these identified risk factors.


At the end of our study, the preeclampsia pregnant woman in our environment was obese pauci-gravid, nulliparous with an average age of 27.80 ± 5.80, and her profile did not influence her coagulation disorders.

Limitation of the study

The sample size that was not calculated due to a lack of available data may therefore lack statistical power The hemostasis parameters used, although not negligible and accessible, seem to us insufficient to assess hemostasis The particularities of the population studied as well as the individual predisposition to coagulopathy can have a significant impact on the results obtained as well as on their interpretation; and these can explain the different rates between studies and justify their heterogeneity by location. This is the case with some of our findings concerning those of other authors. This, therefore, means that beyond the thesis-anti thesis approach, it is necessary to consider the racial component sometimes not in phase with certain so-called referential and predominantly Caucasian data. We recruited, consecutively but not exhaustively, 150 pregnant women, including 50 preeclampsia matched with 100 non-preeclampsia.

Conflict of Interest

The authors declare on honor that they have no conflict of interest.

Contribution of the Authors

Essome designed the study and wrote the manuscript, Obono collected the data and carried out the documentary research, Mangala, Boten, Moukouri, Ofakem, Tchounzou, and Ngaba read and corrected the manuscript, Tocki provided the translation as well as the formatting of the manuscript, Foumane led the study and supervised the writing of the manuscript, All authors have read and approved the final version of the manuscript.

Annex: Please check the supplementary file.


  1. Sibai B, Dekker G, Kupferminc M. Pre-eclampsia. Lancet. 2005;365:785-799.
  2. American College of Obstetricians and Gynecologists. ACOG committee on practice bulletins: Obstetrics. Obstet Gynecol. 2002;99:159-617.
  3. Say L, Chou D, Gemmill A, Tunçalp �, Moller AB, Daniels J, et al. Global causes of maternal death: A WHO systematic analysis. Lancet.2014 Jun 1;2:e323-e333.
  4. Fomulu FJ, Ngassa PN, Nong T, Nana P, Nkwabong E. Mortalité maternelle à la Maternité du Centre Hospitalier et Universitaire de Yaoundé, Cameroun: étude rétrospective de 5 ans (2002 à 2006). Health Sci. 2013;10:1-6.
  5. Hladunewich M, Karumanchi SA, Lafayette R. Pathophysiology of the clinical manifestations of preeclampsia. Clin J Am Soc Nephrol. 2007;2:543-549.
  6. Redman CW, Sargent IL. Placental stress and pre-eclampsia: A revised view. Placenta. 2009;30:38-42.
  7. Awolola OO, Enaruna NO. Determination of coagulopathy complicating severe preeclampsia and eclampsia with platelet count in a university hospital, South South, Nigeria. Trop J Obstet Gyneacol. 2016;33:179-84.
  8. Cunningham GF, Leveno JK, Bloom LS, Hauth CJ, Gilstrap L, Westrom DK. Hypertensive Disorders in Pregnancy. In: Williams Obstetrics. 22nd ed. New York: McGraw-Hill Medical Publishing Division. 2005:p761-808.
  9. Preeclampsia_and.11.aspx' target='_blank'>Mackay AP, Berg CJ, Atrash HK. Pregnancy-related mortality from pre-eclampsia and eclampsia. Obstet Gynaecol. 2001;97:533-538.
  10. Christelle T, Masson L, Vermersch C, Houfflin-Debarge V, Bauters A, Ducloy-Bouthors AS. Hypercoagulabilité et prééclampsie: profil thromboélastométrique. Anesthésie Réanimation. 2015;1:A76.
  11. Devisme L, Merlot B, Ego A, Houfflin-Debarge V, Deruelle P, Subtil D. A casecontrol study of placental lesions associated with pre-eclampsia. Int J Gynaecol Obstet Off Organ Int Fed Gynaecol Obstet. 2013;120:165-168.
  12. Masson L, Caron C, Vermersch C, Houfflin-Debarge V, Estevez MG, Ducloy-Bouthors AS. Phénotype hyper-coagulable et pré-éclampsie: étude prospective de la génération de thrombine dans une population de patientes pré-éclamptiques. Anesthésie Réanimation. 2015;1:A120- A121.
  13. Han L, Liu X, Li H, Zou J, Yang Z, Han J, et al. Blood coagulation parameters and platelet indices: changes in normal and preeclamptic pregnancies and predictive values for preeclampsia. PloS one. 2014;9:e114488.
  14. Husham O, Abdel M., Mohammed R, Duria A, Elhassan M, Ishag A. Fibrinolysis parameters in Sudanese women with severe preeclampsia. Hypertension in Pregnancy. 2016;35:559-564.
  15. Chen Y, Lin L. Potential value of coagulation parameters for suggesting preeclampsia during the third trimester of pregnancy. Am J Med Sci. 2017;354:39-43.
  16. Namavar JB, Rfiee SH. Coagulation factors in severe preeclampsia. Iran Red Crescent Med J. 2009;11:321-324.
  17. Nirmala T, Kumar PL, Vani BR, Murthy SV, Geetha RL. Study of coagulation profile in Pregnancy Induced Hypertension (PIH). Indian J Pathol Oncol. 2015;2:1-6
  18. Rosenkranz A, Hiden M, Leschnik B, Eva-Christine W, Schlembach D, Lang U, et al. Calibrated automated thrombin generation in normal uncomplicated pregnancy. Thromb Haemost. 2008;99:331-337.
  19. Hellgren M. Hemostasis during normal pregnancy and puerperium. Semin Thromb Hemost. 2003; 29:125-130.
  20. Brenner B. Haemostatic changes in pregnancy. Thromb Res. 2004;114:409-414.
