Diffusion Tensor Imaging Predicts Motor Functional Outcome after Acute Hypertensive Intracerebral Hemorrhage

In Bo Han1, Jin Soo Kim2, Byung Joo Kim2 and Soo Hong Lee2*
1Department of Neurosurgery, CHA University, Bundang CHA Medical Center, Seongnam, Korea
2Department of Biomedical Science, Cha University, Seongnam, Korea
*Corresponding Author: Soo Hong Lee, Department of Biomedical Science, Cha University, 335, Pangyo-ro, Bundang-gu, Seongnam-si, Gyeonggi-do, 463-400, Korea, Tel: 82-10-7766-4756 Email:

Abstract

Early evaluation of the corticospinal tract (CST) is critical for patients with acute hypertensive intracerebral hemorrhage (ICH) to predict long-term motor functional outcome. Therefore, we investigated motor functional outcome of an ICH using diffusion tensor imaging (DTI) in patients with hypertensive ICH. Thirty six patients with hemiparesis due to hypertensive ICH underwent DTI within 3 days after onset. Fractional anisotropy (FA) was measured within the CST at levels of the posterior limbs of the internal capsules, and motor impairment was assessed on admission and 8 weeks after ICH by manual muscle test. The correlation between FA ratio and improvement of motor function was analyzed by Pearson’s correlation analysis. The FA ratio from the initial DTI showed a correlation with motor function improvement. The amount of hematoma correlated with motor function on admission, but did not show correlation with the degree of motor recovery. Therefore, FA ratio analysis calculated from FA values of DTI could be a prognostic factor of motor function improvement in patients with hypertensive ICH.

Keywords: Hypertensive intracerebral hemorrhage; Diffusion tensor imaging; Corticospinal tract; Motor impairment

Introduction

Hypertensive intracerebral hemorrhage (ICH) may be accompanied by various degrees of motor function deficits. The most common locations of hypertensive ICH are basal ganglia (BG), thalamus, and cerebellum. The main type of motor impairment resulting from hypertensive ICH is damage to the corticospinal tract (CST). Particularly, posterior limb of the internal capsule is frequently affected by hypertensive ICH in the BG and thalamus. Previous studies have attempted to predict motor function outcome by analyzing CST state during the early stages of ICH [1-5] and diffusion tensor imaging (DTI) has received increasing attention.

DTI is a promising method for characterizing microstructural changes or difference of brain tissues and the diffusion tensor may be used to characterize the magnitude, anisotrophy and orientation of the diffusion tensor [6]. Each of different neural fiber has different directions by which diffusion directions are affected, and it is visualized using DTI. Those different neuronal fiber directions could be analyzed using DTI and clinically it could be applied to some white mater diseases. Estimates of white matter connectivity patterns in the brain from white matter tractography may be obtained using the diffusion anisotropy and the principal diffusion directions [6-9]. Prediction of motor function outcome after hypertensive ICH is critical for patients and doctors. Computed tomography (CT) scan and magnetic resonance imaging (MRI) can evaluate the amount of hematoma and location of hematoma, but these techniques are difficult to determine the motor functional outcomes.

Thus, we performed DTI within 3 days following hypertensive ICH and attempted to elucidate the correlation between the extents of the damage of CST passed through posterior limb of the internal capsule and motor functional outcome of patients with hypertensive ICH at 8 weeks after onset.

Materials and Methods

Patients

From January 2014 to December 2014, DTI was performed on 36 patients with hypertensive ICH within 3 days after ICH. The inclusion criteria were as follows: (1) hypertensive ICH in BG and/or thalamus as diagnosed by CT scan; (2) motor deficit present at the time of admission; (3) no previous history of stroke, traumatic brain injury, or other brain disease. This study was approved by our institutional review board and informed consent was obtained from all patients.

Clinical assessment and magnetic resonance imaging

Motor impairment was evaluated according to the severity of motor paresis, which was estimated at the time of admission and 8 weeks after ICH. Motor functions of each patient were examined by manual motor test graded as 0 to 5 points at both upper and lower extremities.

Hypertensive ICH was diagnosed based on initial brain CT scan with thickness of 4.5 mm. The amount of hematoma was calculated by recording the largest diameter seen on CT, the diameter orthogonal to it, and the number of 4.5 mm slices on which the hematoma could be seen. The total volume was estimated using the formula for an ellipsoid, ABC/2, where A, B, and C represent the respective diameters of the 3 dimensions [10]. DTI was performed using a 1.5-T Magnetom Sonata Maestro Class scanner (Siemens, Erlangen, Germany). The DTI data was acquired using a single-shot echo-planar imaging sequence (repetition time, 12,100 ms; echo time, 100 ms; field of view, 256 mm; number of excitation, 1; matrix 128 × 128; and 2 mm thickness. The DTI was performed within 3 days following ICH onset. Figure 1 reveals initial brain CT scan, tractography, and FA map of patient #36, who showed no motor recovery at last follow-up.

cell-science-therapy-motor-recovery

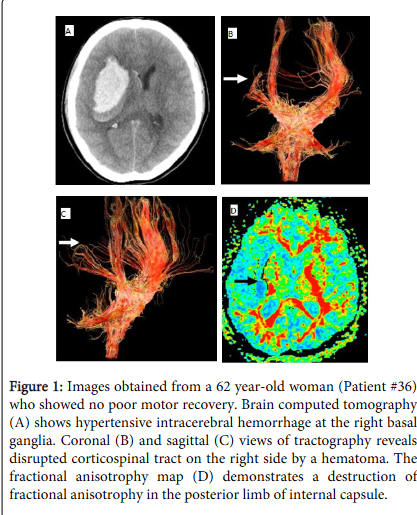

Figure 1: Images obtained from a 62 year-old woman (Patient #36) who showed no poor motor recovery. Brain computed tomography (A) shows hypertensive intracerebral hemorrhage at the right basal ganglia. Coronal (B) and sagittal (C) views of tractography reveals disrupted corticospinal tract on the right side by a hematoma. The fractional anisotrophy map (D) demonstrates a destruction of fractional anisotrophy in the posterior limb of internal capsule.

Data processing

The fractional anisotrophy (FA) for analyzing the extent of the affected by measuring the region of interest (ROI) in the FA map [2,11]. In addition, the ratio of the FA between the affected and affected sides was calculated. FA ratio was defined as the proportion of FA value of injured posterior limb of the internal capsule (b) to FA value of non-injured (a), and calculated as follows: FA ratio (%)=b/a × 100.

Statistical analysis

All statistical analyses were performed using SPSS software version 17.0 (SPSS Inc, Chicago, IL). Each result of manual motor test values were compared with FA ratio and relations were analyzed by Pearson’s correlation analysis. Analysis of motor function with the amount of hematoma was also preformed with Pearson’s correlation analysis. And other factors, such as hypertension and diabetes were also analyzed the relationship with motor function by linear-by-linear association. A multivariate liner regression model was applied to study the associations with the regard on independence. A p value less than 0.05 was considered statistically significant.

Results

Male female ratio was 1.4:1 (male 21 and female 15) and mean age was 67.5 years old. Twenty-six patients underwent surgery (23 stereotactic surgeries, 3 craniotomy surgeries) and 10 patients were treated conservatively. Locations of hematoma were BG in 24 patients, thalamus in 11 patients, and both of these in 1 patient. The patients’ data included in this study were summarized in Table 1. All patients showed that injured area FA value was lower than normal area FA value. Table 2 shows that the relation between FA ratios and manual motor test values (initial and follow up). In the case of motor power of upper limb, there was significant correlation (p=0.010) on admission day and higher significant correlation (p=0.001) 8 weeks following ICH. On the other hand, the correlation between motor function of lower extremities on admission and FA ratio was not statistically significant (p=0.071), but the correlation between motor function of lower extremities 8 weeks after ICH onset and FA ratio was statistically significant (p=0.006).

No. Sex Age Volume (cc) operation HTN DM UM/LM* Admission UM/LM Follow up FA value**: unaffected FA value : affected FA ratio
1 M 77 44 O N N 0/2 2/3 0.544 0.535 98.3%
2 F 65 19 O N N 3/2 3/2 0.462 0.374 81.0%
3 F 72 5 X N N 5/5 5/5 0.347 0.342 98.6%
4 M 69 168 O N Y 2/1 4/3 0.496 0.487 98.2%
5 M 69 27 O N N 4/4 5/5 0.466 0.442 94.8%
6 M 62 3 X Y N 4/4 5/5 0.534 0.364 68.2%
7 M 62 36 O Y N 3/4 3/4 0.516 0.501 97.1%
8 M 77 9 X N N 4/2 5/5 0.625 0.598 95.7%
9 M 61 43 O N N 1/1 0/1 0.428 0.217 50.7%
10 F 68 28 O N N 2/4 5/5 0.321 0.317 98.8%
11 F 68 26 O N N 2/0 2/4 0.382 0.374 97.9%
12 M 60 36 O N Y 3/3 2/2 0.586 0.449 76.6%
13 M 65 65 O Y N 2/2 2/2 0.552 0.287 52.0%
14 M 64 9 O N N 4/4 4/5 0.520 0.387 74.4%
15 F 70 10 O N N 1/2 1/4 0.460 0.346 75.2%
16 F 82 3 X Y N 4/4 5/5 0.578 0.461 79.8%
17 F 73 2 X Y N 4/4 4/5 0.293 0.272 92.8%
18 M 68 8 O N N 2/3 2/3 0.447 0.313 70.0%
19 M 69 25 O Y N 1/2 1/2 0.495 0.350 70.7%
20 M 62 25 O Y N 1/2 1/2 0.521 0.489 93.9%
21 M 83 3 X N N 3/3 5/5 0.609 0.586 96.2%
22 M 64 18 O N N 2/4 3/5 0.501 0.427 85.2%
23 F 69 6 O Y N 1/2 1/3 0.481 0.371 77.1%
24 M 67 20 O Y N 1/2 2/3 0.542 0.405 74.7%
25 M 67 18 O N N 1/2 1/3 0.413 0.210 50.8%
26 M 62 66 O Y N 3/1 4/1 0.312 0.303 97.1%
27 F 61 10 O N N 2/3 4/4 0.411 0.394 95.9%
28 F 68 8 X N N 2/3 2/3 0.481 0.401 83.4%
29 M 68 110 O N N 1/2 5/5 0.495 0.295 59.6%
30 M 64 7 X Y Y 4/4 4/4 0.461 0.452 98.0%
31 F 72 8 X Y Y 3/3 3/3 0.394 0.332 84.3%
32 F 68 10 O N N 3/3 5/5 0.551 0.542 98.4%
33 M 62 41 O N N 2/2 4/4 0.341 0.304 89.1%
34 F 66 2 X Y N 4/4 5/5 0.410 0.395 96.3%
35 F 65 31 O Y N 1/1 1/1 0.391 0.243 62.1%
36 F 62 49 O Y N 1/1 1/1 0.431 0.274 63.6%

*UM: Upper Motor; LM: Lower Motor; **FA: Fraction Anisotropy
Y: Yes; N:No; HTN:Hypertension; DM: Diabetes Mellitus

Table 1: The patients' data included in this study.

  UM adm* UM F/U** LM adm LM F/U
FA ratio 0.010 0.001 0.071 0.006
Volume 0.044 0.891 0.002 0.076

* UM: Upper Motor; LM: Lower Motor; ** FA: Fraction Anisotropy;F/U: Follow-Up

Table 2: Correlation between motor function and FA ratio and volume of hemorrhage.

Therefore we could determine that FA ratio was significantly correlated with motor function improvement. The correlation between motor function and volume of hematoma was statistically significant on admission (p=0.044 and p=0.002), however, there was no statistically significant correlation 8 weeks after ICH (p=0.891 and p=0.076). The correlation of other factors (hypertension and diabetes) with motor function was summarized in Table 3.

  UM adm UM F/U LM adm LM F/U
HTN 0.804 0.169 0.593 0.118
DM 0.845 1.000 0.679 0.463

Adm: Admission,* UM: Upper Motor; LM: Lower Motor; ** FA: Fraction Anisotropy;F/U: Follow-Up; HTN: Hypertension; DM: Diabetes Mellitus

Table 3: Correlation between motor function and hypertension and diabetes.

In these results, there were no statistically significant correlations between other factors and motor function. When the effects of FA ratio from the DTI on motor recovery were examined with regard on independence in a multivariate linear regression model, only FA ratio remained as a significant independent factor (p=0.005; F=12.4; r2=0.41; Table 4).

Variable β* p
FA ratio 0.648 0.005
Hypertension -0.354 0.270
Diabetes mellitus -0.311 0.337
Hemorrhage volume 0.307 0.189
Age 0.173 0.540
Sex 0.237 0.256
Motor grade on admission 0.253 0.201
Surgery -0.132 0.539
Admission time 0.017 0.928

β* indicates the standardized partial regression coefficient, Only variables with p<0.05 entered into the model;F=12.4, p=0.005; r2=0.41; FA : Fraction Anisotropy

Table 4: Multivariate linear regression analysis to predict motor recovery at 8 weeks after intracerebral hemorrhage.

Discussion

DTI is a technique to display different direction of diffusion in each different neural tissue in diffusion weighted image (DWI). It has been reported that DTI is more sensitive test than DWI in brain whitemater infarction [12]. Moreover, in contrast to conventional MR studies in some cases of diffuse axonal injury without any clinical brain lesion, white-mater damage could be detected by DTI [13].

In patients with cerebral infarction, several studies have shown that the DTI could identify the structural changes including motor fibers in CST [14]. Additionally, the DTI could provide useful information in tumor patients [15-17]. Therefore, the DTI appears to be a method to investigate the neuronal and axonal fiber damages in the posterior limb of the internal capsule, and FA ratio has been used as a prognostic factor of motor function [18]. Furthermore, it has been suggested that the motor function recovery following ICH could be estimated by investigating the state of the CST using DTI [1-5,10].

In the present study, we determined the correlation between the motor impairment due to ICH and the FA ratio from DTI. The patients with high FA ratio showed good motor recovery even though the severity of initial motor impairment was severe. In contrast, the patients with low FA ratio showed poor recovery even if the initial severity of motor impairment was not severe. In other words, the degree of motor improvement was correlated with the FA ratio, but was not correlated with the initial degree of motor impairment. When the relationship between the amount of hematoma and the degree of motor improvement was examined, we could not find relationship between volume of hematoma and motor function improvement. In general, if there is a large hematoma, there is more possibility of damage to CST including the posterior limb of the internal capsule, thereby increasing in motor impairment. However, even large hematoma could not always give rise to motor impairment if the hematoma does not destruct the CST and only compress the CST, particularly the posterior limb of internal capsule.

Neurological recovery following ICH occurs mainly during the first 2 weeks and over 90% of neurological recovery from stroke takes place in the first 3 months [19,20]. However, in our study, we compared the degree of motor recovery using manual motor test at 8 weeks following ICH. Additionally there are several limitations in this study: (1) we did not consider factors like shape of hematoma, direction, location and circulation which could influence prognosis. (2) There was the possibility of bias in measuring FA because the boundary of measurements was not always the same in all cases. (3) We did not perform follow-up DTI at 8 weeks after ICH to elucidate the longitudinal changes of the injured CST.

Based on our results, FA ratio can reflect injury of posterior limb of the internal capsule of CST, thereby that motor improvement could be estimated by measuring FA ratio from DTI in patients with hypertensive ICH.

Conclusion

In patients with hypertensive ICH, FA ratio that is calculated from FA values of DTI could be a prognostic factor of motor function improvement. The amount of hematoma may be related to motor function on admission, but it is not related to the degree of motor recovery.

Acknowledgement

This work was supported by the Korea Healthcare Technology Research & Development Project, Ministry for Health & Welfare Affairs (#A121956).

References

  1. Jang SH, Cho SH, Kim YH, Han BS, Byun WM, et al. (2005) Diffusion anisotrophy in the early stages of stroke can predict motor outcome. RestorNeurolNeurosci 23: 11-17.
  2. Kusano Y,Seguchi T, Horiuchi T, Kakizawa Y, Kobayashi T, et al. (2009) Prediction of functional outcome in acute cerebral hemorrhage using diffusion tensor imaging at 3T: a prospective study. AJNR Am J Neuroradiol 30: 1561-1565.
  3. Yoshioka H,Horikoshi T, Aoki S, Hori M, Ishigame K, et al. (2008) Diffusion tensor tractography predicts motor functional outcome in patients with spontaneous intracerebral hemorrhage. Neurosurgery 62: 97-103.
  4. Cho SH, Kim SH, Choi BY, Cho SH, Kang JH, et al. (2007) Motor outcome according to diffusion tensor tractography findings in the early stage of intracerebral hemorrhage. NeurosciLett 421: 142-146.
  5. Jang SH,Ahn SH, Sakong J, Byun WM, Choi BY, et al. (2010) Comparison of TMS and DTT for predicting motor outcome in intracerebral hemorrhage. J NeurolSci 290: 107-111.
  6. Alexander AL, Lee JE, Lazar M, Field AS (2007) Diffusion tensor imaging of the brain. Neurotherapeutics 4: 316-329.
  7. Conturo TE, Lori NF, Cull TS, Akbudak E, Snyder AZ, et al. (1999) Tracking neuronal fiber pathways in the living human brain. ProcNatlAcadSci U S A 96: 10422-10427.
  8. Mori S, Crain BJ, Chacko VP, van Zijl PC (1999) Three-dimensional tracking of axonal projections in the brain by magnetic resonance imaging. Ann Neurol 45: 265-269.
  9. Basser PJ,Pajevic S, Pierpaoli C, Duda J, Aldroubi A (2000) In vivo fiber tractography using DT-MRI data. MagnReson Med 44: 625-632.
  10. Cho HC, Son EI, Lee SY, Park GY, Sohn CH, et al. (2005) Analysis of corticospinal tract injury by using the diffusion tensor imaging of 3.0T magnetic resonance in patients with hypertensive intracerebral hemorrhage. J Korean NeurosurgSoc 38:331-337.
  11. Park GY, Ro HJ, Lee SY, Lim JG, Paik SK, et al. (2004) The correlation of motor impairment and fractional anisotrophy in diffusion tensor imaging in post-stroke hemiplegic patients. J Korean Acad Rehab Med 28: 122-125.
  12. Mukherjee P,Bahn MM, McKinstry RC, Shimony JS, Cull TS, et al. (2000) Differences between gray matter and white matter water diffusion in stroke: diffusion-tensor MR imaging in 12 patients. Radiology 215: 211-220.
  13. Arfanakis K, Haughton VM, Carew JD, Rogers BP, Dempsey RJ, et al. (2002) Diffusion tensor MR imaging in diffuse axonal injury. AJNR Am J Neuroradiol 23: 794-802.
  14. Lie C, Hirsch JG, Rossmanith C, Hennerici MG, Gass A (2004) Clinicotopographical correlation of corticospinal tract stroke: a color-coded diffusion tensor imaging study. Stroke 35: 86-92.
  15. Berman JI, Berger MS, Mukherjee P, Henry RG (2004) Diffusion-tensor imaging-guided tracking of fibers of the pyramidal tract combined with intraoperative cortical stimulation mapping in patients with gliomas. J Neurosurg 101:66-72.
  16. Hendler T, Pianka P, Sigal M, Kafri M, et al. (2003) Delineating gray and white matter involvement in brain lesions: three-dimensional alignment of functional magnetic resonance and diffusion-tensor imaging. J Neurosurg 99:1018-1027.
  17. Wade DT, Wood VA, Hewer RL (1985) Recovery after stroke-the first 3 months. J NeurolNeurosurg Psychiatry 48: 7-13.
  18. Karlsborg M, Rosenbaum S, Wiegell M, Simonsen H, Larsson H, et al. (2004) Corticospinal tract degeneration and possible pathogenesis in ALS evaluated by MR diffusion tensor imaging. Amyotroph Lateral Scler Other Motor Neuron Disord 5:136-140.
  19. Murray EB (1998) Rehabilitation Medicine: Principles and Practice.(3rdedn), Lippincott-Raven Publishers, Philadelphia, USA.
  20. Wade DT, Wood VA, Hewer RL (1985) Recovery after stroke--the first 3 months. J NeurolNeurosurg Psychiatry 48: 7-13.
Citation: Han IB, Kim JS, Kim BJ, Lee SH (2015) Diffusion Tensor Imaging Predicts Motor Functional Outcome after Acute Hypertensive Intracerebral Hemorrhage. J Cell Sci Ther 6:203.

Copyright: © 2015 Han IB, et al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.
